Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#28070) — 238 parça

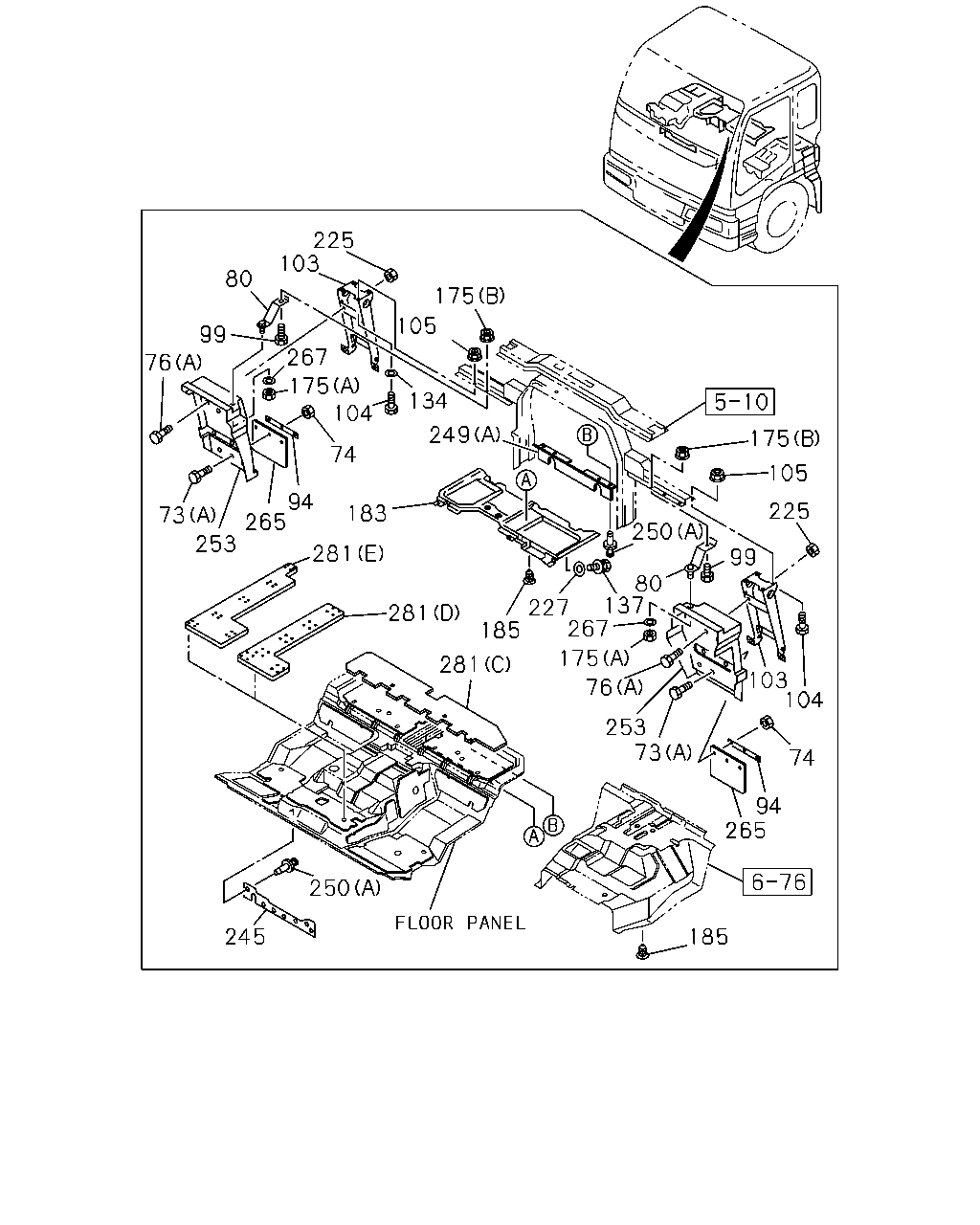

225 103 80 99 76 175 105 267 175 73 253 265 94 74 104 134 249 183 281 281 281 185 227 175 225 105 104 103 74 94 265 185 73 253 76 175 80 250 99 137 267 245 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28280-816-0	08	1	0105-0512
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	0601-
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0105-
74	NUT M8 FLANGE	0-91150-108-0	06	1	0105-0602
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0105-0602
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	02	1	0603-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	0105-0602
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	03	1	0603-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0105-
94	RETAINER; FLAP RUBBER	1-79931-091-2	02	1	0105-
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	0601-
103	BRACKET ASM; RR MUD FLAP	1-79931-088-4	02	1	0105-
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	08	1	0105-0512
104	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	0601-
105	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0105-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	0105-
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	0603-
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	0603-
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	0105-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0403-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	28	1	0105-0202
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0203-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	11	1	0105-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0403-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	0105-0602
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	08	1	0603-
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0105-
245	RUBBER; SHUTTER,RAD	1-79937-982-1	01	1	0105-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-
253	GUARD; MUD	1-79931-067-7	01	1	0105-
253	GUARD; MUD	1-79931-064-7	01	1	0105-
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	0105-
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	0105-0605
267	WASHER; PL,STAY ID=8.4 OD=26	0-91614-808-0	02	1	0606-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-
281	INSULATOR; NOISE CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	0105-
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-

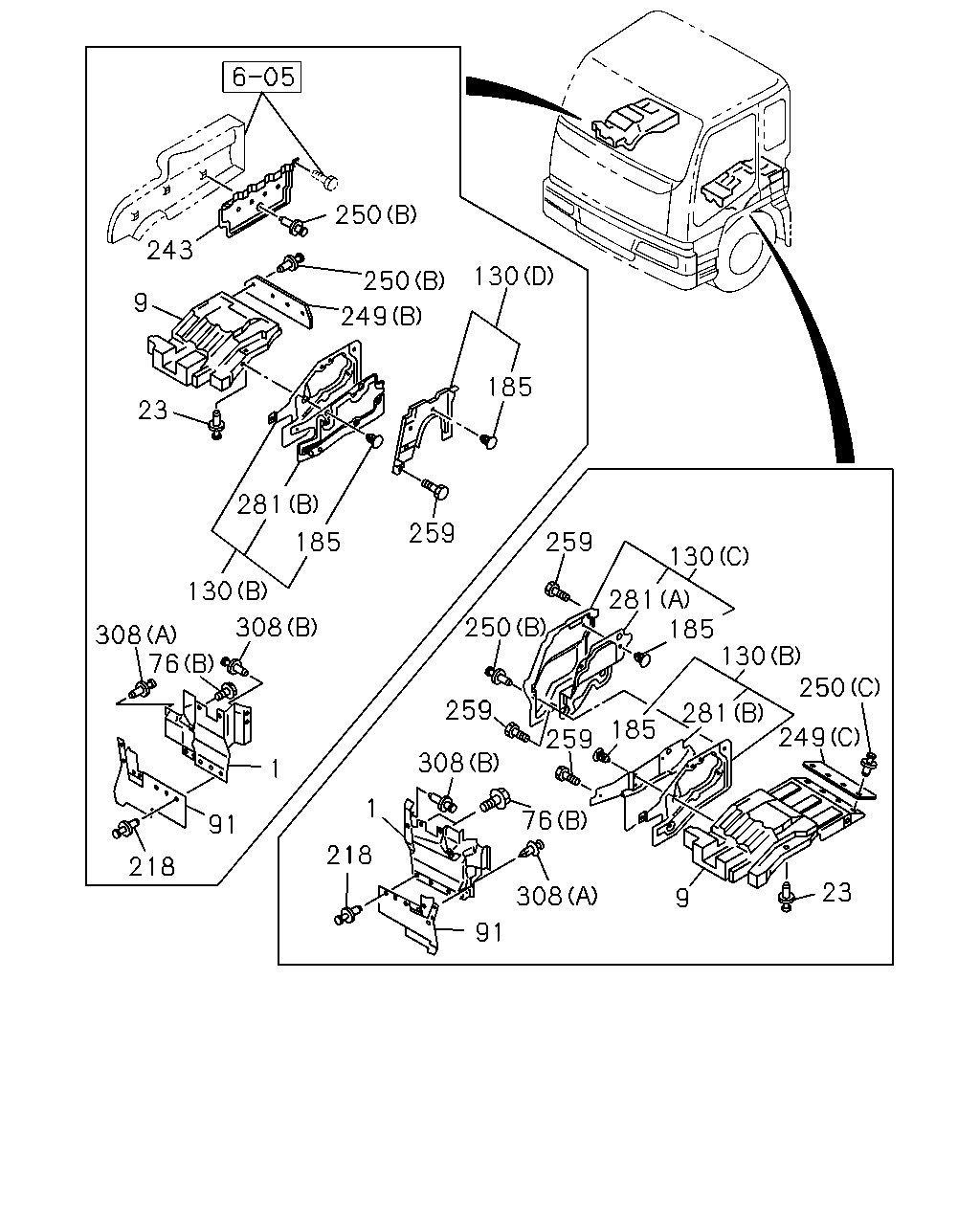

250 249 23 9 130 281 185 130 281 259 250 259 185 259 308 1 218 76 308 91 259 185 130 250 250 249 9 243 23 281 130 185 308 1 91 218 76 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0105-
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0105-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	0105-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	0105-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0105-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0105-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0105-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	0105-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	0105-
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-7	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-969-3	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0403-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	28	1	0105-0202
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0203-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	11	1	0105-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0403-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0105-0511
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0105-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0105-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-
281	INSULATOR; NOISE CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	0105-
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0105-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0105-

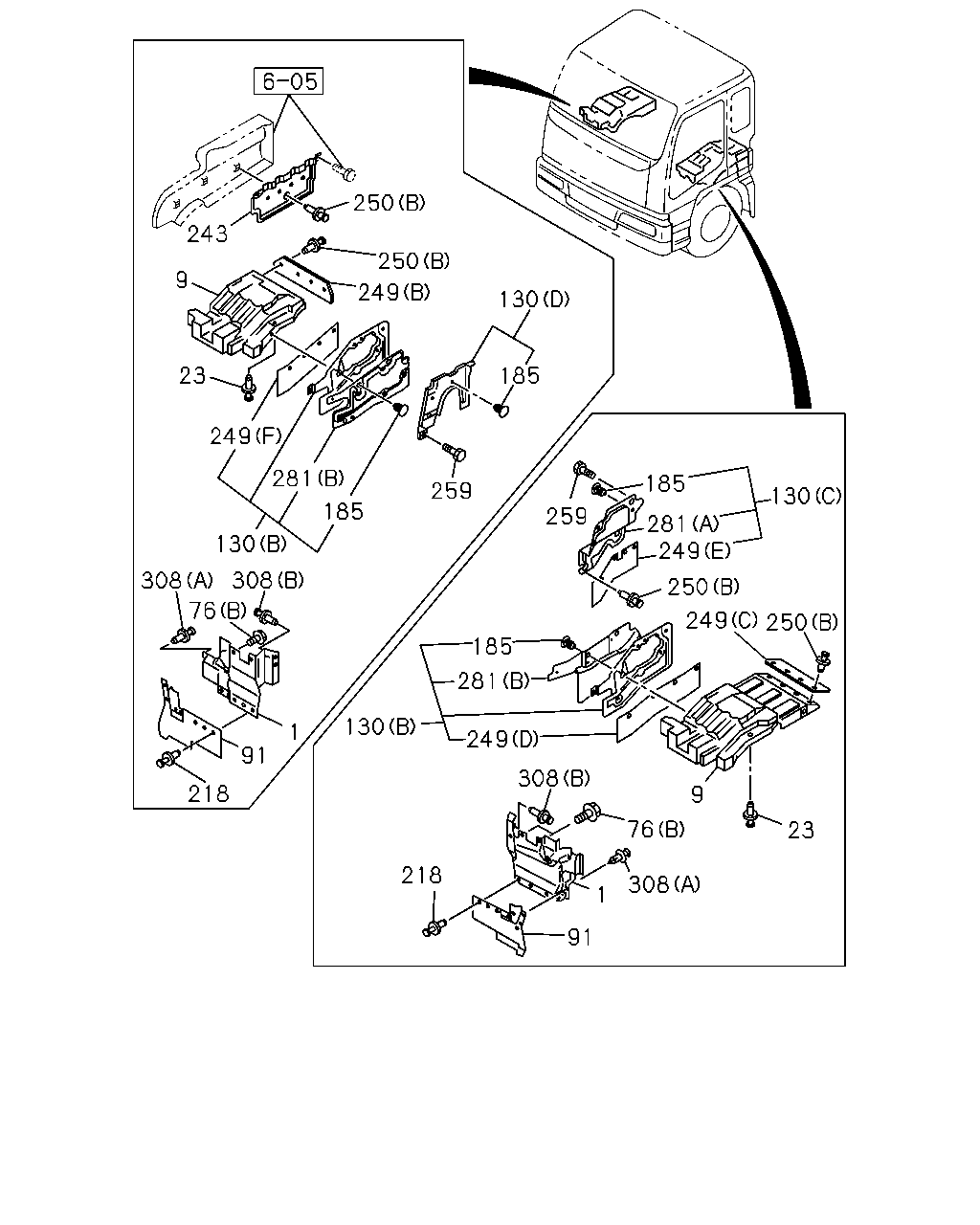

130 185 259 281 250 249 249 250 23 9 76 308 1 91 308 249 185 281 218 130 1 91 218 259 185 130 250 249 250 243 9 23 185 281 249 130 76 308 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0105-
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0105-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	0105-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	0105-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0105-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0105-
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0105-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	0105-
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	0105-
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-7	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-969-3	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-0402
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0403-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	28	1	0105-0202
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0203-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	11	1	0105-0402
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0403-
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0105-0511
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0105-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0105-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-
281	INSULATOR; NOISE CAB UP +110MM<TGG> (A)	1-71907-455-0	01	1	0105-
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0105-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0105-

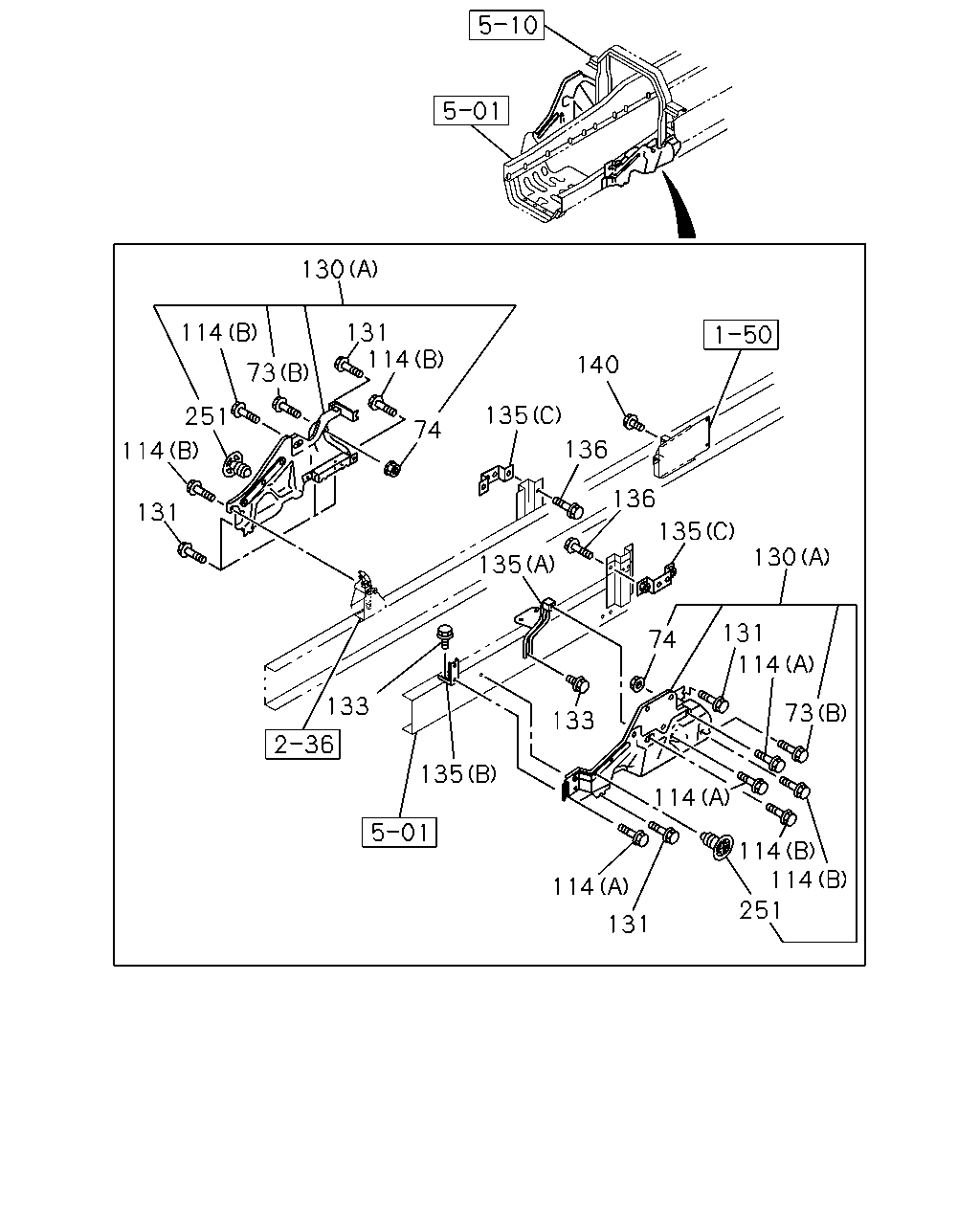

130 131 114 73 114 114 251 131 114 114 133 74 135 136 136 140 135 135 135 133 114 74 131 130 114 251 73 131 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28280-816-0	08	1	0105-0512
73	BOLT; MUD COVER BRKT (B) M8X16 FLANGE	0-28250-816-0	08	1	0601-
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0105-
74	NUT M8 FLANGE	0-91150-108-0	06	1	0105-0602
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0105-0602
74	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	02	1	0603-
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	03	1	0105-0602
74	NUT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	03	1	0603-
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
114	BOLT (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
114	BOLT (B) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0105-
130	PANEL; SHUTTER NOISE (D)	1-79937-919-2	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-790-5	01	1	0105-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-782-7	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-969-3	01	1	0105-
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	0601-
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	0105-
135	BRACKET; SIDE PANEL (C)	1-53441-520-0	02	1	0105-
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A)	1-53441-598-0	01	1	0105-0106
135	BRACKET; SIDE PANEL (A)	1-53441-598-1	01	1	0107-
135	BRACKET; SIDE PANEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A)	1-53441-508-0	01	1	0105-0106
136	BOLT M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
136	BOLT M8X25 FLANGE	0-28650-825-0	04	1	0601-
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
140	BOLT; SIDE PANEL M8X20 FLANGE	0-28650-820-0	01	1	0601-
140	BOLT; SIDE PANEL M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
140	BOLT; SIDE PANEL M8X30 FLANGE	0-28650-830-0	02	1	0601-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9>	8-94279-048-0	14	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
