6-30 — FRONT DOOR AND HINGE (#28064) — 33 parça

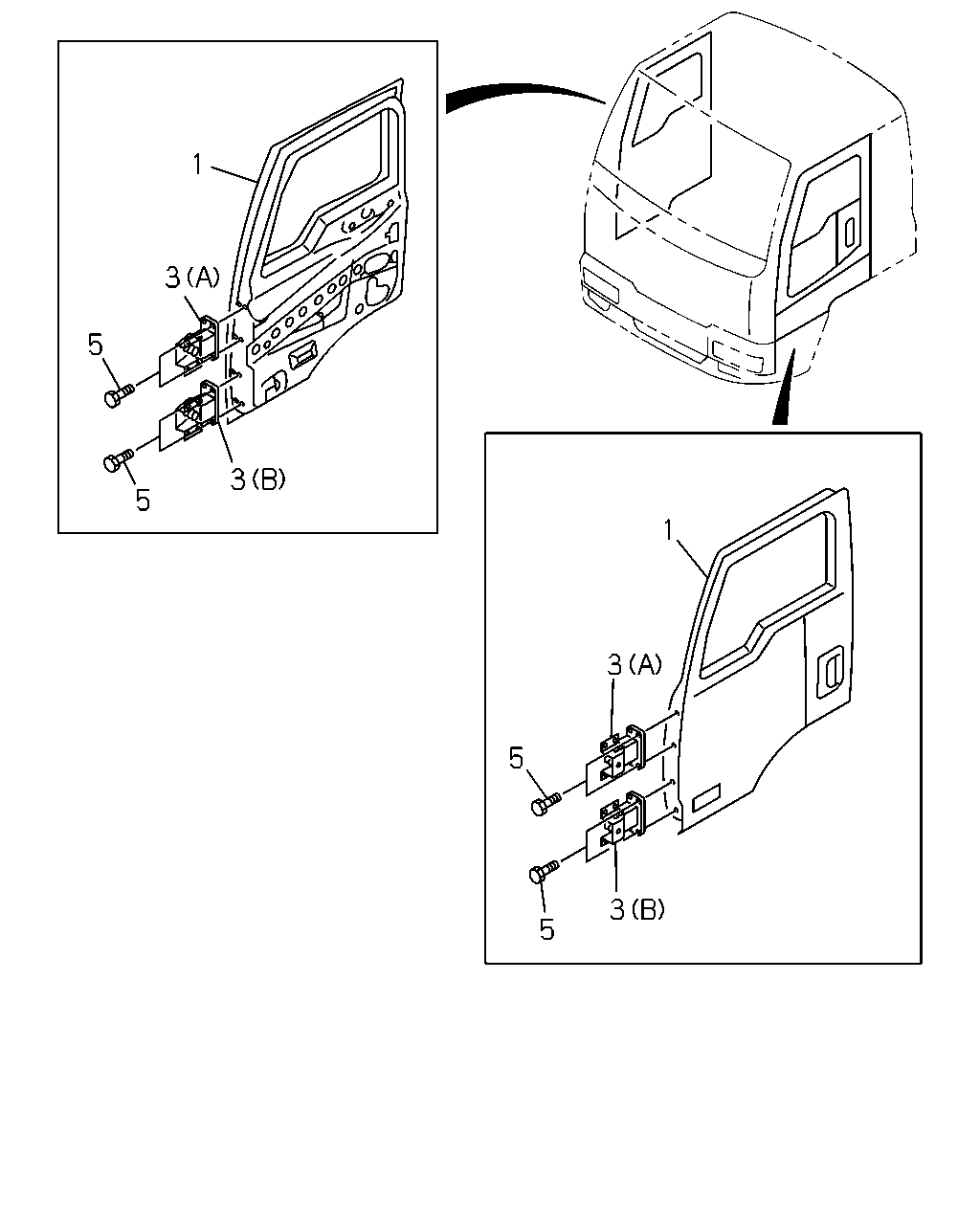

çizim 23421
3 5 5 3 1 3 5 5 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-64080-389-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-391-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-64080-391-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> 		1-64080-392-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-64080-392-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> 		1-64080-388-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) 		1-64080-390-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
NEW ZEALAND EQUIPMENT(PK5) 		1-64080-394-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-64080-395-2 01 1 0105-
1 DOOR ASM; FRT,WO/TRIM
NEW ZEALAND EQUIPMENT(PK5) 		1-64080-395-2 01 1 0105-
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER 		1-64780-088-3 01 1 0105-
3 HINGE; DOOR FRT
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5),DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER 		1-64780-089-3 01 1 0105-
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (B) LOWER 		1-64780-090-2 01 1 0105-
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
OPENABLE ANGLE DOOR NARROW<NGJ> EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) UPPER 		1-64780-091-2 01 1 0105-
3 HINGE; DOOR FRT
NEW ZEALAND EQUIPMENT(PK5) (A) UPPER 		1-64780-091-2 01 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0105-
