◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#28063) — 131 parça

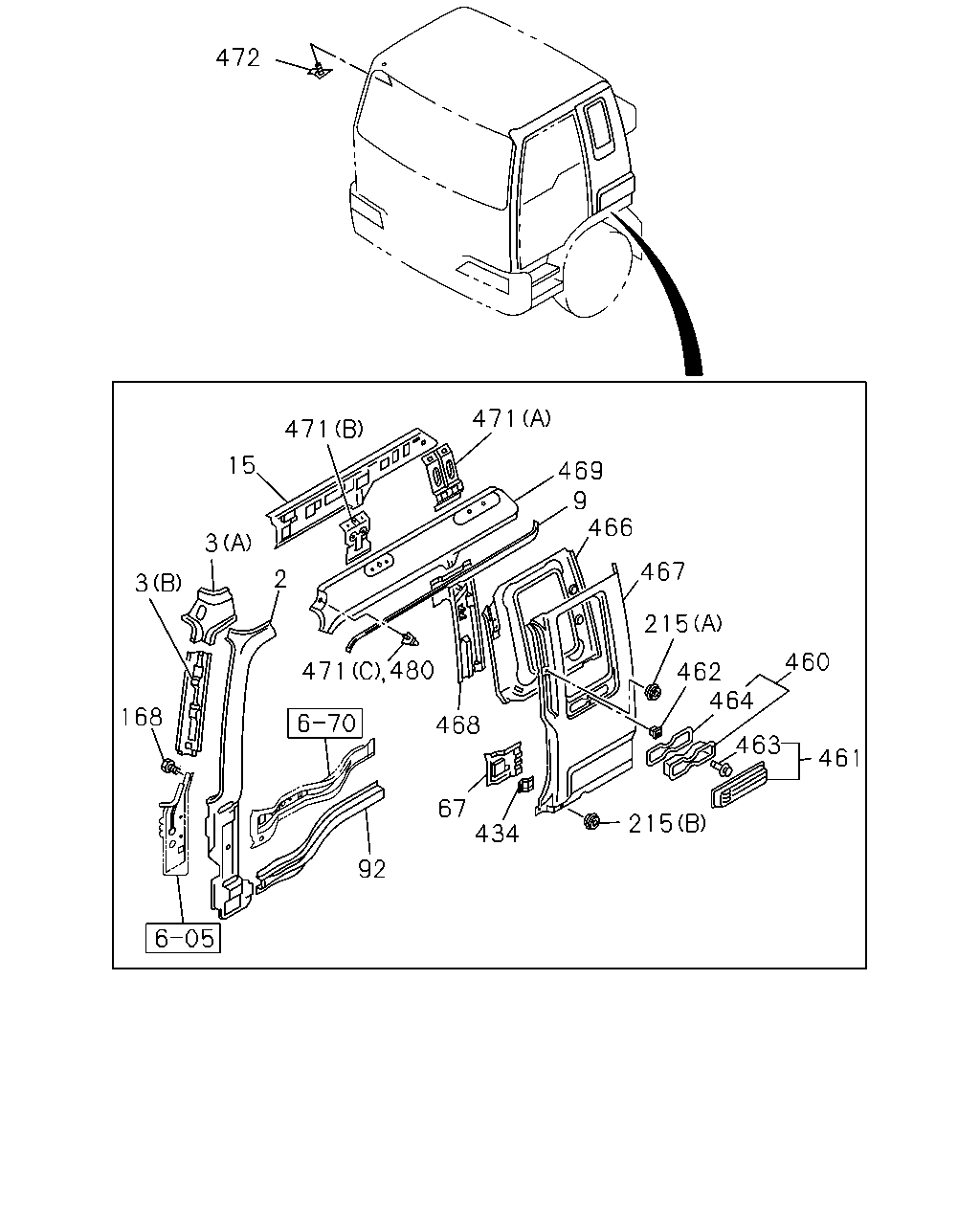

çizim 79532
461 460 464 463 462 215 467 466 9 469 471 215 434 67 468 480 471 471 15 2 3 3 168 92 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-156-4 01 1 0105-
2 PILLAR; FRT 1-61281-155-4 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0105-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0105-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0105-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0105-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0105-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0105-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0105-
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 0105-
467 PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-773-2 01 1 0105-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-204-3 01 1 0105-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0105-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0105-
469 ROOF; SIDE 1-61281-199-8 01 1 0105-
469 ROOF; SIDE 1-61281-198-8 01 1 0105-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (C) 		1-61281-233-4 01 1 0105-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0105-
480 REINFORCEMENT ASM; STAY ROOF
BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-233-4 01 1 0105-
çizim 79741
430 404 149 494 289 149 285 447 455 289 103 291 339 103 304 110 444 446 30 517
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0105-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0105-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0105-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 04 1 0105-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603-
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 0105-0602
149 NUT; STEP BRKT
M10 FLANGE 		0-91180-210-0 05 1 0603-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 0105-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 0105-
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 0105-
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 0105-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0105-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 02 1 0105-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0105-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0105-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0105-
404 BRACKET 1-53414-149-3 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 04 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0105-
447 BOLT; PANEL
M6X16 FLANGE 		0-28080-616-0 08 1 0105-0512
447 BOLT; PANEL
M6X16 FLANGE 		0-28050-616-0 08 1 0601-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 0105-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 0105-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 0105-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 02 1 0105-
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 0105-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0105-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-

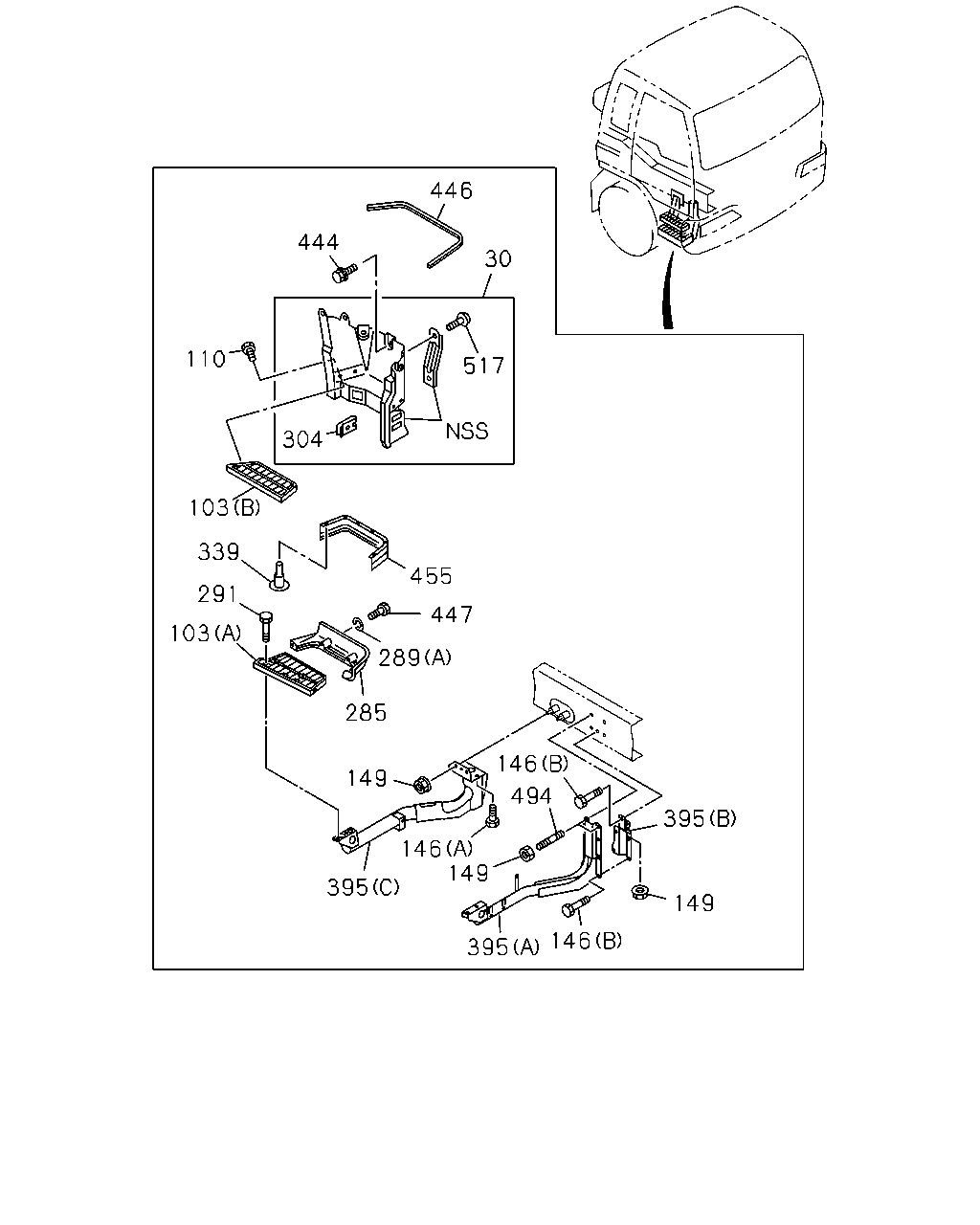

çizim 83537
149 395 494 146 146 395 149 146 395 149 285 289 447 455 103 291 339 103 304 517 110 444 30 446
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0105-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0105-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0105-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
146 BOLT; STEP BRKT
(B) M10X30 FLANGE 		0-28681-030-0 05 1 0105-0512
146 BOLT; STEP BRKT
(B) M10X30 FLANGE 		0-28651-030-0 05 1 0601-
146 BOLT; STEP BRKT
(A) M10X35 FLANGE 		0-28681-035-0 04 1 0105-0512
146 BOLT; STEP BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 04 1 0105-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603-
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 0105-0602
149 NUT; STEP BRKT
M10 FLANGE 		0-91180-210-0 05 1 0603-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 0105-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 0105-
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 0105-
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 0105-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0105-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 02 1 0105-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0105-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0105-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0105-
395 BRACKET; SIDE STEP
CAB UP +110MM<TGG> (B) 		1-53414-227-0 01 1 0105-
395 BRACKET; SIDE STEP
CAB UP +110MM<TGG> (A) 		1-53414-228-0 01 1 0105-0408
395 BRACKET; SIDE STEP
CAB UP +110MM<TGG> (A) 		1-53414-272-0 01 1 0409-
395 BRACKET; SIDE STEP
CAB UP +110MM<TGG> (C) 		1-53414-220-0 01 1 0105-
395 BRACKET; SIDE STEP
EXC. CAB UP +110MM<TGG> (B) 		1-53414-097-2 01 1 0105-
395 BRACKET; SIDE STEP
EXC. CAB UP +110MM<TGG> (A) 		1-53414-098-2 01 1 0105-0408
395 BRACKET; SIDE STEP
EXC. CAB UP +110MM<TGG> (A) 		1-53414-271-0 01 1 0409-
395 BRACKET; SIDE STEP
EXC. CAB UP +110MM<TGG> (C) 		1-53414-166-0 01 1 0105-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0105-
447 BOLT; PANEL
M6X16 FLANGE 		0-28080-616-0 08 1 0105-0512
447 BOLT; PANEL
M6X16 FLANGE 		0-28050-616-0 08 1 0601-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 0105-
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 0105-
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 0105-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 02 1 0105-
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 0105-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0105-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-
