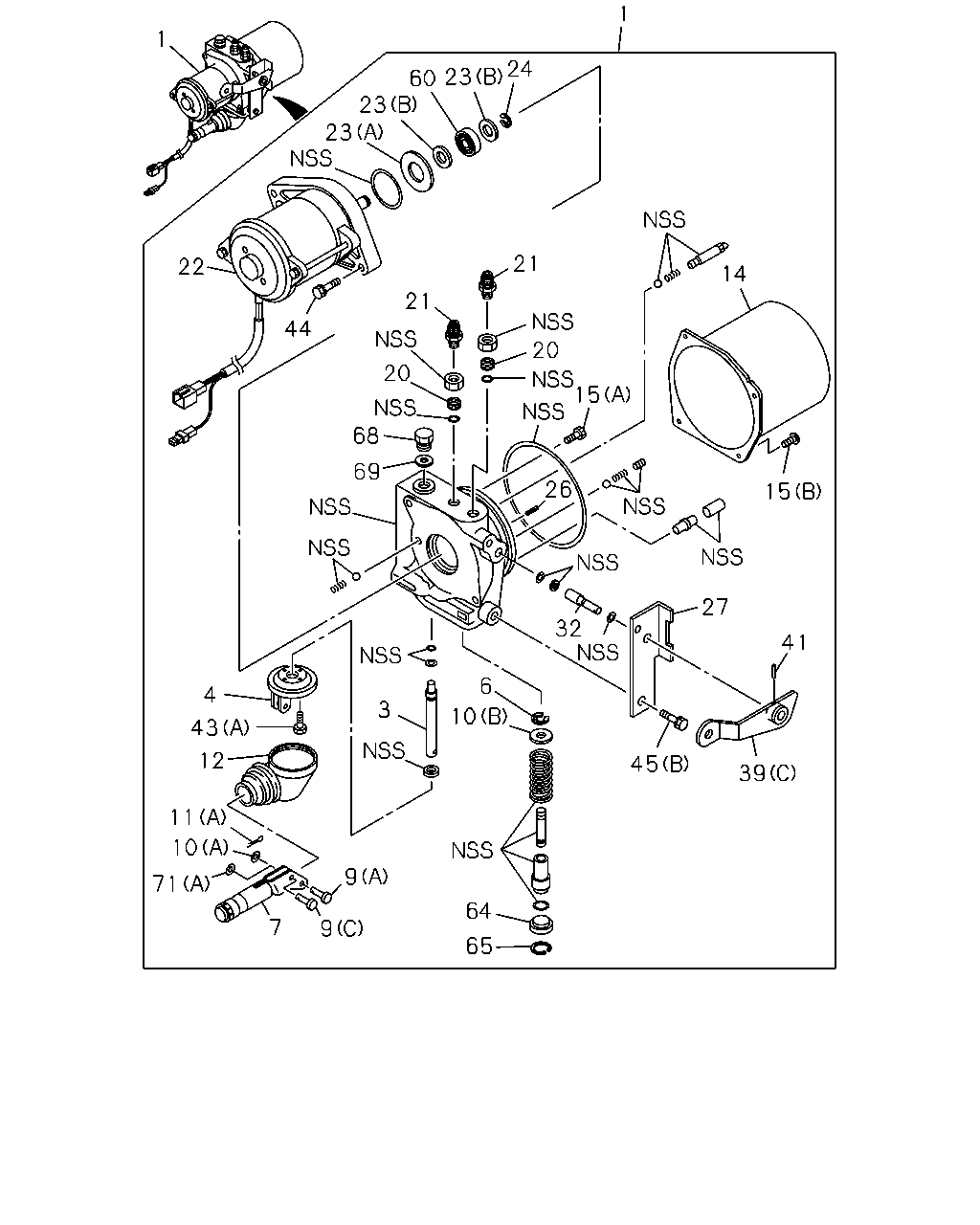

1 |
PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2>
|
1-53458-927-0 |
01 |
1 |
0105- |
| |
1 |
PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK>
|
1-53458-916-0 |
01 |
1 |
0105- |
| |
3 |
PISTON; MANUAL
AUTO CAB TILT<WV2>
|
1-53458-842-0 |
01 |
1 |
0105- |
| |
4 |
BRACKET; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-566-0 |
01 |
1 |
0105- |
| |
6 |
RING; SNAP
AUTO CAB TILT<WV2>
|
1-53458-411-0 |
01 |
1 |
0105- |
| |
7 |
SOCKET; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-565-1 |
01 |
1 |
0105- |
| |
9 |
PIN; OIL PUMP
AUTO CAB TILT<WV2>
(B)
L=27.7
|
1-09987-141-0 |
02 |
1 |
0105- |
| |
9 |
PIN; OIL PUMP
AUTO CAB TILT<WV2>
(A)
|
1-53458-060-0 |
01 |
1 |
0105- |
| |
9 |
PIN; OIL PUMP
AUTO CAB TILT<WV2>
(C)
|
1-53458-844-0 |
01 |
1 |
0105- |
| |
10 |
WASHER; OIL PUMP
AUTO CAB TILT<WV2>
(A)
|
1-53458-013-0 |
01 |
1 |
0105- |
| |
10 |
WASHER; OIL PUMP
AUTO CAB TILT<WV2>
(B)
|
1-53458-561-0 |
01 |
1 |
0105- |
| |
10 |
WASHER; OIL PUMP
AUTO CAB TILT<WV2>
(C)
ID=8.4 OD=22
|
9-09160-708-0 |
02 |
1 |
0105-0605 |
| |
10 |
WASHER; OIL PUMP
AUTO CAB TILT<WV2>
(C)
ID=8.4 OD=22
|
0-91610-708-0 |
02 |
1 |
0606- |
| |
11 |
PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2>
(A)
|
1-53458-058-0 |
01 |
1 |
0105- |
| |
11 |
PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2>
(B)
OD=8 L=17
|
9-08223-817-0 |
02 |
1 |
0105-0606 |
| |
11 |
PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2>
(B)
OD=8 L=17
|
0-82253-817-0 |
02 |
1 |
0607- |
| |
12 |
BOOT; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-560-0 |
01 |
1 |
0105- |
| |
14 |
RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-432-0 |
01 |
1 |
0105- |
| |
15 |
BOLT; RESERVOIR
AUTO CAB TILT<WV2>
(B)
M5X8
|
1-53458-005-0 |
04 |
1 |
0105- |
| |
15 |
BOLT; RESERVOIR
AUTO CAB TILT<WV2>
(A)
M5X8
|
1-53458-433-0 |
02 |
1 |
0105- |
| |
20 |
FILTER; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-048-0 |
02 |
1 |
0105- |
| |
21 |
CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2>
M12
|
1-53458-941-0 |
02 |
1 |
0105- |
| |
22 |
MOTOR; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-731-0 |
01 |
1 |
0105- |
| |
23 |
WASHER; MOTOR
AUTO CAB TILT<WV2>
(A)
|
1-53458-018-0 |
01 |
1 |
0105- |
| |
23 |
WASHER; MOTOR
AUTO CAB TILT<WV2>
(B)
|
1-53458-045-0 |
02 |
1 |
0105- |
| |
24 |
RING; SNAP,MOTOR
AUTO CAB TILT<WV2>
|
1-53458-044-0 |
01 |
1 |
0105- |
| |
26 |
PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-038-0 |
01 |
1 |
0105- |
| |
27 |
COVER; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-568-0 |
01 |
1 |
0105- |
| |
32 |
VALVE; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-569-0 |
01 |
1 |
0105- |
| |

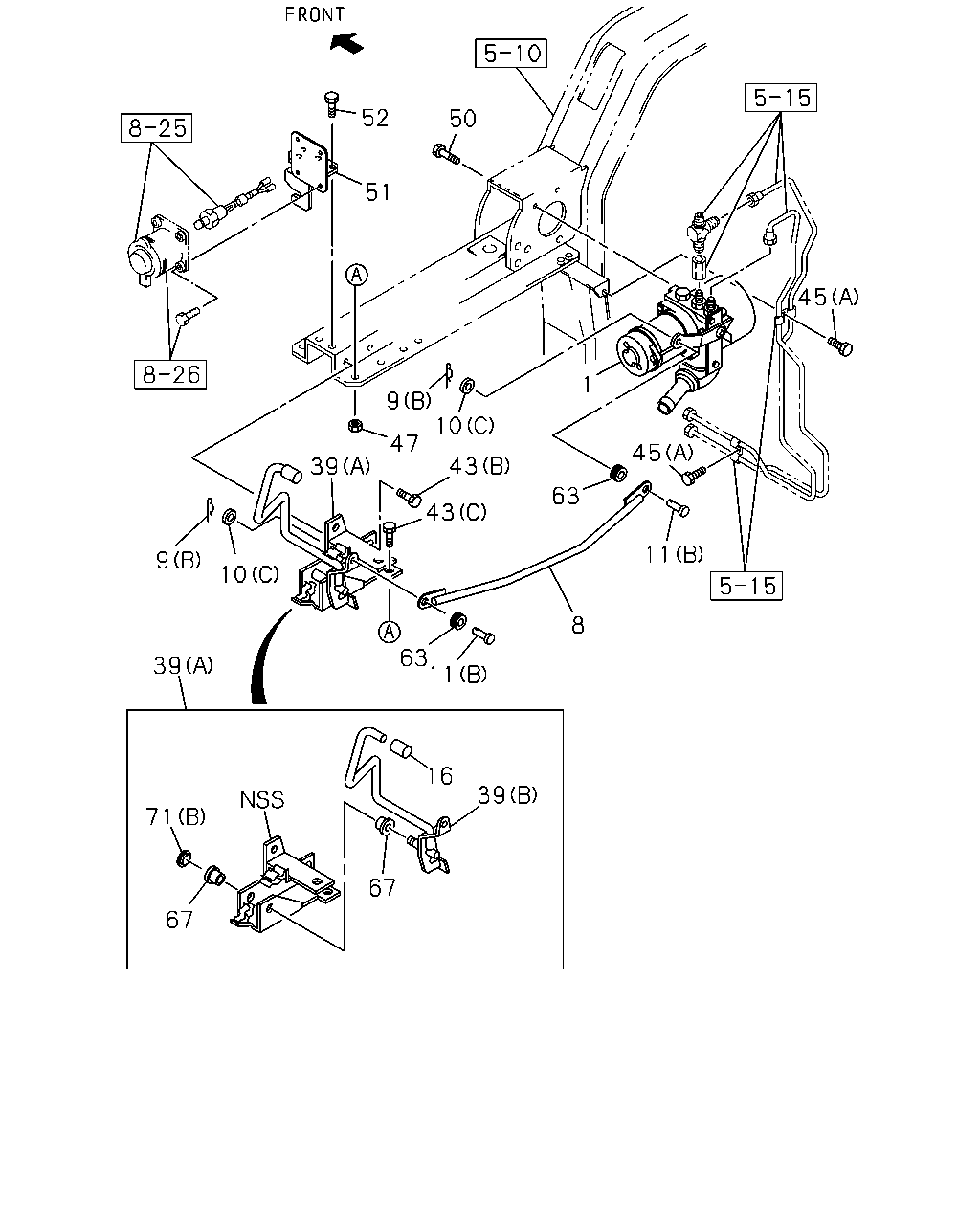

39 |
LEVER; OIL PUMP
AUTO CAB TILT<WV2>
(C)
|
1-53458-567-0 |
01 |
1 |
0105- |
| |
39 |
LEVER; OIL PUMP
AUTO CAB TILT<WV2>
(A)
|
1-53458-775-1 |
01 |
1 |
0105- |
| |
39 |
LEVER; OIL PUMP
AUTO CAB TILT<WV2>
(B)
|
1-53458-870-0 |
01 |
1 |
0105- |
| |
41 |
PIN; SPR,LEVER
AUTO CAB TILT<WV2>
|
1-53458-019-0 |
01 |
1 |
0105- |
| |
43 |
BOLT; LEVER
AUTO CAB TILT<WV2>
(B)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0105-0512 |
| |
43 |
BOLT; LEVER
AUTO CAB TILT<WV2>
(B)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
| |
43 |
BOLT; LEVER
AUTO CAB TILT<WV2>
(C)
M10X25 FLANGE
|
0-28681-025-0 |
01 |
1 |
0105-0512 |
| |
43 |
BOLT; LEVER
AUTO CAB TILT<WV2>
(C)
M10X25 FLANGE
|
0-28651-025-0 |
01 |
1 |
0601- |
| |
43 |
BOLT; LEVER
AUTO CAB TILT<WV2>
(A)
M5X12
|
1-53458-420-0 |
02 |
1 |
0105- |
| |
44 |
BOLT; MOTOR
AUTO CAB TILT<WV2>
M6X20
|
1-53458-007-0 |
02 |
1 |
0105- |
| |

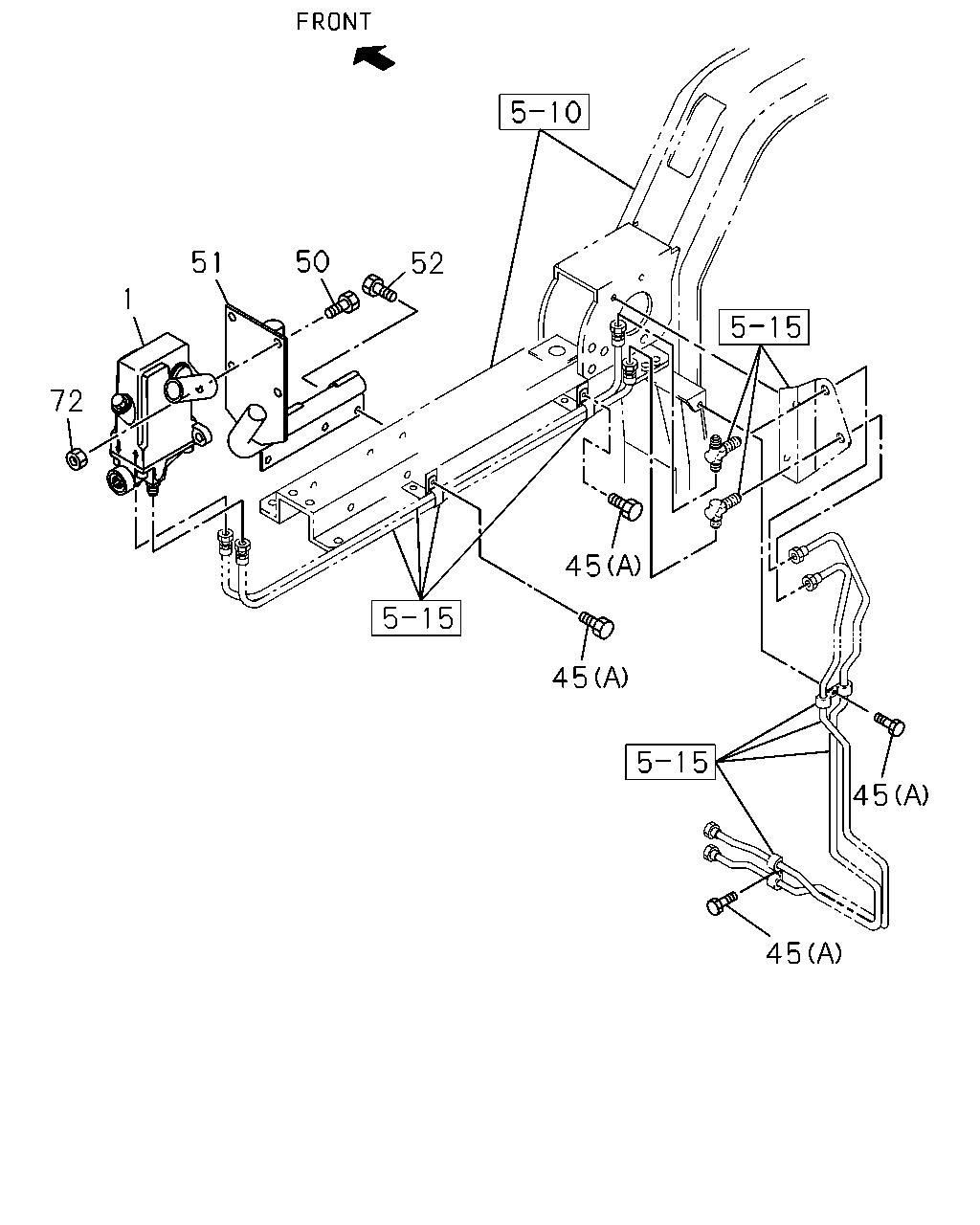

45 |
BOLT; COVER
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0105-0107 |
| |
45 |
BOLT; COVER
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0105-0105 |
| |
45 |
BOLT; COVER
MANUAL CAB TILT<SHK>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0105-0105 |
| |
45 |
BOLT; COVER
MANUAL CAB TILT<SHK>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0105-0107 |
| |
45 |
BOLT; COVER
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0108-0512 |
| |
45 |
BOLT; COVER
MANUAL CAB TILT<SHK>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0108-0512 |
| |
45 |
BOLT; COVER
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
45 |
BOLT; COVER
MANUAL CAB TILT<SHK>
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
45 |
BOLT; COVER
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0107 |
| |
45 |
BOLT; COVER
AUTO CAB TILT<WV2>
(B)
M6X8
|
1-53458-004-0 |
02 |
1 |
0105- |
| |
60 |
BEARING; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-423-0 |
01 |
1 |
0105- |
| |
64 |
SLEEVE; OIL PUMP
AUTO CAB TILT<WV2>
|
1-53458-572-0 |
01 |
1 |
0105- |
| |
65 |
RING; SNAP,SLEEVE
AUTO CAB TILT<WV2>
|
1-53458-570-0 |
01 |
1 |
0105- |
| |
68 |
PLUG; FILLER
AUTO CAB TILT<WV2>
|
1-53458-428-0 |
01 |
1 |
0105- |
| |
69 |
GASKET; FILLER PLUG
AUTO CAB TILT<WV2>
|
1-53458-427-0 |
01 |
1 |
0105- |
| |
71 |
NUT; PUSH
AUTO CAB TILT<WV2>
(A)
|
1-53458-845-0 |
01 |
1 |
0105- |
| |
71 |
NUT; PUSH
AUTO CAB TILT<WV2>
(B)
ID=9.9 PUSH NUT
|
8-97022-566-0 |
01 |
1 |
0105- |
