5-10 — CAB MOUNTING; FRAME SIDE (#28053) — 403 parça

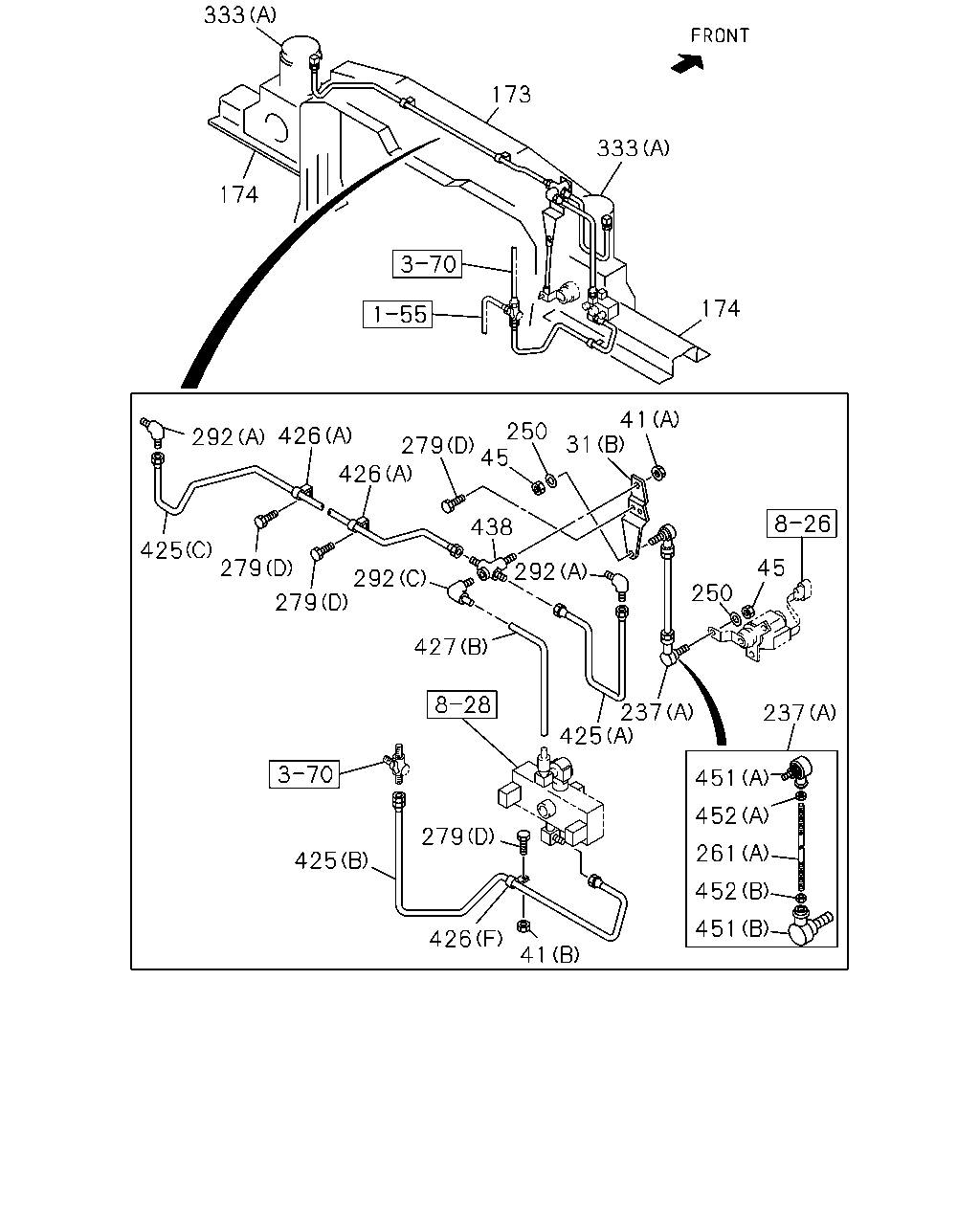

451 452 261 452 451 237 45 250 237 425 279 426 41 425 427 292 279 279 425 292 426 426 279 250 45 438 292 31 41 174 333 173 333 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0105-0602
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0105-0602
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0105-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-581-1	01	1	0105-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0105-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0105-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-

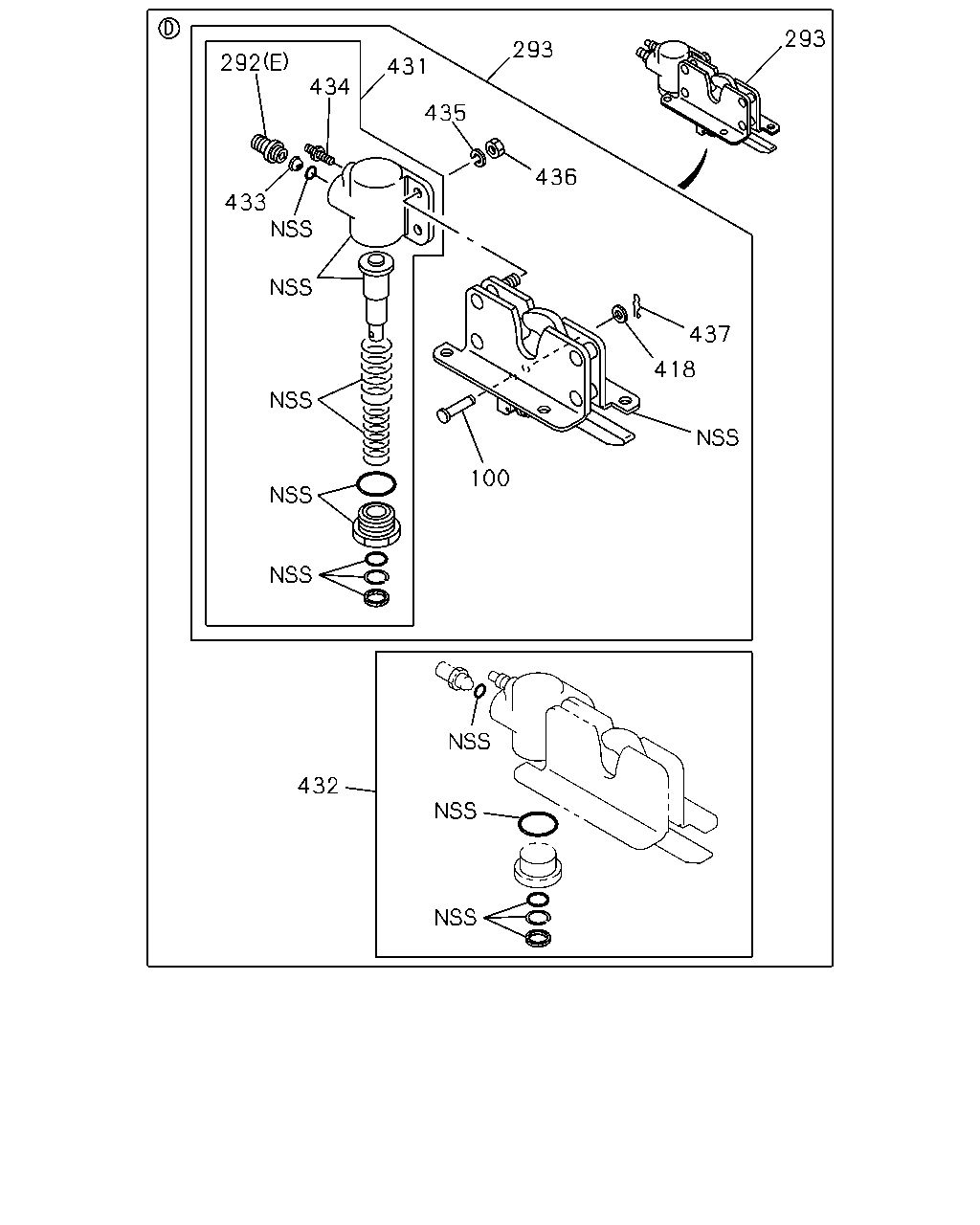

292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	0105-
425	PIPE ASM; AIR CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (B)	1-49122-659-0	01	1	0105-0505
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-49122-659-0	01	1	0506-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0105-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-49113-541-0	01	1	0105-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0105-
425	PIPE ASM; AIR MIXER TRUCK<RA2> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-930-0	01	1	0105-
425	PIPE ASM; AIR MIXER TRUCK<RA2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-49122-424-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	9-09524-665-0	01	1	0105-0606
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0105-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-

203 204 70 65 205 204 203 202 202 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0105-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0105-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0105-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0105-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	0105-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0105-

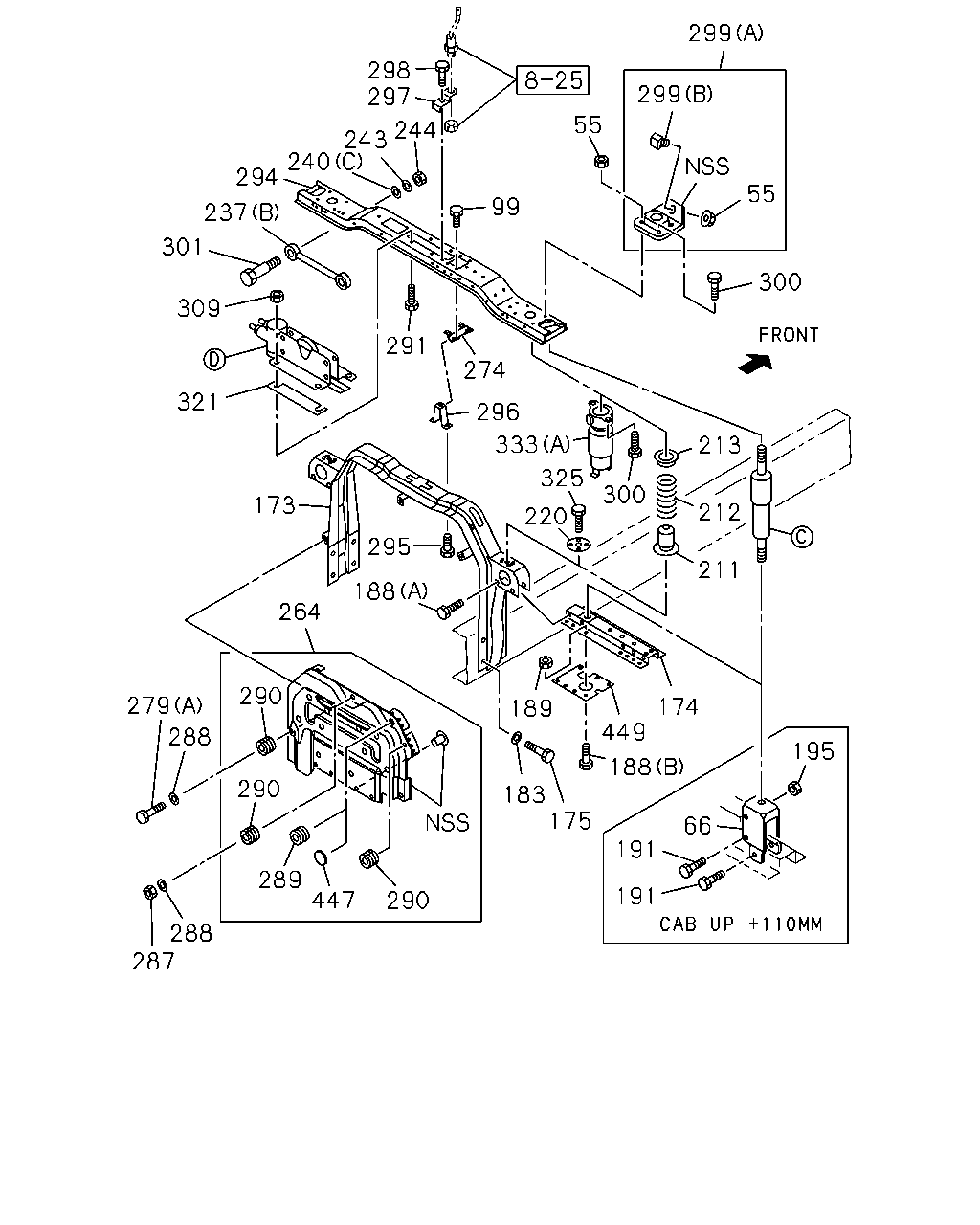

191 191 66 195 174 449 188 175 183 189 290 447 289 288 287 290 288 279 290 264 188 295 173 321 309 301 237 294 240 243 244 297 298 99 291 296 274 333 325 220 300 213 212 211 300 55 299 299 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0105-0602
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-755-1	01	1	0105-
66	BRACKET; S/ABS CAB UP +110MM<TGG>	1-53458-786-0	01	1	0105-
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0105-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-581-1	01	1	0105-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0105-0512
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0105-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	0105-0512
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28681-020-0	08	1	0105-0512
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28651-020-0	08	1	0601-
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	0105-0602
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	08	1	0603-
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	0105-0512
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	07	1	0601-
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	0105-0602
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	04	1	0603-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0105-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0105-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0105-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0105-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0105-0603
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0604-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0105-0512
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-2	01	1	0105-0106
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX>,MIXER TRUCK<RA2>	1-53192-606-2	01	1	0107-
264	PANEL; BACK MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-2	01	1	0105-0106
264	PANEL; BACK MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX>	1-53193-390-2	01	1	0107-
274	PIN	1-53458-996-0	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0105-0106
287	NUT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0107-0602
287	NUT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0603-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	0105-0106
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=26	9-09164-808-0	03	1	0107-0605
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=26	0-91614-808-0	03	1	0606-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	0105-0106
289	GROMMET ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> OD=40 T=4.8	9-09576-198-0	01	1	0107-0312
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	0105-0106
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX>	1-53459-702-1	03	1	0107-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0105-0512
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0105-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0105-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0105-0512
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-
296	STOPPER; UPR	1-53458-973-0	01	1	0105-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0105-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0105-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0105-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28050-816-0	04	1	0601-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0105-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0105-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0105-0602
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0105-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0601-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
447	SEAL ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> OD=45 BLACK	1-76798-017-0	02	1	0401-
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	0105-

27 113 315 27 118 31 120 31 113 118 315 112 279 333 146 144 145 292 192 98 240 426 279 71 73 72 426 250 45 426 279 279 426 72 105 67 72 279 69 71 73 72 105 72 72 69 237 112 145 144 146 333 279 237 292 278 427 451 452 261 452 451 240 31 192 45 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0105-
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-0105
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0105-
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0105-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0105-0602
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0105-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0105-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0105-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0105-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0105-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0105-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0105-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-608-0	01	1	0105-0105
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	0105-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0105-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0105-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A),(B)	1-53458-714-0	04	1	0112-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0105-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0105-0512
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0105-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0105-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0105-
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	0105-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0105-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0105-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0105-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0105-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0105-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0105-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0105-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0105-
278	COVER DELUXE CAB(W14) FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0105-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0105-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0105-
426	CLIP FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0105-
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	9-09524-665-0	01	1	0105-0606
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0105-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0105-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0105-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0105-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-

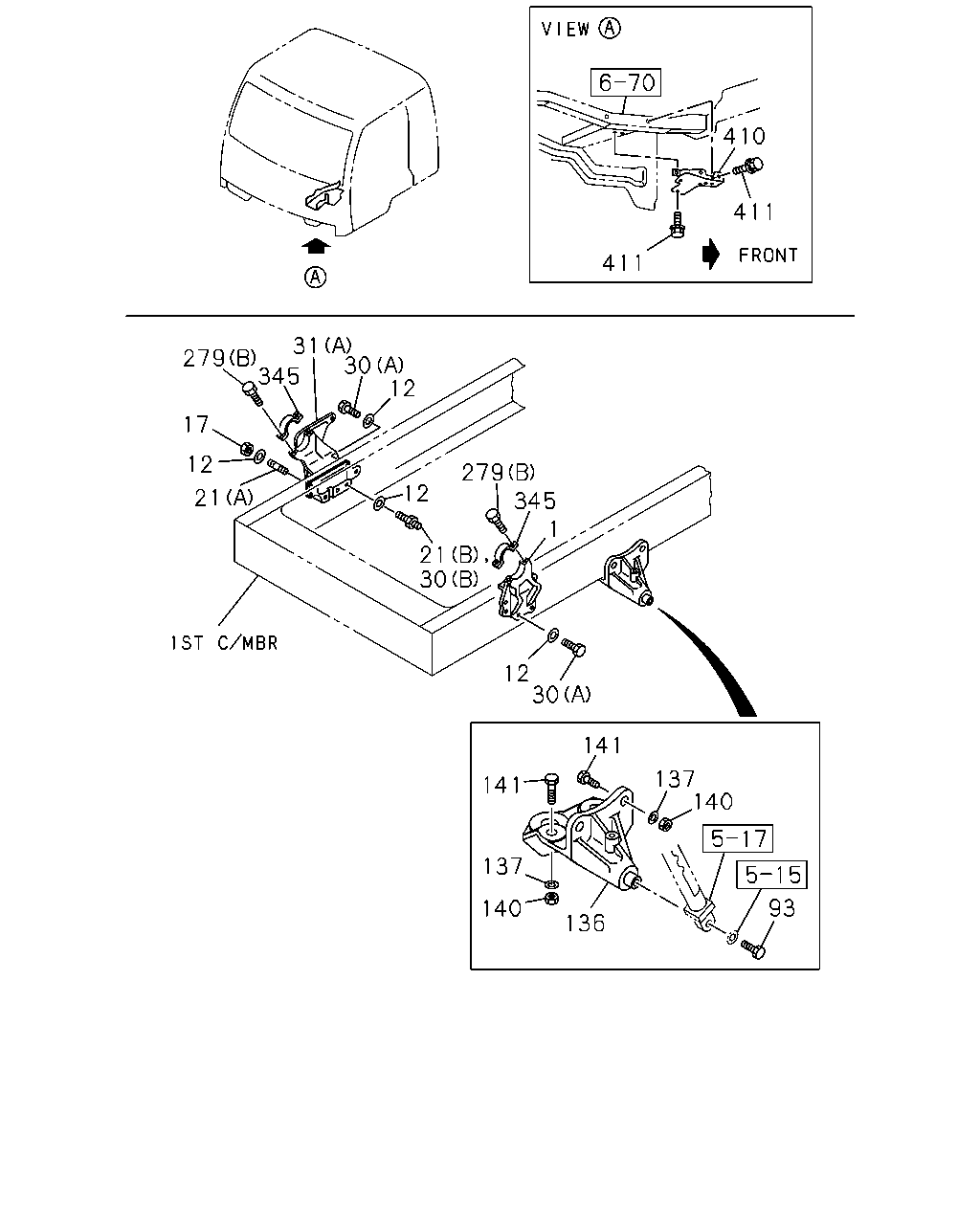

136 93 140 137 141 141 137 140 30 12 30 21 12 1 345 279 21 12 17 345 279 31 30 12 411 411 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-246-1	01	1	0105-
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-214-2	01	1	0105-
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	0105-
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	0105-
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	0105-0512
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	0-91110-516-0	01	1	0601-
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	0105-0512
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	0-91110-514-0	01	1	0601-
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> (B) M10X22,M14X55 L=88	1-09029-071-0	02	1	0209-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (B) M10X20,M16X50 L=81	1-09029-069-0	02	1	0105-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M16X50 L=74	1-09300-117-0	01	1	0105-
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> (A) M14X48 L=75	1-09300-094-0	01	1	0105-
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> (A) M16X45	9-92061-645-0	08	1	0105-
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> (B) M10X22,M14X55 L=88	1-09029-071-0	02	1	0105-0208
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> (A) M14X45	9-92061-445-0	08	1	0105-
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	0105-
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0105-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0105-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0105-
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	0105-
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	0105-0512
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28651-020-0	01	1	0601-
136	BRACKET; OIL CYL CAB UP +110MM<TGG>	1-53458-829-0	01	1	0105-
136	BRACKET; OIL CYL EXC. CAB UP +110MM<TGG>	1-53458-623-0	01	1	0105-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	AR	1	0105-
140	NUT; BRKT M14	9-99110-514-0	AR	1	0105-0512
140	NUT; BRKT M14	0-91110-514-0	AR	1	0601-
141	BOLT; BRKT M14X50	9-92061-450-0	AR	1	0105-0512
141	BOLT; BRKT M14X50	0-20951-450-0	AR	1	0601-
141	BOLT; BRKT M14X60	0-20951-460-0	AR	1	0601-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0105-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0105-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0105-
345	CAP; CAB	1-53458-336-3	02	1	0105-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0105-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0105-

432 100 418 437 293 293 436 435 431 434 292 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0105-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0105-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0105-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0105-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0105-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0105-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0105-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0105-
436	NUT; AIR CYL	1-53458-528-0	02	1	0105-
437	PIN; SNAP	1-53458-526-0	01	1	0105-

202 202 203 204 205 174 205 204 203 173 201 203 204 205 204 203 202 202 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-633-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-667-0	01	1	0407-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-636-2	01	1	0105-0406
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-668-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-599-2	01	1	0105-0406
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-665-0	01	1	0407-
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0105-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-581-1	01	1	0105-
174	OUTRIGGER	1-53456-277-3	01	1	0105-
174	OUTRIGGER	1-53456-278-3	01	1	0105-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0105-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0105-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0105-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	0105-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	0105-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0105-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0105-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0105-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0105-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0105-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
