◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶

5-01 — FRAME AND OTHER PARTS (#28052) — 136 parça

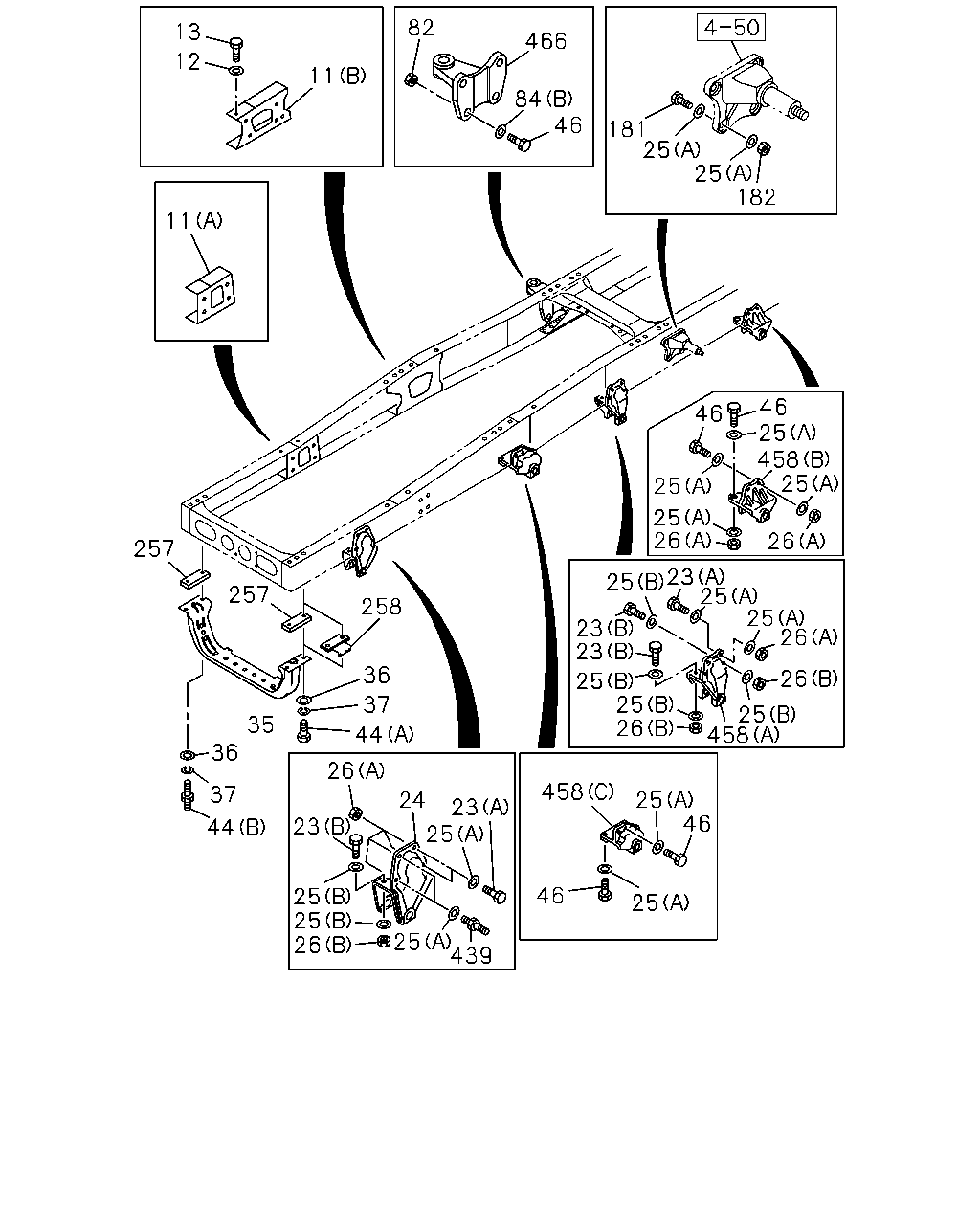

25 46 25 458 46 23 24 25 25 439 26 25 25 23 23 44 36 37 258 35 36 37 44 257 257 26 25 25 23 23 25 23 25 25 26 26 25 458 26 26 25 25 25 458 25 46 46 182 25 25 181 46 84 466 82 11 12 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (B)	1-53219-990-1	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> (B)	1-53219-990-1	01	1	0105-		●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (B)	1-53219-988-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> CAB UP +110MM<TGG> (B)	1-53219-988-0	01	1	0105-		●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B)	1-53219-742-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B)	1-53219-742-0	01	1	0105-		●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B)	1-53219-741-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B)	1-53219-741-0	01	1	0105-		●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01> CAB UP +110MM<TGG> (B)	1-53239-082-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B)	1-53239-082-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01> CAB UP +110MM<TGG> (B)	1-53239-081-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (B)	1-53239-081-0	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. CAB UP +110MM<TGG> (B)	1-53219-789-1	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B)	1-53219-789-1	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR2<F01> EXC. CAB UP +110MM<TGG> (B)	1-53219-788-1	01	1	0105-	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY VAR1<F03> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B)	1-53219-788-1	01	1	0105-	●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A)	1-53219-778-1	01	1	0105-	●	●
11	BRACKET; ENG MTG CAB UP +110MM<TGG> (A)	1-53219-777-1	01	1	0105-	●	●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A)	1-53219-472-1	01	1	0105-	●	●
11	BRACKET; ENG MTG EXC. CAB UP +110MM<TGG> (A)	1-53219-471-0	01	1	0105-	●	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-53219-942-1	01	1	0105-		●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-53219-941-0	01	1	0105-		●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	AR	1	0105-	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	AR	1	0105-0512	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	AR	1	0601-	●	●
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	AR	1	0105-0512	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	AR	1	0105-0512	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	AR	1	0105-0512	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	AR	1	0601-	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	AR	1	0601-	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	AR	1	0601-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	0105-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	0105-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	AR	1	0105-	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	AR	1	0105-	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	AR	1	0105-0512	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	AR	1	0601-	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	AR	1	0105-0512	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	AR	1	0601-	●	●
35	MEMBER; UNDER	1-53174-214-2	01	1	0105-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0105-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0105-0603	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-	●	●
44	BOLT; UNDER MBR 6WA1 TC-C(55L) (B) M10X20,M16X50 L=81	1-09029-069-0	01	1	0105-	●	●
44	BOLT; UNDER MBR 6WA1 TC-C(55L) (A) M16X45	9-92061-645-0	03	1	0105-	●	●
44	BOLT; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) M10X20,M16X70 L=101	1-09029-093-0	01	1	0105-	●	●
44	BOLT; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) (A) M16X65	9-91061-665-0	03	1	0105-	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	AR	1	0105-0512	●	●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	AR	1	0601-	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	AR	1	0105-0512	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	AR	1	0601-	●	●
46	BOLT; BRKT FIX M14X60	9-92061-460-0	AR	1	0105-0512	●	●
46	BOLT; BRKT FIX M14X60	0-20951-460-0	AR	1	0601-	●	●
82	NUT; BRKT M14	9-99110-514-0	AR	1	0105-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	AR	1	0601-	●	●
84	WASHER; PL,BRKT (A) ID=15 OD=26	9-09164-514-0	AR	1	0105-	●	●
84	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	AR	1	0105-	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	9-92061-450-0	AR	1	0105-0512	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	AR	1	0601-	●	●
182	NUT; S/ABS BRKT TO FRAME M14	9-99110-514-0	AR	1	0105-0512	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	AR	1	0601-	●	●
257	SPACER; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) FULLER M/T<X9B>,ZF M/T<X9E>	1-53168-319-0	02	1	0105-	●	●
257	SPACER; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) ZF M/T<X9E> EXC. TRANSMISSION OIL COOLER<C2C>	1-53168-319-0	02	1	0105-	●	●
257	SPACER; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>	1-53168-319-0	01	1	0105-	●	●
258	BRACKET; UNDER MBR 6WF1 TC-C(1B8),6WG1 TC-C(72L) TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>	1-47479-231-0	01	1	0105-	●	●
439	STUD; BRKT,SPR M12X35,M14X45 L=100	1-09029-075-0	AR	1	0105-	●	●
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0105-	●	●
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0105-	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-153-0	01	1	0105-	●	●
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0105-	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-152-0	01	1	0105-	●	●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0105-	●	●

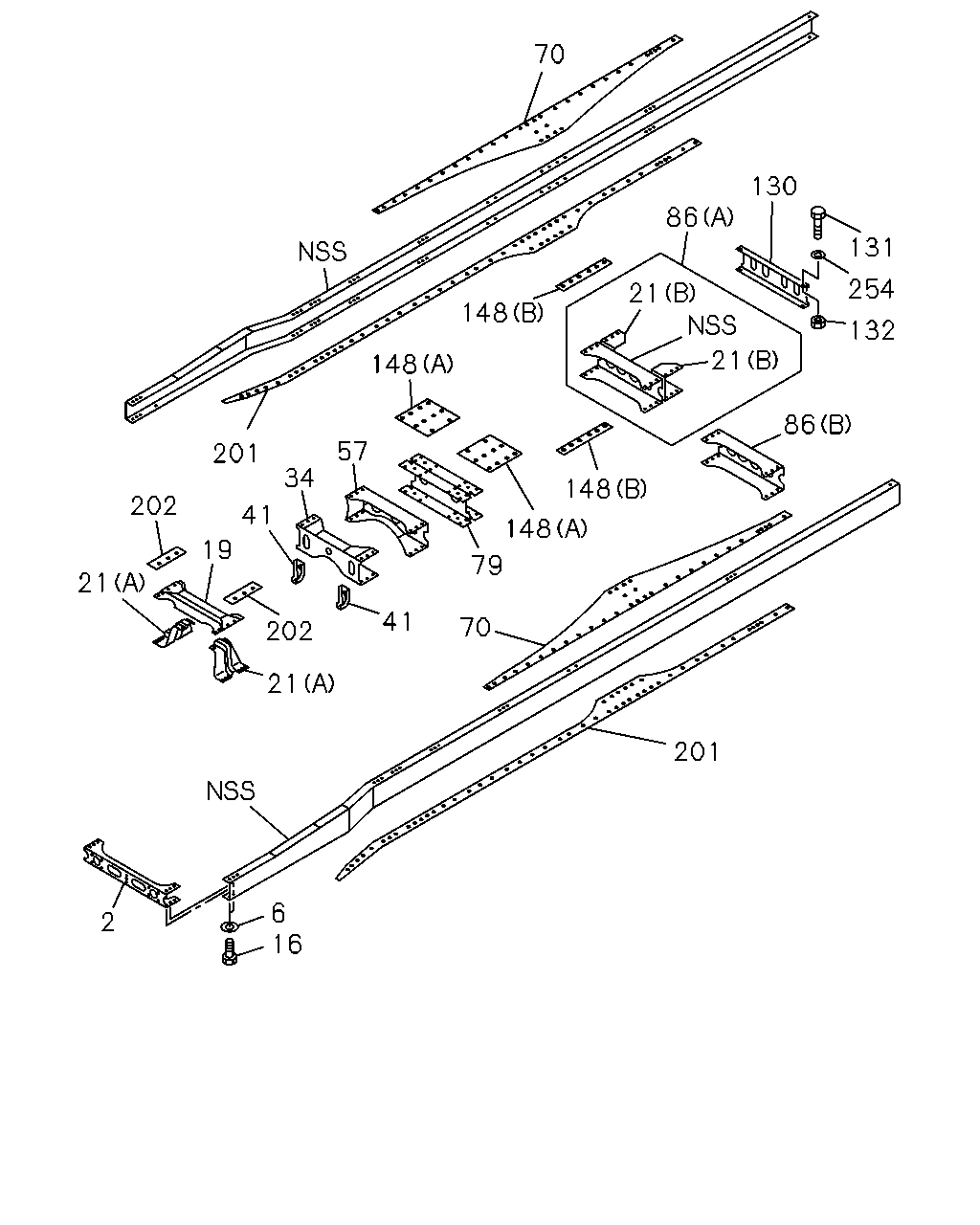

201 16 6 2 21 202 41 70 79 148 148 86 21 21 132 254 131 130 86 70 148 148 57 34 41 19 21 202 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-526-4	01	1	0105-	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	0105-0112	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	0201-0603	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	02	1	0604-	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	0105-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40	0-20851-640-0	02	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0105-	●
19	MEMBER; CROSS,2ND FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53174-221-0	01	1	0105-		●
19	MEMBER; CROSS,2ND EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53174-231-1	01	1	0105-		●
21	GUSSET; 2ND CROSS (A)	1-53164-208-0	02	1	0105-	●
21	GUSSET; 2ND CROSS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-53164-208-0	02	1	0105-		●
21	GUSSET; 2ND CROSS (B)	1-53167-287-2	02	1	0105-	●
21	GUSSET; 2ND CROSS FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-53167-287-2	02	1	0105-		●
21	GUSSET; 2ND CROSS EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-53164-185-0	02	1	0105-		●
34	MEMBER; CROSS,3RD	1-53181-644-1	01	1	0105-	●
34	MEMBER; CROSS,3RD FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-644-1	01	1	0105-		●
34	MEMBER; CROSS,3RD EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-437-5	01	1	0105-		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. CAB UP +110MM<TGG> L=295	1-53271-304-1	02	1	0105-	●
41	BRACKET; CENTER BRG,FRAME SIDE CAB UP +110MM<TGG> L=305	1-53271-262-2	02	1	0105-	●	●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. CAB UP +110MM<TGG> L=320	1-53271-296-1	02	1	0105-		●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0105-	●
57	MEMBER; CROSS,RR SUSP FRT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53171-685-3	01	1	0105-		●
57	MEMBER; CROSS,RR SUSP FRT EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53171-651-5	01	1	0105-		●
70	GUSSET; TRUNNION,UPR EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53161-532-1	02	1	0105-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	0105-	●
79	MEMBER; CROSS,TRUNNION ASM FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-374-0	01	1	0105-		●
79	MEMBER; CROSS,TRUNNION ASM EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-686-2	01	1	0105-		●
86	MEMBER; CROSS,RR SUSP RR (A)	1-53181-134-1	01	1	0105-	●
86	MEMBER; CROSS,RR SUSP RR FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-53181-134-1	01	1	0105-		●
86	MEMBER; CROSS,RR SUSP RR EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-53181-646-7	01	1	0105-		●
130	MEMBER; CROSS,END FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53171-876-3	01	1	0105-	●	●
130	MEMBER; CROSS,END FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	1-53181-537-1	01	1	0105-	●	●
130	MEMBER; CROSS,END EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-613-1	01	1	0105-		●
131	BOLT; END C/MBR M14X50	9-92061-450-0	AR	1	0105-0512	●
131	BOLT; END C/MBR M14X40	9-92061-440-0	AR	1	0105-0512		●
131	BOLT; END C/MBR M14X50	0-20951-450-0	AR	1	0601-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	AR	1	0601-		●
132	NUT; END C/MBR M14	9-99110-514-0	AR	1	0105-0512	●	●
132	NUT; END C/MBR M14	0-91110-514-0	AR	1	0601-	●	●
148	SPACER; C/MBR FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A)	1-53168-452-0	02	1	0105-	●	●
148	SPACER; C/MBR FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B)	1-53168-453-0	04	1	0105-	●	●
201	GUSSET; C/MBR EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53161-533-1	02	1	0105-		●
202	SPACER; 3RD C/MBR FRAME EQUIPMENT HEAVY DUTY VAR2<F01>	1-53168-454-0	04	1	0105-		●
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	AR	1	0105-	●	●

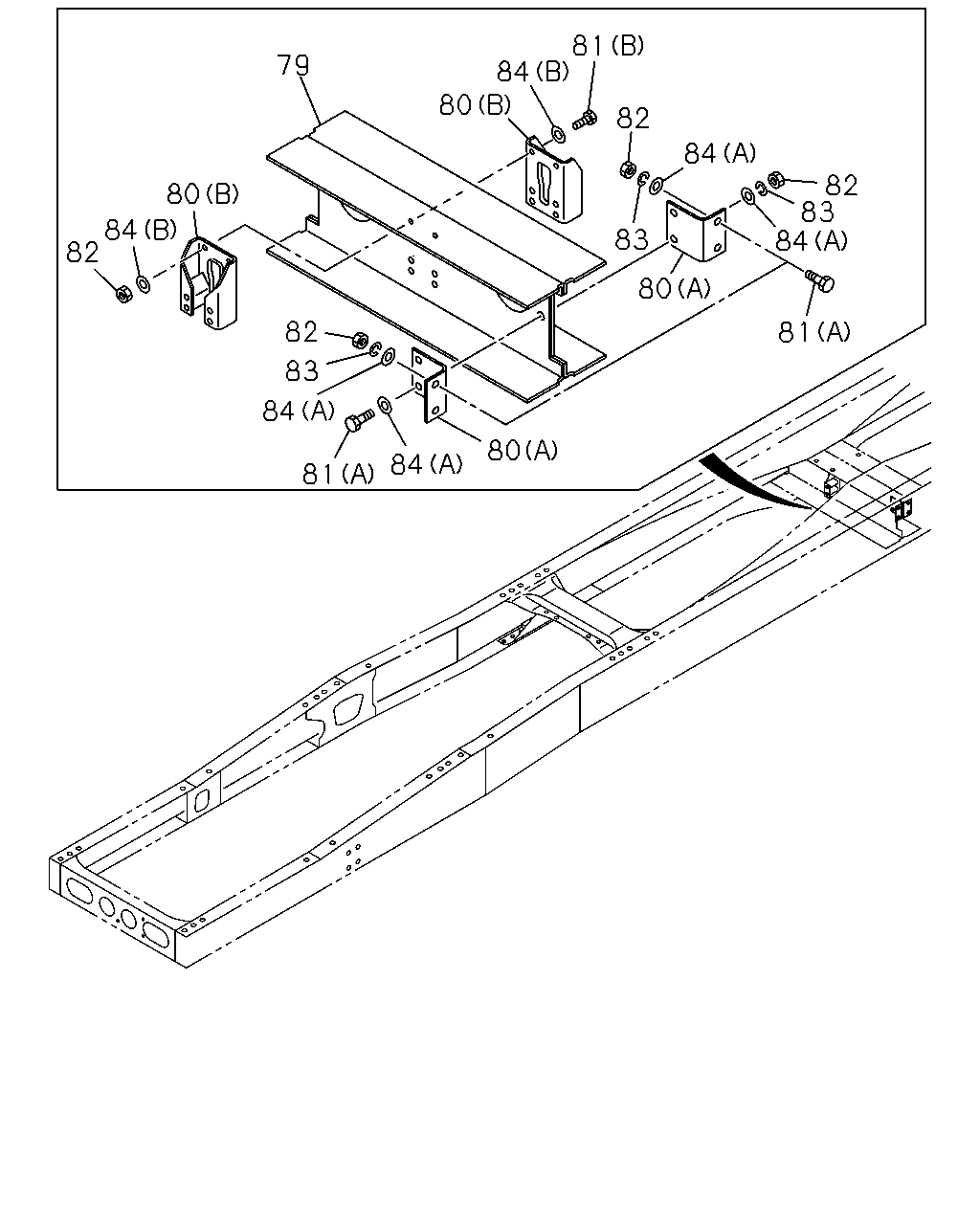

81 84 83 82 84 80 83 82 81 84 80 79 80 84 82 82 83 84 81 84 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	0105-	●
79	MEMBER; CROSS,TRUNNION ASM FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-374-0	01	1	0105-		●
79	MEMBER; CROSS,TRUNNION ASM EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-53181-686-2	01	1	0105-		●
80	BRACKET; C/MBR (B)	1-53363-031-2	02	1	0105-	●	●
80	BRACKET; C/MBR FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-53167-288-1	04	1	0105-	●	●
80	BRACKET; C/MBR EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A)	1-53167-610-0	04	1	0105-	●	●
81	BOLT; BRKT (B) M14X205	1-09000-147-0	AR	1	0105-	●	●
81	BOLT; BRKT (A) M14X55	9-91066-455-0	AR	1	0105-	●	●
81	BOLT; BRKT (B) M14X50	9-92061-450-0	AR	1	0105-0512	●	●
81	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X45	9-92061-445-0	AR	1	0105-	●	●
81	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X38	9-92061-438-0	AR	1	0105-0312	●	●
81	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X40	9-92061-440-0	AR	1	0401-0512	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	AR	1	0601-	●	●
81	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X40	0-20951-440-0	AR	1	0601-	●	●
82	NUT; BRKT M14	9-99110-514-0	AR	1	0105-0512	●	●
82	NUT; BRKT M14	0-91110-514-0	AR	1	0601-	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	AR	1	0105-0603	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	AR	1	0604-	●	●
84	WASHER; PL,BRKT (A) ID=15 OD=26	9-09164-514-0	AR	1	0105-	●	●
84	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	AR	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
