2-07B — CLUTCH BOOSTER; MINIPACK (#2805) — 54 parça

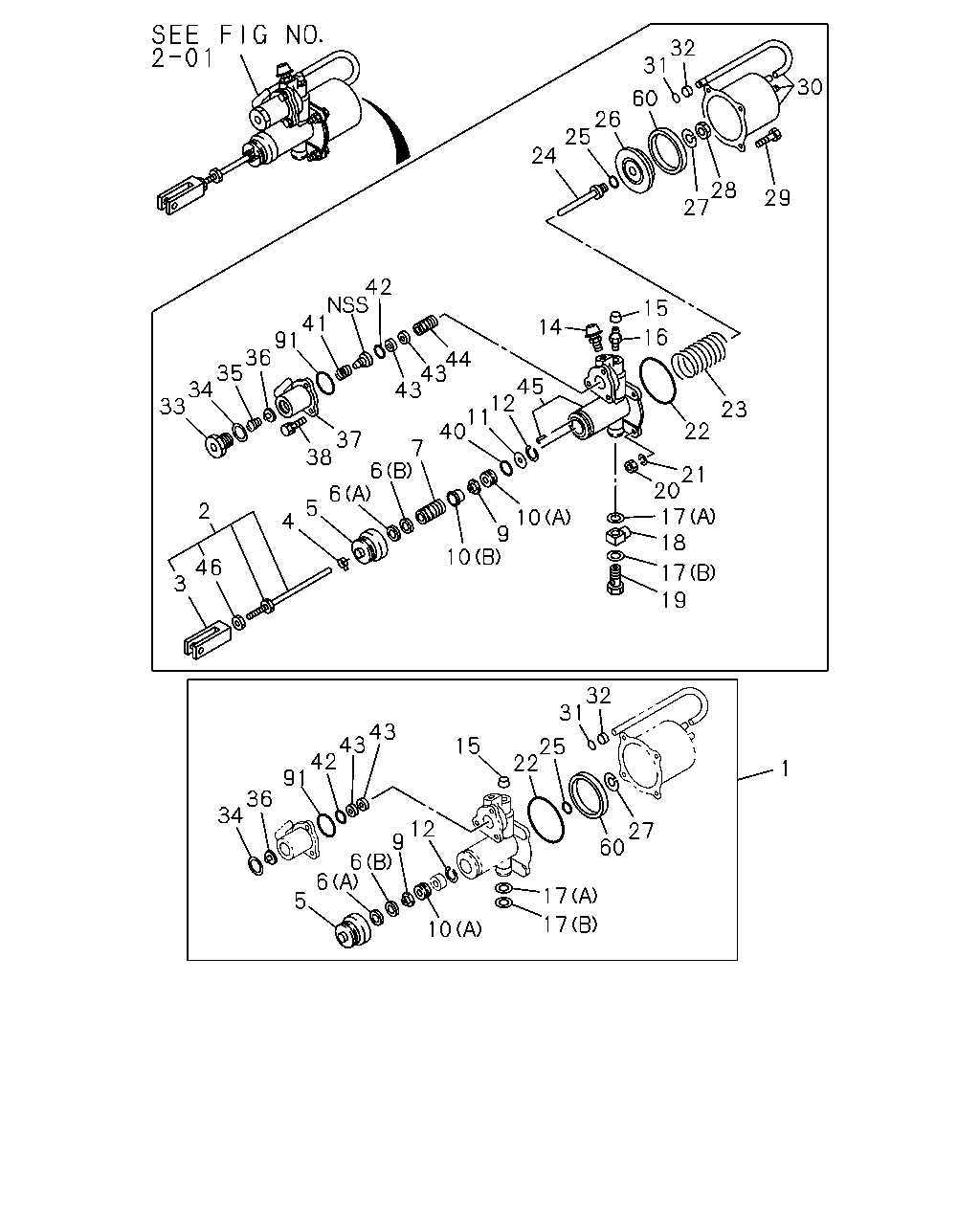

çizim 27657
33 34 35 36 91 41 42 24 25 26 60 31 32 27 28 29 30 2 3 46 4 5 6 38 37 6 7 40 11 12 45 14 15 16 23 22 21 20 10 9 10 17 18 17 19 34 36 91 42 43 43 5 6 6 9 12 15 10 22 25 31 32 17 17 60 27 1 43 43 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 REPAIR KIT; CLU BOOSTER 1-31829-183-0 01 1 9002-9006 ● ● ● ● ●
1 REPAIR KIT; CLU BOOSTER 1-85579-013-0 01 1 9007- ● ● ● ● ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-066-0 01 1 9002- ● ● ● ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-189-0 01 1 9002- ● ● ● ● ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9002- ● ● ● ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9002- ● ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9002- ● ● ● ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9002- ● ● ● ● ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9002- ● ● ● ● ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9002- ● ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-107-0 01 1 9002- ● ● ● ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-108-0 01 1 9002- ● ● ● ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9002- ● ● ● ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9002- ● ● ● ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9002- ● ● ● ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9002- ● ● ● ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9002- ● ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9002- ● ● ● ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9002- ● ● ● ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9002- ● ● ● ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9002- ● ● ● ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 9002- ● ● ● ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 9002- ● ● ● ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 9002- ● ● ● ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9002- ● ● ● ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9002- ● ● ● ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9002- ● ● ● ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 9002- ● ● ● ● ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9002- ● ● ● ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9002- ● ● ● ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 9002- ● ● ● ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 9002- ● ● ● ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 9002- ● ● ● ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 9002- ● ● ● ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9002- ● ● ● ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9002- ● ● ● ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9002- ● ● ● ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9002- ● ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-018-0 01 1 9002-9006 ● ● ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 9007- ● ● ● ● ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9002- ● ● ● ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9002- ● ● ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 9002-9601 ● ● ● ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 9602- ● ● ● ● ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 9002- ● ● ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9002-9006 ● ● ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 9007- ● ● ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-019-0 01 1 9002-9006 ● ● ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 9007- ● ● ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-019-0 01 1 9002-9006 ● ● ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 9007- ● ● ● ● ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9002- ● ● ● ● ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 9002- ● ● ● ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9002- ● ● ● ● ● ●
