4-50 — FRONT SUSPENSION (#28047) — 155 parça

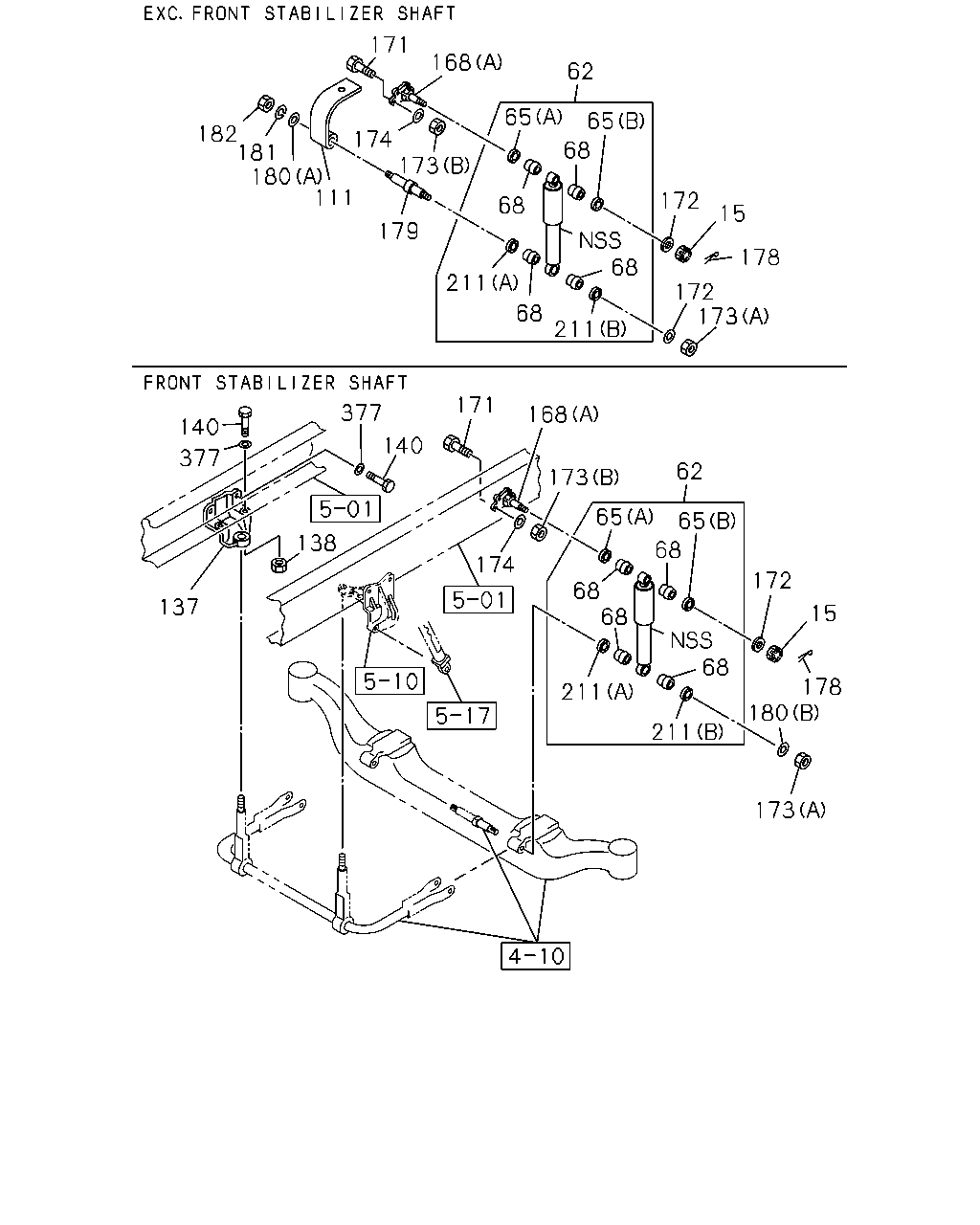

çizim 22765
173 180 178 15 172 68 211 211 68 68 68 65 62 65 173 168 171 174 138 137 377 140 377 140 68 211 211 173 172 178 15 172 68 68 68 65 65 62 168 171 174 173 179 111 180 181 182
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0105-0302
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 01 1 0303-0303
15 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M20 SLOTTED 		9-99116-420-0 01 1 0303-0303
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0304-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-443-0 02 1 0303-
62 ABSORBER ASM; SHOCK,FRT 1-51630-429-0 02 1 0105-0302
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-429-0 02 1 0303-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0105-0302
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 0105-0302
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-627-0 02 1 0303-
137 BRACKET; STAB BAR TO FRAME
WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> CAB UP +110MM<TGG> 		1-51781-111-0 01 1 0303-
138 NUT; BRKT
WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> CAB UP +110MM<TGG> M14 		9-99110-514-0 02 1 0303-0512
138 NUT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14 		0-91110-514-0 02 1 0601-
140 BOLT; BRKT
WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> CAB UP +110MM<TGG> M14X50 		9-92061-450-0 04 1 0303-0512
140 BOLT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X50 		0-20951-450-0 04 1 0601-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0105-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X45 		9-92061-445-0 08 1 0105-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X40 		9-92061-440-0 08 1 0105-0512
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X40 		0-20951-440-0 08 1 0601-
172 WASHER; PL,S/ABS BRKT
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 04 1 0303-0303
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0105-0302
172 WASHER; PL,S/ABS BRKT
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 0303-0303
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0304-0605
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0606-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) LOWER M20 		9-99110-420-0 01 1 0303-0303
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0105-0302
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 03 1 0303-0303
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0304-0311
173 NUT; S/ABS
(A) LOWER M20 		9-99110-520-0 04 1 0312-0512
173 NUT; S/ABS
(A) LOWER M20 		0-91110-520-0 04 1 0601-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0105-0512
173 NUT; S/ABS
(B) UPPER M14 		0-91110-514-0 08 1 0601-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 0105-0603
174 WASHER; LK,S/ABS
UPPER ID=14.2 		0-91510-614-0 08 1 0604-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0105-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 0607-
179 PIN 1-51682-094-1 04 1 0105-0302
179 PIN 1-51682-094-1 02 1 0303-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 0303-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09160-520-0 02 1 0303-0303
180 WASHER; PL,PIN
(A) ID=25 		1-09503-169-0 04 1 0105-0302
180 WASHER; PL,PIN
(A) ID=25 		1-09503-169-0 02 1 0303-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=25 		1-09503-169-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0105-0302
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-0603
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		9-09150-524-0 02 1 0303-0603
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0604-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 0604-
182 NUT; S/ABS LWR
FORWARD M24 		9-99110-424-0 02 1 0105-0303
182 NUT; S/ABS LWR
EXC. FRONT STABILIZER SHAFT<F59> FORWARD M24 		9-99110-424-0 02 1 0304-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0105-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0105-
377 WASHER; LK,BRKT
WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> CAB UP +110MM<TGG> ID=15 		9-09651-069-0 04 1 0303-

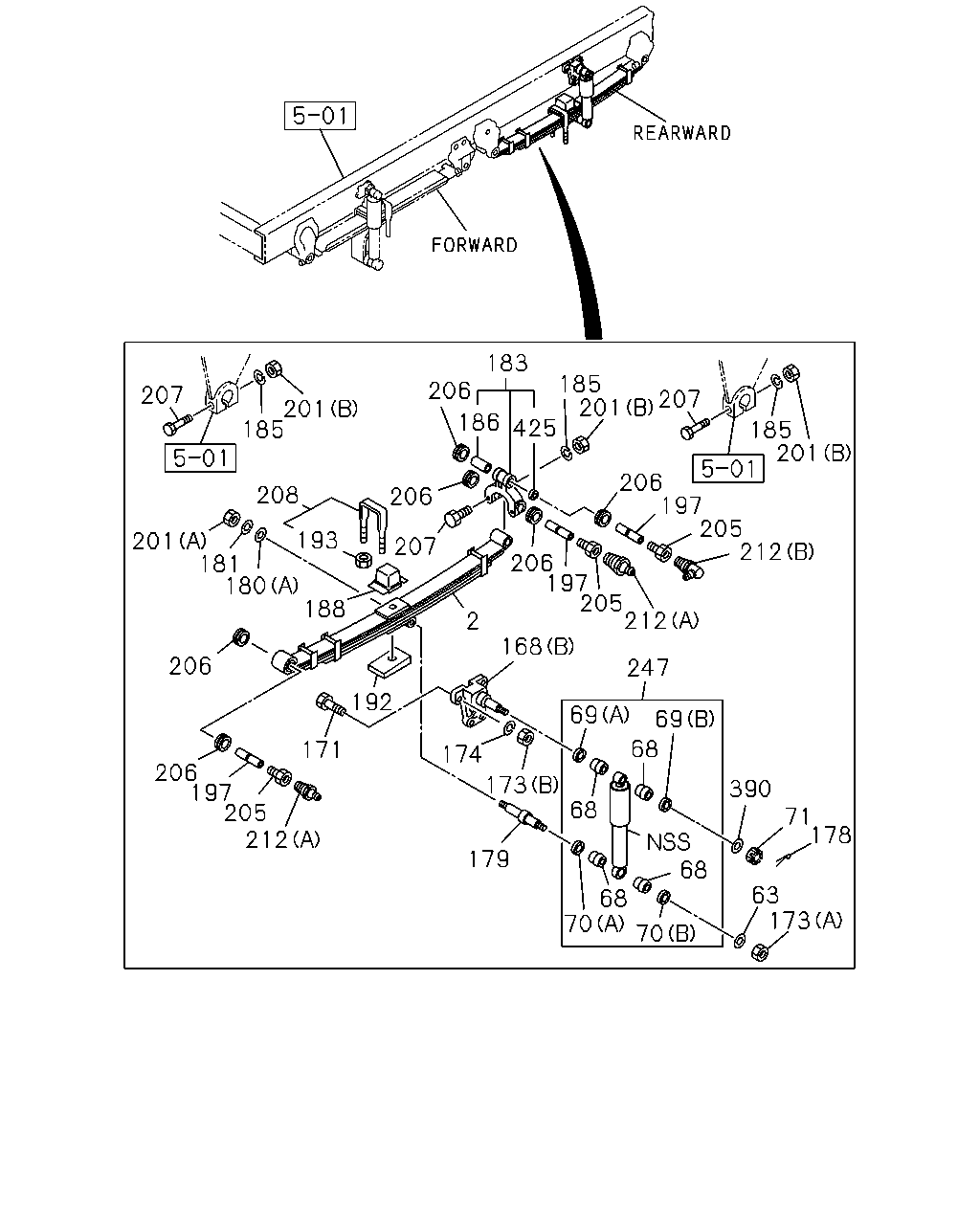

çizim 23629
173 63 178 71 390 68 70 68 70 179 173 68 68 69 69 247 212 205 197 206 2 168 174 192 171 212 205 197 206 206 188 180 181 201 208 193 207 206 212 205 197 206 201 185 207 201 185 183 425 186 206 201 185 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) FORWARD 10-LEAF 		1-51130-818-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) REARWARD 10-LEAF 		1-51130-819-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) FORWARD 3-LEAF 		1-51130-822-0 02 1 0106-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) REARWARD 3-LEAF 		1-51130-823-0 02 1 0106-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 02 1 0105-0605
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 02 1 0606-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0105-0302
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0105-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X45 		9-92061-445-0 08 1 0105-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X40 		9-92061-440-0 08 1 0105-0512
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M14X40 		0-20951-440-0 08 1 0601-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) LOWER M20 		9-99110-420-0 01 1 0303-0303
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0105-0302
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 03 1 0303-0303
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0304-0311
173 NUT; S/ABS
(A) LOWER M20 		9-99110-520-0 04 1 0312-0512
173 NUT; S/ABS
(A) LOWER M20 		0-91110-520-0 04 1 0601-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0105-0512
173 NUT; S/ABS
(B) UPPER M14 		0-91110-514-0 08 1 0601-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 0105-0603
174 WASHER; LK,S/ABS
UPPER ID=14.2 		0-91510-614-0 08 1 0604-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0105-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 0607-
179 PIN 1-51682-094-1 04 1 0105-0302
179 PIN 1-51682-094-1 02 1 0303-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 0303-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09160-520-0 02 1 0303-0303
180 WASHER; PL,PIN
(A) ID=25 		1-09503-169-0 04 1 0105-0302
180 WASHER; PL,PIN
(A) ID=25 		1-09503-169-0 02 1 0303-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=25 		1-09503-169-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0105-0302
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-0603
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		9-09150-524-0 02 1 0303-0603
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0604-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 0604-
183 SHACKLE; FRT SUSP 1-51162-064-0 04 1 0105-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0105-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 04 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 04 1 0105-0407
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0408-
192 PIECE; DIST
REARWARD 		1-51177-281-0 02 1 0105-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0105-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 0105-
201 NUT; PIN LK
(A) M24 		9-99110-424-0 02 1 0105-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0105-0512
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0105-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0105-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0105-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 0105-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 0105-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 09 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 03 1 0105-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 03 1 0601-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-443-0 02 1 0105-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 02 1 0105-0605
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 02 1 0606-
425 SEAL; DUST 1-51177-321-0 08 1 0105-

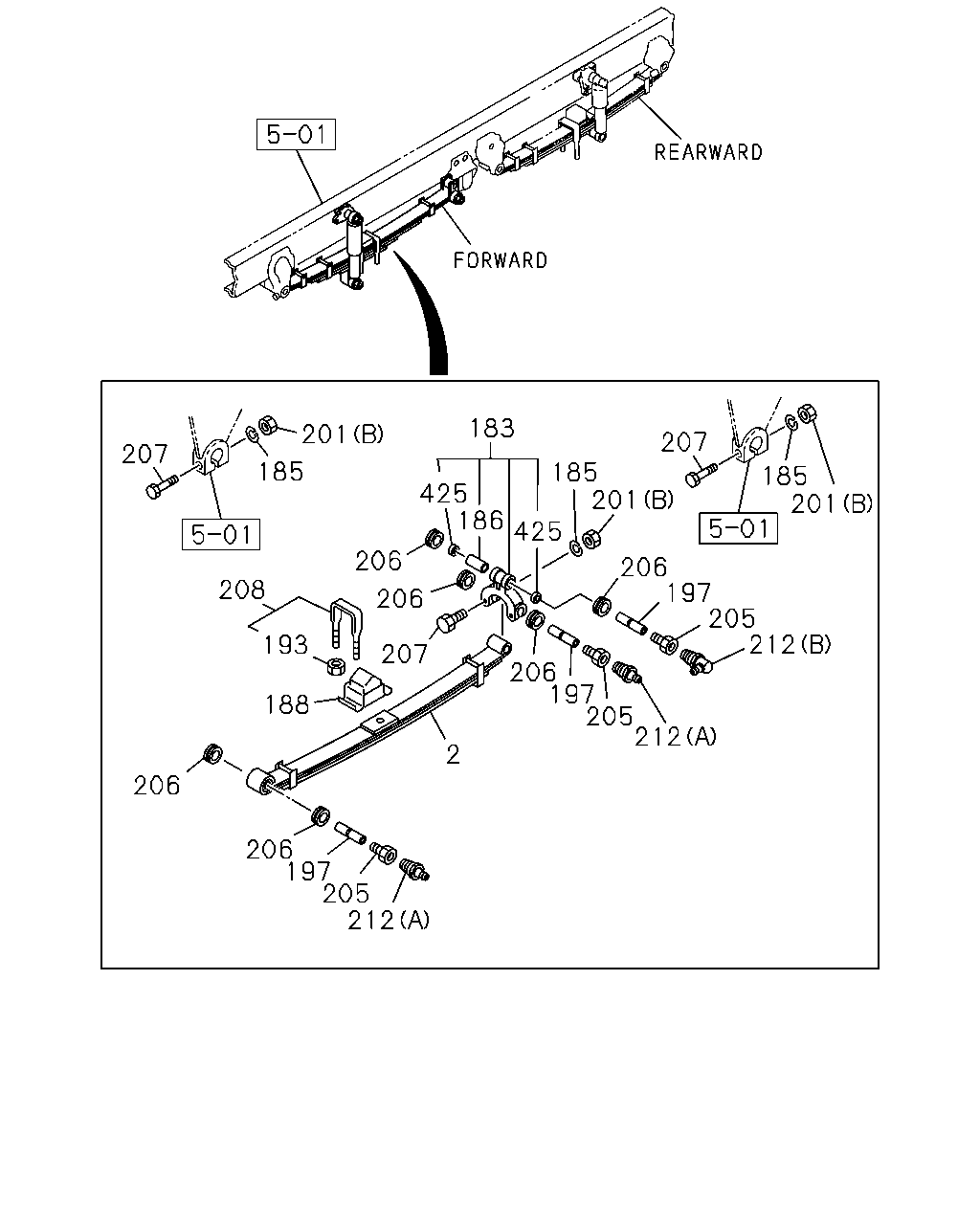

çizim 83496
212 205 197 206 206 188 193 208 207 185 201 183 425 206 207 206 2 206 197 205 212 212 205 197 206 425 186 185 207 201 185 201
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) FORWARD 10-LEAF 		1-51130-818-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) REARWARD 10-LEAF 		1-51130-819-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) FORWARD 3-LEAF 		1-51130-822-0 02 1 0106-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) REARWARD 3-LEAF 		1-51130-823-0 02 1 0106-
183 SHACKLE; FRT SUSP 1-51162-064-0 04 1 0105-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0105-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 04 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 04 1 0105-0407
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 02 1 0408-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0105-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 0105-
201 NUT; PIN LK
(A) M24 		9-99110-424-0 02 1 0105-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0105-0512
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0105-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0105-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0105-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 0105-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 0105-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 09 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 03 1 0105-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 03 1 0601-
425 SEAL; DUST 1-51177-321-0 08 1 0105-
