◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#28043) — 31 parça
çizim 78103
25 24 435 380 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0106- ● ●
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0106- ● ●
328 NUT
M16 		9-99111-416-0 02 1 0106- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 0106- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0106- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0106- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0106- ● ●
çizim 79661
1 303 2 486 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0106-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0106- ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0106- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0106-0205 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0206- ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0106- ● ●

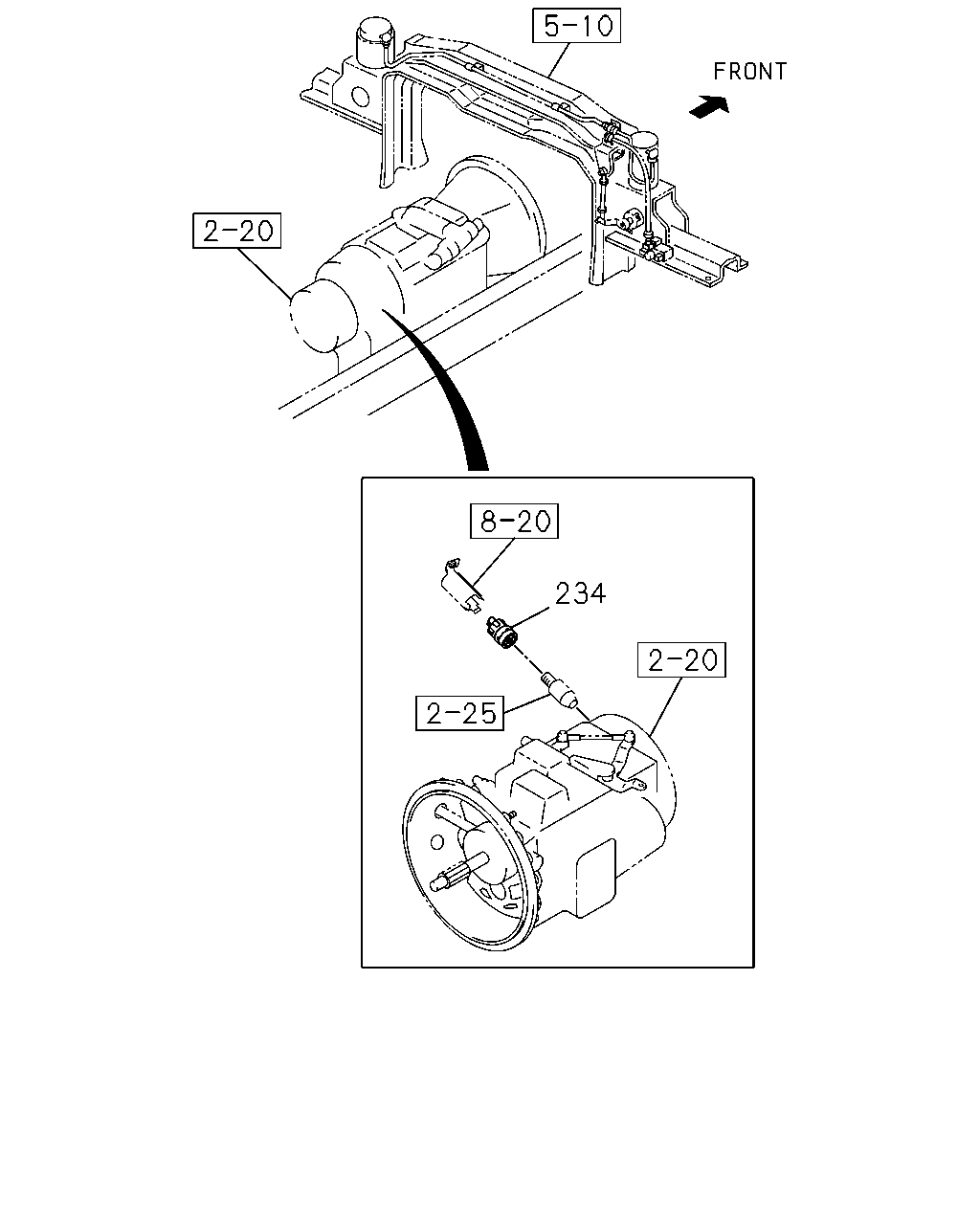

çizim 79835
234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0106-0202 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203- ● ●

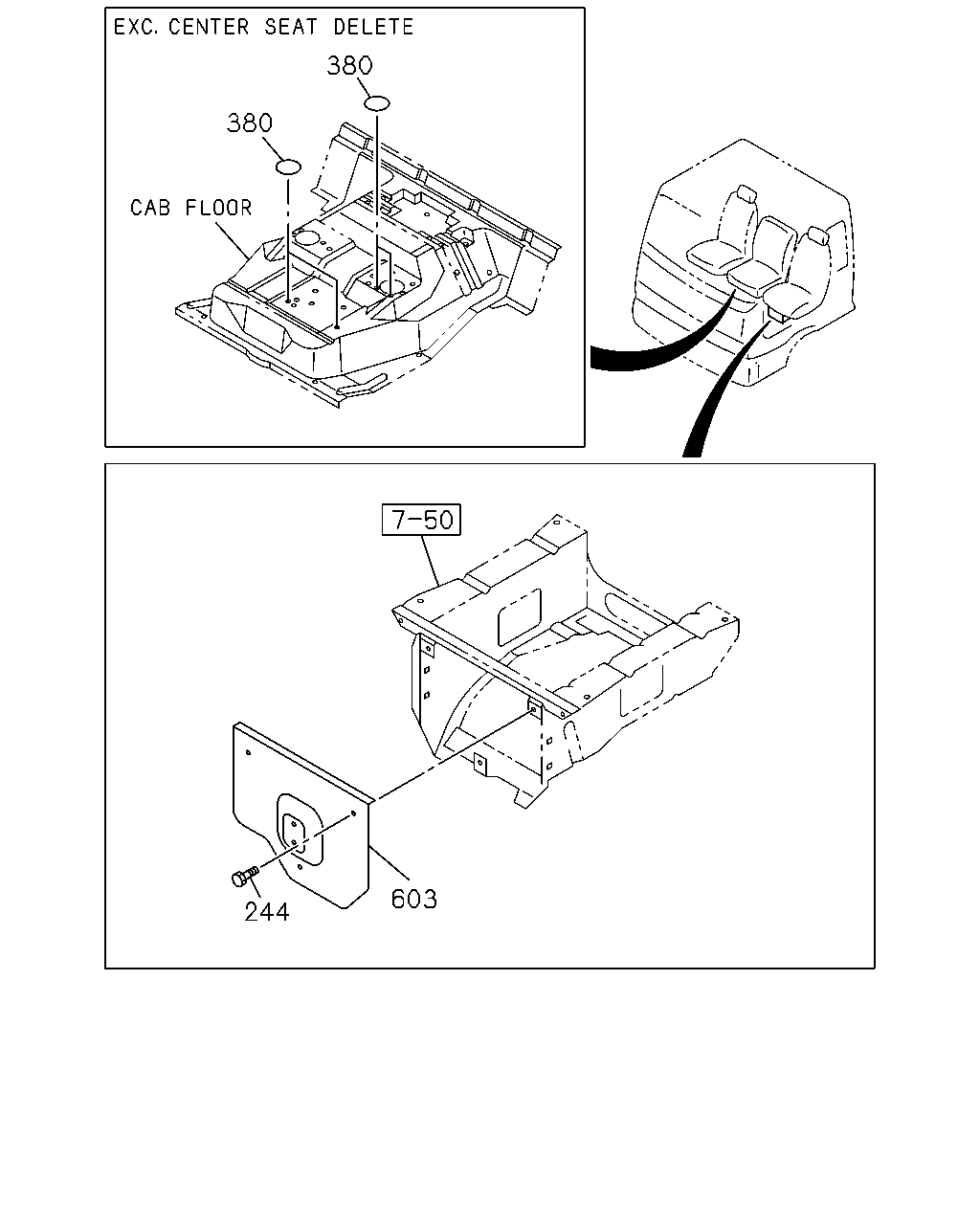

çizim 79938
380 380 603 244
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 0106- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
603 COVER; CONT UNIT,SEAT STAND 1-75557-489-1 01 1 0106- ● ●

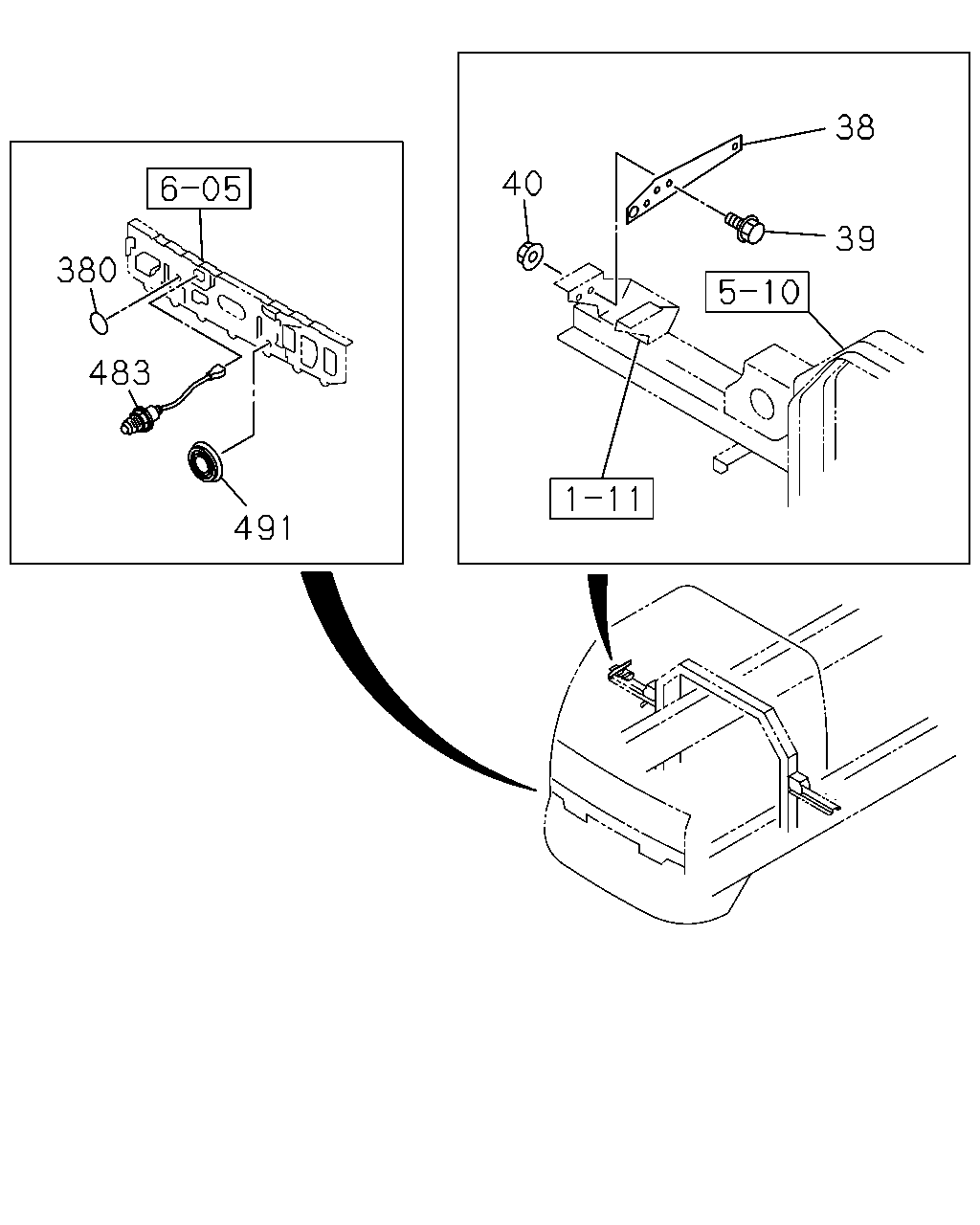

çizim 80256
38 40 39 380 483 491
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0106- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 0106- ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0106- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0106- ● ●
