8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#28042) — 38 parça
çizim 21688
77 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0106- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0106- ● ●
77 SWITCH; PTO
(A) 		1-82380-112-0 01 1 0106- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0106- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0106- ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0106- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0106- ● ●

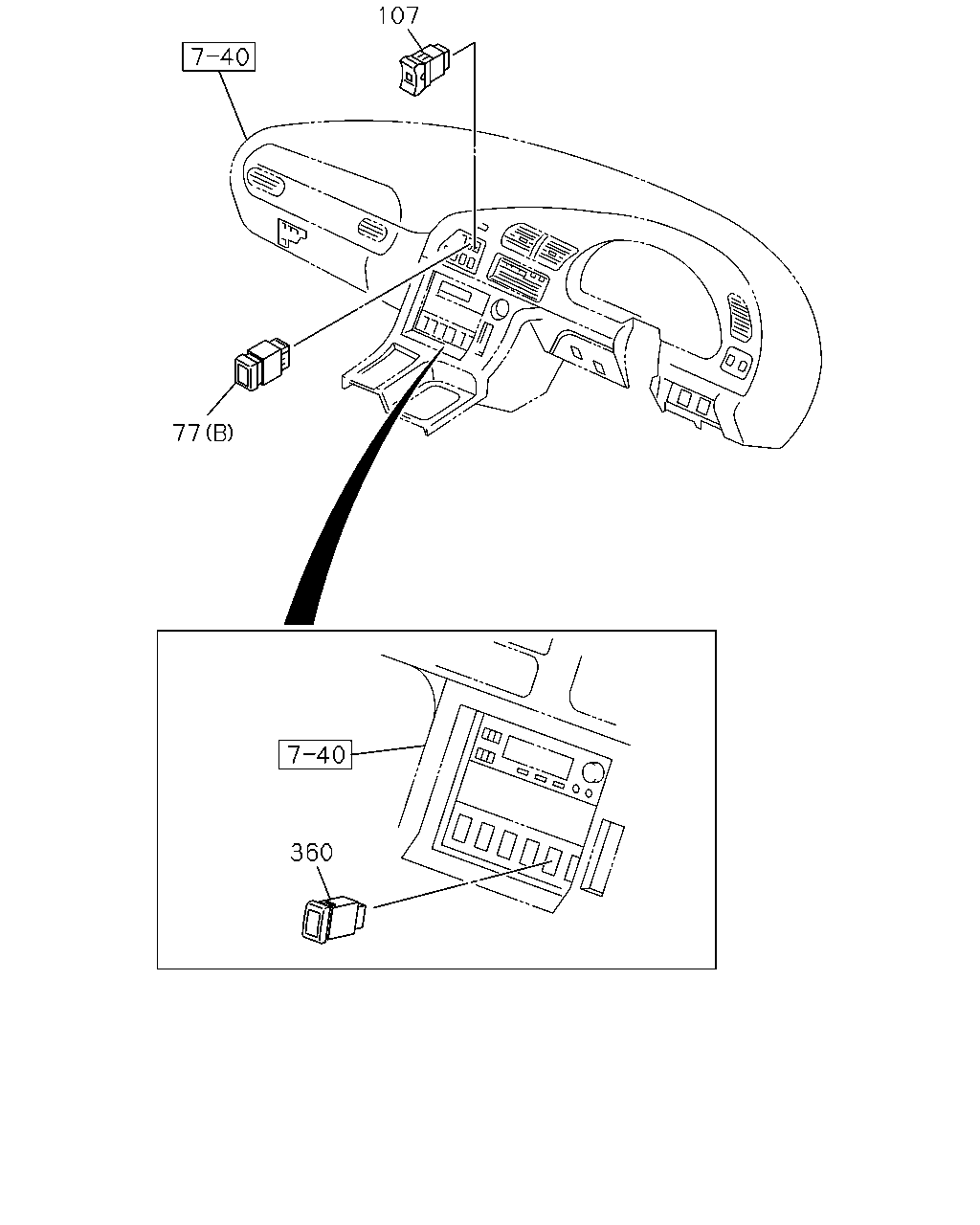

çizim 77316
107 77 360
BalonParca AdiParca NoAdetTipApplied Date A B
77 SWITCH; PTO
(A) 		1-82380-112-0 01 1 0106- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 0106- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 0106- ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0106- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0106- ● ●

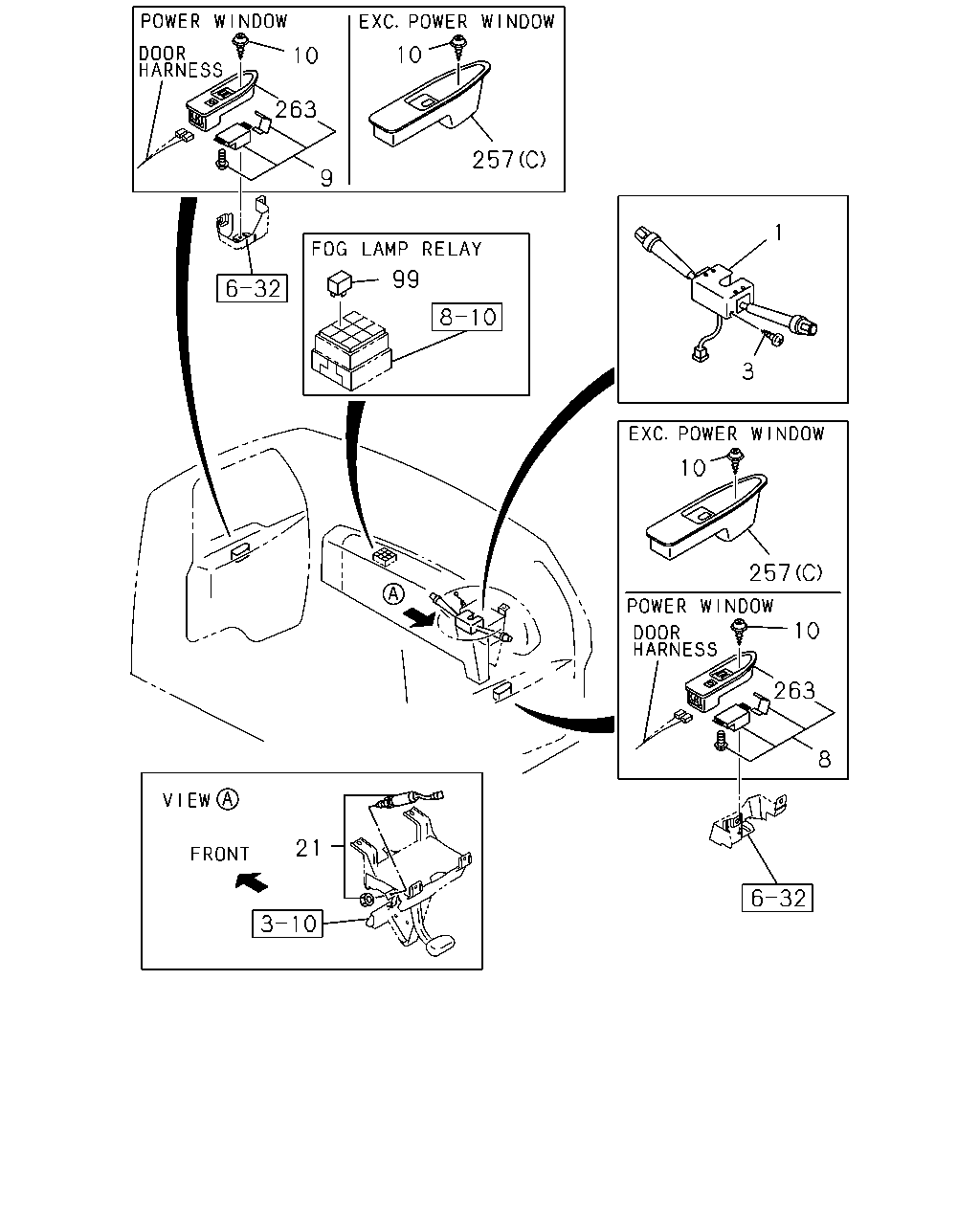

çizim 80049
10 10 263 257 9 1 99 3 10 257 10 263 8 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-619-0 01 1 0106- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0106- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER SIDE 		1-82380-155-3 01 1 0106- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER SIDE 		1-82380-154-3 01 1 0106- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0106- ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 0106- ● ●
99 RELAY; FOG LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0106-0111 ● ●
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0106- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0106- ● ●
263 COVER; SW
POWER WINDOW<A30> PASSENGER SIDE 		1-82385-006-3 01 1 0106- ● ●
263 COVER; SW
POWER WINDOW<A30> DRIVER SIDE 		1-82385-005-2 01 1 0106- ● ●

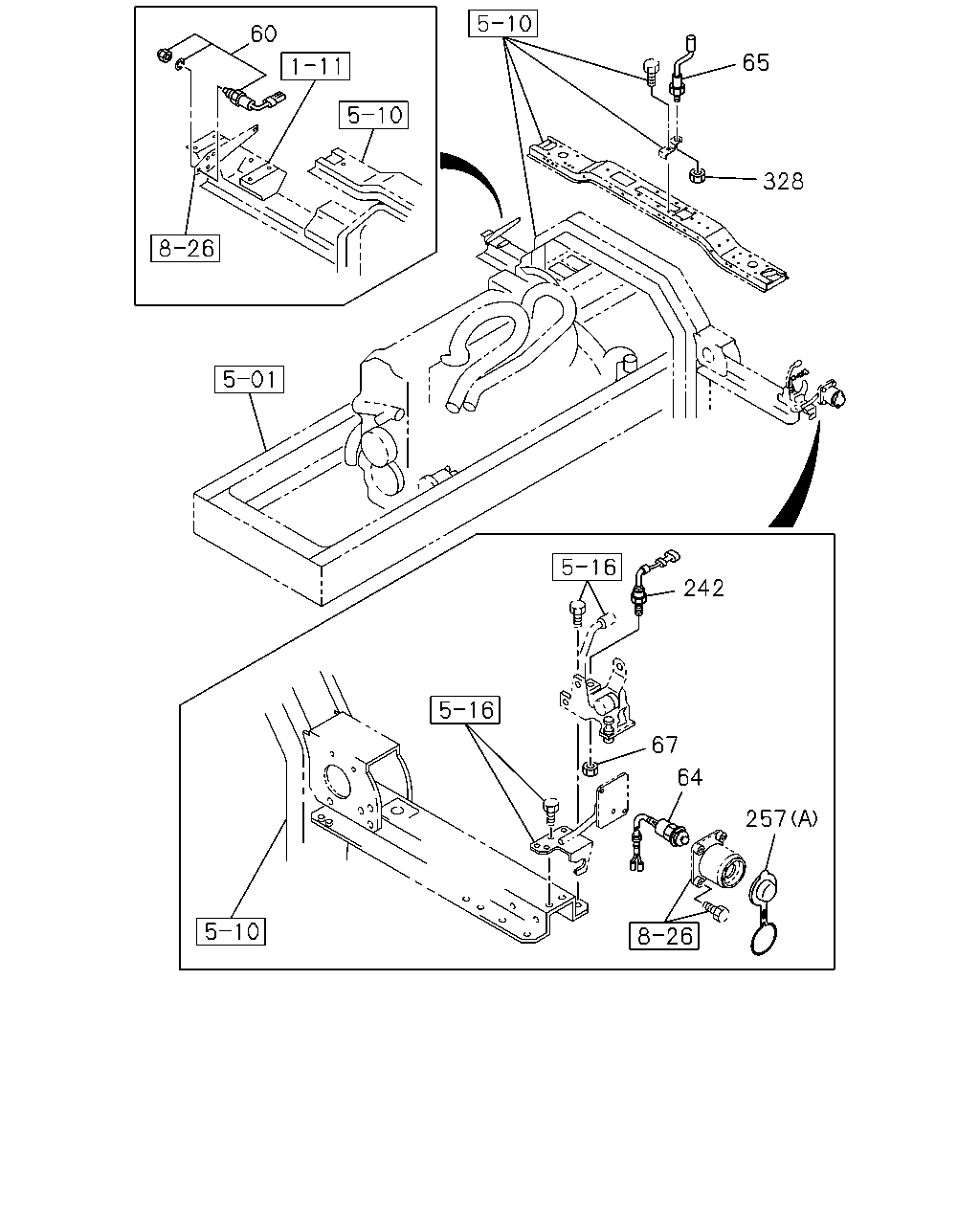

çizim 82997
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date A B
60 SWITCH; IGNITION SUB 1-82380-107-1 01 1 0106- ● ●
64 SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2> 		1-82380-108-0 01 1 0106- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0106- ● ●
67 NUT; SW,CAB TILT
AUTO CAB TILT<WV2> M16 H=18.5 		1-09409-013-0 01 1 0106- ● ●
242 SWITCH
AUTO CAB TILT<WV2> STAMP NO 		1-82380-126-0 01 1 0106- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0106- ● ●
257 COVER; HOLE,SW
AUTO CAB TILT<WV2> (A) 		1-82389-008-0 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 0106- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 0106- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 0106- ● ●
