◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#28039) — 231 parça

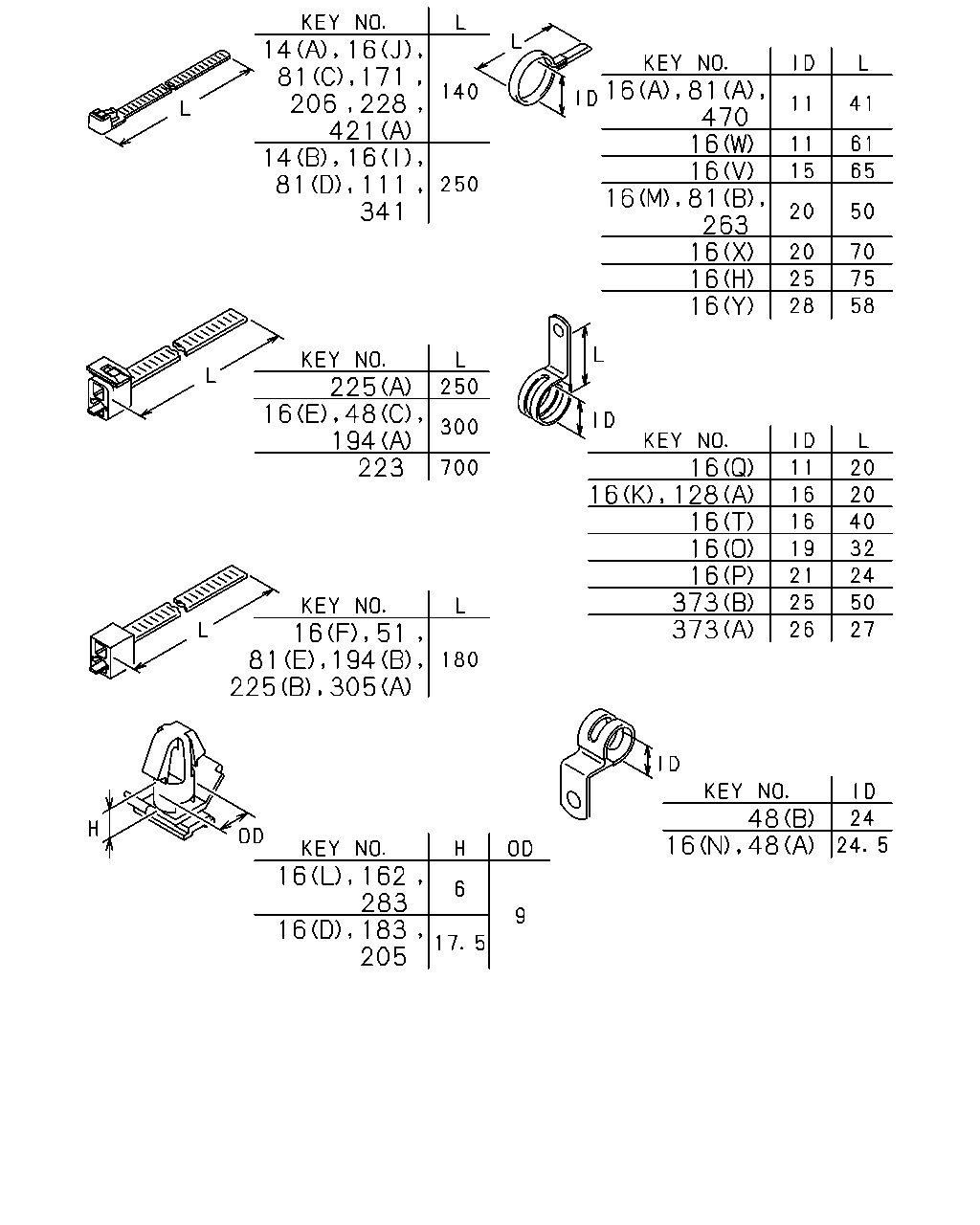

çizim 21689
14 16 81 171 421 14 16 81 111 341 470 16 16 263 16 16 16 225 194 223 16 16 28 16 16 16 373 373 81 194 48 162 283 183 205 206 228 16 81 16 48 16 51 225 305 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 0106- ● ●
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 04 1 0106- ● ●
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 01 1 0111- ● ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (L) OD=9 H=6 		1-09709-178-0 01 1 0107- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (V) ID=15 L=65 		1-09700-466-0 02 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=11 L=61 		1-09700-484-0 03 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=11 L=61 		1-09700-484-0 01 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 01 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=20 L=70 		1-09700-485-0 14 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=20 L=70 		1-09700-485-0 01 1 0106- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(V) ID=15 L=65 		1-09700-466-0 01 1 0106- ● ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106- ● ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 02 1 0106- ● ●
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106- ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106- ● ●
16 CLIP; HARNESS
(P) ID=21 L=24 		1-09701-201-0 02 1 0106- ● ●
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		1-09701-235-0 02 1 0106- ● ●
16 CLIP; HARNESS
(H) ID=25 L=75 		1-09701-275-0 02 1 0106- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106- ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106- ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (L) OD=9 H=6 		1-09709-178-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 06 1 0106-0106 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0107- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0209 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106- ● ●
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0106- ● ●
16 CLIP; HARNESS
(R) ID=14-20 		8-97061-603-0 01 1 0106- ● ●
16 CLIP; HARNESS
(Q) ID=11 L=20 		9-09525-035-0 01 1 0106- ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ●
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0106- ● ●
16 CLIP; HARNESS
MAG6 M/T<X9T> (L) OD=9 H=6 		1-09709-178-0 02 1 0106- ● ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (D) OD=9 H=17.5 		1-09709-181-0 01 1 0106- ● ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 04 1 0106- ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 06 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (V) ID=15 L=65 		1-09700-466-0 15 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 06 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (V) ID=15 L=65 		1-09700-466-0 17 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (W) ID=11 L=61 		1-09700-484-0 08 1 0106- ●
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0106- ● ●
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0106- ● ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0106- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0106- ● ●
81 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0106- ● ●
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0106- ● ●
81 CLIP; HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0106- ● ●
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (E) L=180 		1-09707-162-1 02 1 0106- ● ●
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 0106- ● ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0106- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106- ● ●
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0106- ● ●
183 CLIP; CONNECTOR
OD=9 H=17.5 		1-09709-181-0 01 1 0106- ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 0106- ● ●
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0106- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0106- ● ●
205 CLIP; BACK LAMP HARNESS
OD=9 H=17.5 		1-09709-181-0 01 1 0106- ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0106- ● ●
223 CLIP; AIR TANK HARNESS
L=700 		1-09707-190-0 01 1 0106- ● ●
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0106- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 02 1 0106- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0106- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 06 1 0106- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0106-0305 ● ●
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0106- ● ●
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0106- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0106- ● ●
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0106- ● ●
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0106- ● ●
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 0106- ● ●
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0106- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0106-0207 ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0106- ● ●
çizim 78202
16 16 16 16 16 305 16 116 421 60 168 168 128 148 305 462 235
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(Y) ID=28 L=58 		1-09700-400-0 01 1 0111- ● ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (L) OD=9 H=6 		1-09709-178-0 01 1 0107- ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (V) ID=15 L=65 		1-09700-466-0 02 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=11 L=61 		1-09700-484-0 03 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (W) ID=11 L=61 		1-09700-484-0 01 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 01 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=20 L=70 		1-09700-485-0 14 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=20 L=70 		1-09700-485-0 01 1 0106- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0106-0106 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107- ● ●
16 CLIP; HARNESS
(V) ID=15 L=65 		1-09700-466-0 01 1 0106- ● ●
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0106- ● ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 02 1 0106- ● ●
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0106- ● ●
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0106- ● ●
16 CLIP; HARNESS
(P) ID=21 L=24 		1-09701-201-0 02 1 0106- ● ●
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107- ● ●
16 CLIP; HARNESS
(O) ID=19 L=32 		1-09701-235-0 02 1 0106- ● ●
16 CLIP; HARNESS
(H) ID=25 L=75 		1-09701-275-0 02 1 0106- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0106- ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106- ● ●
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 0106- ● ●
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0106- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
MJA7 M/T<X9Q> (L) OD=9 H=6 		1-09709-178-0 01 1 0106-0106 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107- ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 06 1 0106-0106 ● ●
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0107- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0106-0209 ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 0210- ● ●
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0106- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106- ● ●
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0106- ● ●
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0106- ● ●
16 CLIP; HARNESS
(R) ID=14-20 		8-97061-603-0 01 1 0106- ● ●
16 CLIP; HARNESS
(Q) ID=11 L=20 		9-09525-035-0 01 1 0106- ● ●
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ●
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0106- ● ●
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0106- ● ●
16 CLIP; HARNESS
MAG6 M/T<X9T> (L) OD=9 H=6 		1-09709-178-0 02 1 0106- ● ●
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (D) OD=9 H=17.5 		1-09709-181-0 01 1 0106- ● ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 04 1 0106- ●
16 CLIP; HARNESS
(X) ID=20 L=70 		1-09700-485-0 06 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (V) ID=15 L=65 		1-09700-466-0 15 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=11 L=61 		1-09700-484-0 06 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (V) ID=15 L=65 		1-09700-466-0 17 1 0106- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (W) ID=11 L=61 		1-09700-484-0 08 1 0106- ●
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 0306- ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0106- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0106- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0106- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0106- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0106- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0106- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0106-0106 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0107- ● ●
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0106- ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0106- ● ●
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0106- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0106-0207 ● ●
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0106- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301- ● ●
çizim 78701
119 255 38 304 133 239 38 88 423 242 38 38 38 242 242 313 38 38 516 358 219 294 340 515 219 294 38 242 524
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(H) M5X8 		0-20800-508-0 01 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(G) M6X16 FLANGE 		0-28680-616-0 02 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 10 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0106- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0106- ● ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0106- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0106- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106-0106 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0106- ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-0110 ● ●
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111- ● ●
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0106-0106 ● ●
219 NUT
MJA7 M/T<X9Q> (B) M10 FLANGE 		0-91150-210-0 01 1 0106-0106 ● ●
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0107-0305 ● ●
219 NUT
MJA7U M/T(X6G),MAG6W M/T(X8B) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0305 ● ●
219 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0306- ● ●
219 NUT
MJA7U M/T(X6G) (B) M10 FLANGE 		0-91150-210-0 01 1 0306- ● ●
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0106-0110 ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X18 FLANGE 		0-28080-818-0 04 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
242 BOLT; BRKT,HARNESS
(D) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0106- ● ●
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X18 FLANGE 		0-28080-818-0 02 1 0106- ● ●
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0106- ● ●
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
294 NUT
MAG6 M/T<X9T> (B) M10 FLANGE 		0-91150-210-0 01 1 0106- ● ●
304 BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER 		1-09033-012-0 06 1 0106- ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0106- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0106- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0106- ● ●
çizim 79876
178 178 178 178 530 503 503
BalonParca AdiParca NoAdetTipApplied Date A B
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0106- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0106- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0106- ● ●
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0106- ● ●
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0106- ● ●
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 0106- ● ●
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (A) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0106- ● ●
503 CONNECTOR
(B) 		1-82690-666-0 01 1 0106- ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0106-0207 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0106- ● ●
çizim 80283
53 53 53 312 335 334 312 342 312 375 375 342
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(A) 		1-82699-592-2 01 1 0106- ● ●
53 BRACKET; HARNESS
(C) 		1-82699-826-0 01 1 0106- ● ●
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-895-0 01 1 0106- ● ●
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 0106-0205 ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0106- ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-348-0 01 1 0106- ● ●
334 BRACKET 1-53458-362-0 01 1 0106- ● ●
335 BRACKET; CONNECTOR
MAG6 M/T<X9T> 		1-82699-425-0 01 1 0106- ● ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82698-358-0 01 1 0106- ● ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 0106- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 0106- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
