◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#28036) — 29 parça

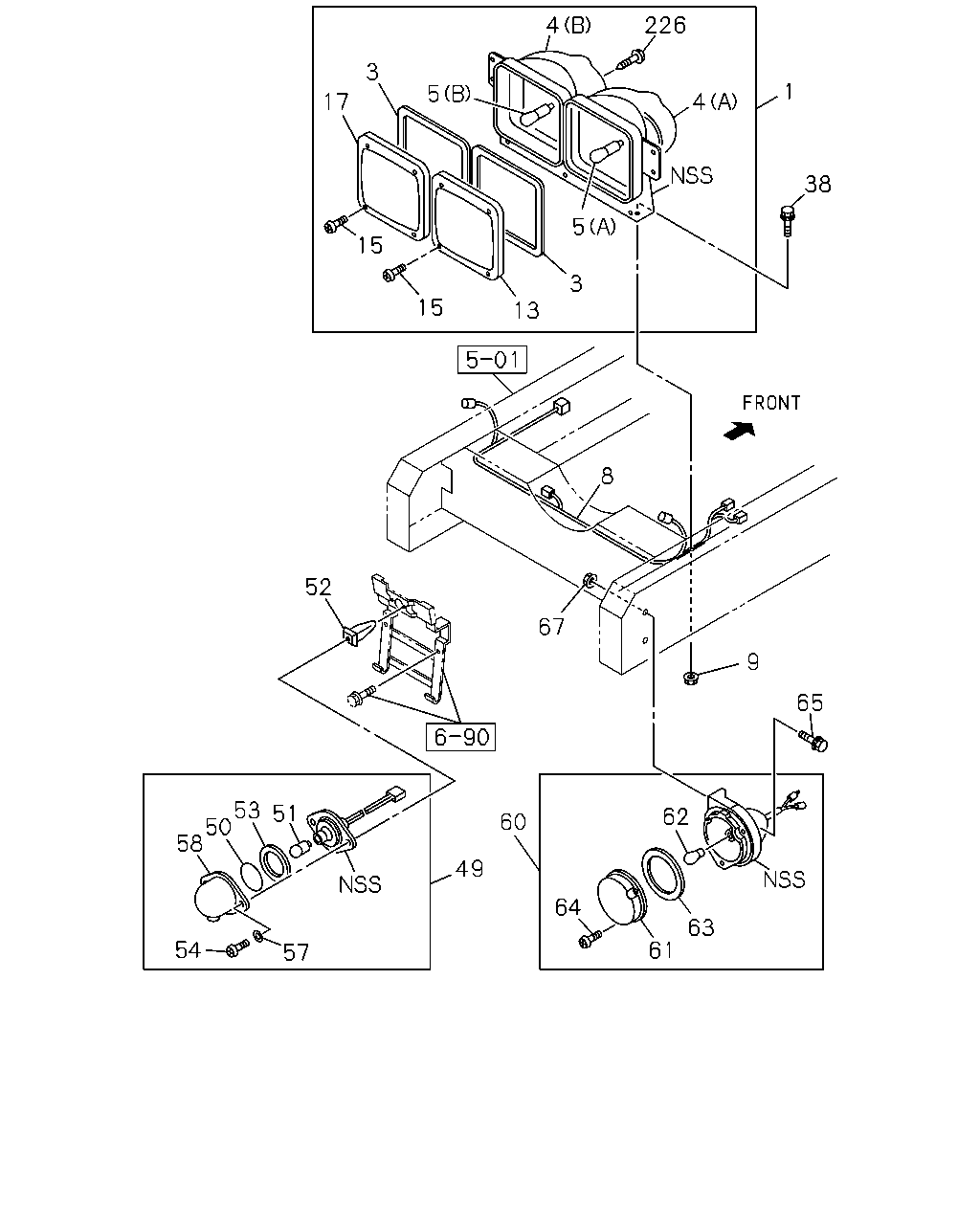

çizim 82856
226 4 3 1 5 17 4 38 5 15 3 15 13 8 52 67 9 65 53 50 58 51 62 60 49 64 63 54 61 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 1-82230-160-2 01 1 0106- ● ●
1 LAMP ASM; RR COMB 1-82230-159-2 01 1 0106- ● ●
3 GASKET; RR COMB LAMP 1-82236-003-0 04 1 0106- ● ●
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 0106- ● ●
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 0106- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0106- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0106- ● ●
8 HARNESS; RR COMB LAMP 1-82639-359-0 01 1 0106- ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
13 LENS; TURN SIGNAL 1-82235-016-0 02 1 0106- ● ●
15 SCREW; RR COMB LAMP 1-82239-019-0 16 1 0106- ● ●
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 0106- ● ●
38 BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0106- ● ●
49 LAMP; LICENSE PLATE 1-82120-024-0 01 1 0106- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0106- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0106- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0106- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0106- ● ●
54 SCREW; LICENSE PLATE LAMP 1-82129-007-0 02 1 0106- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0106- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0106- ● ●
60 LAMP; BACKUP 1-82130-016-1 01 1 0106- ● ●
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 0106- ● ●
62 BULB; BACKUP LAMP
24V 25W 		9-82691-347-0 01 1 0106- ● ●
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 0106- ● ●
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 0106- ● ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0106- ● ●
67 NUT; FLANGE
M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●
226 SCREW; PROTECTOR 1-82239-032-0 08 1 0106- ● ●
