8-01 — LAMP; FRONT AND FRONT SIDE (#28035) — 66 parça

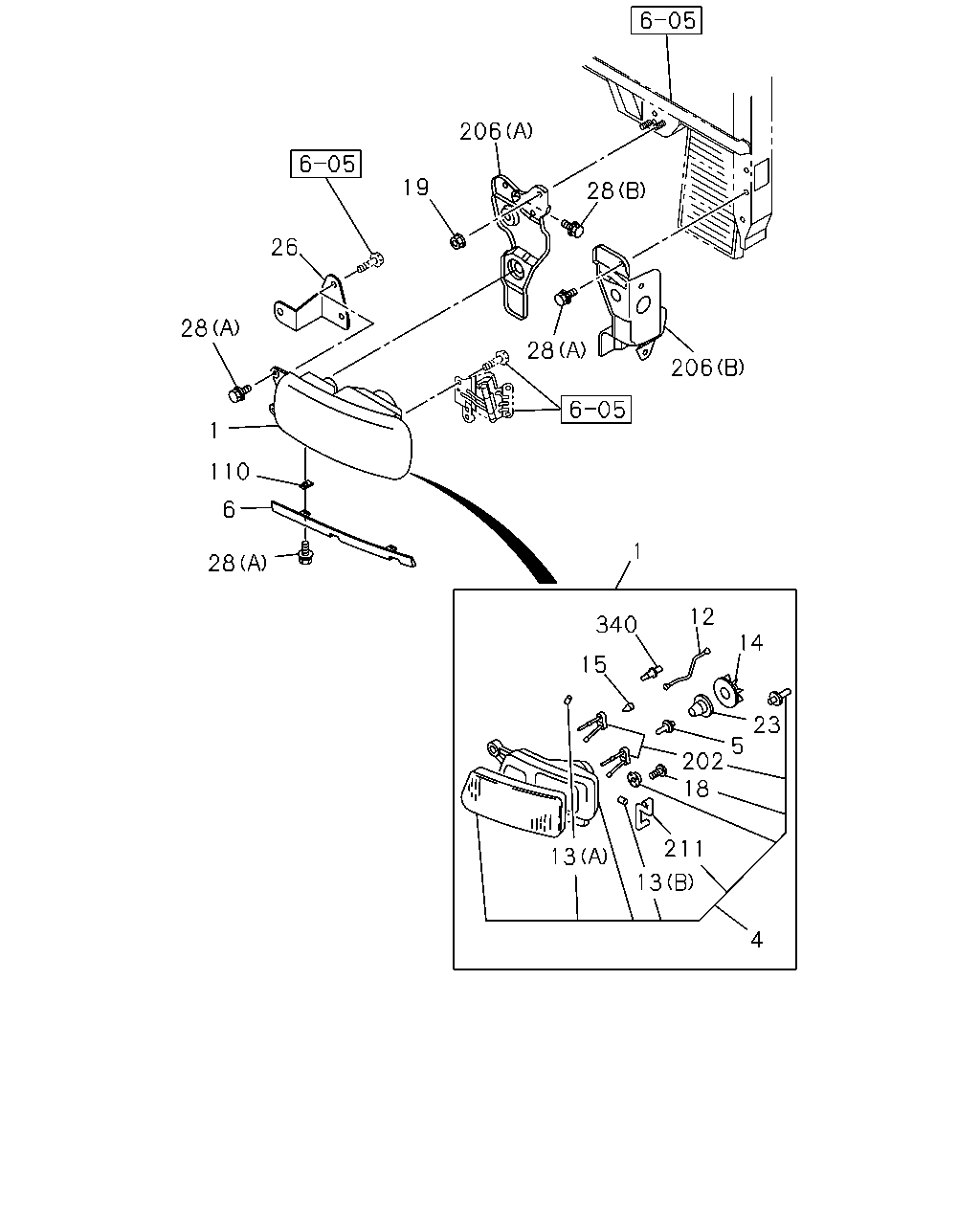

çizim 82881
206 19 28 26 28 28 206 1 110 6 1 28 12 340 14 15 23 5 202 18 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0106- ● ●
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0106- ● ●
4 HEADLAMP UNIT
24V 75/70W 		1-82119-129-0 01 1 0106- ● ●
4 HEADLAMP UNIT
24V 75/70W 		1-82119-128-0 01 1 0106- ● ●
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0106- ● ●
6 RIM; HEADLAMP 1-71107-024-0 01 1 0106- ● ●
6 RIM; HEADLAMP 1-71107-023-0 01 1 0106- ● ●
12 HARNESS; HEADLAMP 1-82118-012-0 02 1 0106- ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0106- ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0106- ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0106- ● ●
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0106- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0106- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0106- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0106- ● ●
26 BRACKET ASM; HEADLAMP 1-86830-085-0 01 1 0106- ● ●
26 BRACKET ASM; HEADLAMP 1-86830-084-0 01 1 0106- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0106- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0106- ● ●
110 CLIP; RIM,HEADLAMP 1-86830-213-0 04 1 0106- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0106- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0106- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-574-3 01 1 0106- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0106- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-573-3 01 1 0106- ● ●
211 TUBE; HEADLAMP 1-86830-331-0 01 1 0106- ● ●
211 TUBE; HEADLAMP 1-86830-330-0 01 1 0106- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0106- ● ●

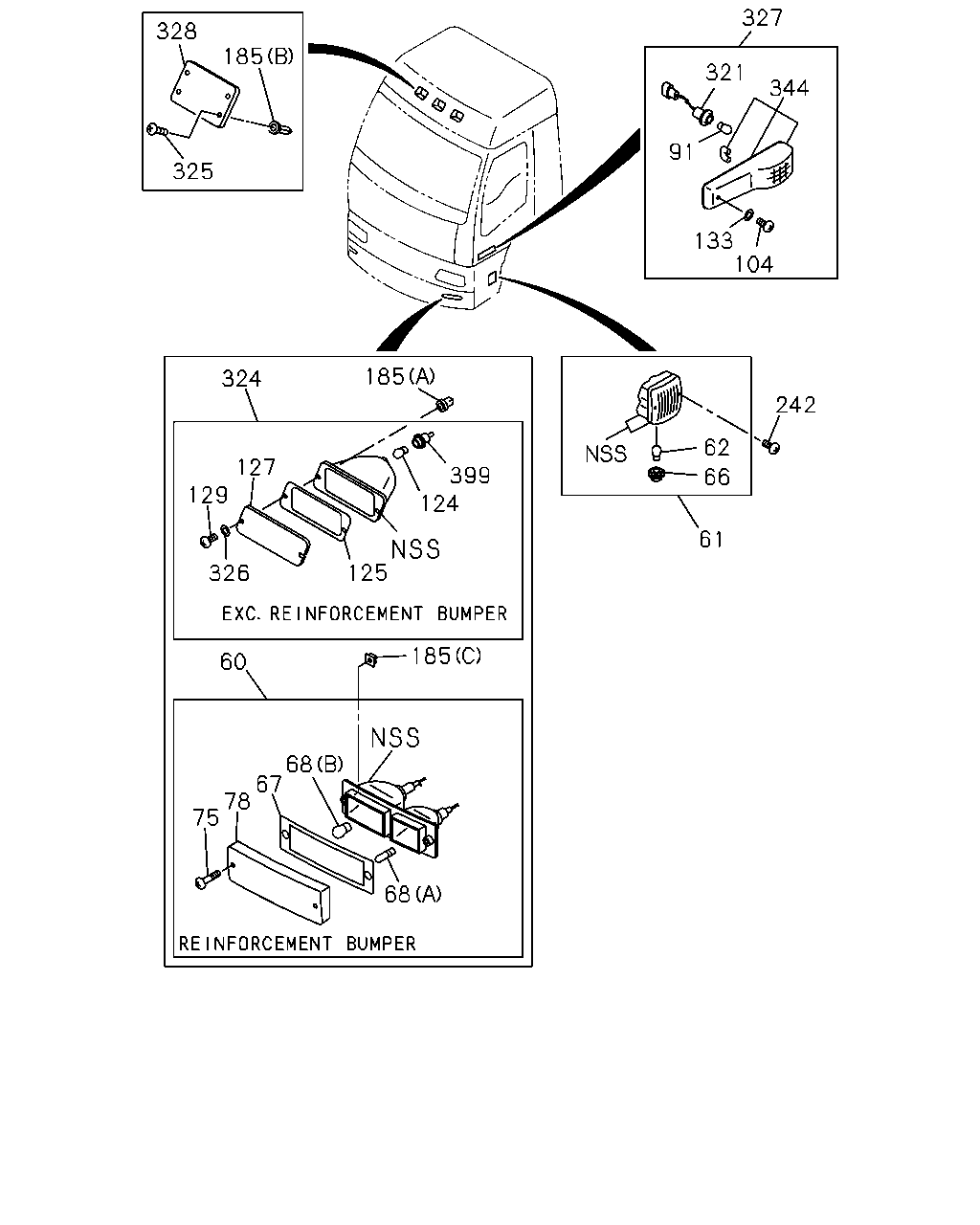

çizim 82914
327 328 185 321 344 91 325 133 104 185 324 242 62 66 127 129 399 124 61 125 326 185 60 68 67 78 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-273-0 01 1 0106- ● ●
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-272-0 01 1 0106- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP(TDS) 24V 30W 		1-86830-188-2 01 1 0106- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP(TDS) 24V 30W 		1-86830-187-2 01 1 0106- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP(TDS) 24V 30W 		8-97010-179-0 01 1 0106- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP(TDS) 24V 30W 		8-97010-179-0 01 1 0106- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP(TDS) 		1-86830-146-0 01 1 0106- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP(TDS) 		1-86830-146-0 01 1 0106- ● ●
67 GASKET; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		8-94149-259-0 02 1 0106- ● ●
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (A) 24V 5W 		1-82194-089-0 02 1 0106- ● ●
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (B) 24V 21W 		1-82194-090-0 02 1 0106- ● ●
75 SCREW; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		0-91190-435-0 04 1 0106- ● ●
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-265-0 01 1 0106- ● ●
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-264-0 01 1 0106- ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0106- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0106- ● ●
124 BULB; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 24V 21W 		1-82194-036-0 02 1 0106- ● ●
125 GASKET; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-033-0 02 1 0106- ● ●
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-065-0 01 1 0106- ● ●
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-064-0 01 1 0106- ● ●
129 SCREW; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-026-0 04 1 0106- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0106-0206 ● ●
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0106- ● ●
185 GROMMET; SCREW
(A) D=9X9 L=8 M6 		8-94222-314-0 04 1 0106- ● ●
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0106- ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP(TDS) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0106-0207 ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP(TDS) M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0106- ● ●
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-203-1 01 1 0106- ● ●
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-202-1 01 1 0106- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0106- ● ●
326 WASHER; PL,FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-032-0 04 1 0106- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0106- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0106- ● ●
328 COVER; LAMP 1-76217-122-0 03 1 0106- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0106- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0106- ● ●
399 SOCKET; TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-034-0 02 1 0106- ● ●
