Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#28034) — 59 parça

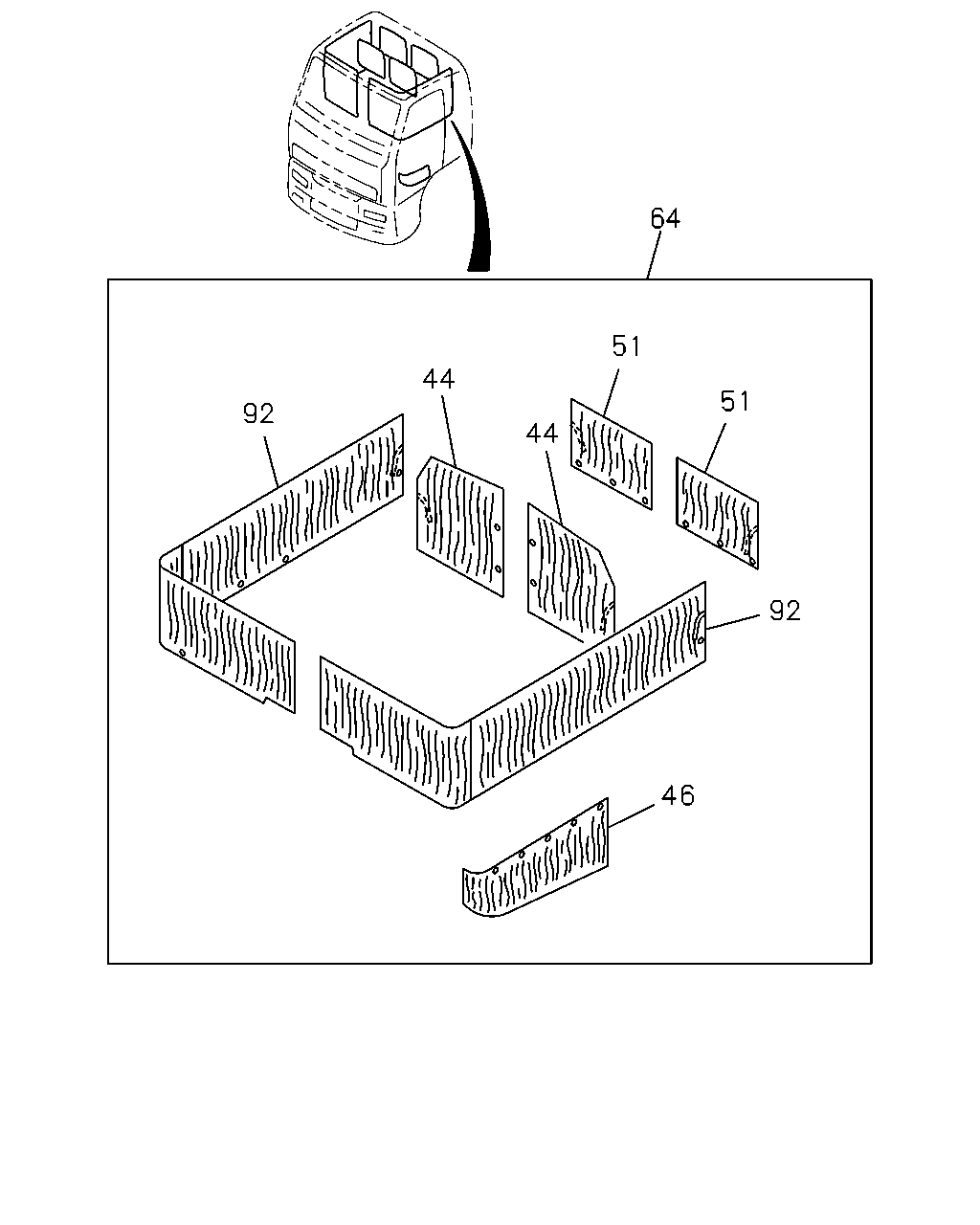

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-0	01	1	0106-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-0	01	1	0106-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	0106-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-0	01	1	0106-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-0	01	1	0106-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-0	01	1	0106-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-0	01	1	0106-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-0	01	1	0106-	●	●

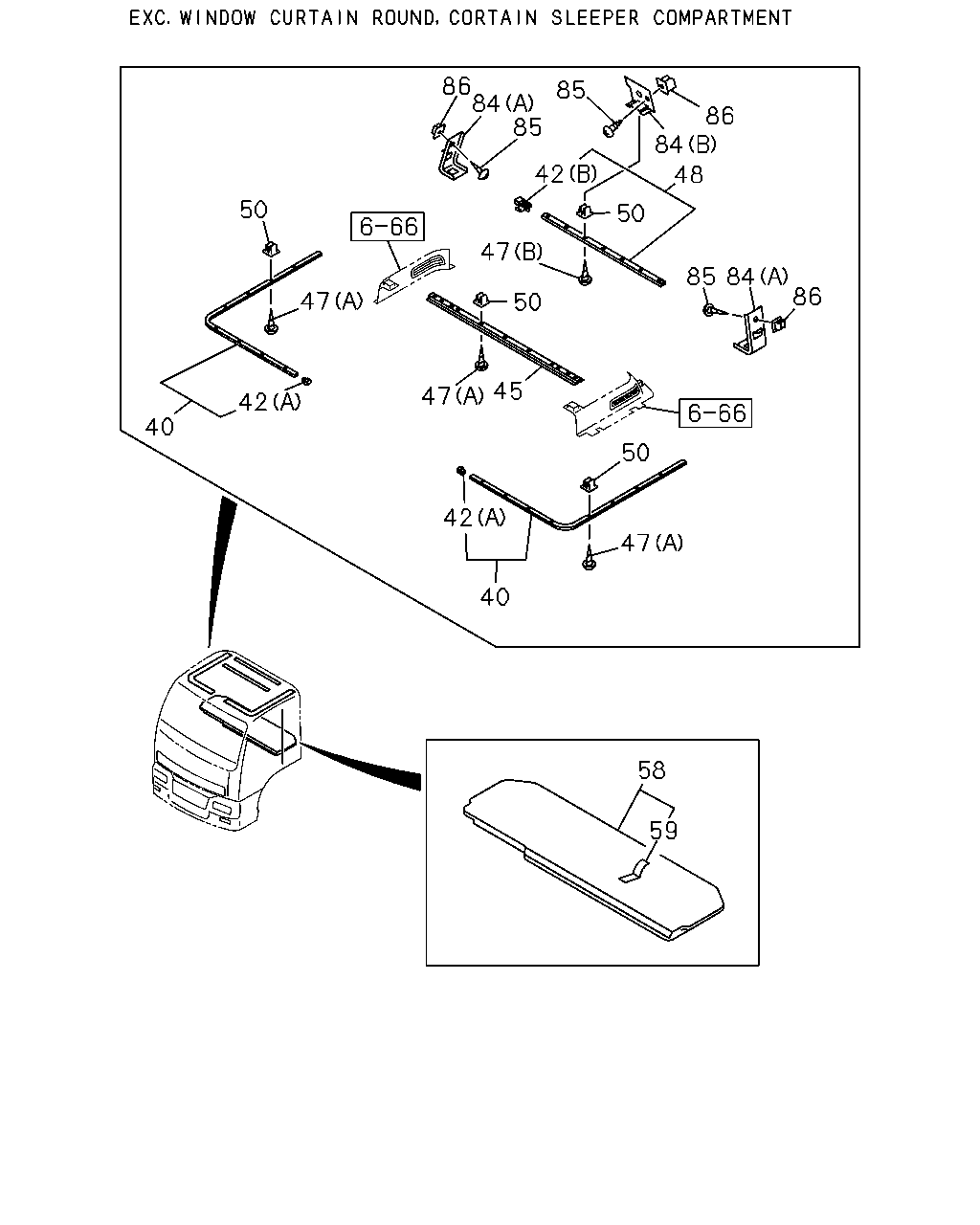

86 84 85 85 86 84 48 42 50 50 47 86 47 50 47 45 42 40 50 42 47 40 58 59 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0106-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0106-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-2	01	1	0106-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-1	01	1	0106-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-0	01	1	0106-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-0	01	1	0106-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0106-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	27	1	0106-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-1	01	1	0106-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-0	01	1	0106-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0106-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0106-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0106-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	02	1	0106-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	07	1	0106-	●	●

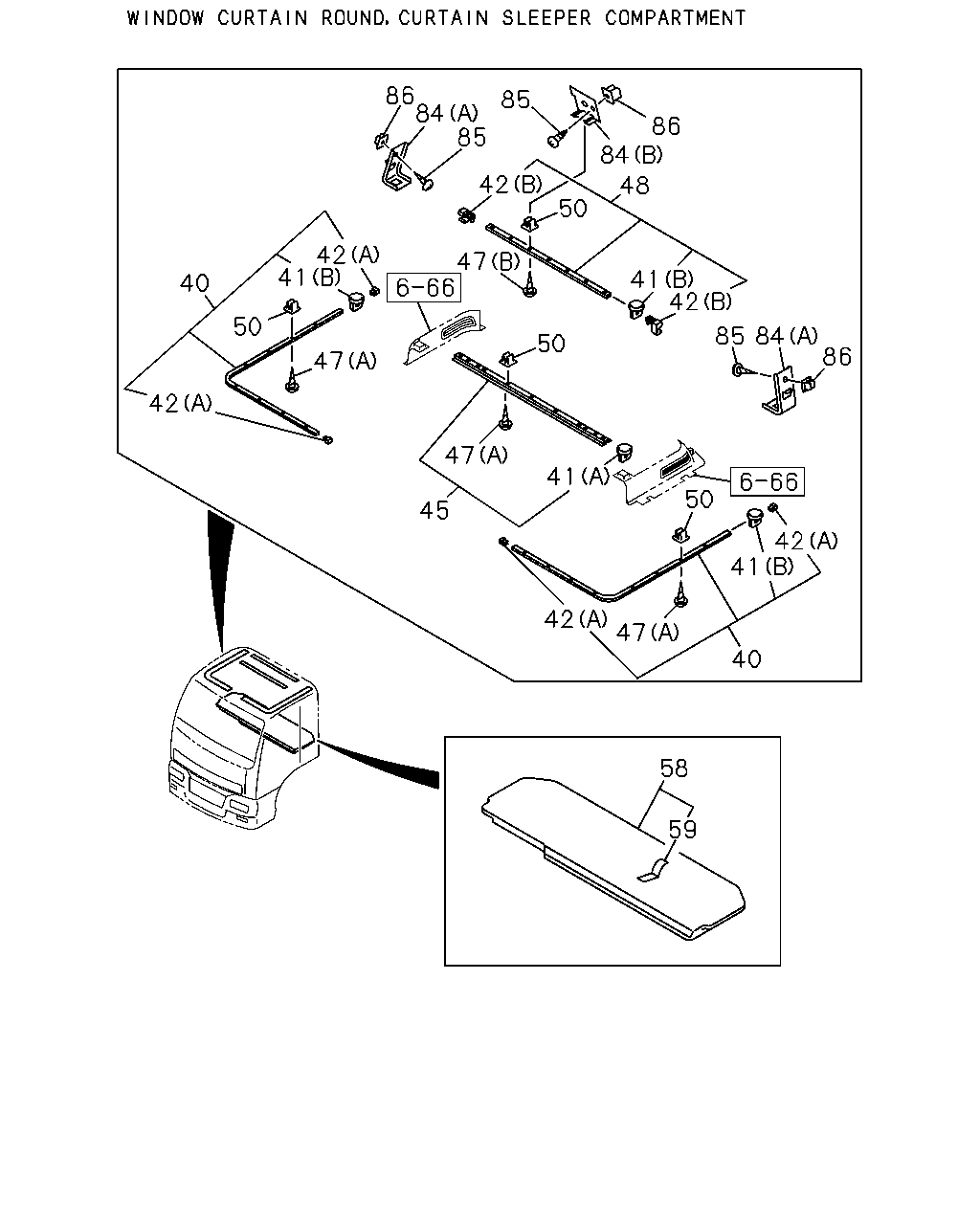

86 84 85 85 86 84 48 42 50 42 41 47 41 42 86 40 50 50 47 42 47 41 50 42 41 45 42 47 40 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-0	01	1	0106-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-0	01	1	0106-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) H=14.5 WHITE	1-73996-398-0	42	1	0106-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) H=14.5 WHITE	1-73996-398-0	16	1	0106-0107	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) H=14.5 WHITE	1-73996-398-0	14	1	0108-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0106-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0106-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0106-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0106-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-2	01	1	0106-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-1	01	1	0106-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0106-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0106-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-0	01	1	0106-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-0	01	1	0106-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=13 M5	1-09983-159-0	07	1	0106-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5	8-94279-078-0	27	1	0106-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-1	01	1	0106-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-0	01	1	0106-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0106-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0106-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0106-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0106-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	02	1	0106-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5	8-94279-078-0	07	1	0106-	●	●
