◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#28033) — 13 parça

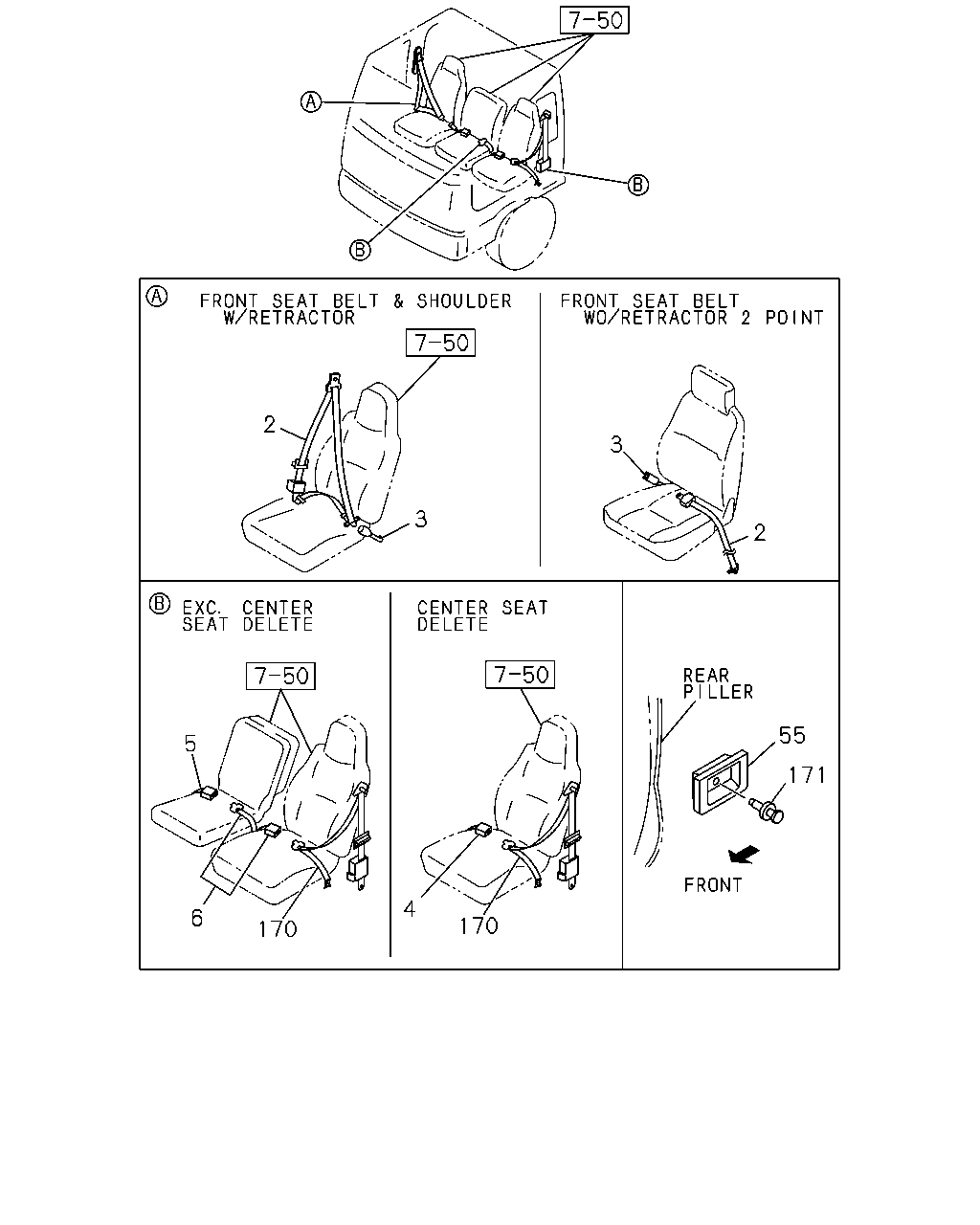

çizim 23660
2 3 3 2 55 5 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0106- ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-938-2 01 1 0106- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-914-0 01 1 0106- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0106- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0106- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75617-547-4 01 1 0106- ● ●
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0106- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0106- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-550-3 01 1 0106- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0106- ● ●

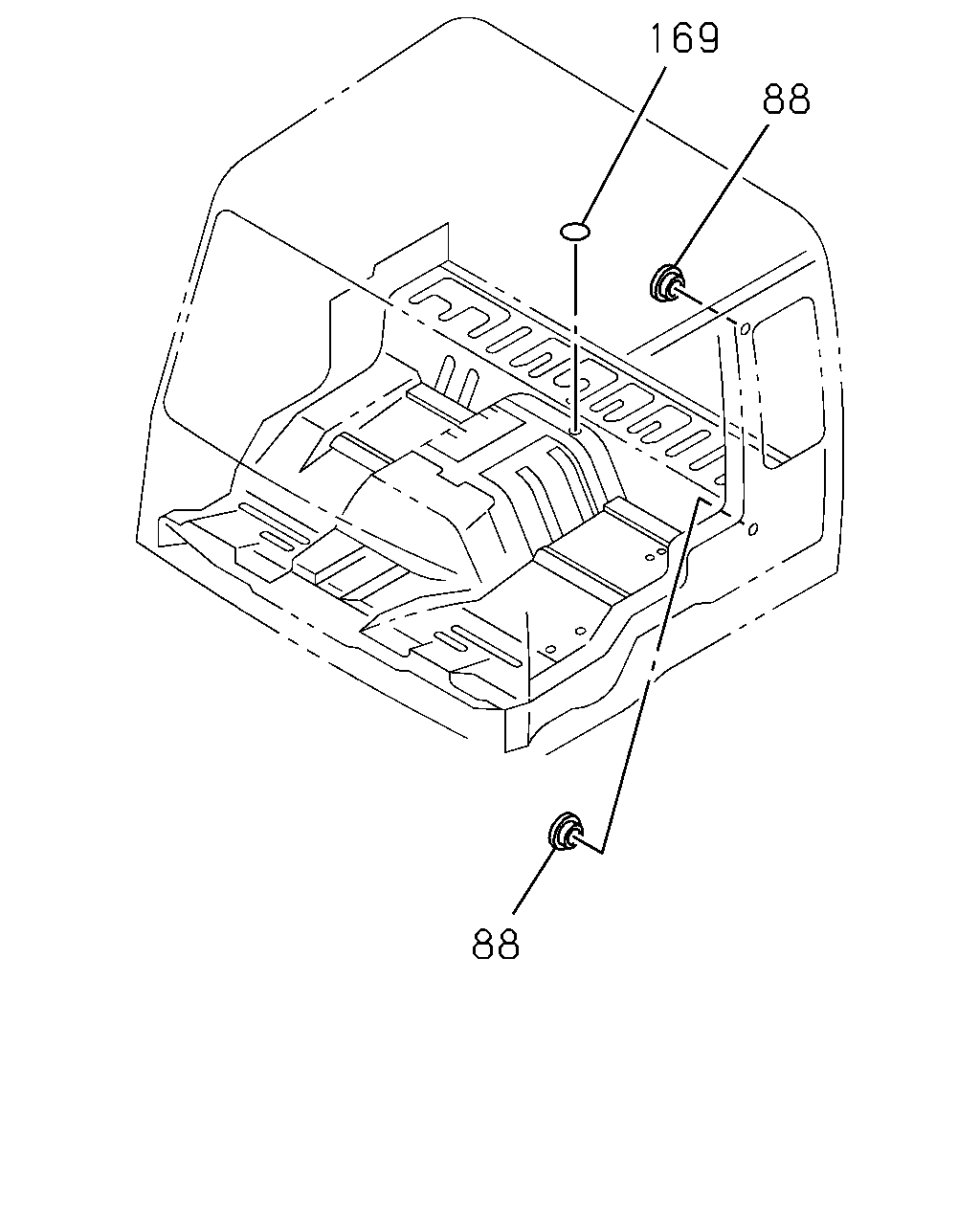

çizim 83243
169 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0106- ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
