7-45 — CONSOLE BOX (#28031) — 112 parça

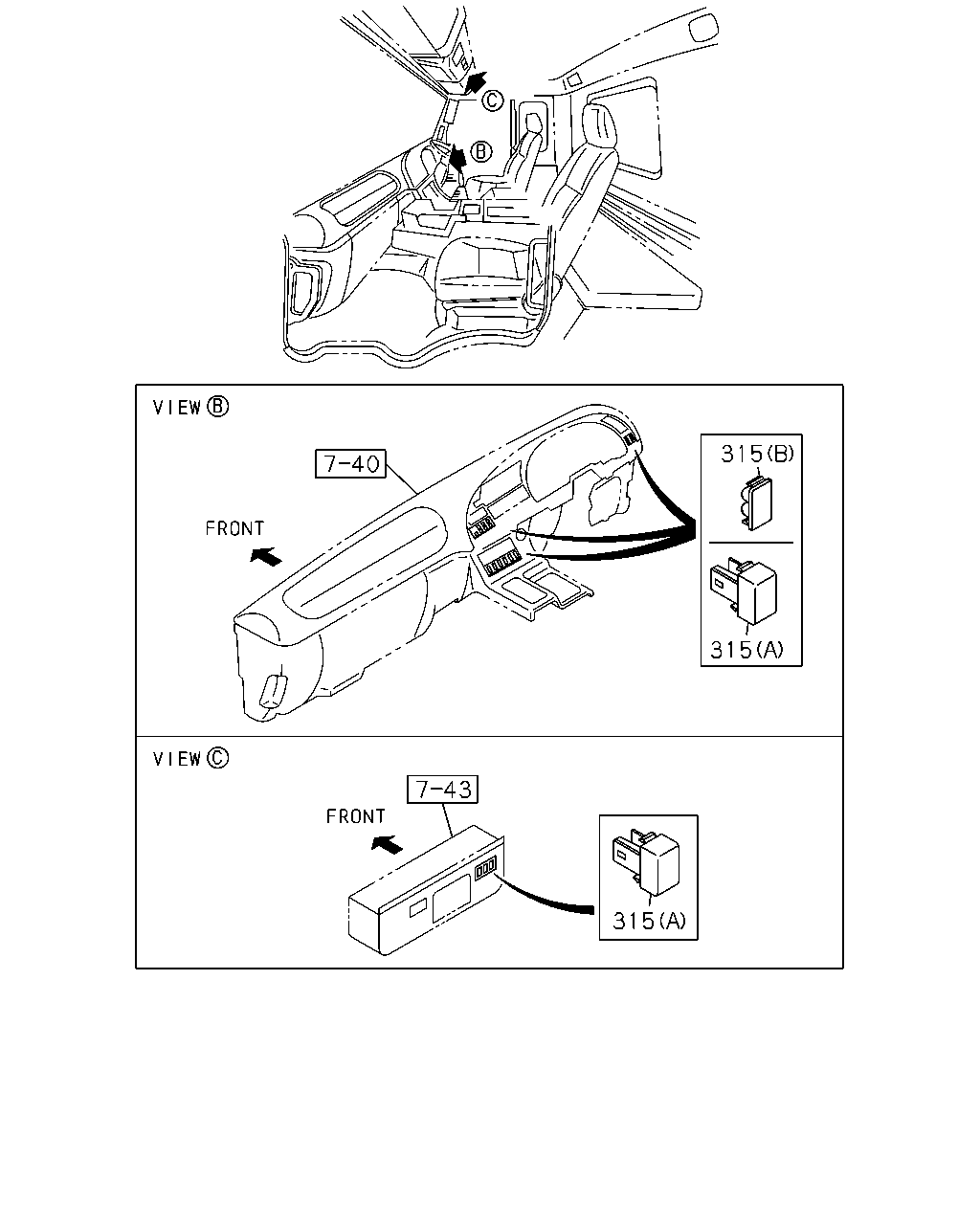

çizim 21603
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 20 1 0106- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0106-0204 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0205- ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ●
315 COVER; HOLE,SW
MIXER TRUCK<RA2> (A) 		1-82359-069-2 01 1 0106- ●
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 0106- ●

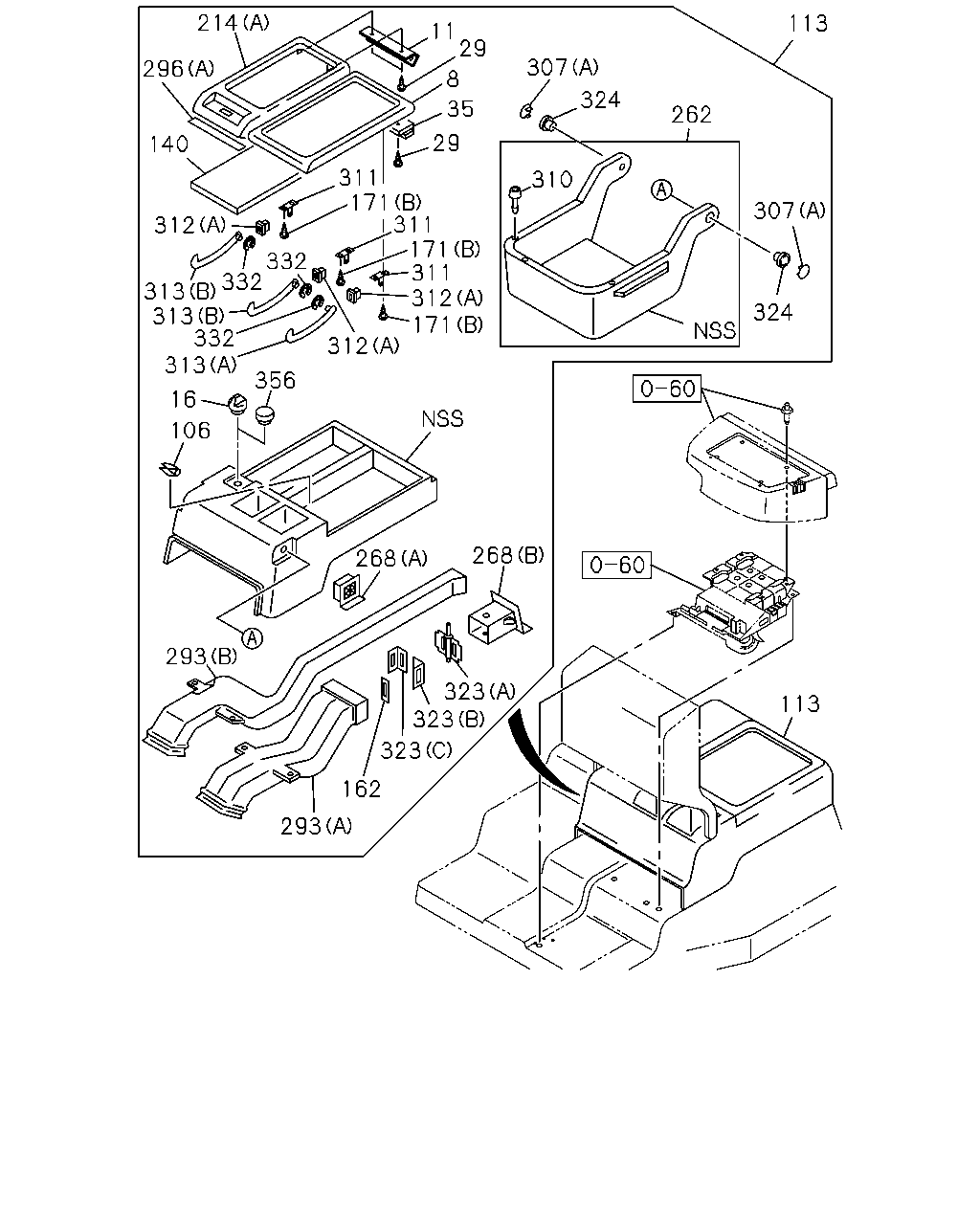

çizim 23646
214 113 11 29 307 296 8 324 35 262 29 140 311 171 311 171 311 312 171 310 307 312 332 332 313 313 332 313 324 312 356 16 106 268 268 293 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0106- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-185-0 01 1 0106- ● ●
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0106- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0106- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0106- ● ●
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0106- ● ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0106- ● ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0106- ● ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0106- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-182-1 01 1 0106- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0106- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-079-0 02 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0106- ● ●
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0106- ● ●
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0106- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0106- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106- ● ●
214 LID; CONSOLE
(B) 		1-72537-069-1 01 1 0106- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-186-0 01 1 0106- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-186-0 01 1 0106- ● ●
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-187-0 01 1 0106- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0106- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 0106- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0106- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 0106- ● ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0106- ● ●
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0106- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0106-0303 ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0106- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0106- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0106- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0106- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-187-0 02 1 0106- ● ●
311 HOLDER; CONSOLE 1-72538-188-2 01 1 0106- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0106- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0106- ● ●
312 STOPPER; CONSOLE
(B) 		1-72538-184-3 01 1 0106- ● ●
312 STOPPER; CONSOLE
(A) 		1-72538-186-1 01 1 0106- ● ●
312 STOPPER; CONSOLE
(C) 		1-72538-187-0 02 1 0106- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-186-1 03 1 0106- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-186-1 03 1 0106- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0106- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-184-3 01 1 0106- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0106- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72538-185-3 02 1 0106- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0106- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0106- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0106- ● ●
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0106- ● ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0106- ● ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-170-0 03 1 0106- ● ●
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0106- ● ●

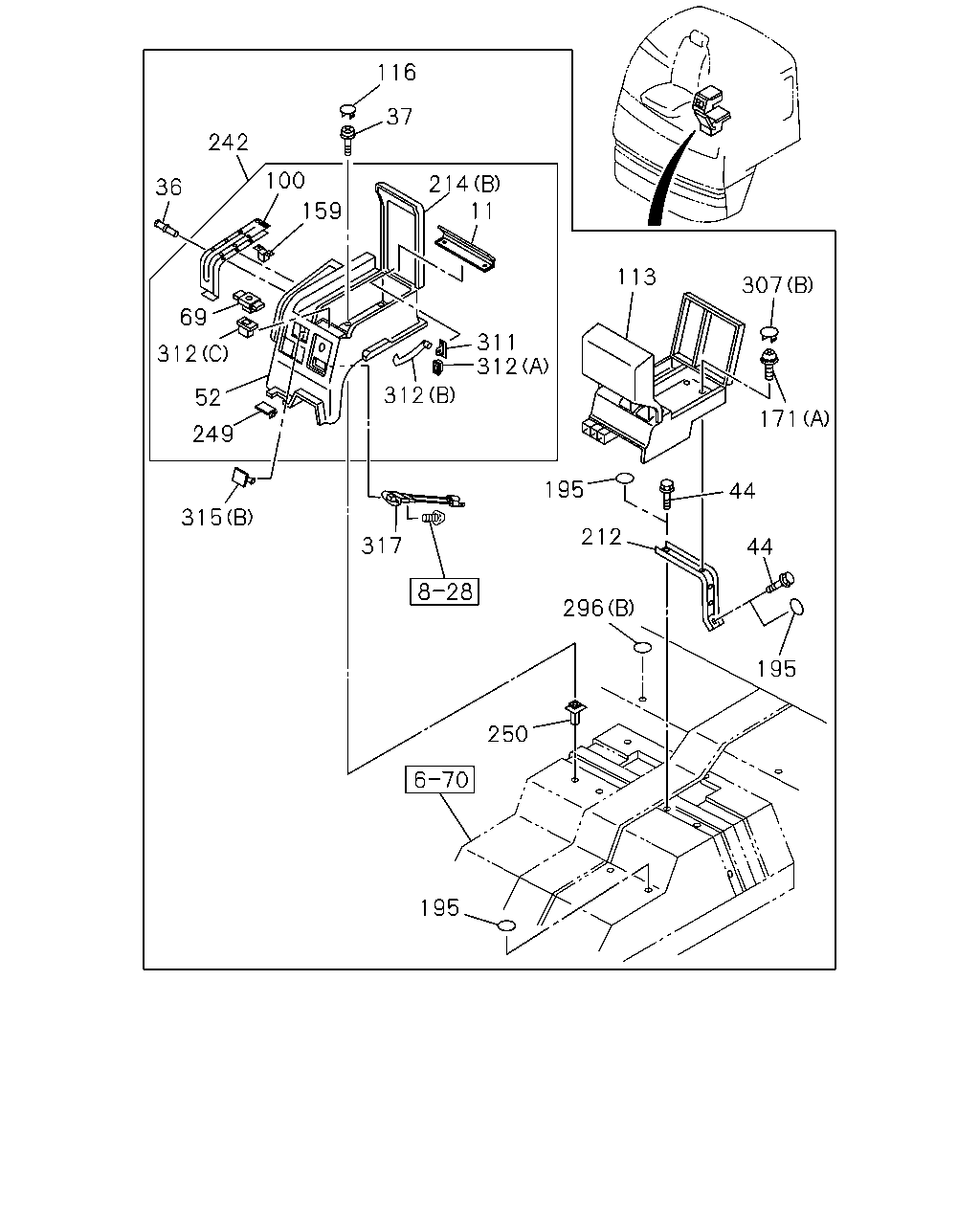

çizim 79825
116 37 242 100 214 11 36 159 113 307 69 311 312 312 312 52 171 249 195 44 315 212 317 44 296 195 250 195
BalonParca AdiParca NoAdetTipApplied Date A B
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0106- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0106- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0106- ● ●
36 FASTENER; CENTER CONSOLE
D8X13.5 		1-09987-248-1 02 1 0106- ● ●
37 SCREW; CONSOLE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 0106- ● ●
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0106- ● ●
52 CONSOLE; FRT 1-72537-067-5 01 1 0106- ● ●
69 LOCK ASM; CONSOLE 1-72538-180-0 01 1 0106- ● ●
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0106- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0106- ● ●
116 COVER; HOLE,CONSOLE,RR 1-72537-106-0 02 1 0106- ● ●
159 STRIKER; CONSOLE 1-72538-190-0 01 1 0106- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0106- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0106- ● ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0106- ● ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0106- ● ●
214 LID; CONSOLE
(B) 		1-72537-069-1 01 1 0106- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-186-0 01 1 0106- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-186-0 01 1 0106- ● ●
242 TRAY ASM; CTR CONSOLE 1-72537-065-4 01 1 0106- ● ●
249 COVER 1-72537-124-0 01 1 0106- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0106- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0106-0303 ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0106- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0106- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0106- ● ●
311 HOLDER; CONSOLE 1-72538-188-2 01 1 0106- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0106- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0106- ● ●
312 STOPPER; CONSOLE
(B) 		1-72538-184-3 01 1 0106- ● ●
312 STOPPER; CONSOLE
(A) 		1-72538-186-1 01 1 0106- ● ●
312 STOPPER; CONSOLE
(C) 		1-72538-187-0 02 1 0106- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-186-1 03 1 0106- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-186-1 03 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 20 1 0106- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0106-0204 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0205- ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0106- ●
315 COVER; HOLE,SW
MIXER TRUCK<RA2> (A) 		1-82359-069-2 01 1 0106- ●
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82359-069-2 01 1 0106- ●
317 CONSENT 1-82523-020-2 01 1 0106- ● ●
