7-43 — SUN VISOR AND ASSIST GRIP (#28030) — 87 parça

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (C) M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0106-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0106-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0106-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0106-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0106-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0106-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0106-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-	●	●

18 12 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0106-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0106-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0106-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0106-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0106-	●	●

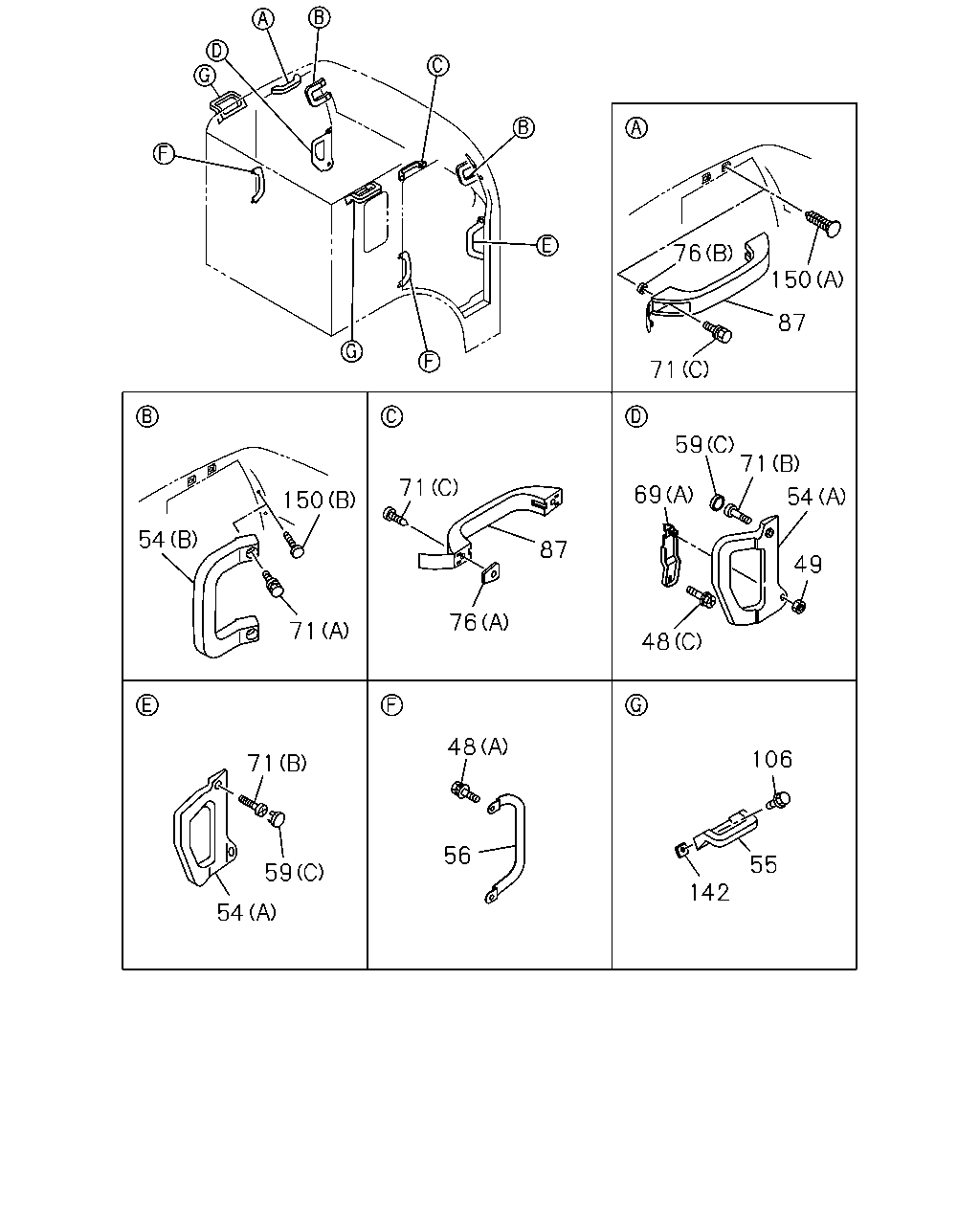

76 150 87 71 59 71 71 69 54 150 54 87 49 76 71 48 48 106 71 56 55 59 142 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-	●	●
48	BOLT; ASSIST GRIP (C) M8X20 W/LK&PL WASHER	8-94279-208-0	01	1	0106-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0106-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-0	01	1	0106-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-0	01	1	0106-	●	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0106-	●	●
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0106-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	0106-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0106-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0106-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0106-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0106-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0106-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0106-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0106-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0106-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0106-	●	●
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0106-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0106-	●	●
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0106-	●	●
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0106-	●	●
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	0106-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0106-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0106-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0106-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> 25X25	8-94272-533-0	04	1	0106-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0106-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0106-	●	●

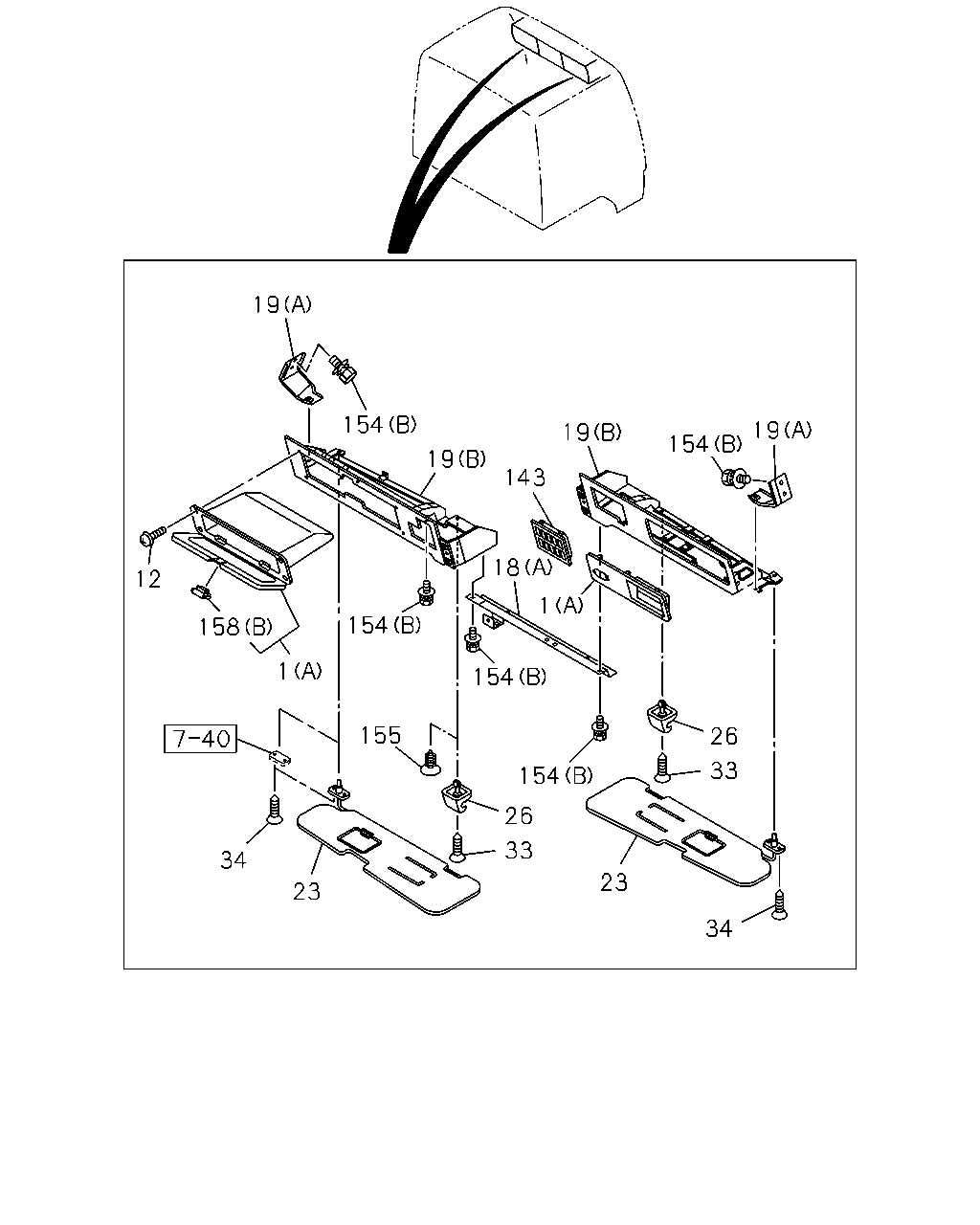

19 154 19 19 154 19 143 18 12 1 154 158 1 154 155 26 33 154 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0106-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0106-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0106-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0106-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0106-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0106-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-5	01	1	0106-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0106-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0106-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0106-	●	●
23	SUN VISOR	1-73138-156-0	01	1	0106-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-0	01	1	0106-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0106-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0106-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0106-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0106-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0106-	●	●
143	BEZEL	1-72447-768-2	01	1	0106-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0106-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0106-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0106-	●	●
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0106-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0106-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0106-	●	●
