7-40 — INSTRUMENT PANEL AND BOX (#28028) — 106 parça

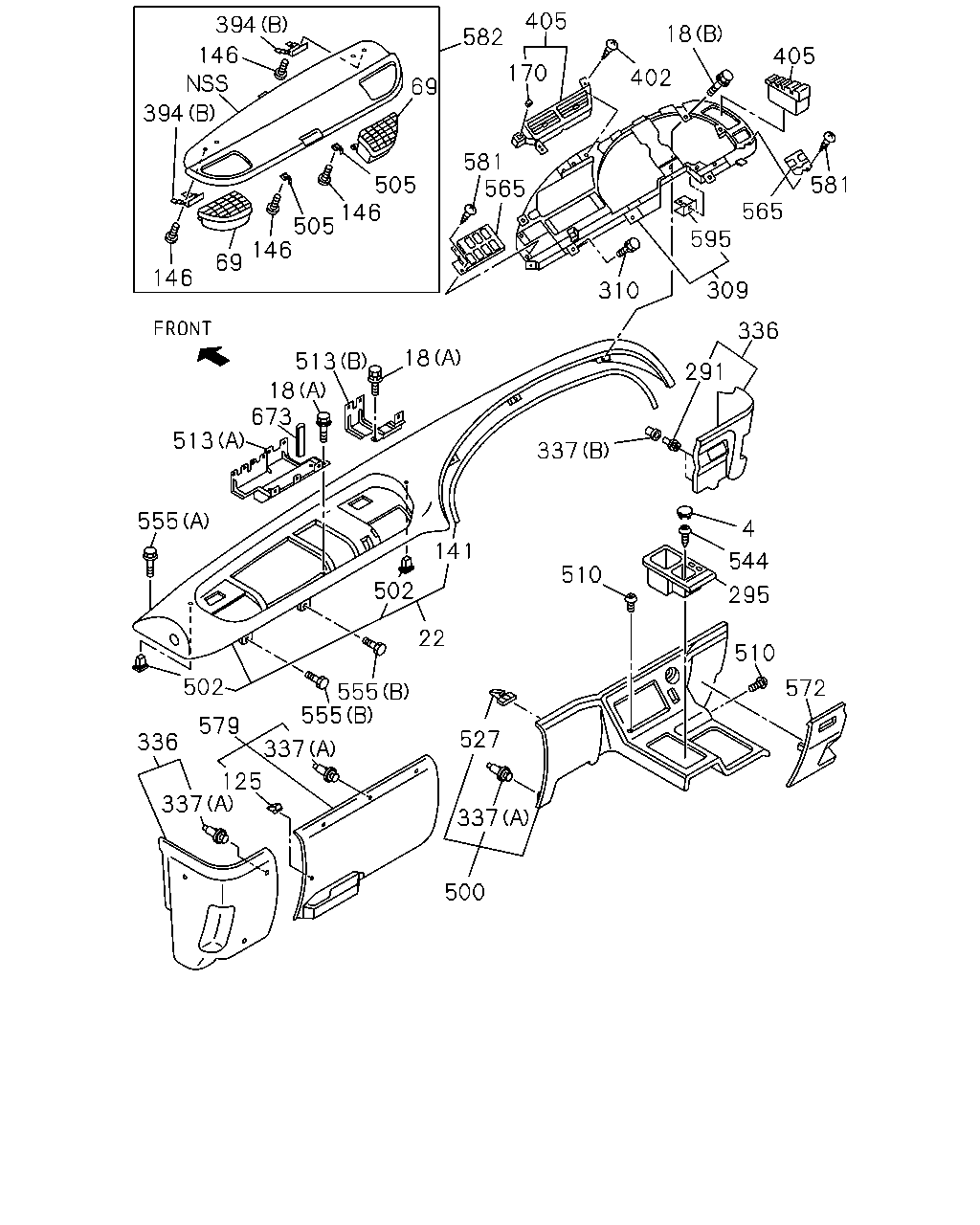

çizim 23642
405 394 18 582 146 405 170 402 69 394 581 565 505 146 505 146 581 565 595 69 146 309 310 336 18 513 291 18 673 513 337 555 4 141 544 510 502 295 22 510 502 572 555 555 579 527 336 337 125 337 337 500
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 0106- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
22 PAD; INST 1-72317-347-1 01 1 0106- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0106- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0106- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0106- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0106- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0106- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0106- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0106- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0106- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0106- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0106- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0106- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0106- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0106- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106- ● ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 0106- ● ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0106- ● ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0106- ● ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0106- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0106- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0106- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0106- ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0106-0205 ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206- ● ●
513 BRACKET; RELAY
DELUXE CAB(W14) (B) 		1-73907-327-3 01 1 0106- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0106- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0106- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 0106- ● ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 0106- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0106- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 0106- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0106- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0106- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 0106- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0106- ● ●

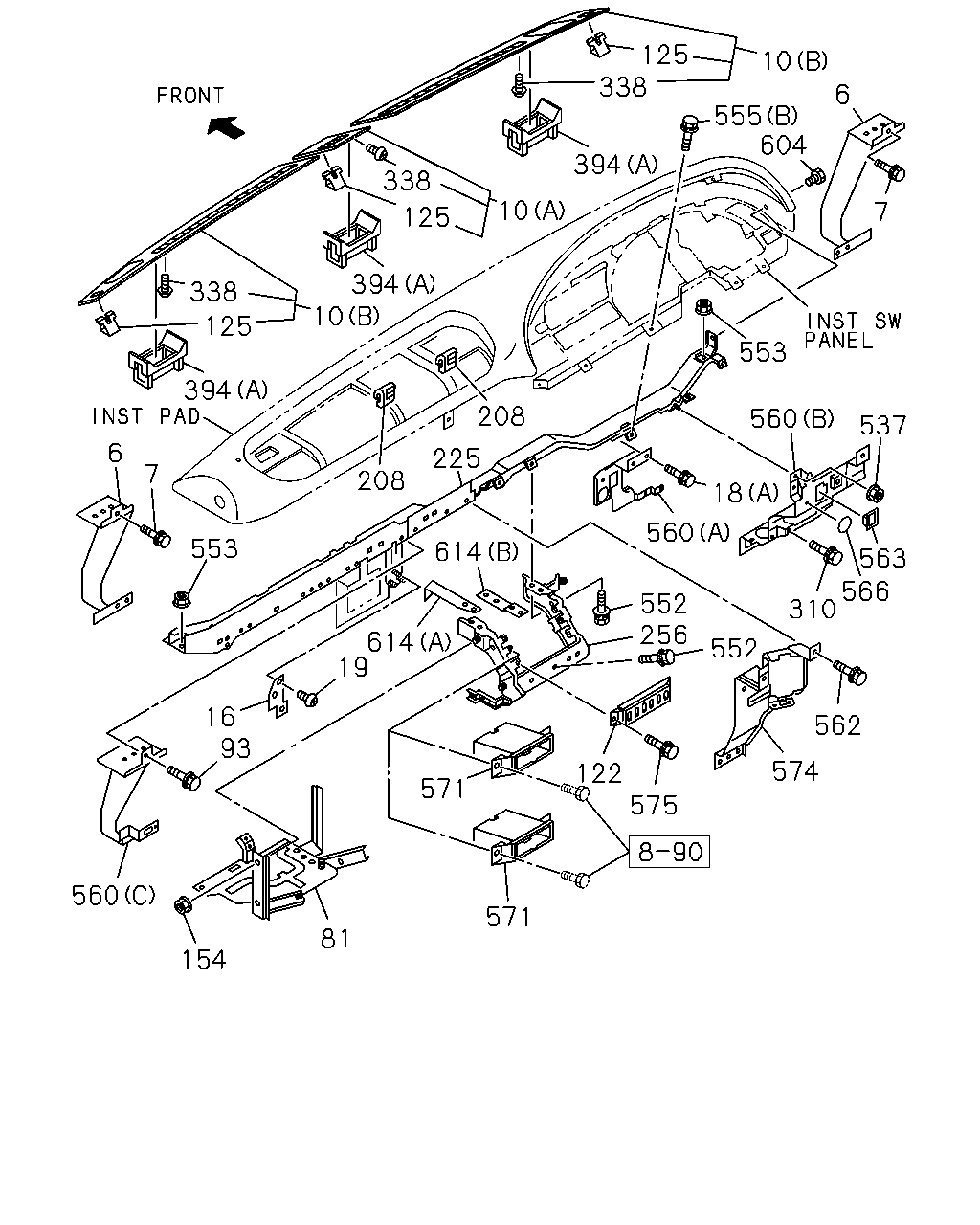

çizim 23645
125 338 10 6 555 604 394 338 10 7 125 338 394 10 553 125 394 208 560 537 6 225 7 208 18 614 560 553 563 566 310 552 256 614 19 552 16 93 562 574 122 575 571 560 571 81 154
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 0106- ● ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 0106- ● ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0106- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0106- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0106- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0106- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0106- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72437-600-6 01 1 0106- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0106- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0106- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0106-0110 ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111- ● ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 0106- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0106- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0106- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0106- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0106- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 0106- ● ●
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0106-0210 ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211- ● ●
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0106-0210 ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0106-0208 ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0106- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0106- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0106- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0106- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0106- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-4 01 1 0106- ● ●
560 BRACKET
(A) 		1-65680-976-3 01 1 0106- ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 0106-0302 ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-786-2 01 1 0303- ● ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 0106- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106- ● ●
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 0106- ● ●
566 PLUG; HOLE
EXC. ELECTRONIC GOV RED3(KG5) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0106- ● ●
571 BEZEL; POCKET 1-72438-151-1 01 1 0106- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-1 01 1 0106- ● ●
574 PANEL; RELAY BOX 1-73907-365-8 01 1 0106- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0106- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0106- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0106- ● ●

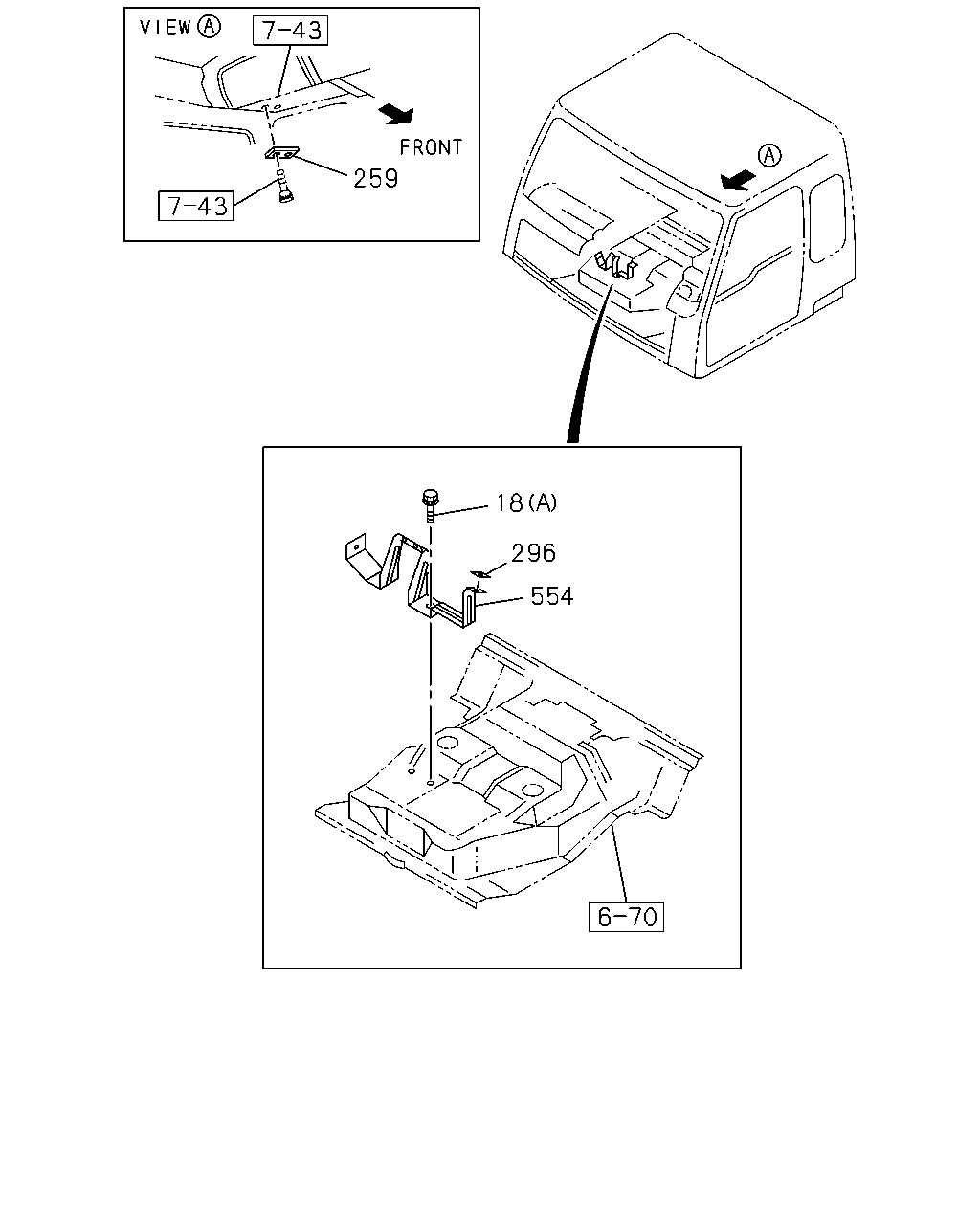

çizim 82133
259 18 296 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0106- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0106- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0106- ● ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0106- ● ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0106- ● ●
