7-10 — CAUTION PLATE AND LABEL (#28025) — 49 parça

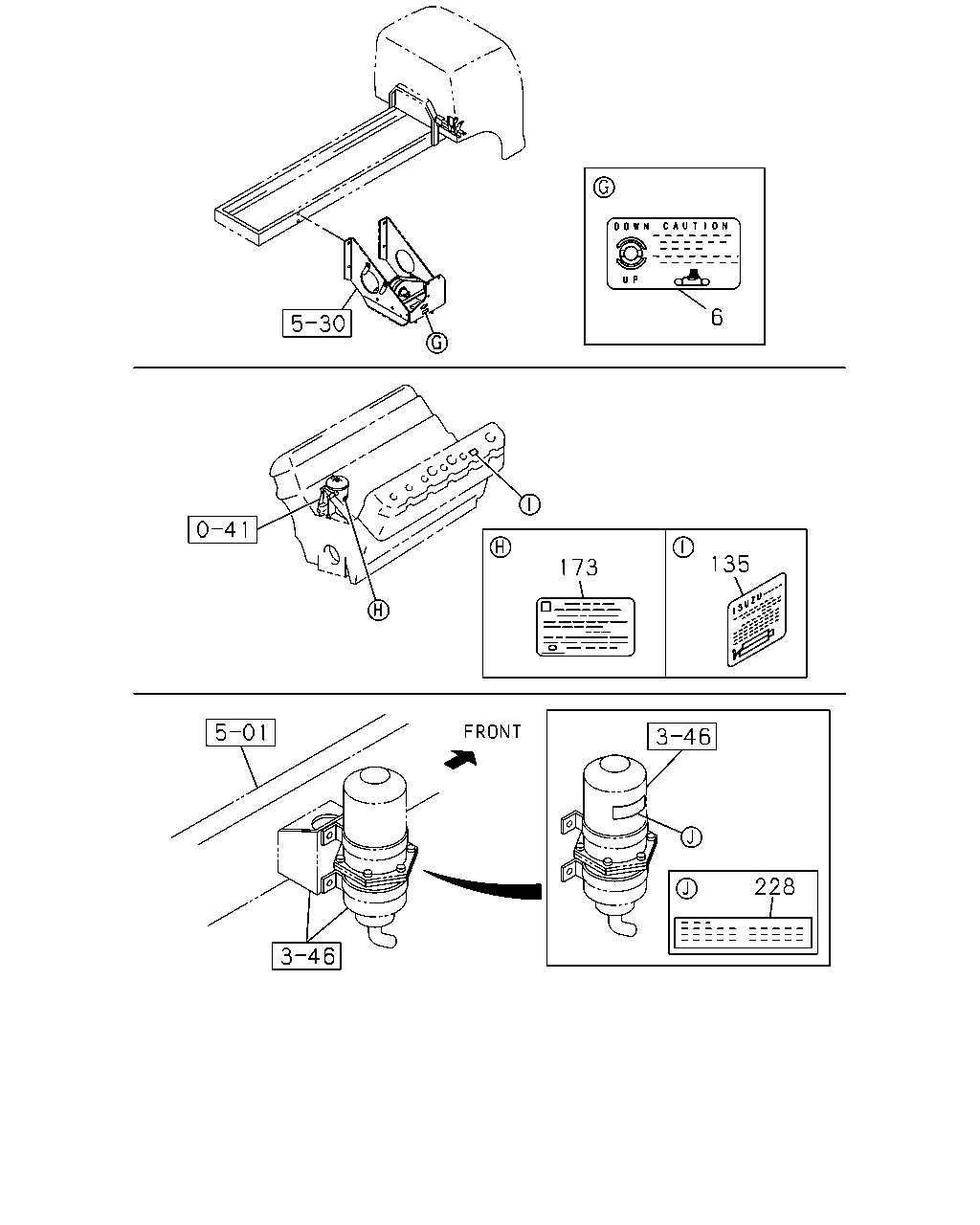

6 135 173 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>	1-53639-045-0	01	1	0106-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	0106-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	0106-0112	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTI ONS SPANISH<YN1>	1-53639-004-0	01	1	0106-0112	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-53639-004-0	01	1	0201-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS SPANISH<YN1>	1-53639-005-0	01	1	0106-	●
135	PLATE; CAUTION,ENGINE	1-85886-804-0	01	1	0106-	●	●
173	PLATE; CAUTION,FUEL FILTER	1-85886-176-0	01	1	0106-	●	●
228	PLATE; CAUTION,AIR DRYER CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0106-	●	●
228	PLATE; CAUTION,AIR DRYER CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	0106-	●	●
228	PLATE; CAUTION,AIR DRYER CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	0106-0112	●	●
228	PLATE; CAUTION,AIR DRYER EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0106-	●	●

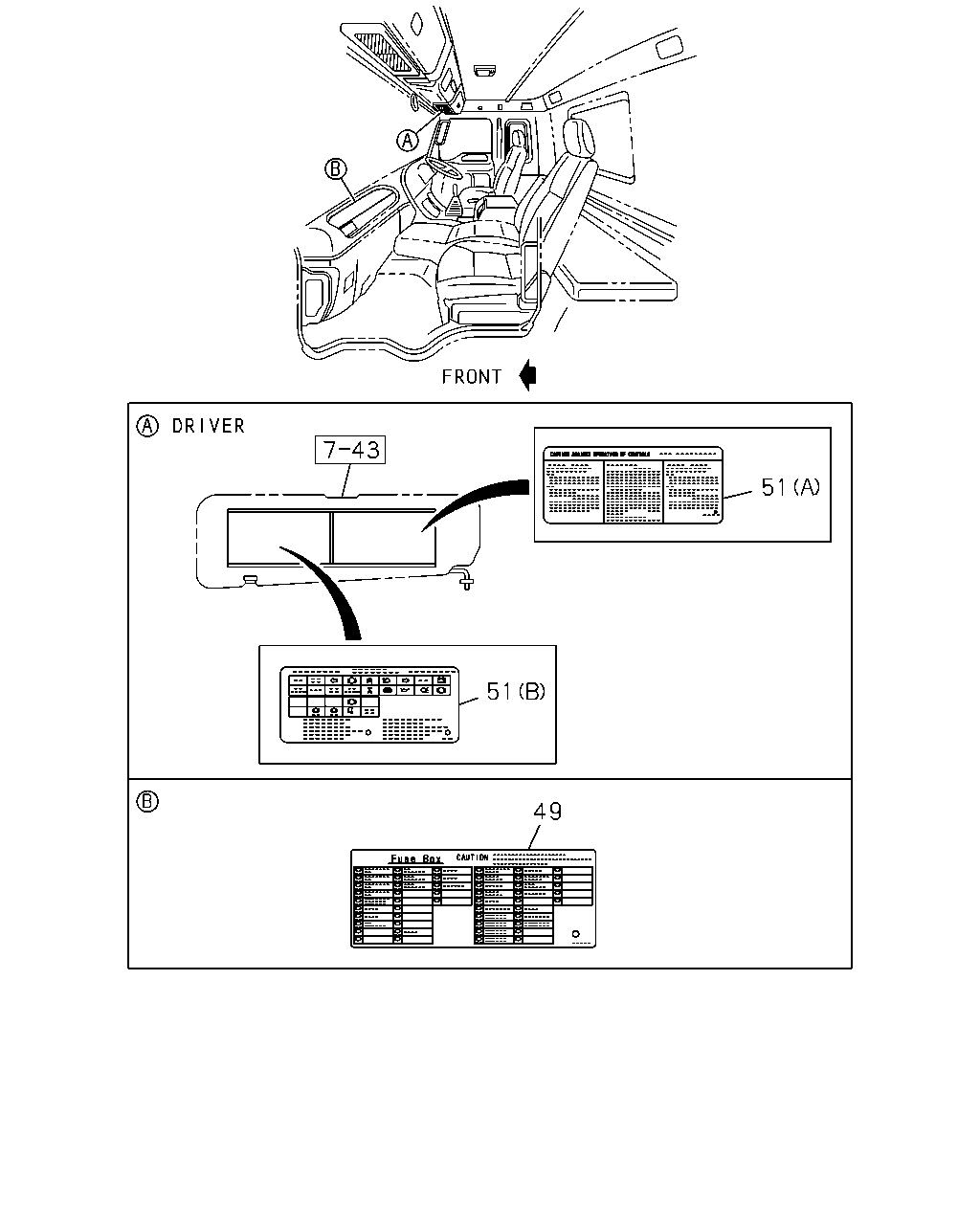

51 51 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-331-0	01	1	0106-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-329-0	01	1	0106-0106	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-359-0	01	1	0107-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85878-330-0	01	1	0106-0112	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	1-85878-332-0	01	1	0106-	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0106-0112	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85878-327-0	01	1	0201-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85878-328-0	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85878-335-1	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-758-0	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-727-0	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-334-1	01	1	0106-0112	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (B)	1-85878-334-1	01	1	0201-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-726-0	01	1	0106-0112	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (B)	1-85878-336-1	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	1-85880-759-0	01	1	0106-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85878-333-1	01	1	0106-0112	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (B)	1-85878-333-1	01	1	0201-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-725-0	01	1	0106-0112	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> (A)	1-85880-725-0	01	1	0201-	●	●

60 48 58 58 58 58 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	LABEL; TIRE AIR PRESSURE	1-85880-764-0	01	1	0106-	●	●
48	PLATE; CAUTION,PTO	1-85881-254-0	01	1	0106-		●
48	PLATE; CAUTION,PTO DUMP CONTROL LEVER<RC4>	1-85881-254-0	01	1	0106-	●
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (A)	1-85887-537-0	01	1	0106-	●	●
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (D)	1-85887-536-0	01	1	0106-	●	●
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (A)	1-85887-535-0	01	1	0106-0112	●	●
58	PLATE; CAUTION,ENG START CAUTIONS PORTUGUESE<NAT> (A)	1-85878-007-0	01	1	0106-	●	●
58	PLATE; CAUTION,ENG START EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0106-0112	●	●
58	PLATE; CAUTION,ENG START EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B)	1-85887-457-0	01	1	0201-	●	●
58	PLATE; CAUTION,ENG START CAUTIONS SPANISH<YN1> (C)	9-83999-419-0	01	1	0106-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-181-0	01	1	0106-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	0106-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	0106-0112	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT>	1-85883-182-0	01	1	0106-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0106-0112	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	0201-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	0106-	●	●
