6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#28022) — 21 parça

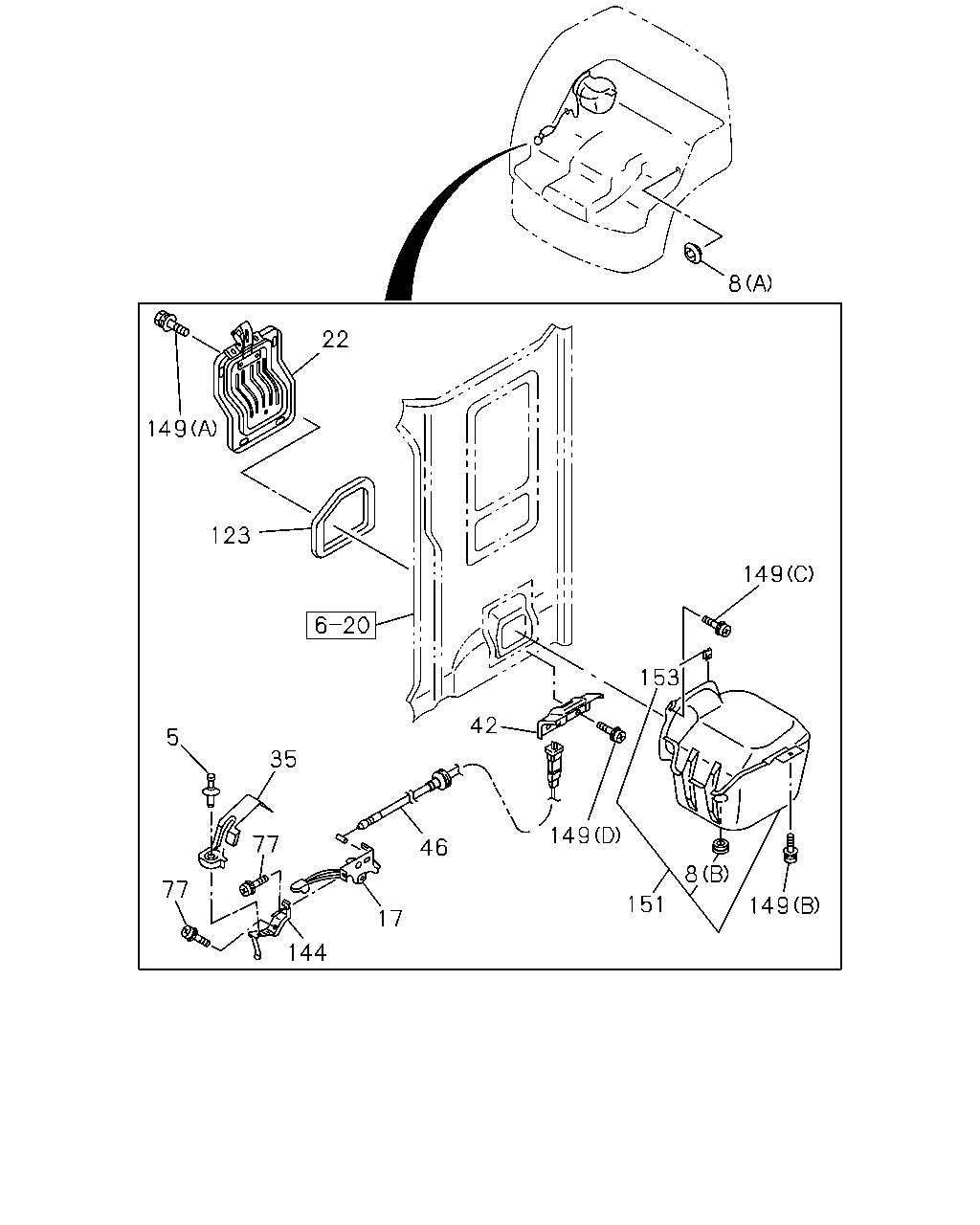

çizim 82854
8 22 149 123 149 153 42 5 35 149 77 46 8 77 151 149 17 144
BalonParca AdiParca NoAdetTipApplied Date A B
5 FASTENER
BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8 		1-09987-194-0 01 1 0106- ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) 		8-94279-720-0 01 1 0106- ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44 		8-94279-727-0 01 1 0106- ● ●
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44 		8-94279-727-0 01 1 0106- ●
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) 		8-94279-720-0 02 1 0106- ● ●
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0106- ● ●
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 0106- ● ●
35 COVER; LUGGAGE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-79517-005-1 01 1 0106- ● ●
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0106- ● ●
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=886.5 		1-79517-007-0 01 1 0106- ●
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0106- ● ●
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-0 01 1 0106- ● ●
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-267-2 01 1 0106- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0106- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0106- ● ●
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0106- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-064-1 01 1 0106- ● ●
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-064-1 01 1 0106- ●
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> 		8-94279-056-0 02 1 0106- ● ●
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> 		8-94279-056-0 02 1 0106- ●
