6-75 — MAT AND CARPET (#28016) — 31 parça

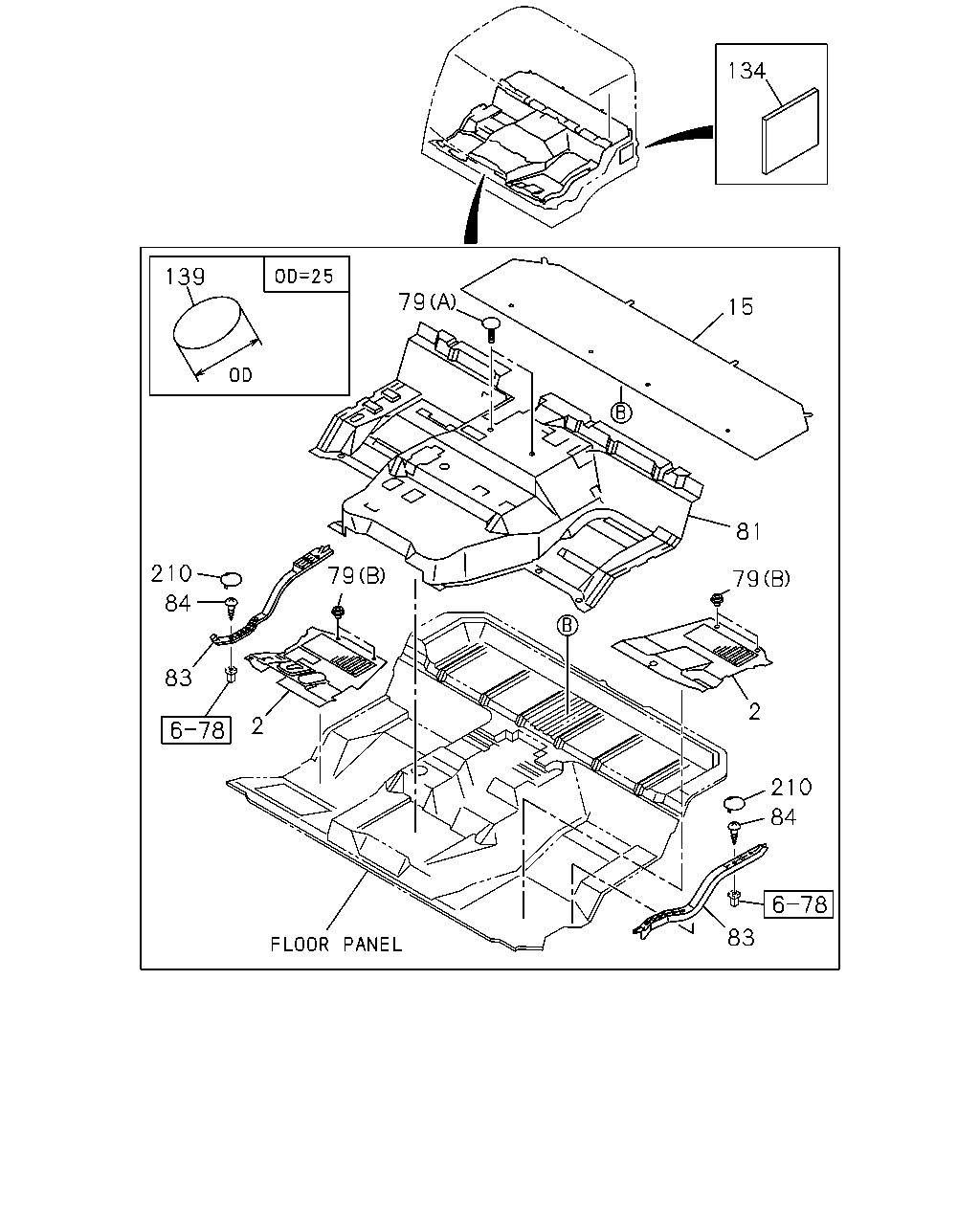

çizim 83106
134 139 79 15 81 210 79 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0106-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-0 01 1 0201- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0106-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-0 01 1 0201- ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0106-0112 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-0 01 1 0201- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0106- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0106- ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-758-0 01 1 0106-0112 ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-808-3 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-754-0 01 1 0106-0112 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-806-3 01 1 0201- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0106- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0106- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0106- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 0106- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0106- ● ●

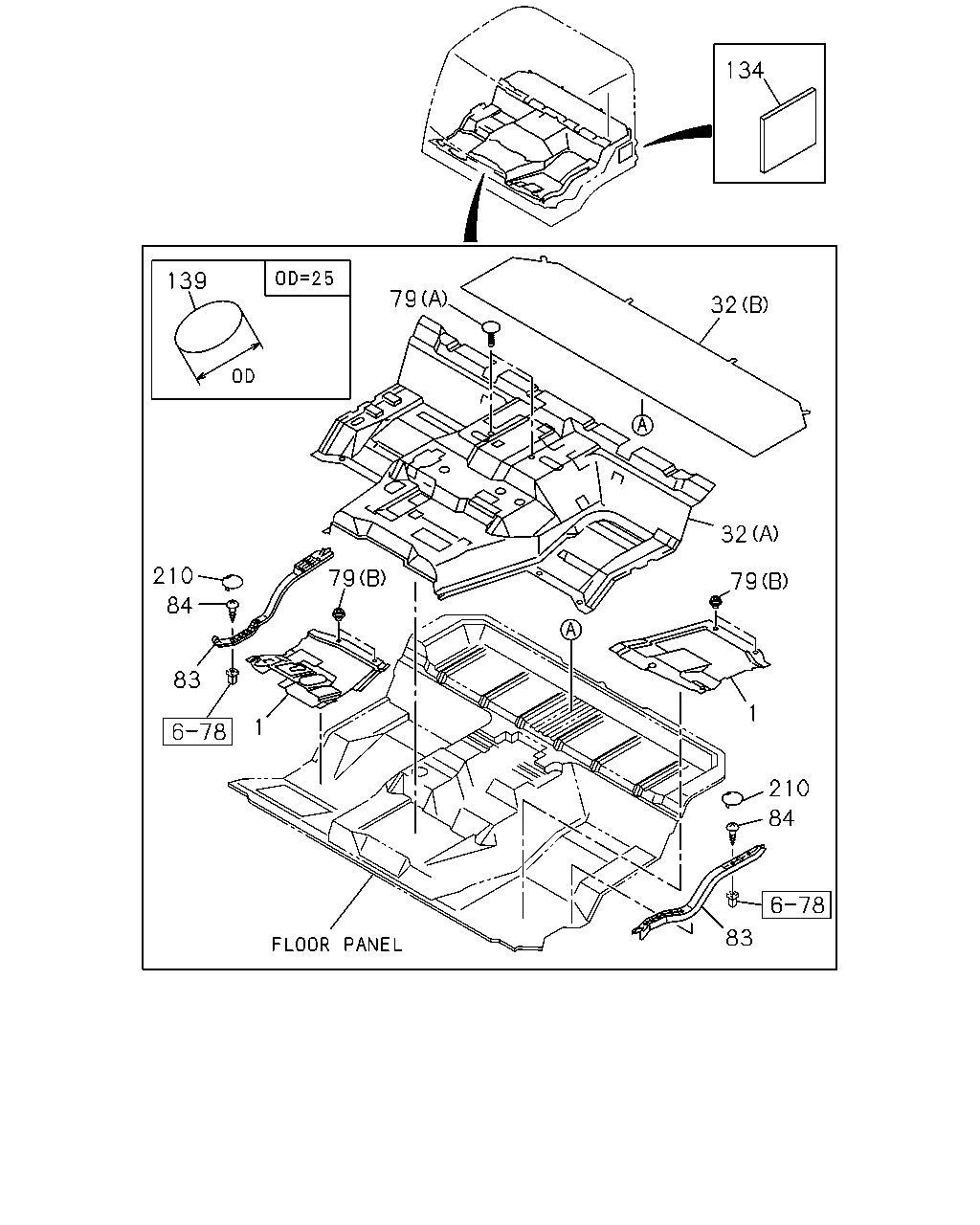

çizim 83538
134 139 79 32 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0106- ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0106- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-759-1 01 1 0106- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-752-1 01 1 0106- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0106- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0106- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0106- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0106- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0106- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0106- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 0106- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0106- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0106- ● ●
