◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#28014) — 29 parça

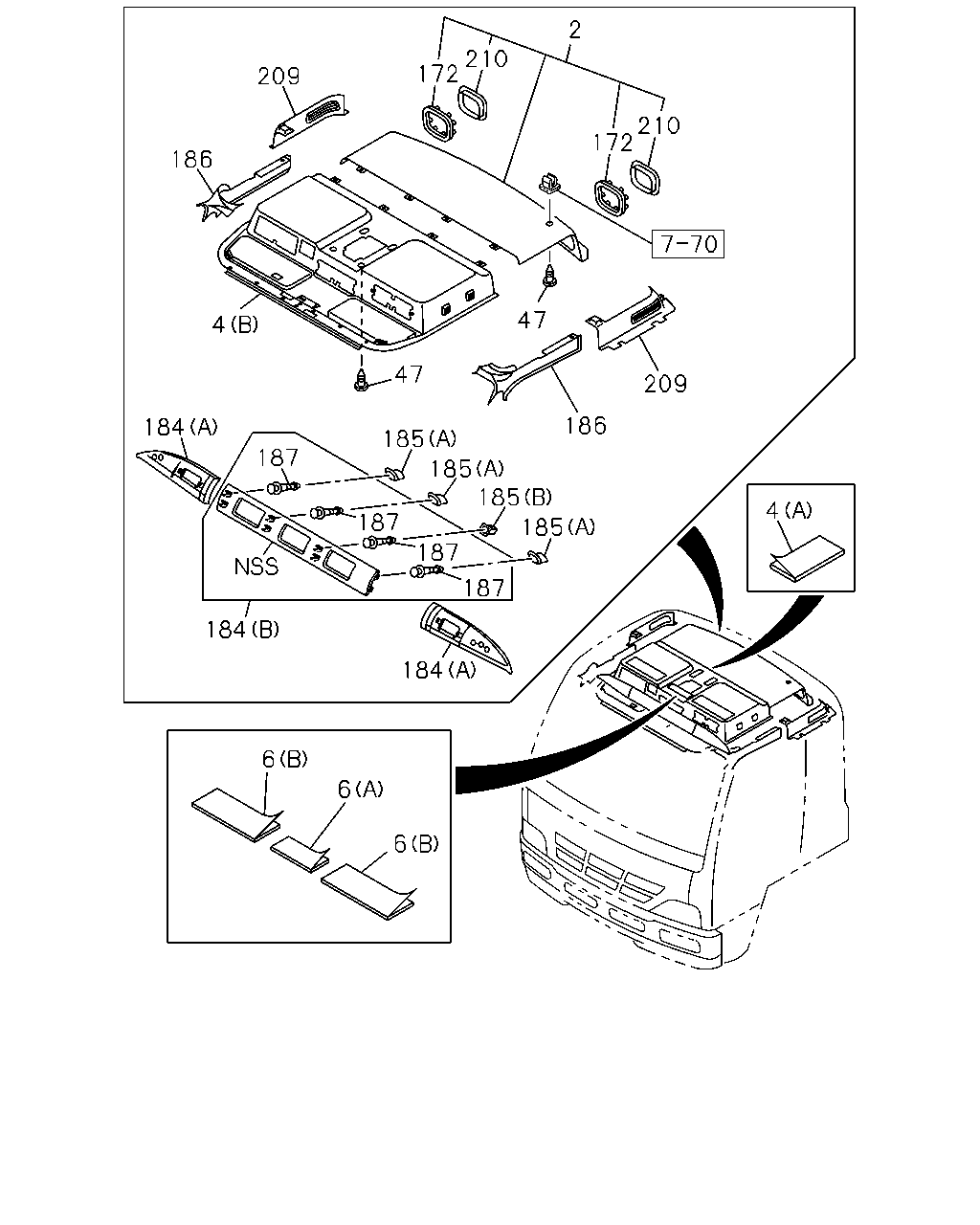

çizim 82136
2 210 172 209 210 172 186 47 4 47 209 186 184 185 187 185 185 4 187 185 187 187 184 184 6 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING; HD,ROOF RR
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-403-6 01 1 0106- ● ●
2 LINING; HD,ROOF RR
EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-402-6 01 1 0106- ● ●
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0106- ● ●
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-396-7 01 1 0106- ● ●
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-400-7 01 1 0106- ● ●
6 SPACER; HD LINING
(A) 140X300 		1-73317-435-0 01 1 0106- ● ●
6 SPACER; HD LINING
(B) 		1-73317-430-0 01 1 0106-0208 ● ●
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-0 01 1 0106-0208 ● ●
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-0 02 1 0209- ● ●
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 0106- ● ●
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0106- ● ●
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0106- ● ●
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-449-0 01 1 0106- ● ●
172 RETAINER; HEAD LINING
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73317-448-0 01 1 0106- ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-626-0 01 1 0106-0111 ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 0112- ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-388-0 01 1 0106-0111 ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 0112- ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-387-0 01 1 0106-0111 ● ●
184 ORNAMENT; ROOF
(A) 		1-73317-408-2 01 1 0112- ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0106- ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0106- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0106- ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0106- ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0106- ● ●
209 COVER; GRILLE 1-73347-866-3 01 1 0106- ● ●
209 COVER; GRILLE 1-73347-865-3 01 1 0106- ● ●
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-886-1 01 1 0106- ● ●
210 GRILLE; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-885-1 01 1 0106- ● ●
