2-03 — CLUTCH PEDAL AND CONTROL (#2801) — 29 parça

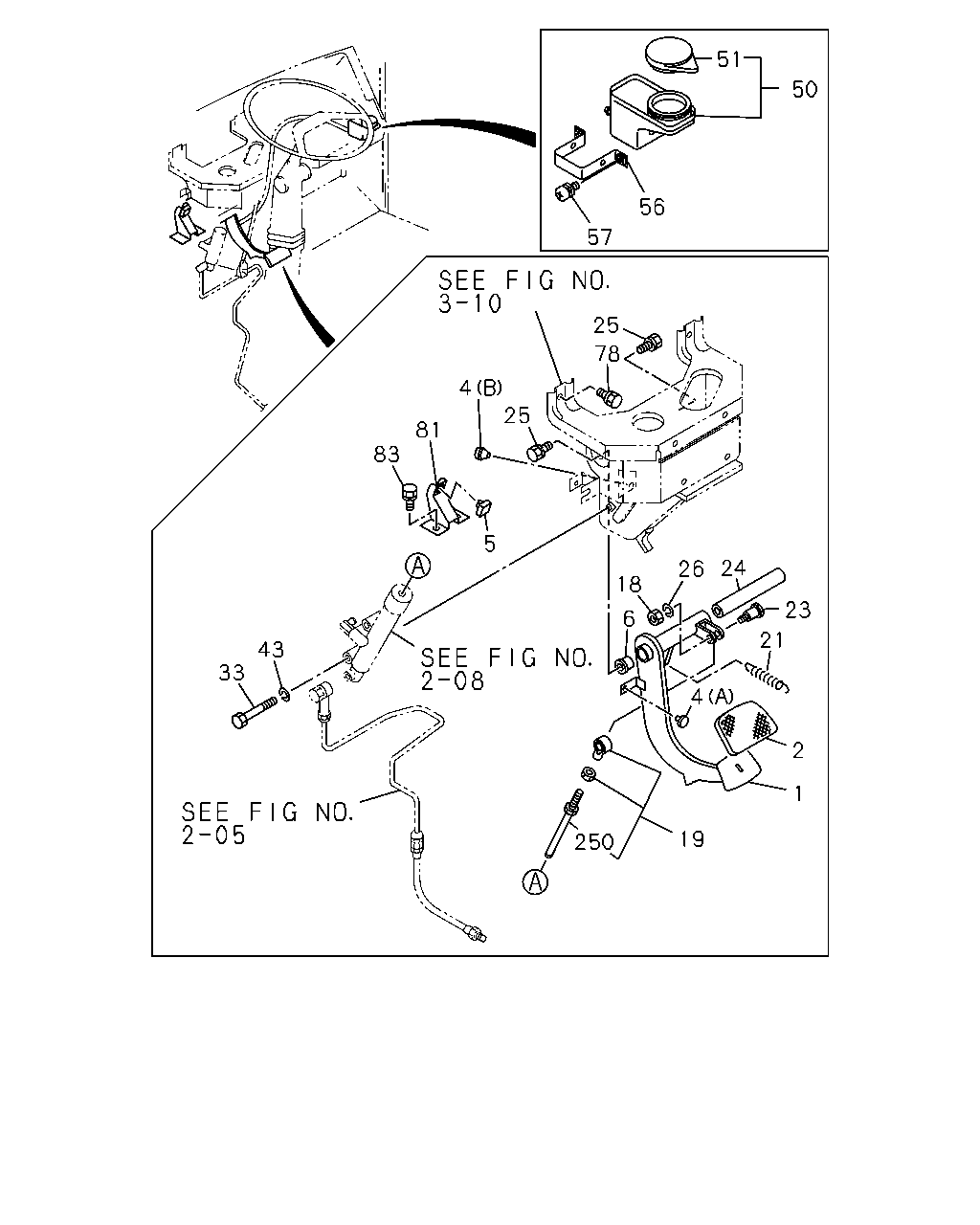

çizim 95285
51 50 56 57 25 78 4 25 81 83 5 26 24 23 18 6 21 4 2 1 19 250 43 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-31411-157-0 01 1 9002- ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 9002- ● ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 01 1 9002- ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 9002- ● ●
5 STOPPER; PEDAL SHAFT 1-09983-074-0 01 1 9002- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 9002- ● ●
18 NUT; PUSH ROD
M8 		9-09110-408-0 01 1 9002- ● ●
19 ROD ASM; PUSH,CLU 1-73907-178-1 01 1 9002- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73998-820-0 01 1 9002- ● ●
23 BOLT; PUSH ROD
M8X35 		9-01060-835-0 01 1 9002-9008 ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 9009- ● ●
24 SHAFT; CLU PEDAL 1-31415-007-0 01 1 9002- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		9-01931-025-0 02 1 9002- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 9002- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		9-01046-065-0 02 1 9002-9204 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		0-10806-065-0 02 1 9205-9301 ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X65 		5-09030-024-1 02 1 9302- ● ●
43 WASHER; LK,CLU M/CYL
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ●
50 TANK; OIL,CLU 1-47530-140-1 01 1 9002- ● ●
51 CAP; OIL TANK,CLU 1-47525-023-0 01 1 9002- ● ●
56 BRACKET; OIL TANK,CLU CONT 1-73997-915-0 01 1 9002- ● ●
57 BOLT; OIL TANK BRKT,CLU
M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9002- ● ●
57 BOLT; OIL TANK BRKT,CLU
M5X12 TAPPING 		9-07066-512-0 01 1 9002- ● ●
78 BOLT; BRKT TO CAB
M8X20 		1-09980-529-0 04 1 9002- ● ●
81 BRACKET; STOPPER,CLU PEDAL 1-73997-635-2 01 1 9002- ● ●
83 BOLT; STOPPER BRKT,CLU PEDAL
M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9002 ● ●
83 BOLT; STOPPER BRKT,CLU PEDAL
M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9003-9008 ● ●
83 BOLT; STOPPER BRKT,CLU PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ●
250 ROD; PUSH,CLU
M8X31 L=128 		1-31422-010-2 01 1 9009- ● ●
