Sayfa 6-31 - Isuzu EPC

6-31 — FRONT DOOR GLASS AND REGULATOR (#28007) — 247 parça

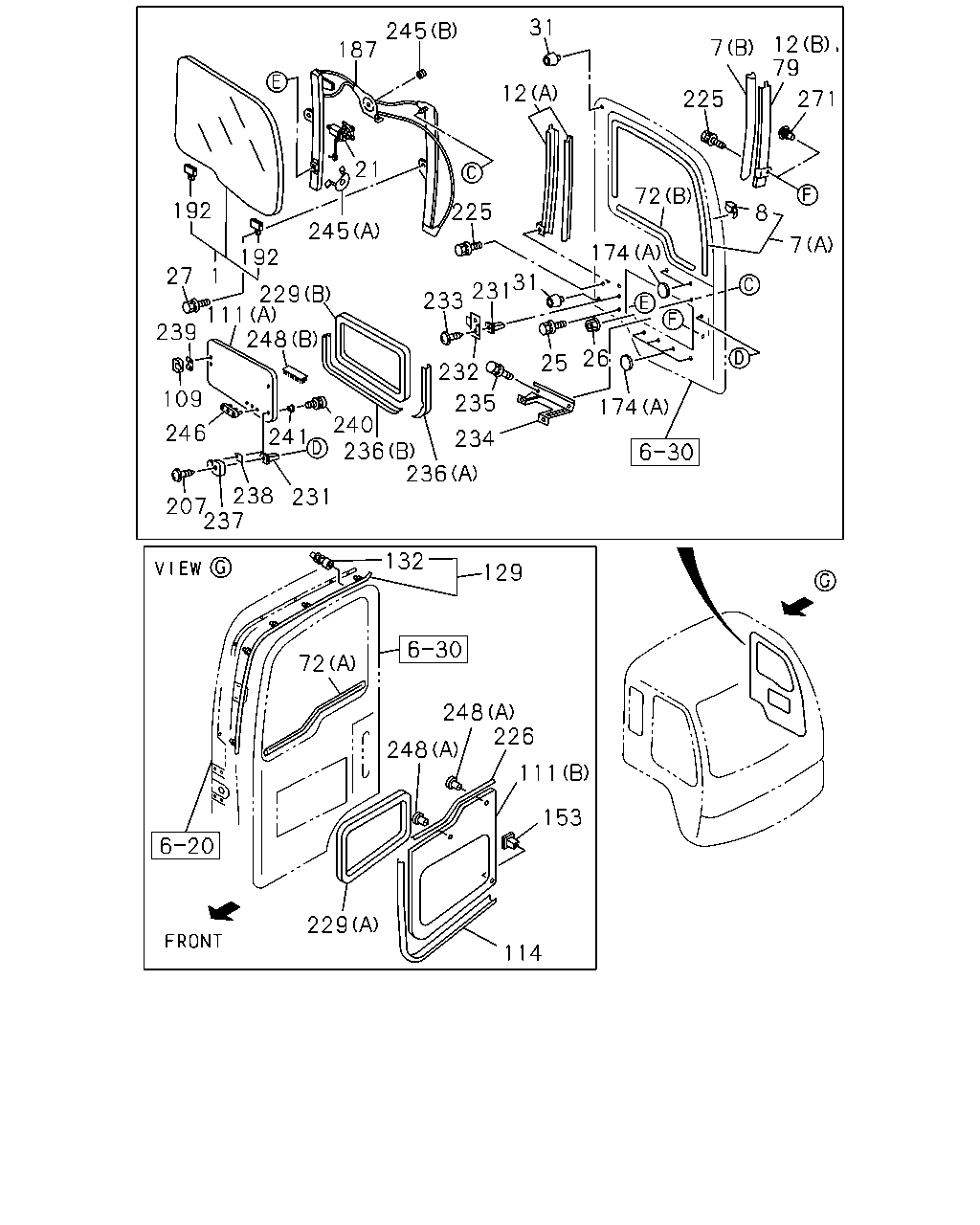

31 245 187 12 79 7 12 225 271 21 72 192 225 8 245 7 174 192 31 231 233 27 1 229 111 248 239 26 25 232 109 235 174 241 240 236 236 246 234 238 207 237 231 132 129 72 248 226 248 111 153 229 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0106-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0106-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0106-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0106-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-2	01	1	0106-	●	●
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0106-	●	●
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76167-155-0	01	1	0106-	●	●
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76167-176-0	01	1	0106-	●	●
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-038-1	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-	●	●
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0106-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-2	01	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-2	01	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-	●	●
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-	●	●
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-093-5	01	1	0106-	●	●
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76738-096-4	01	1	0106-	●	●
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76738-097-4	01	1	0106-	●	●
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0106-	●	●
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0106-	●	●
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-363-5	01	1	0106-	●	●
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-364-5	01	1	0106-	●	●
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0106-	●	●
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0106-	●	●
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0106-	●	●
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0106-	●	●
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0106-	●	●
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0106-	●	●
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-0	01	1	0106-	●	●
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	02	1	0106-	●	●
271	PLUG; HOLE DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11	1-76378-155-0	01	1	0307-	●	●

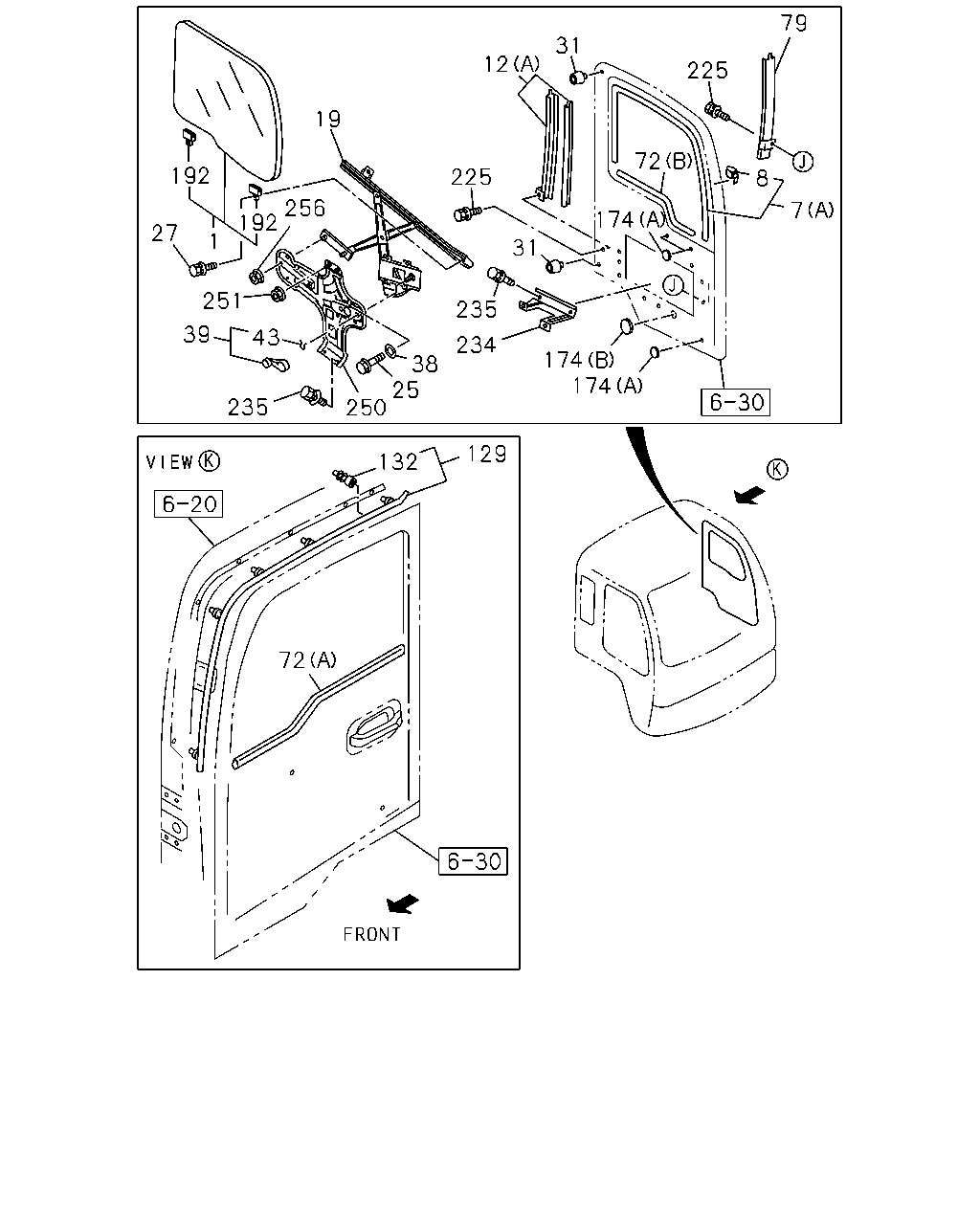

12 245 21 245 7 31 27 8 79 72 26 192 192 31 225 187 174 1 25 235 234 225 174 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0106-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0106-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0106-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0106-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-2	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-2	01	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0106-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-2	01	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0106-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0106-	●	●

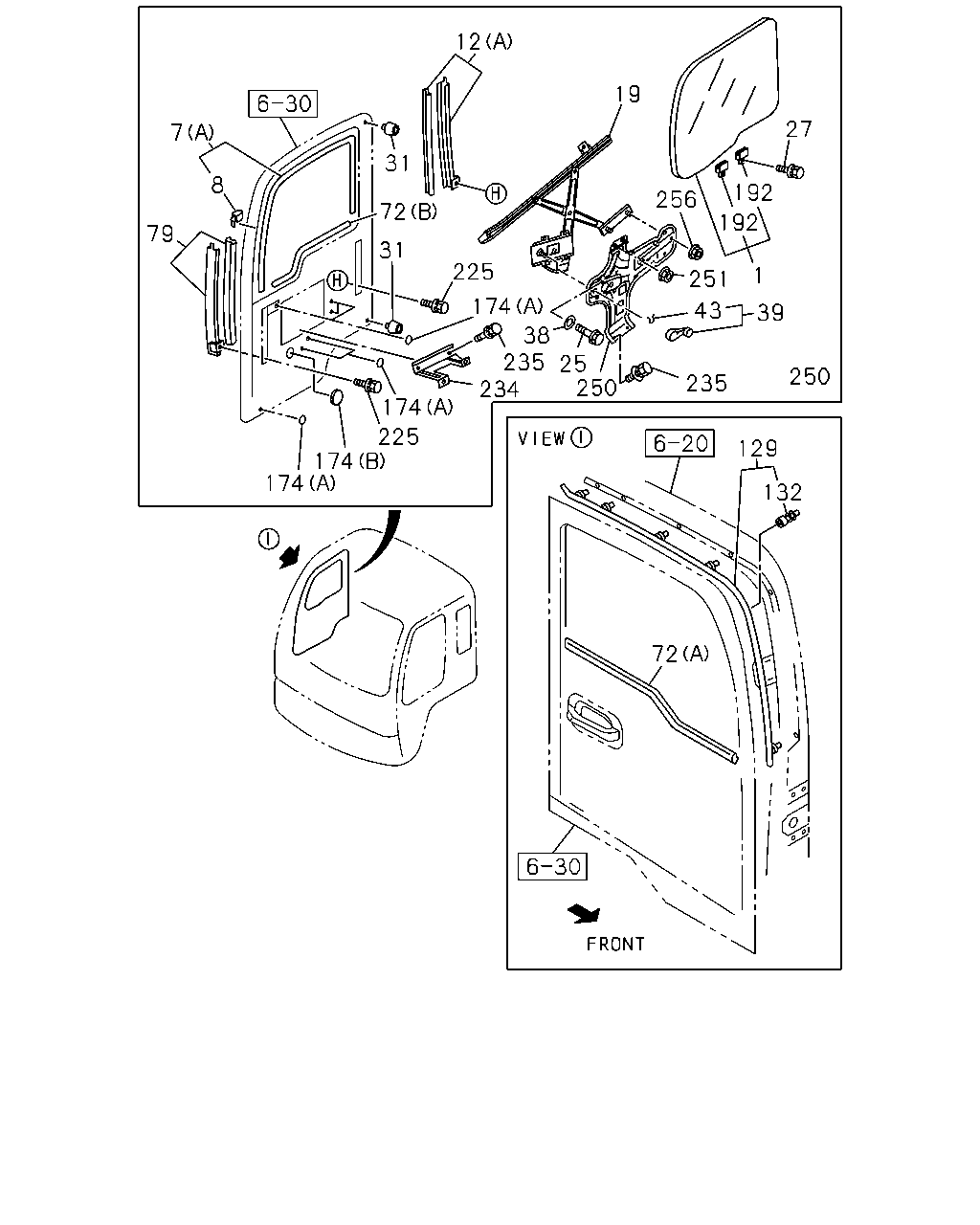

12 19 27 7 31 8 192 256 72 192 79 31 225 1 251 174 43 39 38 235 234 25 250 250 235 174 225 174 174 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-	●	●
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0106-	●	●
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-2	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-	●	●
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-	●	●
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-	●	●

79 31 12 225 19 72 192 225 8 256 192 7 174 27 31 1 251 235 39 43 234 174 174 38 25 250 235 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-7	01	1	0106-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-2	01	1	0106-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-	●	●
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0106-	●	●
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-5	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-7	01	1	0106-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-5	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0106-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-2	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-	●	●
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-	●	●
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
