◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#28003) — 169 parça

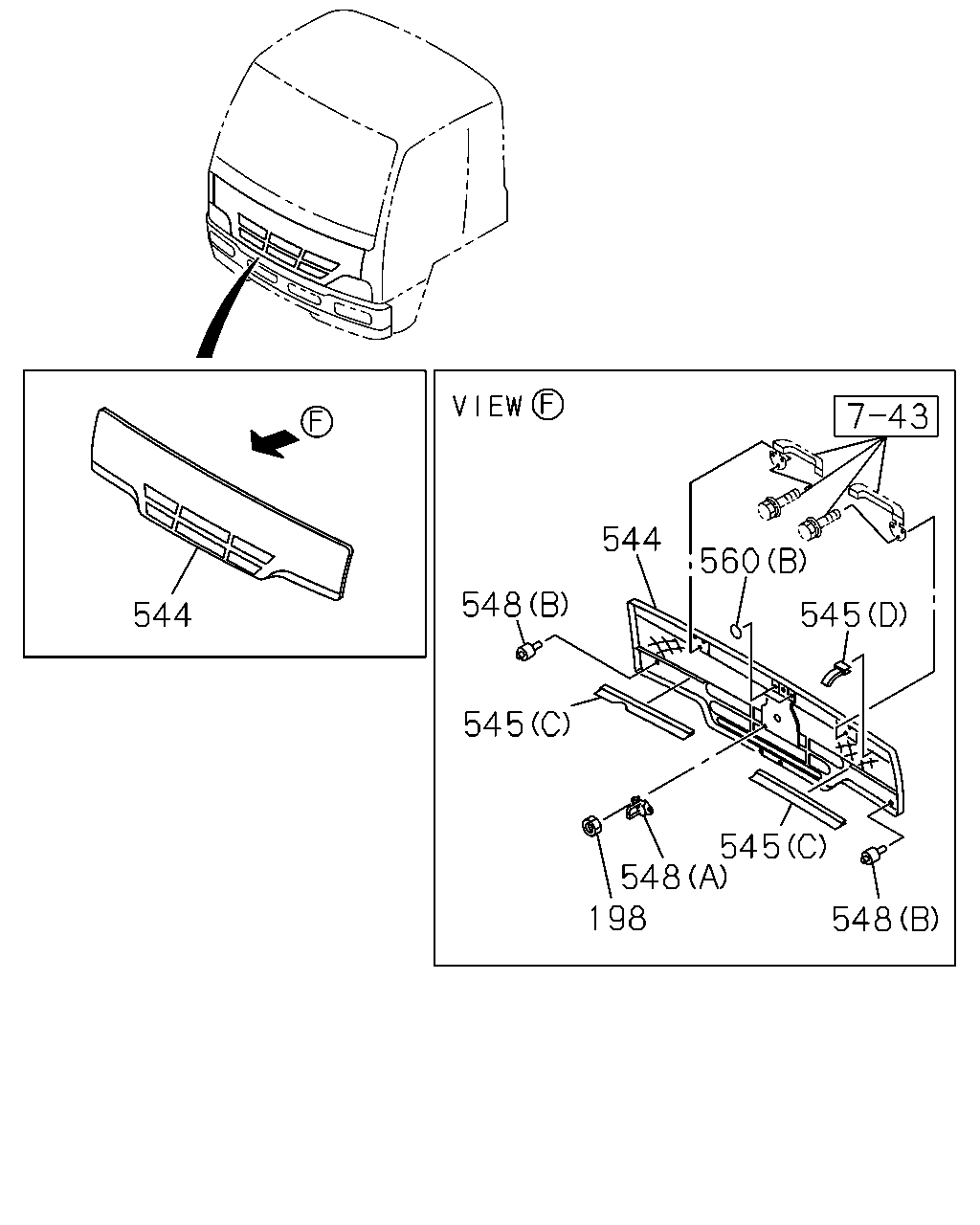

çizim 21168
544 560 548 545 544 545 545 548 198 548
BalonParca AdiParca NoAdetTipApplied Date A B
198 NUT; PANEL
M6 FLANGE 		8-94197-199-0 02 1 0106- ● ●
544 LID; FRT
DELUXE CAB(W14) 		1-71107-217-2 01 1 0106- ● ●
544 LID; FRT
EXC. DELUXE CAB(W14) 		1-71107-293-0 01 1 0106- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106- ● ●
545 SEAL; FRT LID
(D) L=63 		1-71998-963-2 01 1 0106- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-0 01 1 0106- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-0 02 1 0106- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106- ● ●

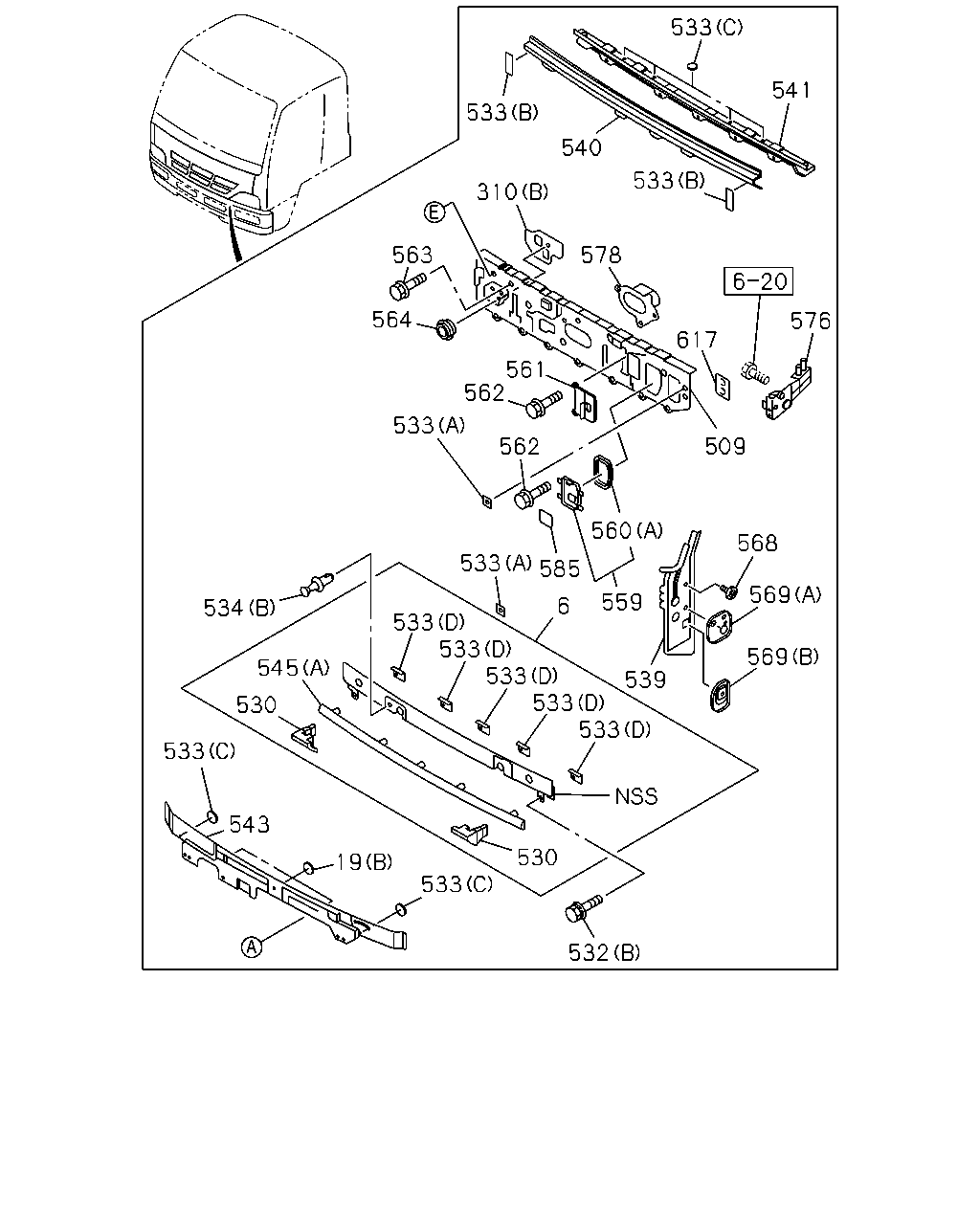

çizim 21169
533 541 533 540 533 310 563 578 564 576 617 561 562 533 509 562 560 568 533 585 569 559 6 534 533 533 533 533 533 569 545 539 530 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-549-4 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A) 		1-71907-160-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A) 		1-71907-159-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-165-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-164-5 01 1 0106- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0106- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0106- ● ●
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-2 01 1 0106- ● ●
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-6 01 1 0106- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0106- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0106- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0106- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0106- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0106- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0106- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0106- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0106- ● ●
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 0106- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0106- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 0106-0208 ● ●
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0209- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106- ● ●
545 SEAL; FRT LID
(D) L=63 		1-71998-963-2 01 1 0106- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 0106- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0106- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 0106-0202 ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0106- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0106- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0106- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0106- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0106- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0106- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0106- ● ●
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 0106- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0106- ● ●

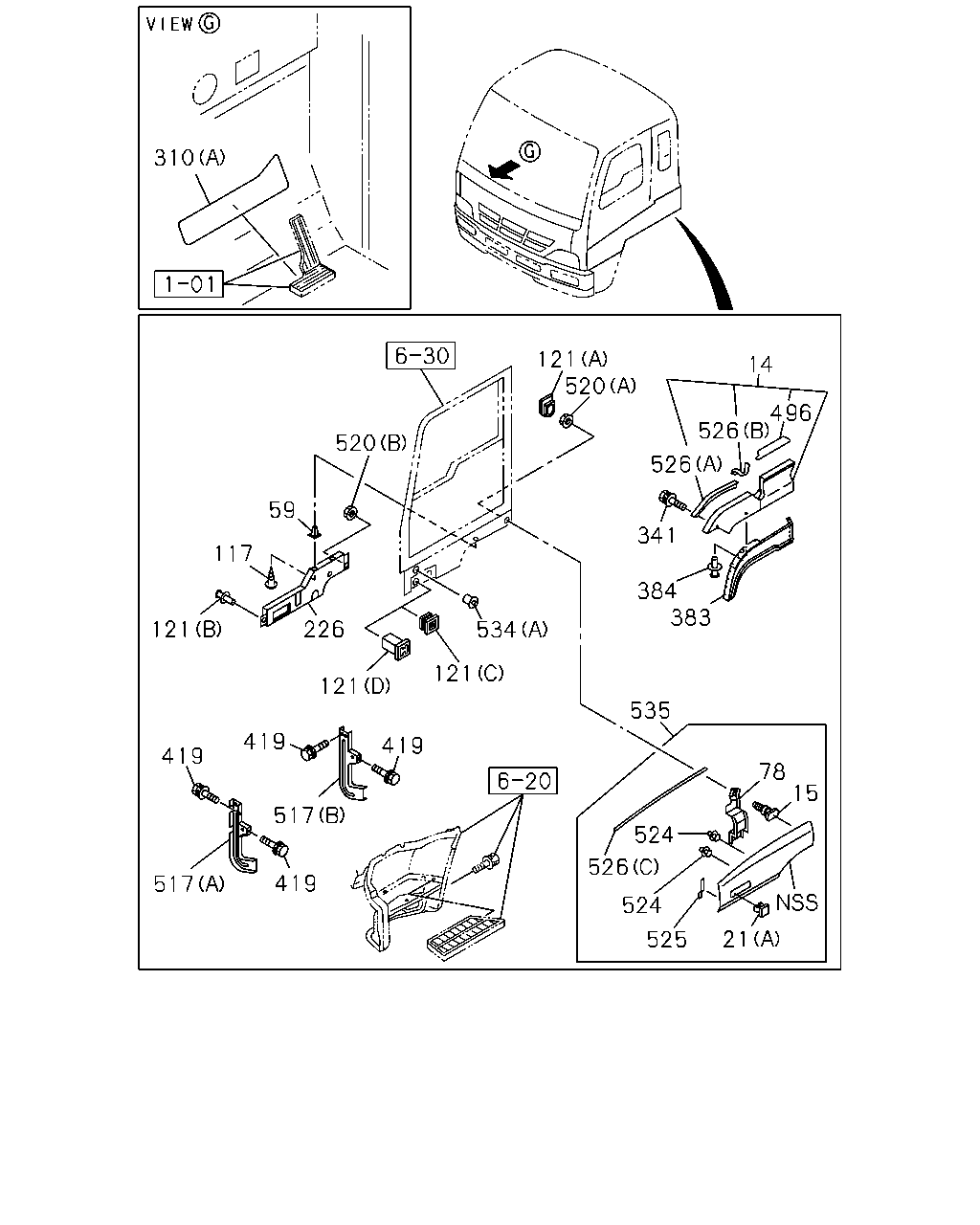

çizim 78670
310 121 520 14 496 526 520 526 59 341 117 384 383 121 226 534 121 121 535 419 419 419 78 15 517 524 526 419 517 524 21 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
WHITE 		1-65472-453-0 01 1 0106- ● ●
14 FENDER; FRT
WHITE 		1-65472-452-0 01 1 0106- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0106- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8X8 L=7.5 M5 		8-94279-078-0 02 1 0106- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0106- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0106- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0106- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0106- ● ●
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0106- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0106- ● ●
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0106-0304 ● ●
121 GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0106- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0106- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0106- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0106- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0106- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 0106- ● ●
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 0106- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 11 1 0106- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-208-0 10 1 0106- ● ●
496 RUBBER; STEP 1-71998-862-1 01 1 0106- ● ●
496 RUBBER; STEP 1-71998-861-1 01 1 0106- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0106- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 0106-0208 ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-781-0 01 1 0209- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0106- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0106- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0106- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0106- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0106- ● ●
525 SEAL; FENDER 1-71268-281-1 02 1 0106- ● ●
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 0106-0211 ● ●
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212- ● ●
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0106-0211 ● ●
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212- ● ●
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0106- ● ●
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0106-0211 ● ●
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106- ● ●
535 FENDER; BLISTER 1-71267-186-2 01 1 0106-0210 ● ●
535 FENDER; BLISTER
WHITE 		1-71267-294-1 01 1 0211- ● ●
535 FENDER; BLISTER 1-71267-185-2 01 1 0106-0210 ● ●
535 FENDER; BLISTER
WHITE 		1-71267-293-1 01 1 0211- ● ●
çizim 78698
19 16 571 18 299 22 571 19 21 16 19 19 164 571 18 571 299 43 22 22 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE 1-65471-897-0 01 1 0106- ● ●
16 PANEL; FRONT,SIDE 1-65471-896-0 01 1 0106- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0106- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A) 		1-71907-160-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A) 		1-71907-159-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-165-5 01 1 0106- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) (A) 		1-71907-164-5 01 1 0106- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8X8 L=7.5 M5 		8-94279-078-0 02 1 0106- ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0106- ● ●
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 0106- ● ●
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 0106- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0106- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0106- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0106- ● ●
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-996-1 01 1 0106- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0106- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0106- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0106- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A) 		1-09987-228-0 14 1 0106- ● ●
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) (A) 		1-09987-228-0 16 1 0106- ● ●

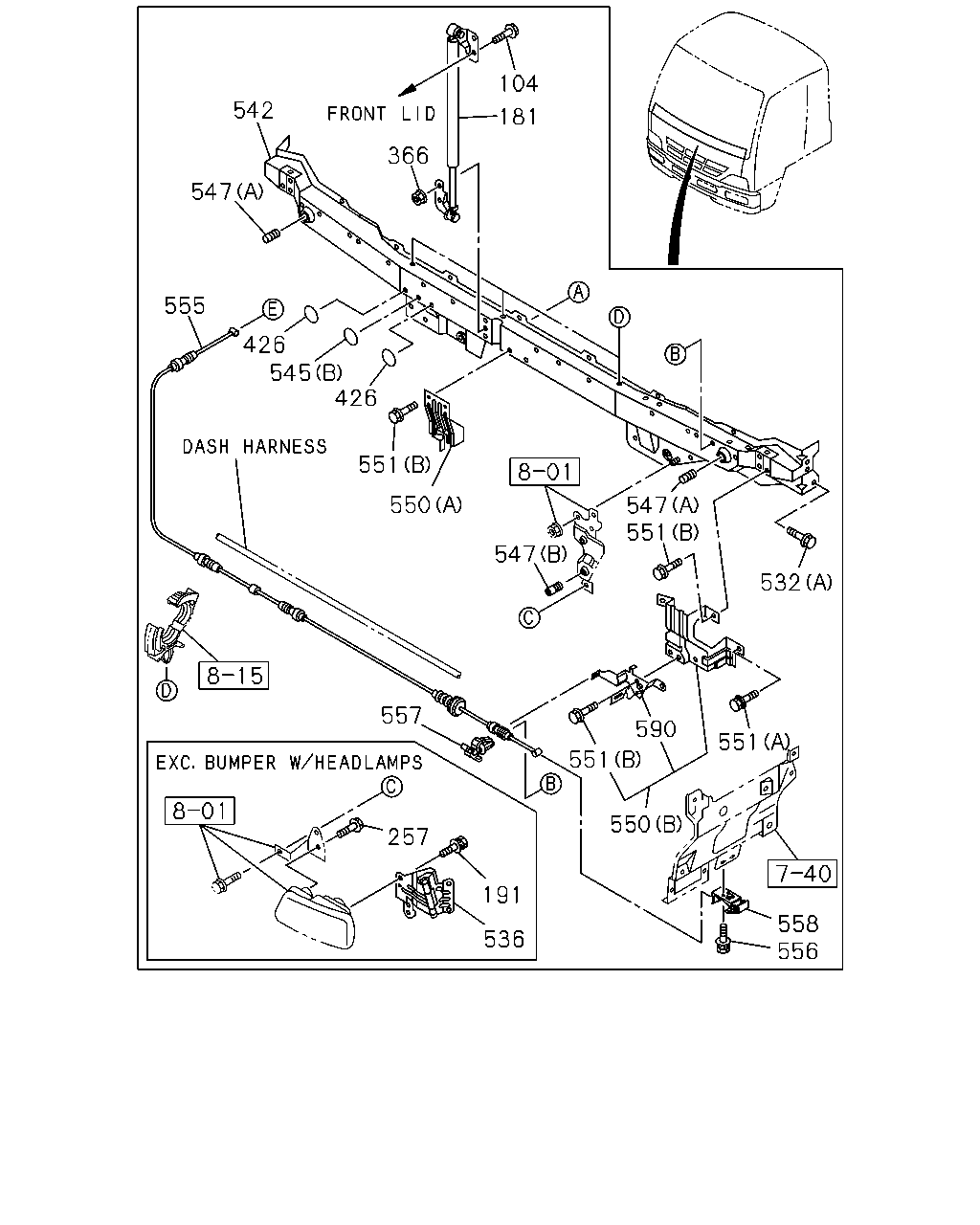

çizim 82963
104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 557 590 551 551 550 257 191 558 556 536
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0106- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0106- ● ●
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106- ● ●
257 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0106- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0106- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0106-0111 ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0112- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106- ● ●
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106- ● ●
536 HINGE 1-86830-032-5 01 1 0106- ● ●
536 HINGE 1-86830-031-5 01 1 0106- ● ●
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 0106- ● ●
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106- ● ●
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106- ● ●
545 SEAL; FRT LID
(D) L=63 		1-71998-963-2 01 1 0106- ● ●
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0106- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0106- ● ●
550 LOCK ASM; FRT LID
(A) 		1-79317-006-1 01 1 0106- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-008-0 01 1 0106- ● ●
550 LOCK ASM; FRT LID
(B) 		1-79317-007-1 01 1 0106- ● ●
551 BOLT; LOCK
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0106- ● ●
551 BOLT; LOCK
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0106- ● ●
555 CABLE; FRT LID
L=2682 		1-79347-005-2 01 1 0106- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0106- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0106- ● ●
558 LEVER; FRT LID 1-79338-003-1 01 1 0106-0212 ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0301- ● ●
590 LOCK; FRT LID 1-79318-010-1 01 1 0106- ● ●
590 LOCK; FRT LID 1-79318-009-3 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
