◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#28000) — 16 parça

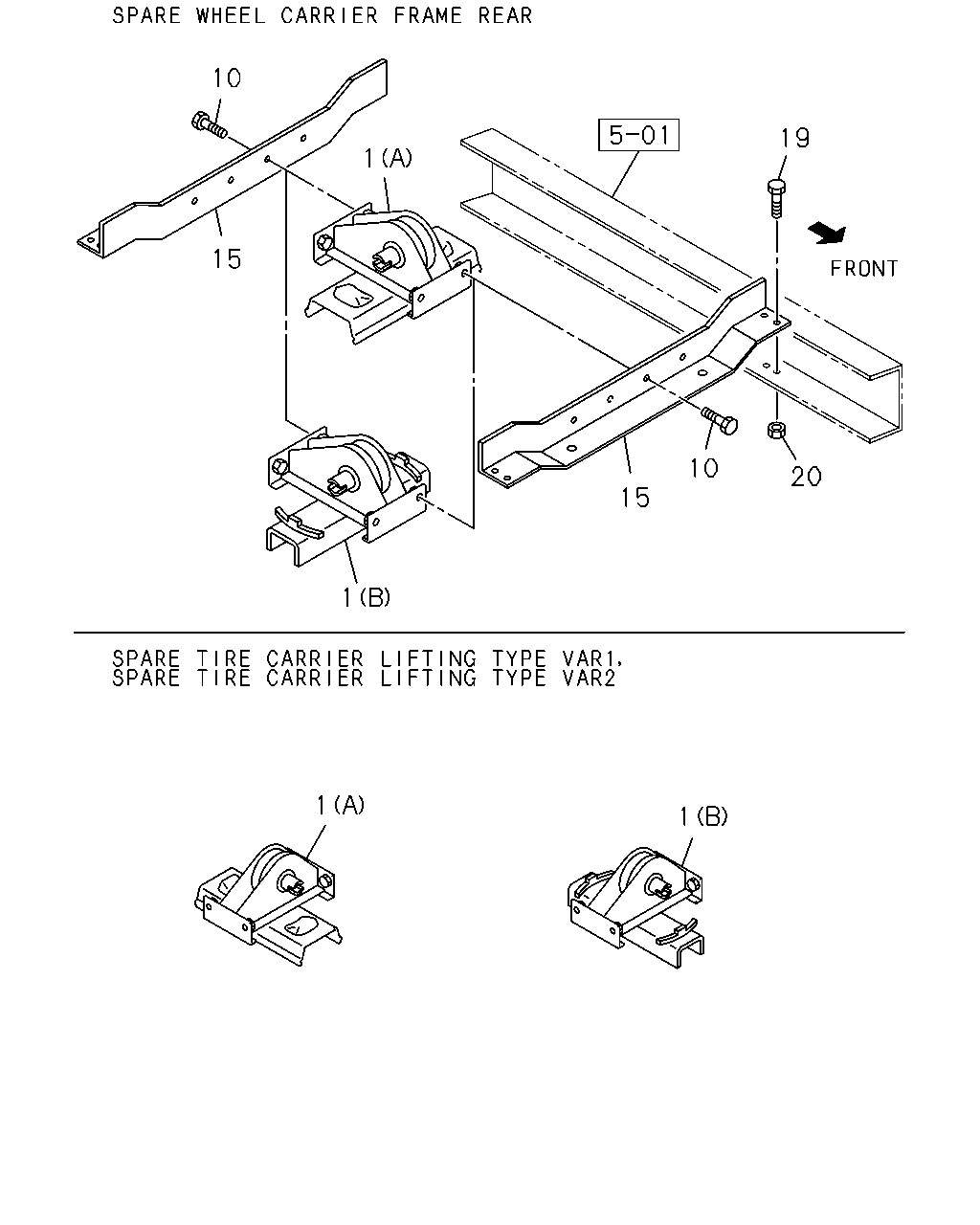

çizim 78773
10 19 1 15 10 20 15 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-1 01 1 0106-0204 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (A) 		1-53630-208-1 01 1 0106-0204 ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-208-1 01 1 0205- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0205- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0106-0204 ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 01 1 0106-0204 ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205- ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0205- ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) (B) 		1-53630-210-1 02 1 0106-0204 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0205- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0106-0204 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (A) 		1-53630-208-1 02 1 0205- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28681-230-0 04 1 0106- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 0106- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 0106- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0106- ●
