2-01B — CLUTCH (#2800) — 109 parça

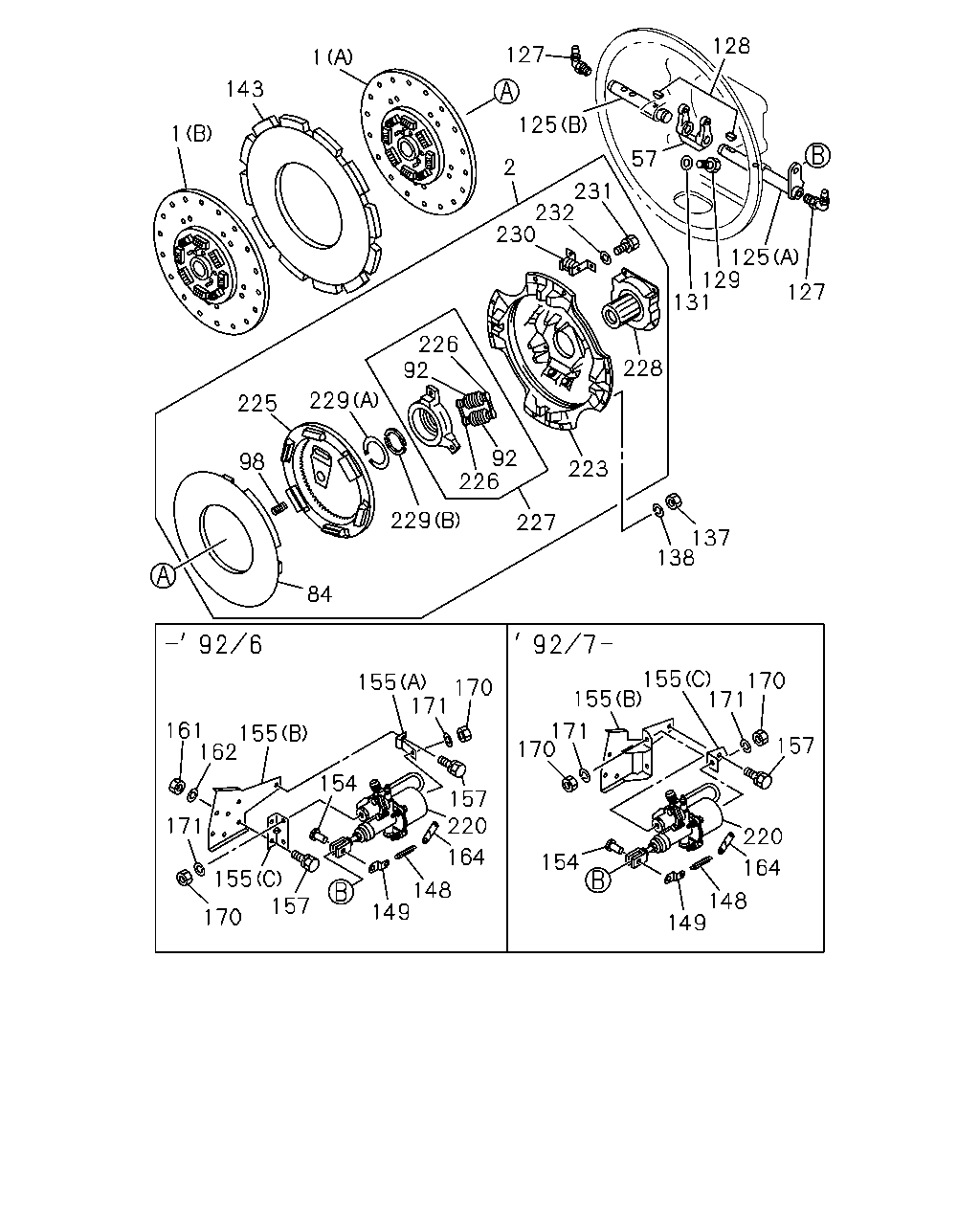

çizim 28512
1 143 1 127 125 128 2 231 232 230 57 125 127 129 131 228 226 92 92 226 223 137 138 227 229 229 225 98 84 155 170 171 161 155 162 154 157 220 164 148 149 157 155 171 170 171 170 155 170 171 157 220 164 148 149 154 155
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
(A) 14 INCH SINGLE FRONT 		1-31240-348-0 01 1 9002- ● ●
1 DISC; CLUTCH
6RB1TC ENG(30L) (A) 14 INCH SINGLE FRONT 		1-31240-348-0 01 1 9002- ●
1 DISC; CLUTCH
(B) 14 INCH SINGLE REAR 		1-31240-349-0 01 1 9002- ● ●
1 DISC; CLUTCH
6RB1TC ENG(30L) (B) 14 INCH SINGLE REAR 		1-31240-349-0 01 1 9002- ●
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (A) 14 INCH TWIN FRONT 		1-31240-554-0 01 1 9002-9306 ● ●
1 DISC; CLUTCH
NEW ZEALAND EQUIPMENT(PK5) (A) 14 INCH TWIN FRONT 		1-31240-554-0 01 1 9002-9306 ● ●
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) 14 INCH TWIN REAR 		1-31240-555-0 01 1 9002-9306 ● ●
1 DISC; CLUTCH
NEW ZEALAND EQUIPMENT(PK5) (B) 14 INCH TWIN REAR 		1-31240-555-0 01 1 9002-9306 ● ●
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 14 INCH TWIN FRONT 		1-31240-327-0 01 1 9002- ● ●
1 DISC; CLUTCH
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 14 INCH TWIN FRONT 		1-31240-327-0 01 1 9002- ● ●
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 14 INCH TWIN REAR 		1-31240-328-0 01 1 9002- ● ●
1 DISC; CLUTCH
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 14 INCH TWIN REAR 		1-31240-328-0 01 1 9002- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-186-0 01 1 9307- ●
2 PLATE ASM; PRESSURE,CLU
6RB1TC ENG(30L) 		1-31220-186-0 01 1 9307- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-186-0 01 1 9002-9306 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31220-186-0 01 1 9002-9306 ●
2 PLATE ASM; PRESSURE,CLU
6RB1TC ENG(30L) 		1-31220-186-0 01 1 9002-9306 ●
2 PLATE ASM; PRESSURE,CLU
6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31220-142-1 01 1 9002- ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L) NEW ZEALAND EQUIPMENT(PK5) 		1-31220-260-0 01 1 9004-9306 ● ●
2 PLATE ASM; PRESSURE,CLU
NEW ZEALAND EQUIPMENT(PK5) 		1-31220-260-0 01 1 9004-9306 ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31220-141-2 01 1 9002- ● ●
2 PLATE ASM; PRESSURE,CLU
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31220-141-2 01 1 9002- ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9002- ● ● ● ● ● ●
84 PLATE; PRESSURE 1-31221-088-0 01 1 9002- ● ● ● ● ● ●
92 SPRING; CLU 1-31214-043-0 06 1 9002- ● ●
92 SPRING; CLU
6RA1TC ENG(19L),6RB1TC ENG(30L),10PD1 STD ENG(40L) 		1-31214-043-0 06 1 9002- ● ●
92 SPRING; CLU
6RB1 STD ENG(07L) 		1-31214-044-0 06 1 9002- ● ●
92 SPRING; CLU 1-31214-044-0 06 1 9002- ● ●
98 SPRING; RETURN 1-31233-008-0 04 1 9201- ● ● ● ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-085-0 01 1 9002-9412 ● ● ● ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-283-0 01 1 9501- ● ● ● ●
125 SHAFT; CLU
(A) L=225 W/LEVER 		1-31342-246-0 01 1 9002-9006 ● ● ● ● ● ●
125 SHAFT; CLU
COUNTER SHAFT BRAKE<BAP> (A) L=225 W/LEVER 		1-31342-246-0 01 1 9007-9306 ● ● ● ● ● ●
125 SHAFT; CLU
CLUTCH BRAKE<BBG> (A) 		1-31342-134-0 01 1 9007-9306 ● ● ● ● ● ●
125 SHAFT; CLU
(A) L=225 W/LEVER 		1-31342-246-0 01 1 9307-9412 ● ● ● ●
125 SHAFT; CLU
(A) L=225 		1-31342-285-0 01 1 9501- ● ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9002- ● ● ● ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9002- ● ● ● ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9002- ● ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9002- ● ● ● ● ● ●
137 BOLT; CLU COVER
M16X28 		1-09087-026-0 08 1 9002- ● ● ● ● ● ●
138 WASHER; LK,CLU COVER
ID=9.8 		1-09500-020-0 08 1 9002- ● ● ● ● ● ●
143 PLATE; INTERMEDIATE 1-31221-058-0 01 1 9002- ● ●
143 PLATE; INTERMEDIATE
6RB1TC ENG(30L) 		1-31221-058-0 01 1 9002- ●
143 PLATE; INTERMEDIATE
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) 		1-31221-025-0 01 1 9002- ● ●
143 PLATE; INTERMEDIATE 1-31221-025-0 01 1 9002- ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9002- ● ● ● ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9002- ● ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-001-1 01 1 9002-9312 ● ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9401- ● ● ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-066-0 01 1 9002-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-344-0 01 1 9207- ● ● ● ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-116-0 01 1 9002-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (B) 		1-31429-215-0 01 1 9007-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (B) 		1-31429-342-0 01 1 9207-9306 ● ● ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (B) 		1-31429-300-0 01 1 9007-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (B) 		1-31429-343-0 01 1 9207-9306 ● ● ● ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-343-0 01 1 9307- ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		9-01931-025-0 04 1 9002-9002 ● ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9003-9206 ● ● ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9207- ● ● ● ● ● ●
157 BOLT; BRKT
M10X18 		9-02051-018-0 03 1 9002-9002 ● ● ● ● ●
157 BOLT; BRKT
M10X18 		0-20801-018-0 03 1 9003-9006 ● ● ● ● ●
157 BOLT; BRKT
COUNTER SHAFT BRAKE<BAP> M10X18 		0-20801-018-0 03 1 9007-9206 ● ● ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X18 		0-20801-018-0 01 1 9007-9206 ● ● ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X25 		0-20801-025-0 02 1 9007-9206 ● ● ● ● ● ●
161 NUT; BRKT
CLUTCH BRAKE<BBG> M10 		9-09110-510-0 02 1 9007-9206 ● ● ● ● ● ●
162 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 03 1 9002-9205 ● ● ● ● ● ●
162 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 03 1 9206-9206 ● ● ● ● ● ●
164 EYE; SPRING 1-31426-016-1 01 1 9002- ● ● ● ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9002- ● ● ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9002- ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-224-0 01 1 9002-9006 ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-351-0 01 1 9007- ● ● ● ● ● ●
223 COVER; CLU 1-31211-030-0 01 1 9002- ● ● ● ● ● ●
225 RING; ADJUSTING 1-31239-022-0 01 1 9002- ● ● ● ● ● ●
226 PIVOT 1-31239-023-0 06 1 9002- ● ● ● ● ● ●
227 RETAINER 1-31239-025-0 01 1 9002- ● ●
227 RETAINER
6RB1 STD ENG(07L),6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31239-025-0 01 1 9002- ● ●
227 RETAINER
NEW ZEALAND EQUIPMENT(PK5) 		1-31239-025-0 01 1 9002- ● ●
227 RETAINER
6RB1TC ENG(30L) 		1-31239-025-0 01 1 9002- ●
227 RETAINER
10PD1 STD ENG(40L) 		1-31239-024-0 01 1 9002- ● ●
227 RETAINER
6RB1 STD ENG(07L),6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31239-024-0 01 1 9002- ● ●
227 RETAINER
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31239-024-0 01 1 9002- ● ●
228 BEARING; RELEASE 1-31320-039-0 01 1 9002- ● ●
228 BEARING; RELEASE
6RB1 STD ENG(07L),6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31320-039-0 01 1 9002- ● ●
228 BEARING; RELEASE
NEW ZEALAND EQUIPMENT(PK5) 		1-31320-039-0 01 1 9002- ● ●
228 BEARING; RELEASE
6RB1TC ENG(30L) 		1-31320-039-0 01 1 9002- ●
228 BEARING; RELEASE
10PD1 STD ENG(40L) 		1-31320-038-0 01 1 9002- ● ●
228 BEARING; RELEASE
6RB1 STD ENG(07L),6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31320-038-0 01 1 9002- ● ●
228 BEARING; RELEASE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31320-038-0 01 1 9002- ● ●
229 RING
(B) 		1-31239-027-0 02 1 9002- ● ●
229 RING
6RB1 STD ENG(07L),6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-027-0 02 1 9002- ● ●
229 RING
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-027-0 02 1 9002- ● ●
229 RING
6RB1TC ENG(30L) (B) 		1-31239-027-0 02 1 9002- ●
229 RING
(A) 		1-31239-028-0 01 1 9002- ● ● ● ● ● ●
229 RING
10PD1 STD ENG(40L) (B) 		1-31239-026-0 02 1 9002- ● ●
229 RING
6RB1 STD ENG(07L),6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-026-0 02 1 9002- ● ●
229 RING
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-026-0 02 1 9002- ● ●
230 ADJUSTER 1-31239-029-0 01 1 9002- ● ● ● ● ● ●
231 BOLT; ADJUSTER 1-31239-030-0 02 1 9002- ● ● ● ● ● ●
232 WASHER; ADJUSTER 1-31239-031-0 02 1 9002- ● ● ● ● ● ●
çizim 29045
142 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
139 BRAKE; CLU
CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5) 		1-31259-037-0 01 1 9009-9306 ● ● ● ● ● ●
139 BRAKE; CLU
6RB1TC ENG(30L) CLUTCH BRAKE<BBG> 		1-31259-038-0 01 1 9007-9008 ● ● ●
139 BRAKE; CLU
6RB1 STD ENG(07L),6RA1TC ENG(19L) CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5) 		1-31259-038-0 01 1 9007-9008 ● ● ● ●
139 BRAKE; CLU
6RB1TC ENG(30L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31259-038-0 01 1 9009-9306 ● ● ●
139 BRAKE; CLU
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31259-036-0 01 1 9007-9306 ● ● ● ●
142 PLATE; ANTI RATTLE 1-31229-049-0 04 1 9002- ● ●
142 PLATE; ANTI RATTLE
6RB1TC ENG(30L) 		1-31229-049-0 04 1 9002- ●
