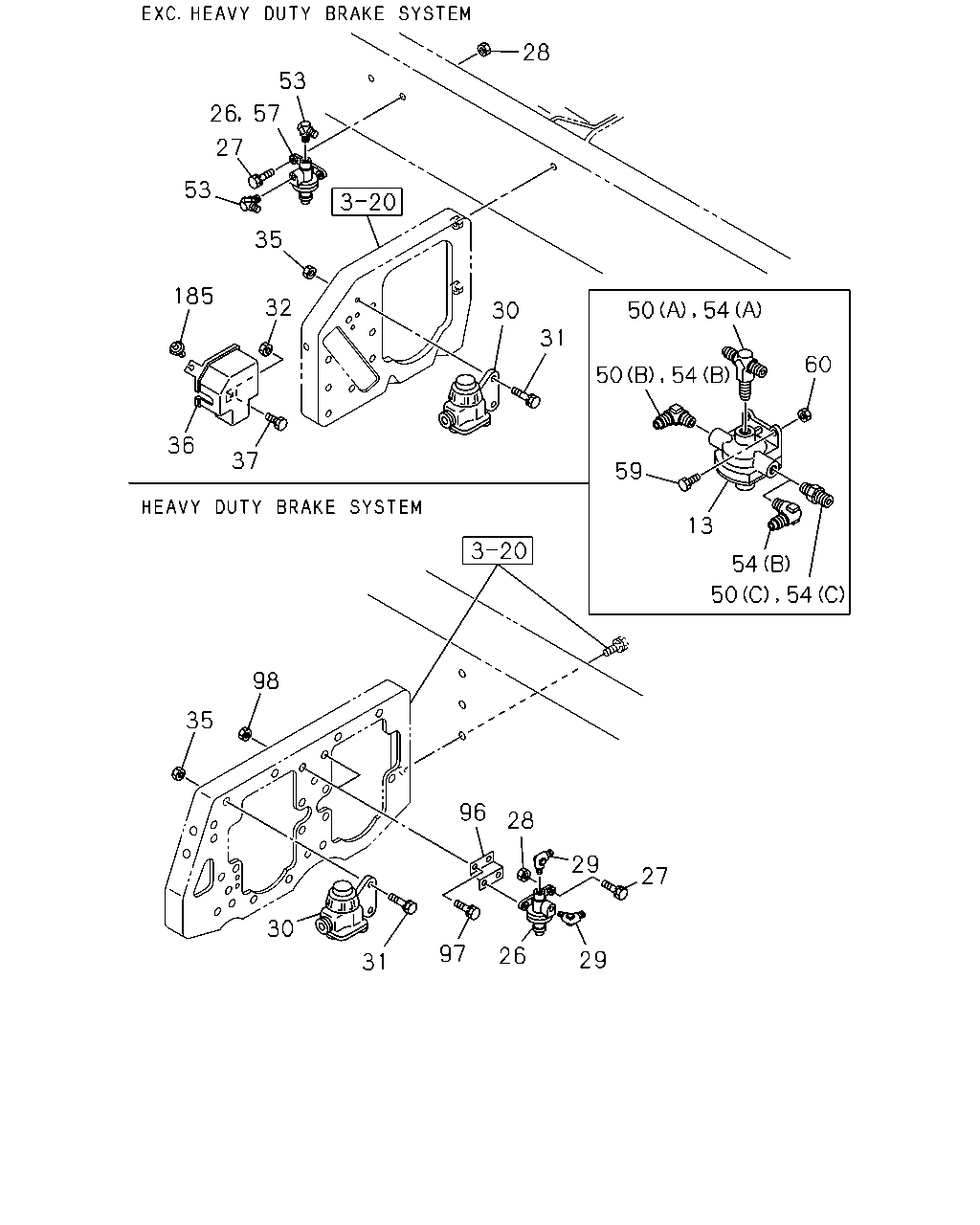

3-22 — AIR CONTROL PARTS (#28) — 52 parça

28 53 26 57 27 53 35 185 32 50 54 30 31 60 36 37 59 13 54 98 35 96 28 29 27 30 97 26 29 31 50 54 50 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-052-1	01	1	9202-9307	●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9308-	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48110-006-0	01	1	9202-9202	●	●
26	VALVE; AIR AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9202-9202	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9203-	●	●
26	VALVE; AIR AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9203-	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9202-	●	●
27	BOLT; AIR VLV AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9202-	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9202-	●	●
27	BOLT; AIR VLV AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X35 W/LK&PL WASHER	0-50140-835-0	02	1	9202-	●	●
28	NUT; AIR VLV M8	9-09110-408-0	02	1	9202-	●	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9202-9302	●	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9202-9208	●	●
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-	●	●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9202-9204	●	●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
32	NUT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9209	●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9202-	●	●
36	COVER; GOV EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48359-043-2	01	1	9202-	●	●
37	BOLT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9202-9202	●	●
37	BOLT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09030-048-0	02	1	9203-9209	●	●
37	BOLT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09030-048-0	01	1	9210-	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9202-	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	01	1	9202-9302	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-056-1	01	1	9202-9302	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-	●	●
53	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9202-9302	●	●
53	CONNECTOR; AIR VLV AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9202-9302	●	●
53	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
53	CONNECTOR; AIR VLV AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9202-	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	01	1	9202-9302	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	1-09650-092-1	02	1	9202-9302	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	9303-	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09656-056-1	01	1	9202-9302	●	●
54	CONNECTOR; QUICK RELEASE VLV FINAL GEAR 14.5"<B2V>,FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9303-	●	●
57	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48110-006-0	01	1	9202-9202	●	●
57	VALVE; AIR AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48110-006-0	01	1	9202-9202	●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48495-053-1	01	1	9202-	●	●
96	BRACKET AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-053-1	01	1	9202-	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●	●
97	BOLT; VLV BRKT AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
98	NUT; VLV BRKT AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
185	FASTENER; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09470-006-0	01	1	9210-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
