5-01 — FRAME AND OTHER PARTS
(#27994) — 46 parça
Tümü
A - WHEEL BASE 4500MM
B - WHEEL BASE 5900MM
C - WHEEL BASE 6300MM
◀

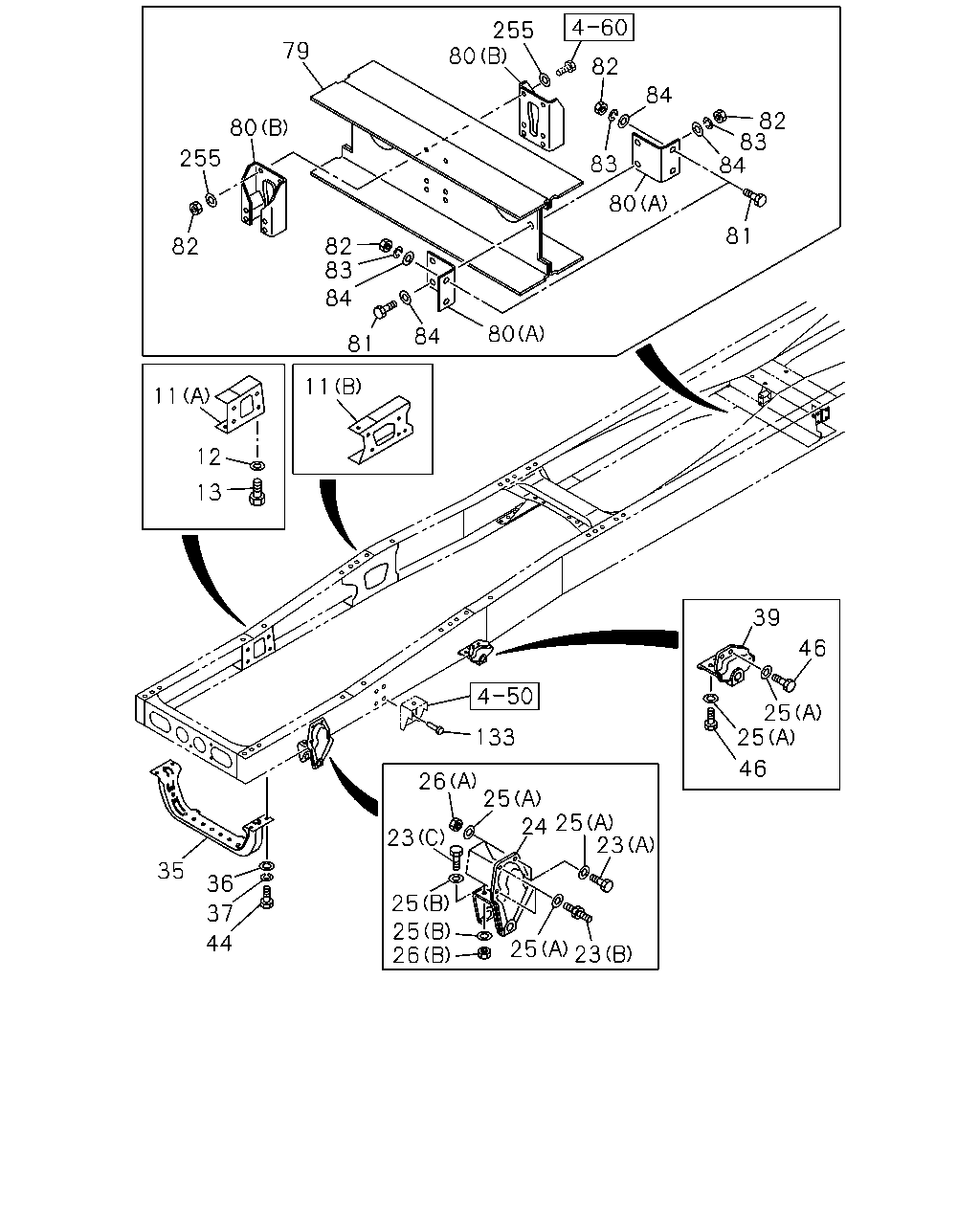

[501A] BRACKET AND UNDER MEMBER (34 parça)
[501A] CROSS MEMBER (12 parça)
▶
255
80
79
82
84
82
83
84
80
255
83
80
81
82
83
84
82
80
84
81
11
11
12
13
39
46
25
25
133
46
26
25
24
25
23
23
35
36
25
25
26
37
25
44
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
BRACKET; ENG MTG
(A)
1-53219-583-0
01
1
0106-
●
●
●
11
BRACKET; ENG MTG
(B)
1-53219-728-1
01
1
0106-
●
●
●
11
BRACKET; ENG MTG
(A)
1-53219-582-0
01
1
0106-
●
●
●
11
BRACKET; ENG MTG
(B)
1-53219-727-1
01
1
0106-
●
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0106-
●
●
●
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0106-
●
●
●
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0106-
●
●
●
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0106-
●
●
●
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0106-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0106-
●
●
●
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0106-
●
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
AR
1
0106-
●
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
AR
1
0106-
●
●
●
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
AR
1
0106-
●
●
●
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
AR
1
0106-
●
●
●
35
MEMBER; UNDER
1-53174-214-2
01
1
0106-
●
●
●
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0106-
●
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0106-
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
0106-
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
0106-
●
●
●
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0106-
●
●
●
46
BOLT; BRKT FIX
M14X40
9-92061-440-0
AR
1
0106-
●
●
●
46
BOLT; BRKT FIX
M14X50
9-92061-450-0
AR
1
0106-
●
●
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-374-0
01
1
0106-
●
●
●
80
BRACKET; C/MBR
(A)
1-53167-288-0
04
1
0106-
●
●
●
80
BRACKET; C/MBR
(B)
1-53363-031-2
02
1
0106-
●
●
●
81
BOLT; BRKT
M14X55
9-91066-455-0
AR
1
0106-
●
●
●
81
BOLT; BRKT
M14X45
9-92061-445-0
AR
1
0106-
●
●
●
82
NUT; BRKT
M14
9-99110-514-0
AR
1
0106-
●
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
AR
1
0106-
●
●
●
84
WASHER; PL,BRKT
ID=15 OD=26
9-09164-514-0
AR
1
0106-
●
●
●
133
RIVET; BRKT
D13X40 PLATED TAPER END
9-06771-340-0
06
1
0106-
●
●
●
133
RIVET; BRKT
D13X42 PLATED TAPER END
9-06771-342-0
02
1
0106-
●
●
●
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0106-
●
●
●
86
21
21
79
19
21
21
130
6
16
86
2
21
79
21
57
34
41
21
19
21
6
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0106-
●
●
●
6
WASHER; LK,1ST C/MBR
ID=16.2
9-09150-616-0
AR
1
0106-
●
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20801-640-0
AR
1
0106-
●
●
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0106-
●
●
●
21
GUSSET; 2ND CROSS
(A)
1-53164-208-0
02
1
0106-
●
●
●
21
GUSSET; 2ND CROSS
(B)
1-53167-287-2
02
1
0106-
●
●
●
34
MEMBER; CROSS,3RD
1-53181-645-1
01
1
0106-
●
●
41
BRACKET; CENTER BRG,FRAME SIDE
L=305
1-53271-262-2
02
1
0106-
●
●
57
MEMBER; CROSS,RR SUSP FRT
1-53171-685-2
01
1
0106-
●
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-374-0
01
1
0106-
●
●
●
86
MEMBER; CROSS,RR SUSP RR
1-53181-134-0
01
1
0106-
●
●
●
130
MEMBER; CROSS,END
1-53171-876-3
01
1
0106-
●
●
