◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#27989) — 37 parça

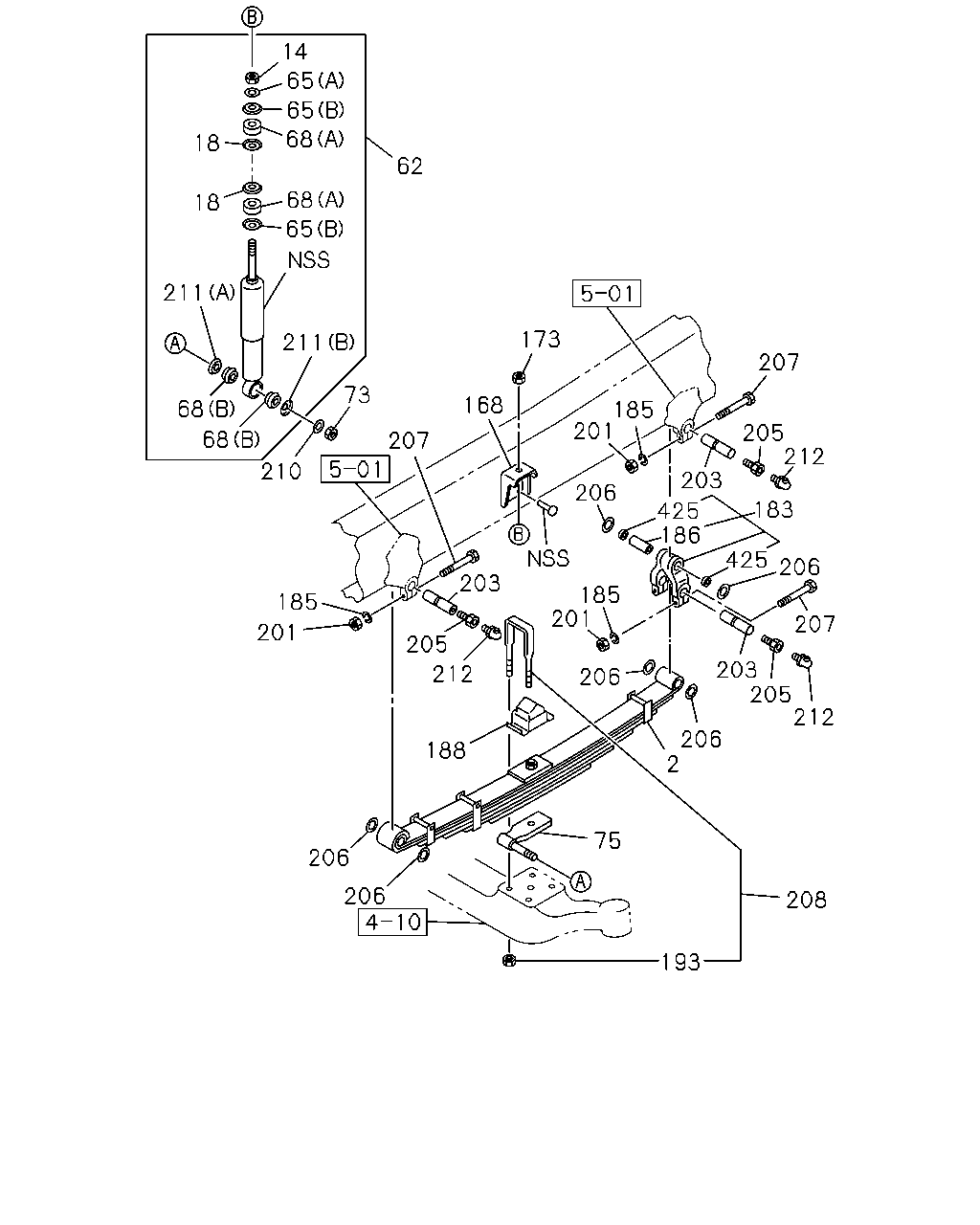

çizim 21604
14 65 65 68 18 62 68 18 65 211 173 211 207 73 168 68 185 201 203 212 68 207 210 206 183 425 186 425 206 203 185 201 185 207 201 205 203 205 212 212 206 206 2 188 75 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 14-LEAF 		1-51130-800-0 02 1 0106- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 14-LEAF 		1-51130-800-0 02 1 0106- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 9-LEAF 		1-51130-798-0 02 1 0106- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 9-LEAF 		1-51130-798-0 02 1 0106- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0106- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0106- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51630-512-0 02 1 0106- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-512-0 02 1 0106- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51630-417-0 02 1 0106- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51630-417-0 02 1 0106- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0106- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0106- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0106- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0106- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0106- ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0106- ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0106- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0106- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0106- ● ●
183 SHACKLE; FRT SUSP 1-51162-064-0 02 1 0106- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0106- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 02 1 0106- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-081-0 02 1 0106- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0106- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0106- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0106- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0106- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0106- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0106- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=270 		1-87870-327-0 04 1 0106- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=270 		1-87870-327-0 04 1 0106- ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 0106- ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0106- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0106- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0106- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 		9-09031-210-0 06 1 0106- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0106- ● ●
