◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#27986) — 15 parça

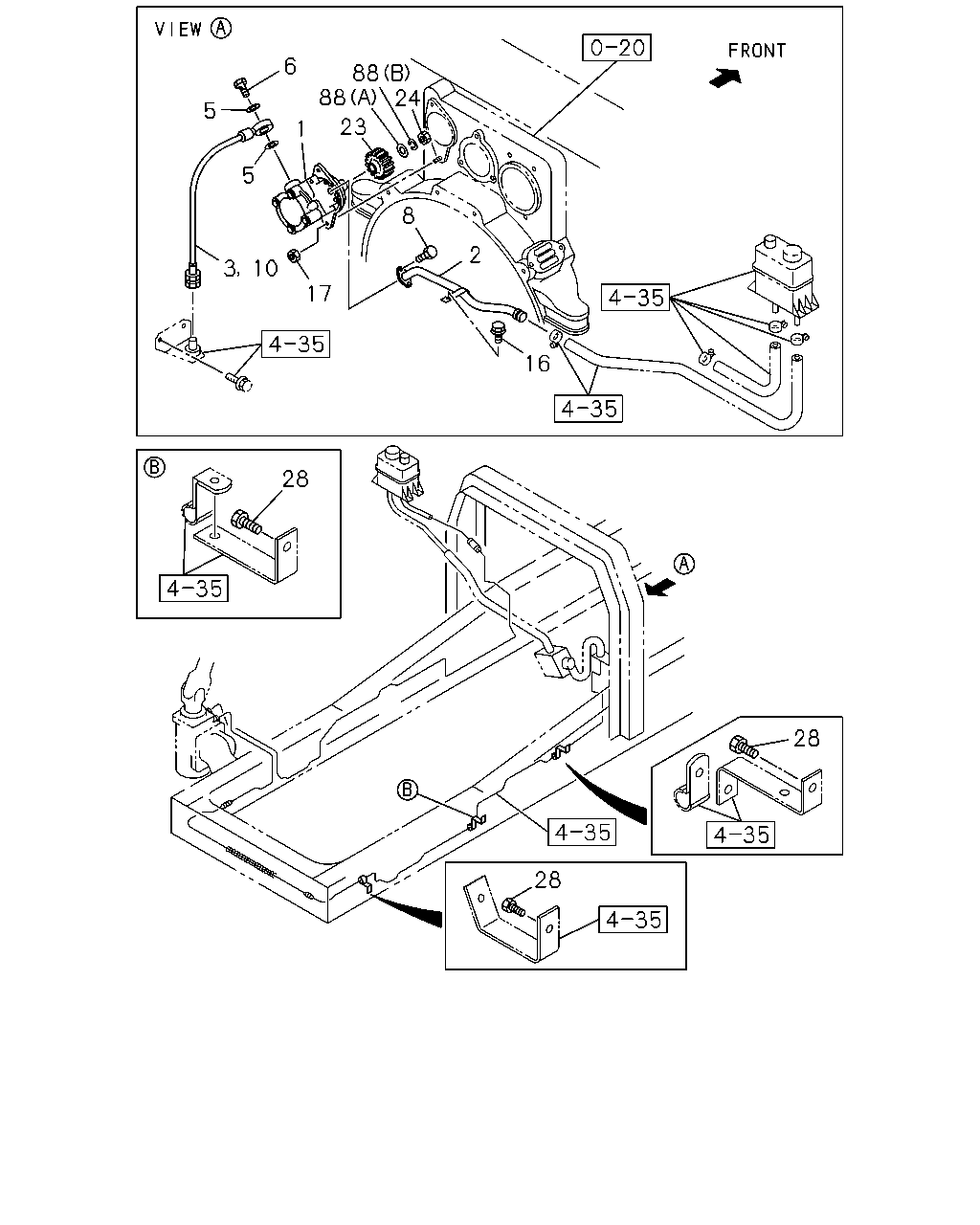

çizim 79944
6 88 5 23 1 5 8 2 3 10 17 16 28 28 28 88 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-2 01 1 0106- ● ●
2 PIPE ASM; OIL,SUCTION 1-13313-692-0 01 1 0106- ● ●
3 PIPE; OIL,CHARGE,P/S
ENGINE REAR PTO(SV1) L=510 		1-09365-044-0 01 1 0106- ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0106- ●
6 BOLT; EYE,P/S PIPE
ENGINE REAR PTO(SV1) M18X40 		1-09675-153-0 01 1 0106- ●
8 BOLT; OIL PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 0106- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=510 		1-09365-044-0 01 1 0106- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
EXC. ENGINE REAR PTO(SV1) L=510 		1-09365-044-0 01 1 0106- ●
16 BOLT; STAY,P/S OIL PUMP
M8X14 FLANGE 		0-28080-814-0 01 1 0106- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-011-1 01 1 0106- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0106- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28680-830-0 03 1 0106- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0106- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0106- ● ●
