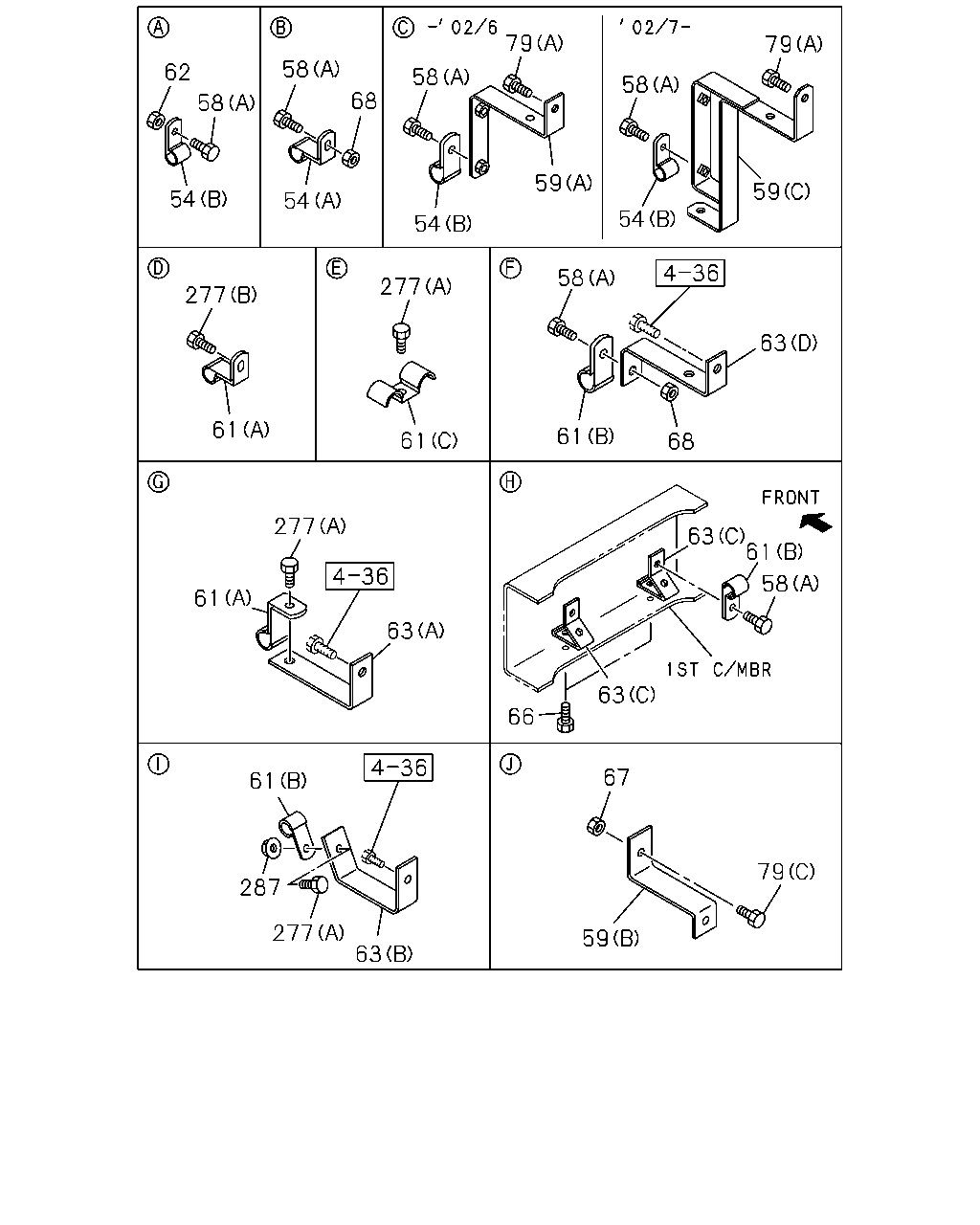

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#27985) — 83 parça

79 79 58 62 58 58 68 58 59 59 54 54 54 54 58 277 277 63 61 61 61 68 277 63 61 58 61 63 63 66 67 61 79 287 277 59 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	0106-	●	●
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	0106-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-434-0	01	1	0106-0206	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-47477-180-1	01	1	0207-	●	●
59	BRACKET; CLIP,OIL PIPE (B) L=90	1-82699-856-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	03	1	0106-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
63	BRACKET; CLIP,P/S (A)	1-34656-009-0	01	1	0106-	●	●
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0106-	●	●
63	BRACKET; CLIP,P/S (C)	1-47477-621-1	02	1	0106-	●	●
63	BRACKET; CLIP,P/S (D) L=90	1-82699-856-0	01	1	0106-	●	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●

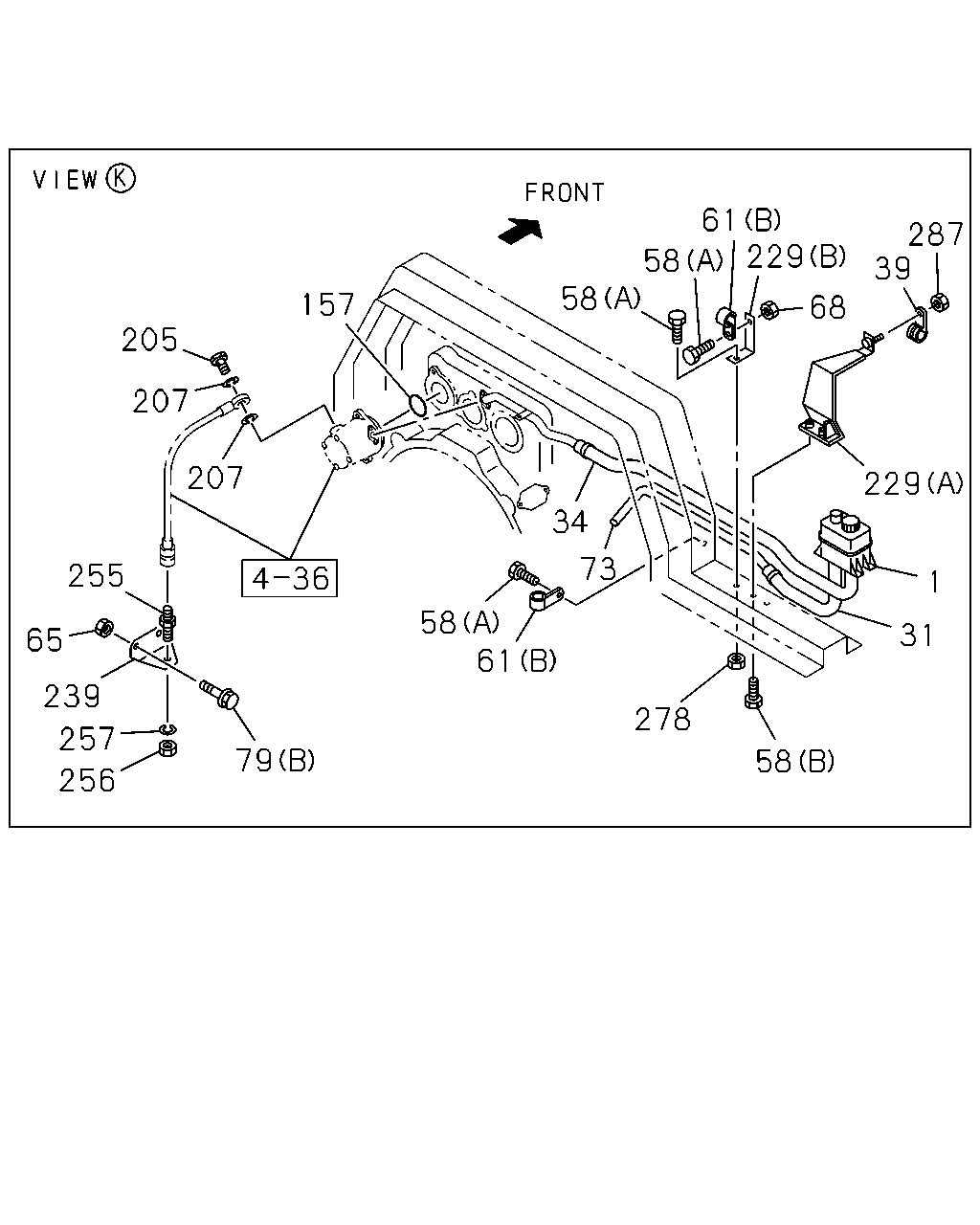

61 229 287 39 58 58 157 68 205 207 207 229 34 73 255 1 58 61 31 65 239 278 257 79 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0106-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0106-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0106-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	0106-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0106-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	03	1	0106-	●	●
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0106-	●	●
79	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●
79	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0106-	●	●
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	0106-	●	●
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0106-	●	●
229	BRACKET; HOSE,POWER STRG (A)	1-21464-480-0	01	1	0106-	●	●
229	BRACKET; HOSE,POWER STRG (B)	1-21464-481-0	01	1	0106-	●	●
239	BRACKET; FLEX HOSE	1-47478-471-0	01	1	0106-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0106-	●	●
256	NUT; UNION M22	9-09111-422-0	01	1	0106-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0106-	●	●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●

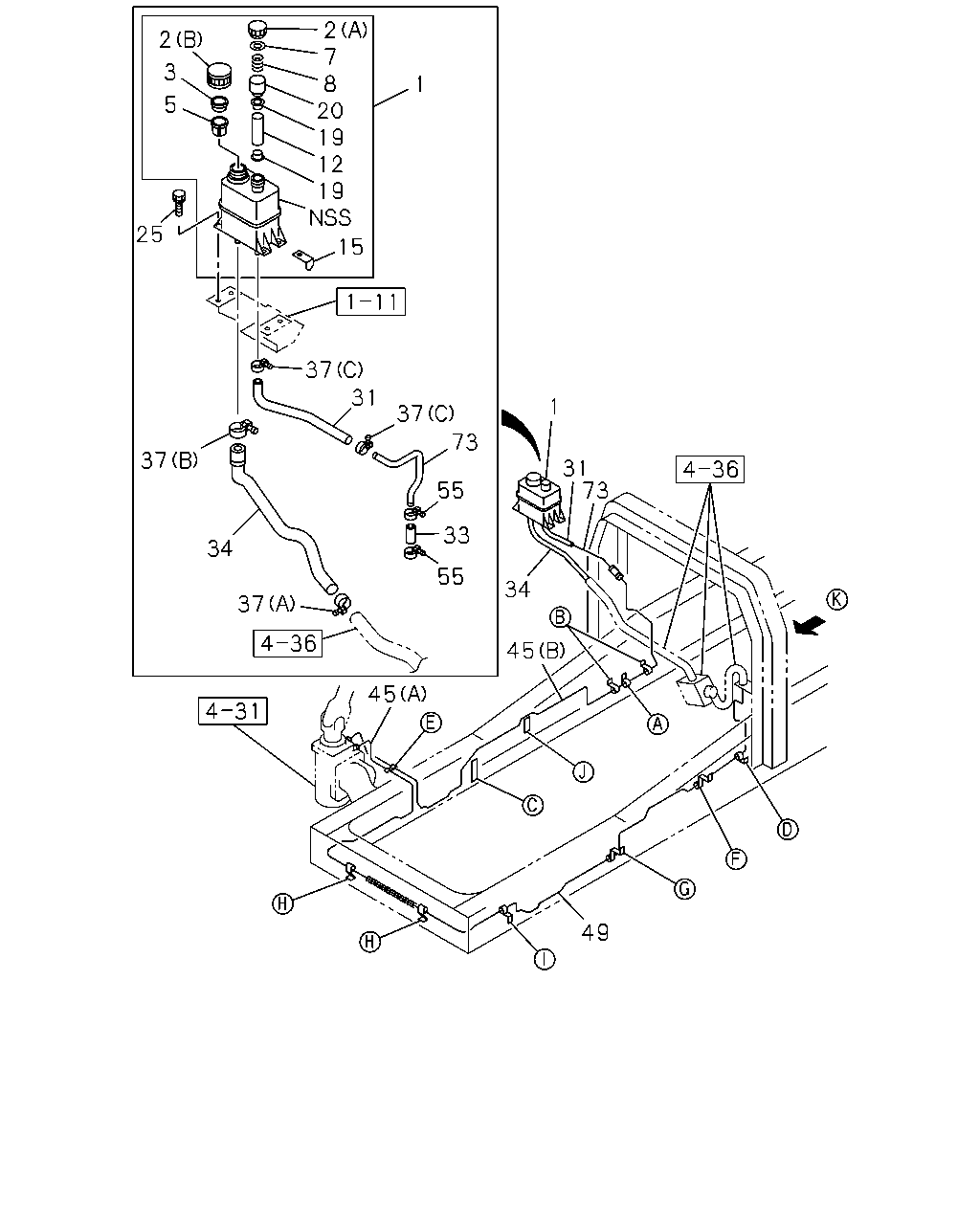

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 1 37 73 37 31 73 55 33 34 55 34 37 45 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0106-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0106-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0106-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0106-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0106-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0106-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0106-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0106-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0106-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0106-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0106-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0106-	●	●
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	0106-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0106-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	01	1	0106-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	01	1	0106-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0106-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21115-529-0	01	1	0106-0109	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21117-150-0	01	1	0110-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0106-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	1-21116-346-0	01	1	0106-	●	●
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	0106-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0106-	●	●
