8-90 — RADIO AND TV (#27977) — 31 parça

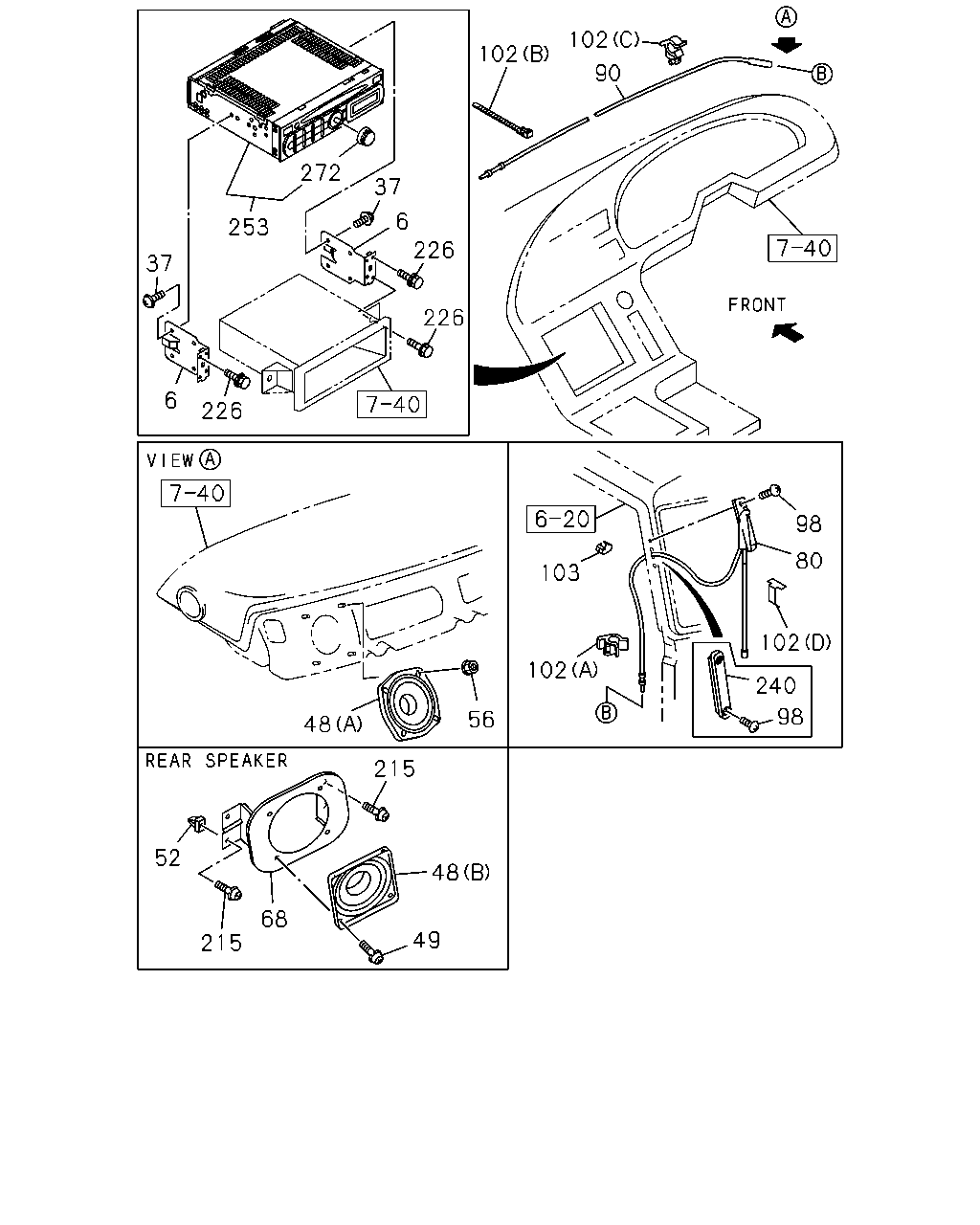

çizim 139718
37 272 26 6 226 253 37 6 226 102 102 90 103 102 102 80 98 240 98 56 48 215 48 9 68 215 52
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0610- ● ●
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0806- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		8-98046-216-0 02 1 0610- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-075-1 02 1 0610- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> (A) 		1-84114-073-0 02 1 0610-0805 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. FACE LIFT<6NL> (A) 		1-84114-073-0 02 1 0806-0905 ● ●
48 SPEAKER; AUDIO
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> (A) 		1-84114-073-0 02 1 0806-0905 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. FACE LIFT<6NL> (A) 		8-98140-326-1 02 1 0906- ● ●
48 SPEAKER; AUDIO
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> (A) 		8-98140-326-1 02 1 0906- ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 0610- ● ●
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 0610- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0610-0805 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. FACE LIFT<6NL> M5 FLANGE 		1-09984-170-0 04 1 0806- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> M5 FLANGE 		1-09984-170-0 04 1 0806- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-785-2 01 1 0610- ● ●
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-73347-786-2 01 1 0610- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0610-1203 ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204- ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0610- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0610- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (D) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		1-73907-618-0 05 1 0610- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) L=140 		5-09707-031-1 01 1 0610-0805 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO CD(UT3),FACE LIFT<6NL> (B) L=140 		5-09707-031-1 01 1 0806- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) ID=4.8 		8-94128-483-0 03 1 0610- ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 0610- ● ●
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0610- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0610- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> 		8-98105-038-0 01 1 0806- ● ●
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) FACE LIFT<6NL> CLARION 		8-98048-329-0 01 1 0806- ● ●
