8-52 — PIPING; AIR CONDITIONING (#27970) — 169 parça

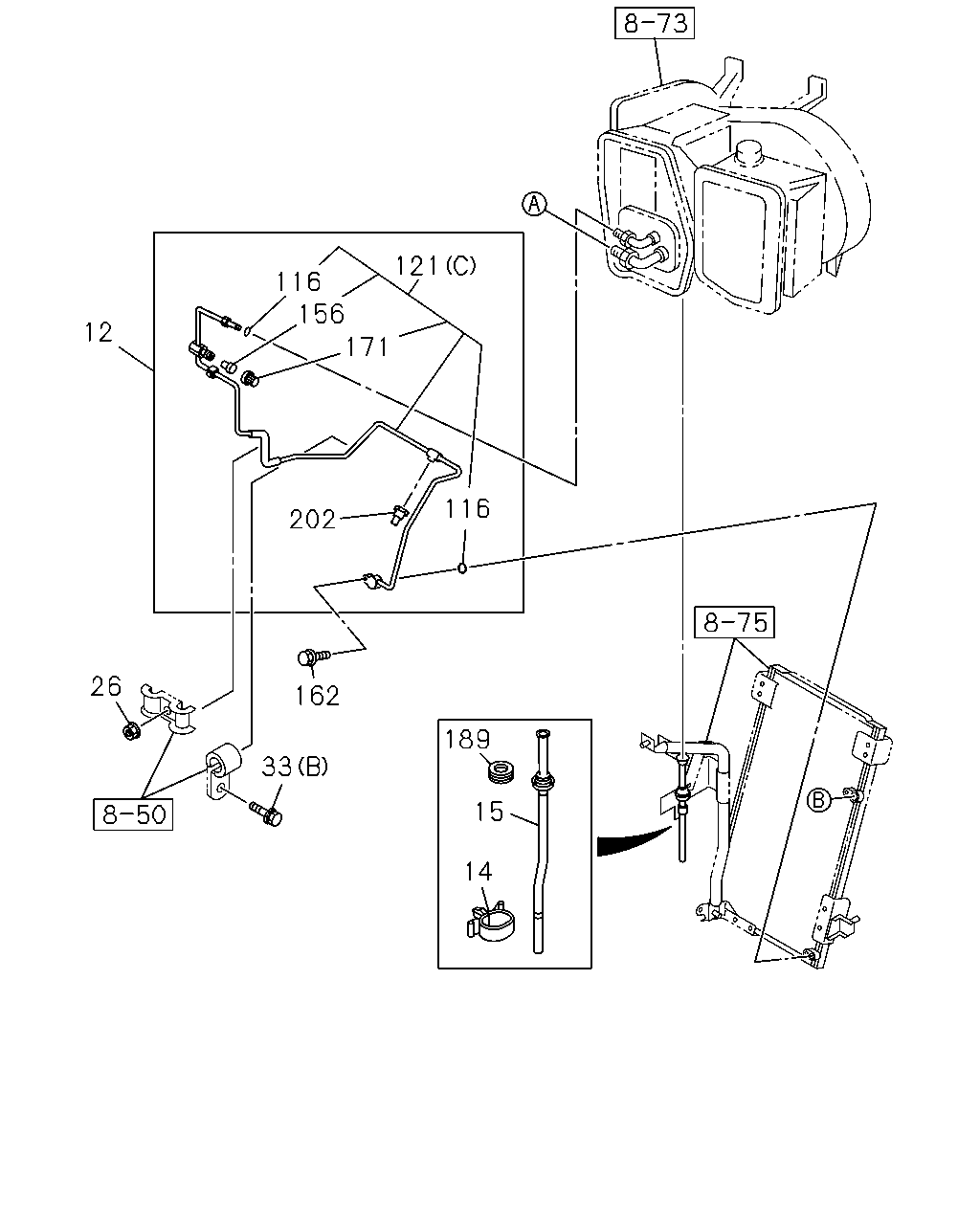

çizim 139705
121 116 156 12 171 116 202 26 162 189 33 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-877-1 01 1 0610- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0610- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) 		1-83572-412-0 01 1 0610- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 0610- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610-0805 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0805 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=7.4 		8-97095-906-0 02 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (F) 		1-83577-129-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (G) 		1-83577-130-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (D) 		1-83577-055-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-070-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-071-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (E) 		1-83577-086-0 01 1 0806- ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0610- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0610- ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0610- ● ●
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		9-09575-397-0 01 1 0610-0610 ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0610- ● ●

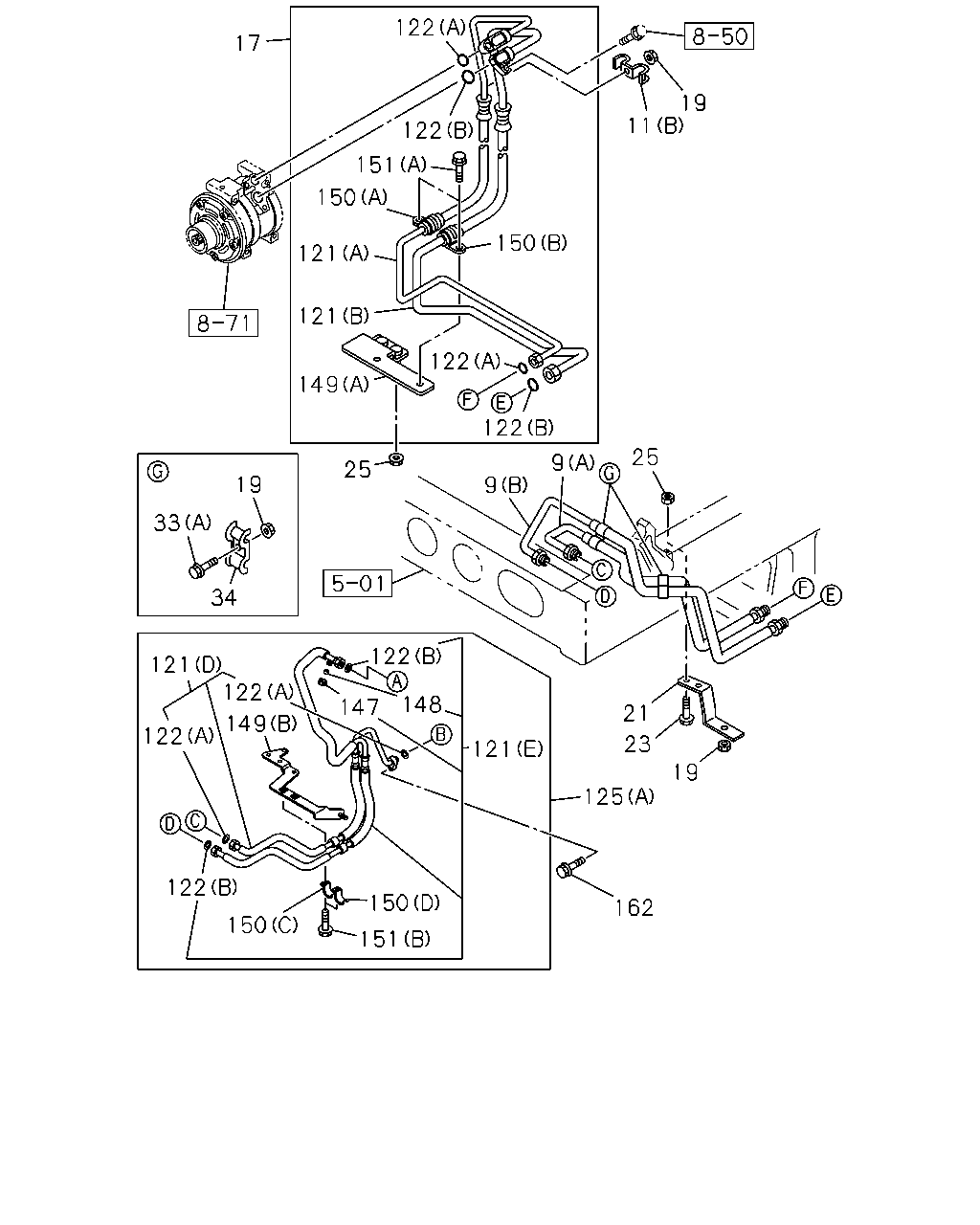

çizim 139709
122 17 19 11 122 151 150 150 121 121 122 149 122 25 9 25 19 9 33 34 122 148 121 122 147 21 149 122 23 121 19 125 122 150 162 150 151
BalonParca AdiParca NoAdetTipApplied Date A B
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (C) 		1-83567-899-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (D) 		1-83567-900-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-888-0 01 1 0610-0805 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) 		1-83567-888-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-889-1 01 1 0610-0805 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (B) 		1-83567-889-1 01 1 0806- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (A) ID=20 & 20 		1-83574-195-1 01 1 0806- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0610- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-062-1 01 1 0610- ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0610-0805 ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-297-0 01 1 0610- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8X25 FLANGE 		0-28650-825-0 02 1 0806- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28050-820-0 02 1 0610- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0805 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 03 1 0610-0805 ● ●
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> ID=20 & 20 		1-83574-195-1 03 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (F) 		1-83577-129-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (G) 		1-83577-130-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (D) 		1-83577-055-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-070-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-071-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (E) 		1-83577-086-0 01 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (C) ID=11.7 		1-83539-317-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (D) ID=14.5 		1-83539-324-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (B) 		8-98028-191-0 01 1 0806- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-026-1 01 1 0610-0805 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) 		1-83577-026-1 01 1 0806- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0610-0805 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> CAP MARK L 		8-97095-910-0 01 1 0806- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0610-0805 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> 		8-97095-909-0 01 1 0806- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0610- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-265-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-262-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-263-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0610- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0610- ● ●

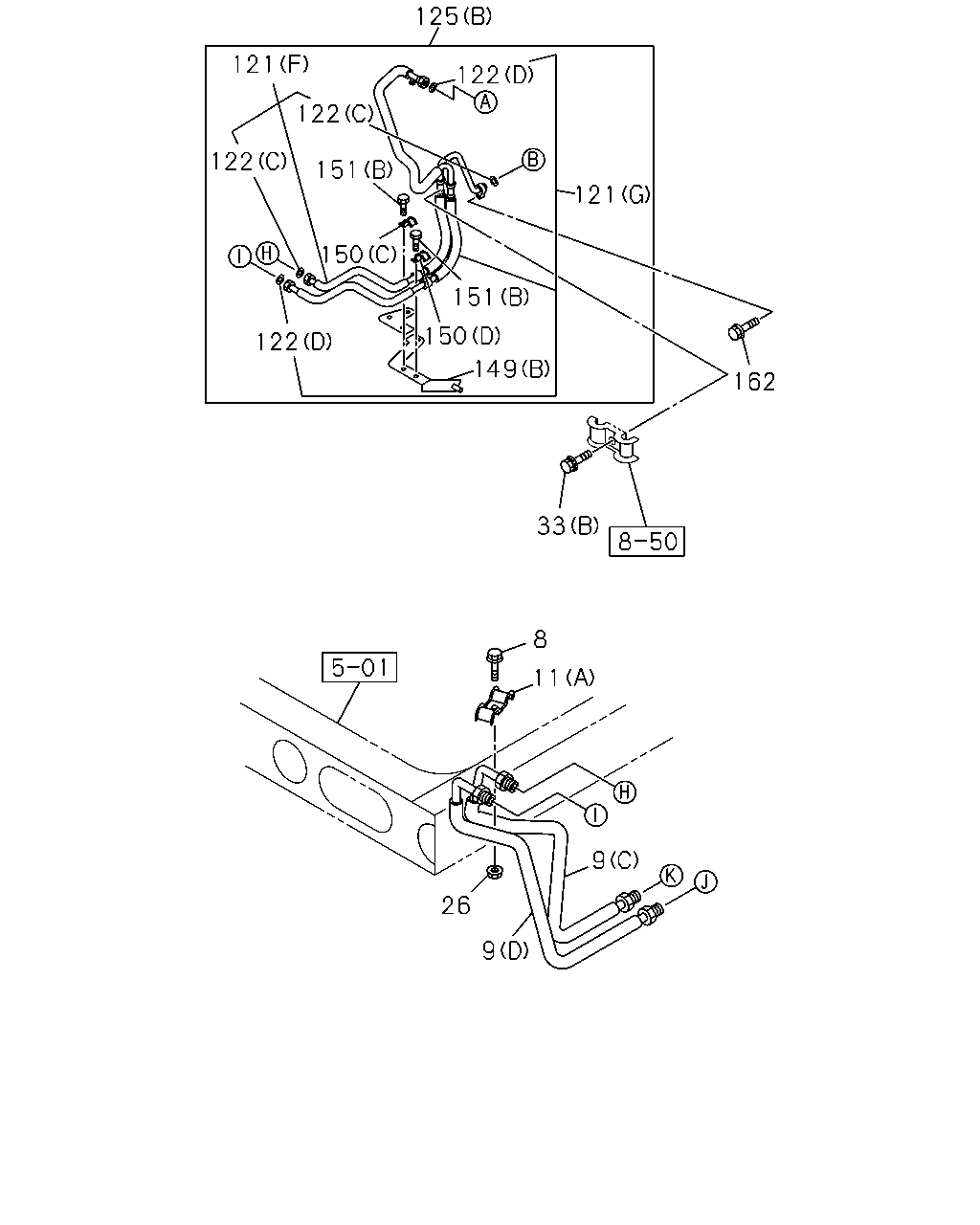

çizim 140046
125 121 122 122 122 151 121 150 151 150 122 149 162 33 8 11 9 26 9
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8X20 FLANGE 		0-28650-820-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (C) 		1-83567-899-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (D) 		1-83567-900-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-888-0 01 1 0610-0805 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) 		1-83567-888-0 01 1 0806- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-889-1 01 1 0610-0805 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (B) 		1-83567-889-1 01 1 0806- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (A) ID=20 & 20 		1-83574-195-1 01 1 0806- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0610- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610-0805 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0805 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0806- ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (F) 		1-83577-129-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (G) 		1-83577-130-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (D) 		1-83577-055-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-070-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-071-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (E) 		1-83577-086-0 01 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (C) ID=11.7 		1-83539-317-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (D) ID=14.5 		1-83539-324-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (B) 		8-98028-191-0 01 1 0806- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-026-1 01 1 0610-0805 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) 		1-83577-026-1 01 1 0806- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0610- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-265-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-262-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-263-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0610- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0610- ● ●

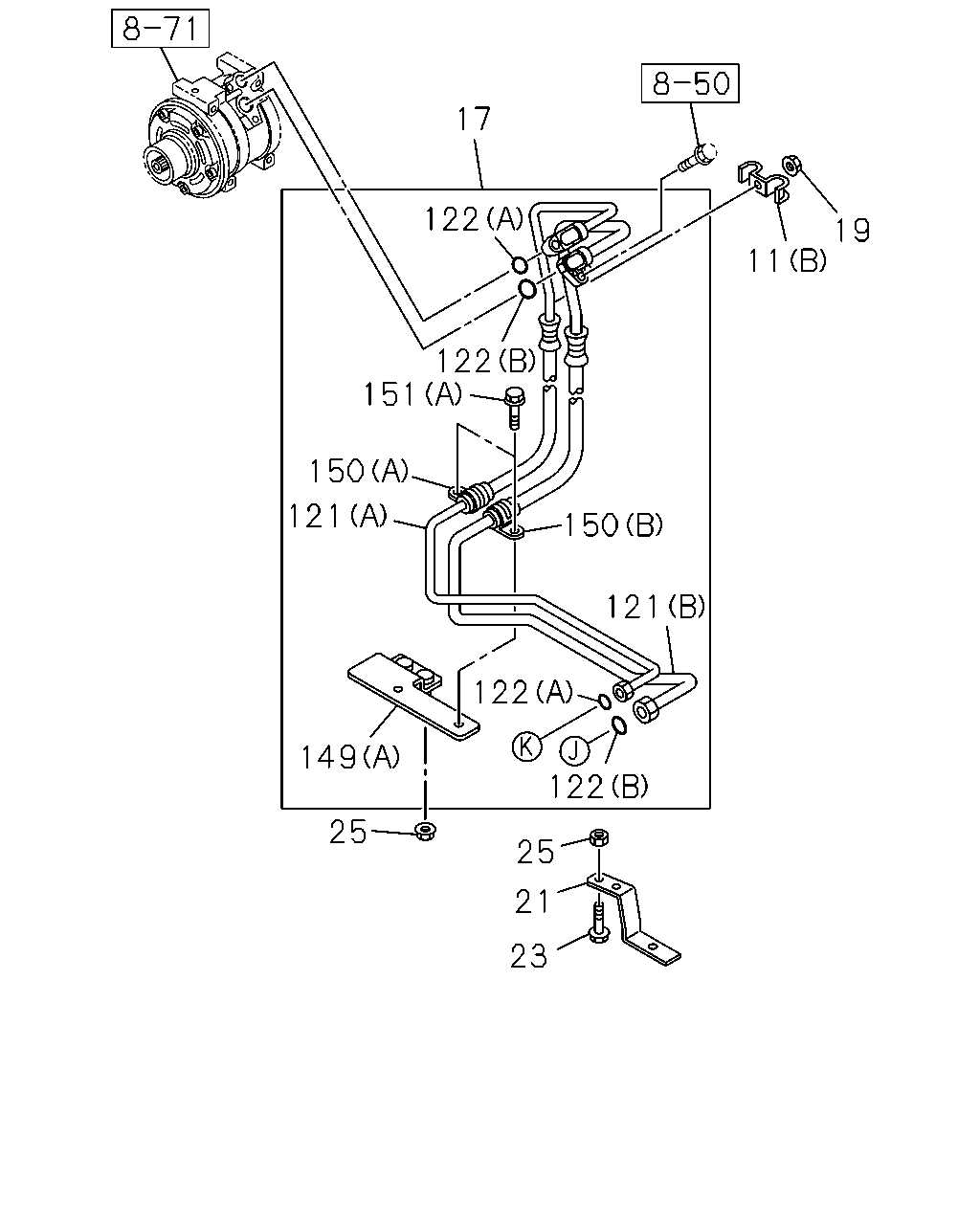

çizim 140062
17 122 19 11 122 151 150 121 150 121 122 122 149 25 25 21 23
BalonParca AdiParca NoAdetTipApplied Date A B
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (A) ID=20 & 20 		1-83574-195-1 01 1 0806- ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0610- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-062-1 01 1 0610- ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0610-0805 ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-297-0 01 1 0610- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8X25 FLANGE 		0-28650-825-0 02 1 0806- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28050-820-0 02 1 0610- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> M8 FLANGE 		0-91180-108-0 02 1 0806- ● ●
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (F) 		1-83577-129-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (G) 		1-83577-130-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83577-054-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-055-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (D) 		1-83577-055-0 01 1 0806- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-070-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-071-0 01 1 0610- ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-086-0 01 1 0610-0805 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (E) 		1-83577-086-0 01 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (C) ID=11.7 		1-83539-317-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) FACE LIFT<6NL> (D) ID=14.5 		1-83539-324-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (A) ID=11.7 		8-97095-907-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0610-0805 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. FACE LIFT<6NL> (B) ID=14.5 		8-97095-908-0 02 1 0806- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0610- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-265-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-262-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-263-0 01 1 0610- ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0610- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
