1-56A — EXHAUST BRAKE SYSTEM (#2797) — 86 parça

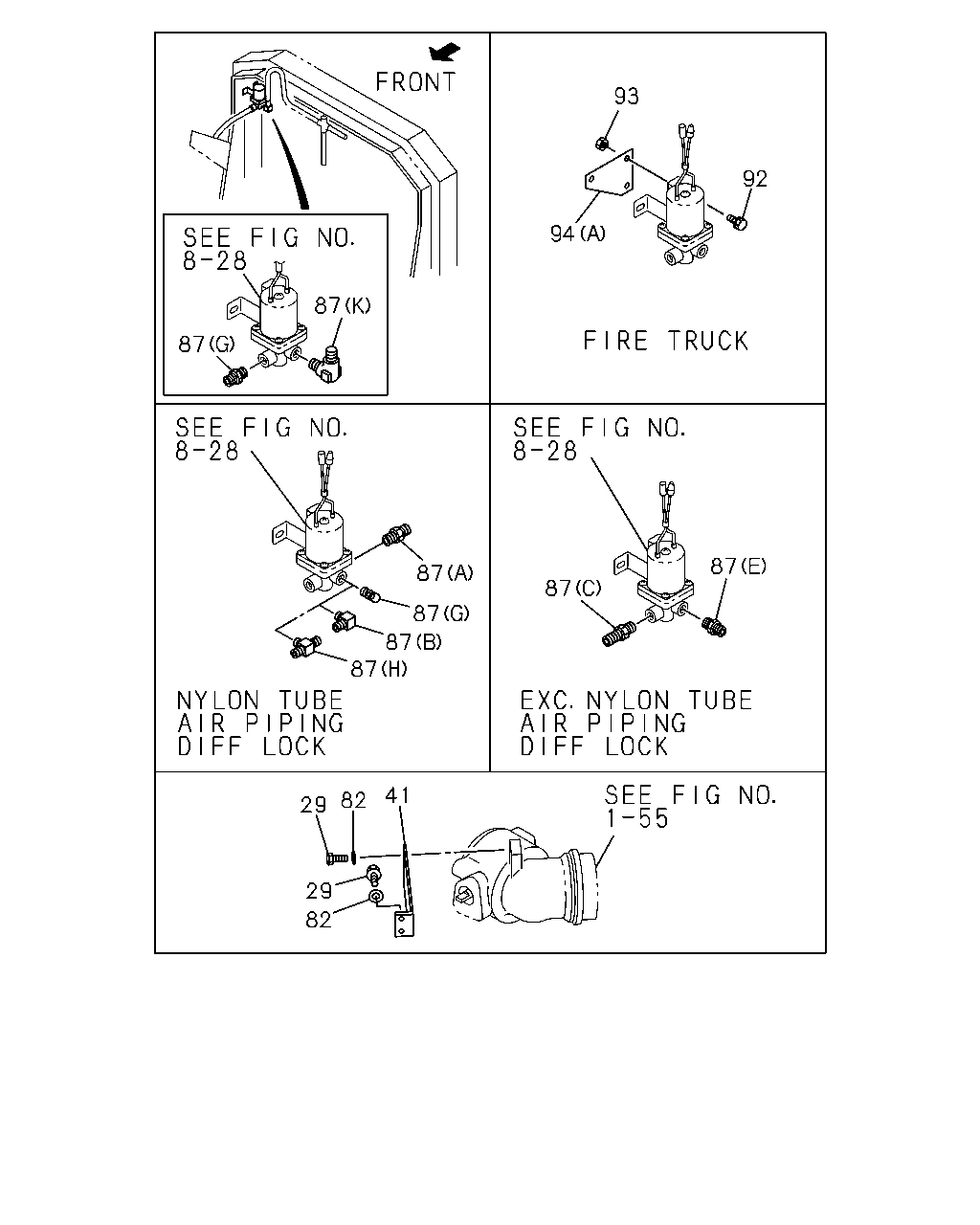

87 87 93 94 92 87 87 87 87 87 87 29 82 41 29 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	BOLT; CONT CYL M10X20	1-09020-073-2	04	1	9002-	●	●
41	BRACKET	1-14149-114-0	01	1	9002-	●	●
82	WASHER; DISH	1-09500-007-0	04	1	9002-	●	●
87	CONNECTOR (J) M14	1-09650-031-0	01	1	9002-9103	●	●	●
87	CONNECTOR (J) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306	●	●	●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (J) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-		●	●
87	CONNECTOR (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9002-	●	●	●
87	CONNECTOR (K) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●	●
87	CONNECTOR (K) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●	●
87	CONNECTOR (D)	1-09656-316-1	01	1	9002-9306	●	●	●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09656-316-1	01	1	9307-		●	●
87	CONNECTOR (L) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-226-0	01	1	9002-9306	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (G) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M20 & PT1/4	9-09902-386-0	01	1	9002-9306	●	●	●
87	CONNECTOR FULL TRACTOR TRUCK<RD6> (H)	1-09660-304-0	01	1	9002-9005	●	●
87	CONNECTOR FIRE TRUCK<RA9> (F) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-			●
87	CONNECTOR FIRE TRUCK<RA9> (M) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9002-9407			●
87	CONNECTOR FIRE TRUCK<RA9> (M) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9408-			●
87	CONNECTOR FIRE TRUCK<RA9> (E) M20 & PT1/4	9-09902-386-0	02	1	9002-			●
92	BOLT; MAG VLV M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
92	BOLT; MAG VLV M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●	●
92	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9307-		●	●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 W/LK WASHER	9-01900-825-0	03	1	9002-9204			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9302			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 FLANGE	0-28080-825-0	03	1	9303-9306			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X20 FLANGE	0-28080-820-0	03	1	9307-			●
93	NUT; MAG VLV M8	9-09110-408-0	01	1	9002-9407	●	●	●
93	NUT; MAG VLV M8	9-09110-408-0	01	1	9408-		●	●
93	NUT; MAG VLV FIRE TRUCK<RA9> M8	9-09110-408-0	01	1	9408-			●
93	NUT; MAG VLV FIRE TRUCK<RA9> M8	9-09110-408-0	03	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE (B)	1-82569-022-1	01	1	9002-	●	●
94	BRACKET; MAG VLV,EXH BRAKE EXC. FIRE TRUCK<RA9> (B)	1-82569-022-1	01	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE FIRE TRUCK<RA9> (B)	1-82569-080-0	01	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE FIRE TRUCK<RA9> (A)	1-82569-086-0	01	1	9002-			●

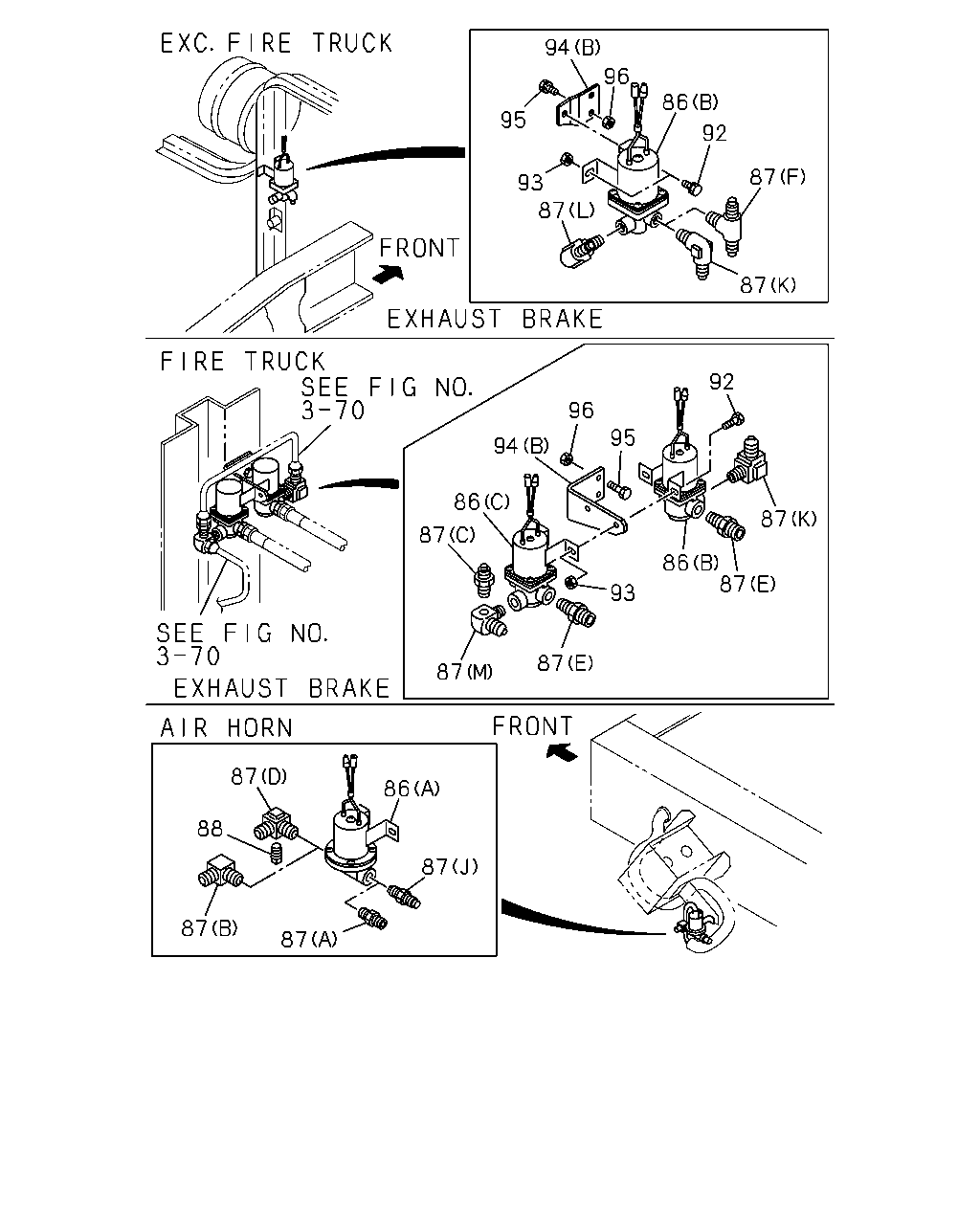

94 96 86 92 87 95 93 87 87 96 92 95 87 94 86 87 87 87 93 86 87 87 88 86 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	VALVE; MAG,EXH BRK (B) EXH BRAKE	1-82563-094-0	01	1	9002-9006	●	●	●
86	VALVE; MAG,EXH BRK (B) EXH BRAKE	1-82563-172-0	01	1	9007-9012	●	●	●
86	VALVE; MAG,EXH BRK (B) EXH BRAKE	1-82563-158-0	01	1	9101-9306	●	●	●
86	VALVE; MAG,EXH BRK (B) EXH BRAKE	1-82563-402-0	01	1	9307-		●	●
86	VALVE; MAG,EXH BRK (A) AIR HORN	1-82563-299-1	01	1	9002-	●	●	●
86	VALVE; MAG,EXH BRK FIRE TRUCK<RA9> (C) EXH BRAKE	1-82563-404-0	01	1	9002-			●
87	CONNECTOR (J) M14	1-09650-031-0	01	1	9002-9103	●	●	●
87	CONNECTOR (J) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306	●	●	●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (J) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-		●	●
87	CONNECTOR (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9002-	●	●	●
87	CONNECTOR (K) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●	●
87	CONNECTOR (K) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●	●
87	CONNECTOR (D)	1-09656-316-1	01	1	9002-9306	●	●	●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09656-316-1	01	1	9307-		●	●
87	CONNECTOR (L) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A)	1-09660-226-0	01	1	9002-9306	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-		●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (G) M14 & PT1/4 ELBOW	1-09660-233-0	01	1	9002-9306	●	●	●
87	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A) 17/32" PT1/4	1-09660-573-0	01	1	9307-		●
87	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (E) M20 & PT1/4	9-09902-386-0	01	1	9002-9306	●	●	●
87	CONNECTOR FULL TRACTOR TRUCK<RD6> (H)	1-09660-304-0	01	1	9002-9005	●	●
87	CONNECTOR FIRE TRUCK<RA9> (F) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-			●
87	CONNECTOR FIRE TRUCK<RA9> (M) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9002-9407			●
87	CONNECTOR FIRE TRUCK<RA9> (M) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9408-			●
87	CONNECTOR FIRE TRUCK<RA9> (E) M20 & PT1/4	9-09902-386-0	02	1	9002-			●
88	PLUG PT3/8	9-09204-517-0	01	1	9002-9306	●	●	●
88	PLUG EXC. NYLON TUBE AIR PIPING<Z29> PT3/8	9-09204-517-0	01	1	9307-		●	●
92	BOLT; MAG VLV M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
92	BOLT; MAG VLV M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
92	BOLT; MAG VLV M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●	●
92	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	9307-		●	●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 W/LK WASHER	9-01900-825-0	03	1	9002-9204			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9302			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X25 FLANGE	0-28080-825-0	03	1	9303-9306			●
92	BOLT; MAG VLV FIRE TRUCK<RA9> M8X20 FLANGE	0-28080-820-0	03	1	9307-			●
93	NUT; MAG VLV M8	9-09110-408-0	01	1	9002-9407	●	●	●
93	NUT; MAG VLV M8	9-09110-408-0	01	1	9408-		●	●
93	NUT; MAG VLV FIRE TRUCK<RA9> M8	9-09110-408-0	01	1	9408-			●
93	NUT; MAG VLV FIRE TRUCK<RA9> M8	9-09110-408-0	03	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE (B)	1-82569-022-1	01	1	9002-	●	●
94	BRACKET; MAG VLV,EXH BRAKE EXC. FIRE TRUCK<RA9> (B)	1-82569-022-1	01	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE FIRE TRUCK<RA9> (B)	1-82569-080-0	01	1	9002-			●
94	BRACKET; MAG VLV,EXH BRAKE FIRE TRUCK<RA9> (A)	1-82569-086-0	01	1	9002-			●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X22	9-01900-822-0	02	1	9002-9204	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9302	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28080-820-0	02	1	9307-		●	●
96	NUT; BRKT,MAG VLV,EXH BRAKE M8	9-09110-408-0	02	1	9002-	●	●	●
