Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#27966) — 297 parça

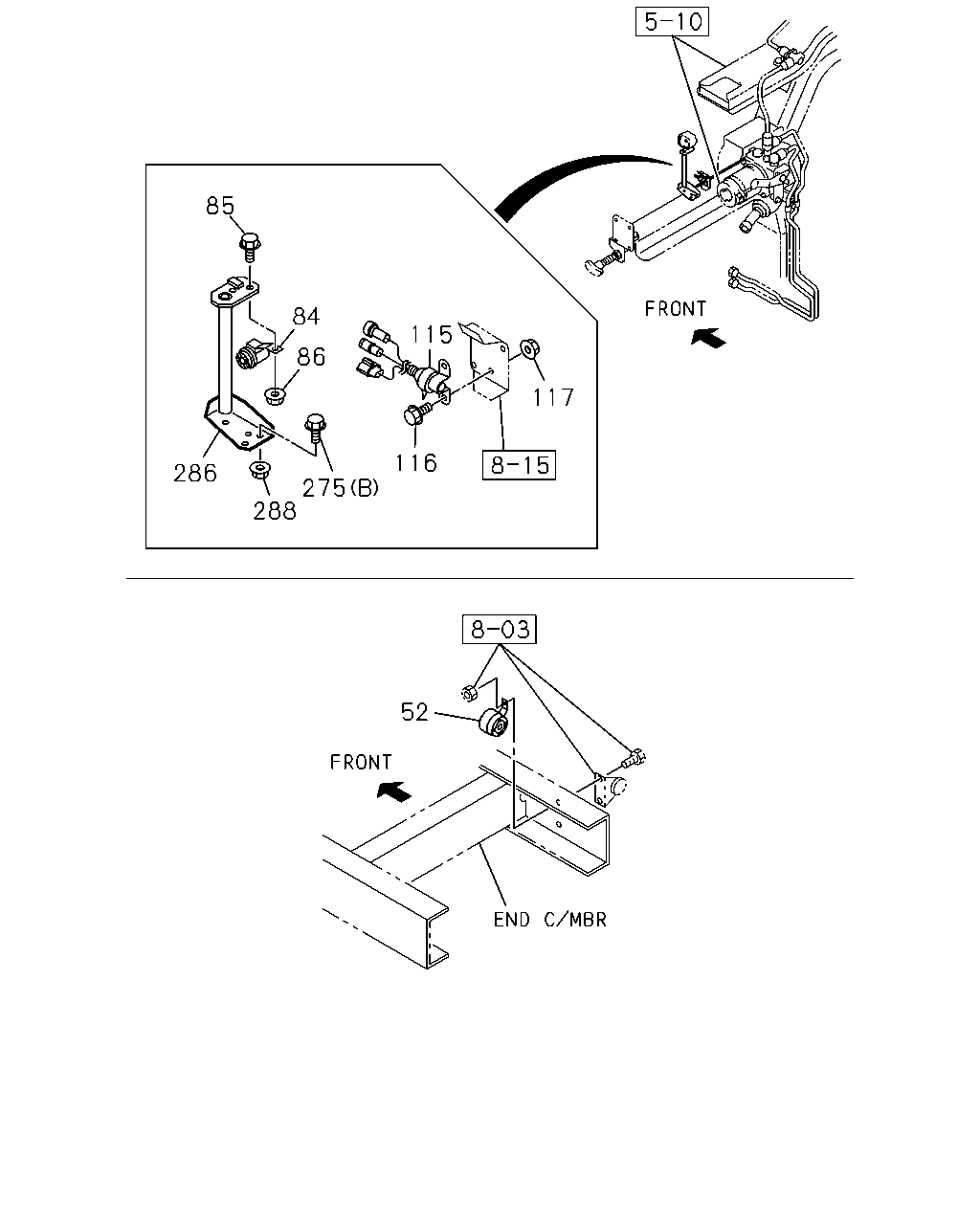

85 84 115 86 117 116 286 275 288 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-083-0	01	1	0610-0612	●	●
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	8-98069-861-0	01	1	0701-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0610-0612	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0610-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-	●	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●
286	BRACKET	1-82699-199-0	01	1	0610-	●	●
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0610-	●	●

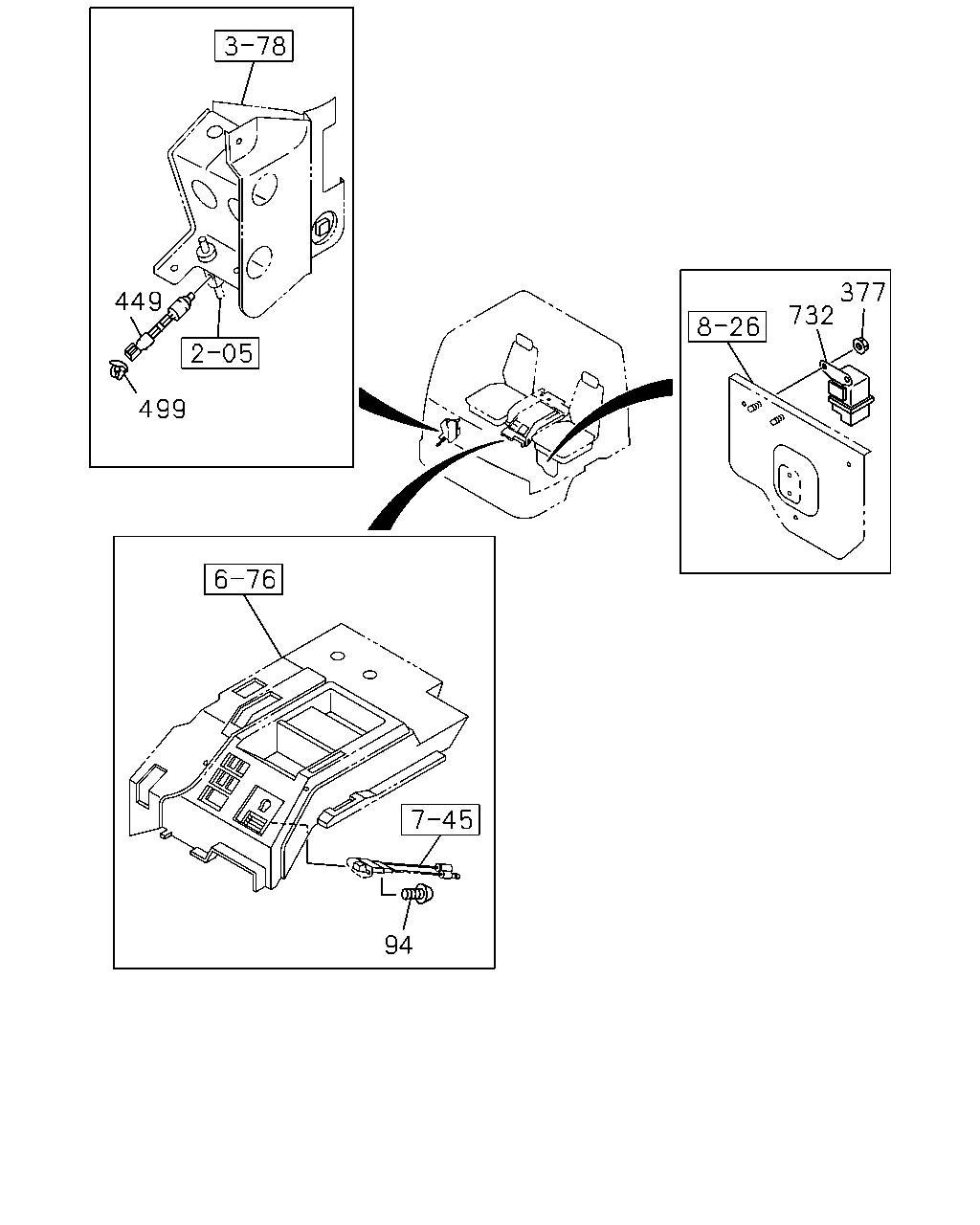

377 732 449 499 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0610-	●	●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0610-	●	●
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0610-		●
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA<SLD>	1-82410-143-1	01	1	0610-	●
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W),MJX M/T<Y9N>	1-82410-143-1	01	1	0610-		●
449	SWITCH; OIL PRESS,CLUTCH MJX M/T<Y9N> BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W)	1-82410-180-0	01	1	0610-		●
499	CLIP; SWITCH BRAKE SYSTEM HSA<SLD> OD=9 H=6	1-09709-178-0	01	1	0610-	●
499	CLIP; SWITCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	0610-		●
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	0610-		●

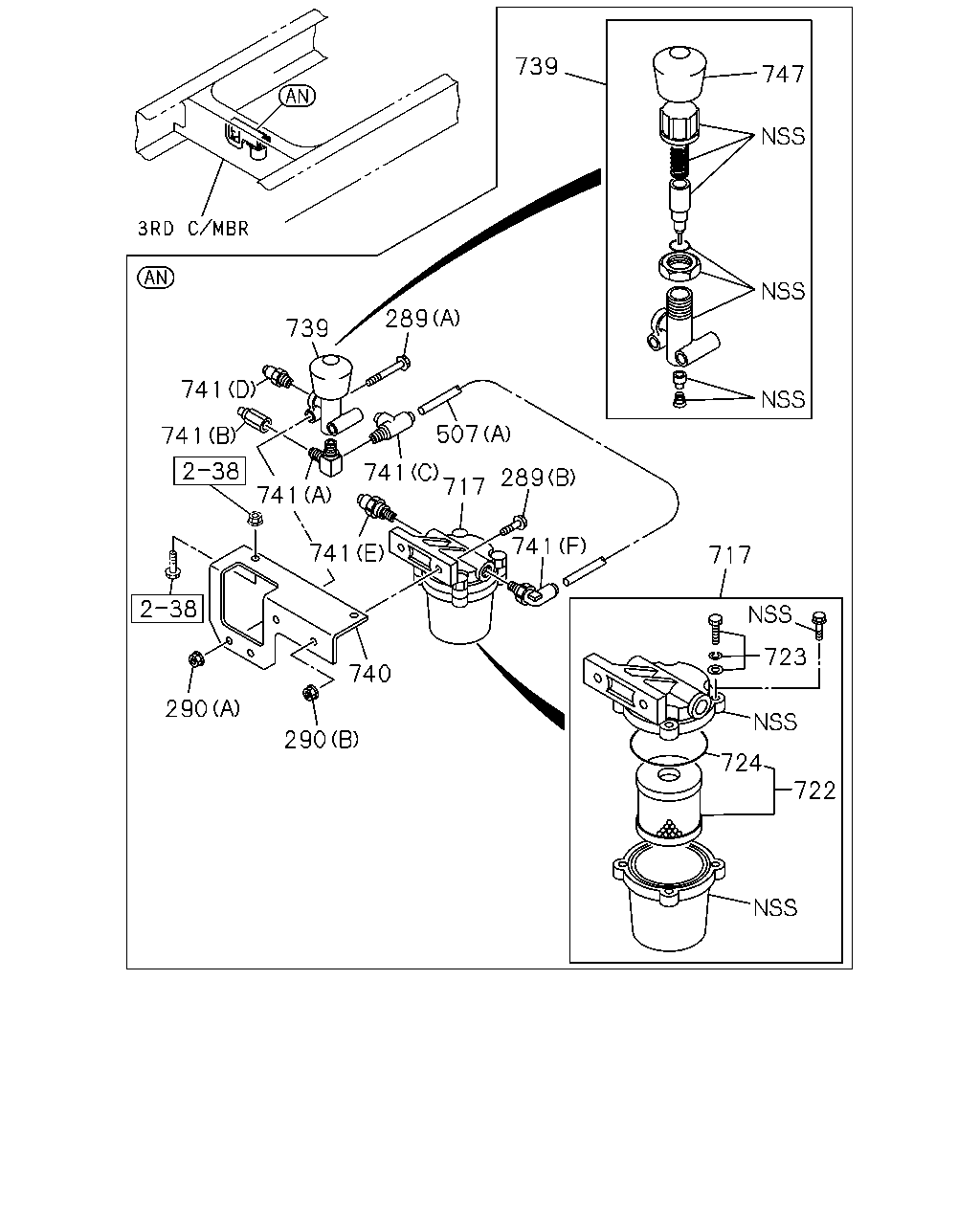

739 747 289 739 741 507 741 741 717 289 741 741 741 717 723 740 290 290 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
289	BOLT SMOOTHER-G(C1W) (A) M6X50 FLANGE	0-28050-650-0	02	1	0610-		●
289	BOLT SMOOTHER-G(C1W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-		●
290	NUT SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	02	1	0610-		●
290	NUT SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	0610-		●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806	●	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0610-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0610-		●
717	FILTER; MAG VLV SMOOTHER-G(C1W)	1-33779-032-0	01	1	0610-0708		●
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	0709-		●
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	0610-		●
723	BOLT; AIR FILTER SMOOTHER-G(C1W)	1-33779-025-0	04	1	0610-0708		●
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	0610-		●
739	VALVE; PRESSURE SMOOTHER-G(C1W)	1-48410-738-0	01	1	0610-		●
740	BRACKET; FILTER SMOOTHER-G(C1W)	1-33779-042-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (E) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0610-		●
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0610-		●
747	BOOT; PRESSURE VALVE SMOOTHER-G(C1W)	1-48419-073-0	01	1	0610-		●

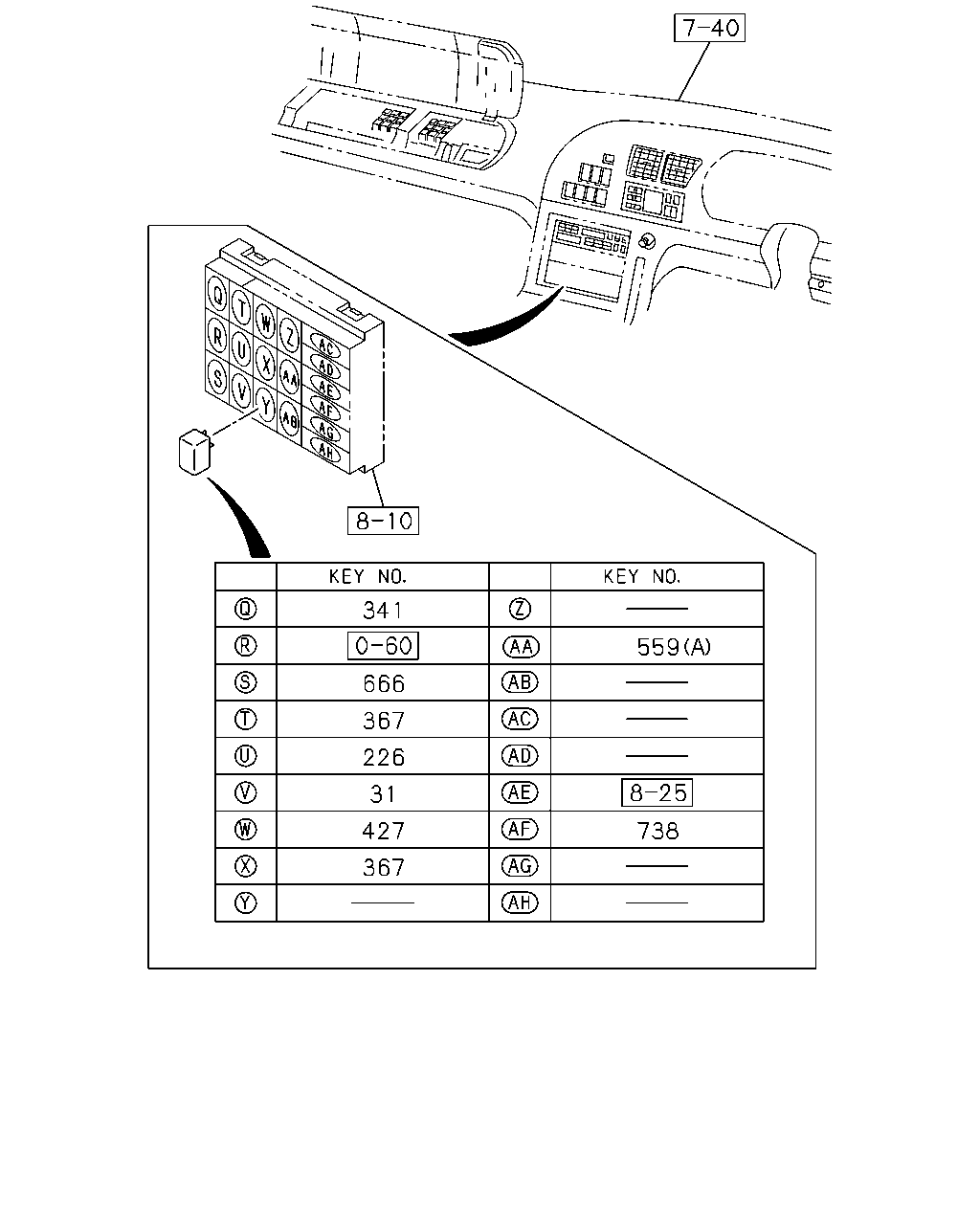

341 559 666 367 226 31 427 738 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-0704		●
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0705-		●
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0610-	●	●
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0610-	●	●
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-	●	●
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-		●
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-		●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-		●
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-		●
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-	●	●

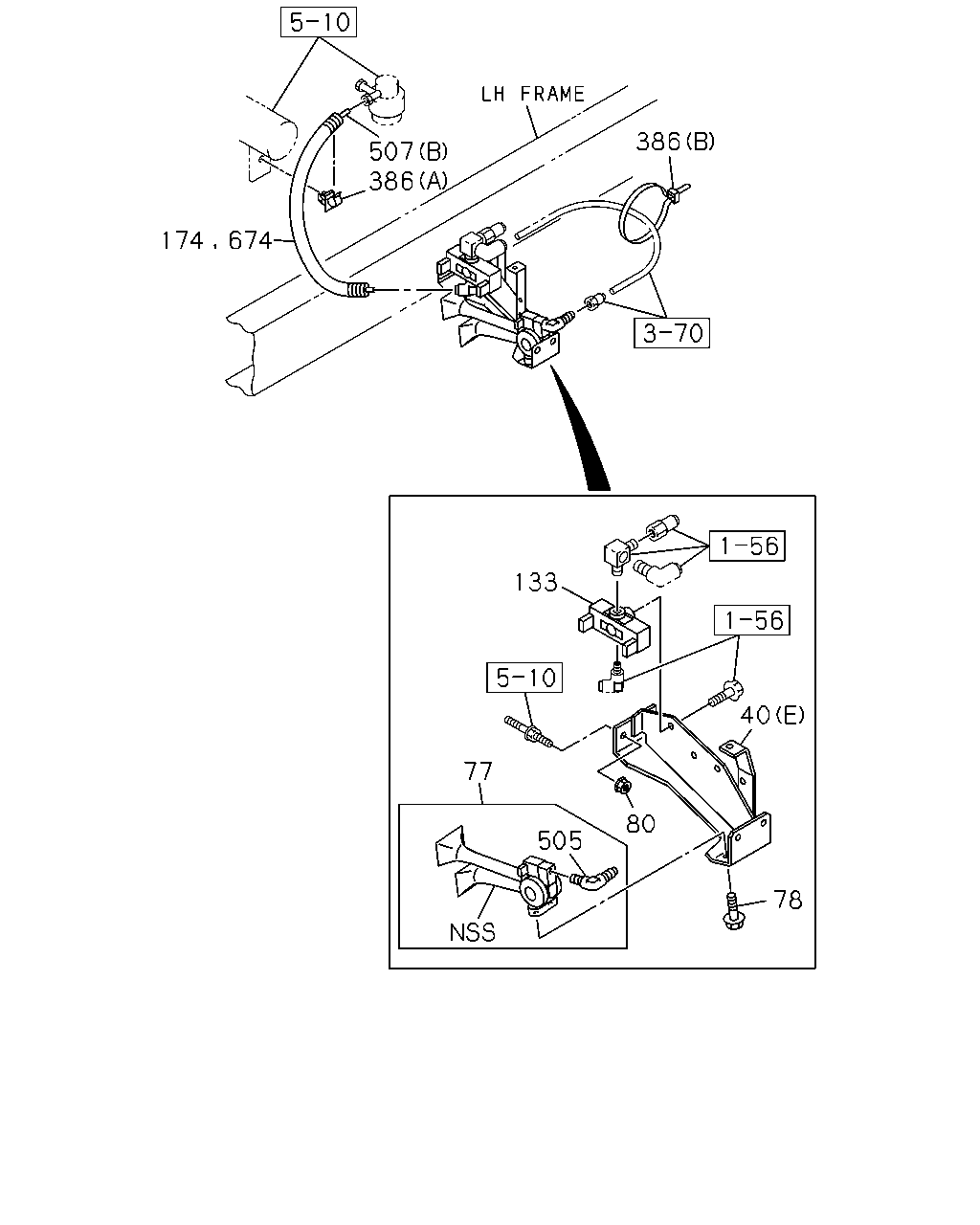

386 507 386 174 674 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611	●	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-		●
77	HORN ASM	1-83430-041-2	01	1	0610-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0610-	●	●
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0610-	●	●
174	COVER L=800	1-83129-031-1	01	1	0610-0806	●	●
174	COVER L=800 L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0807-	●	●
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0807-	●	●
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0610-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0610-	●	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806	●	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0610-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0610-		●
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0807-	●	●

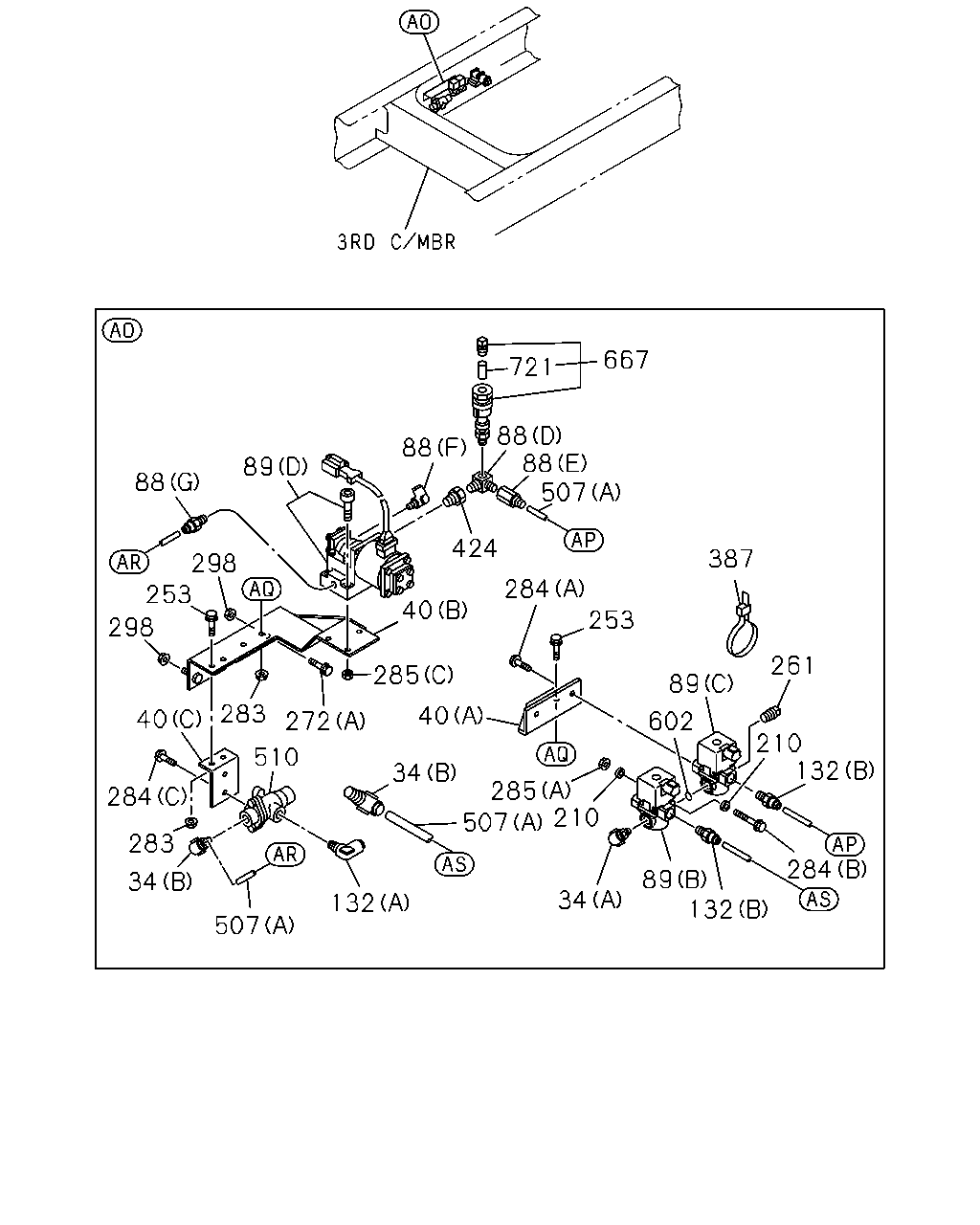

667 721 88 88 507 88 89 88 424 387 298 253 284 253 40 298 261 285 89 283 40 40 602 272 210 132 510 34 285 210 284 507 283 284 89 132 34 34 132 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0705	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0705		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0706-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0706-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0610-		●
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611	●	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-		●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0610-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	0610-		●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	0610-		●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	0610-		●
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0610-		●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	0610-		●
253	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	0610-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-		●
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-		●
283	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	04	1	0610-		●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-		●
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M5	0-91110-505-0	03	1	0610-		●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	0610-		●
298	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	0610-		●
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0610-		●
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) PT3/8	1-09664-210-0	01	1	0610-		●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806	●	●
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-	●	●
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0610-		●
507	TUBE; NYLON SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0610-		●
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	0610-		●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	0610-		●
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-011-0	01	1	0610-0705		●
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	8-98063-001-0	01	1	0706-		●
721	ELEMENT; LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-028-0	01	1	0610-		●

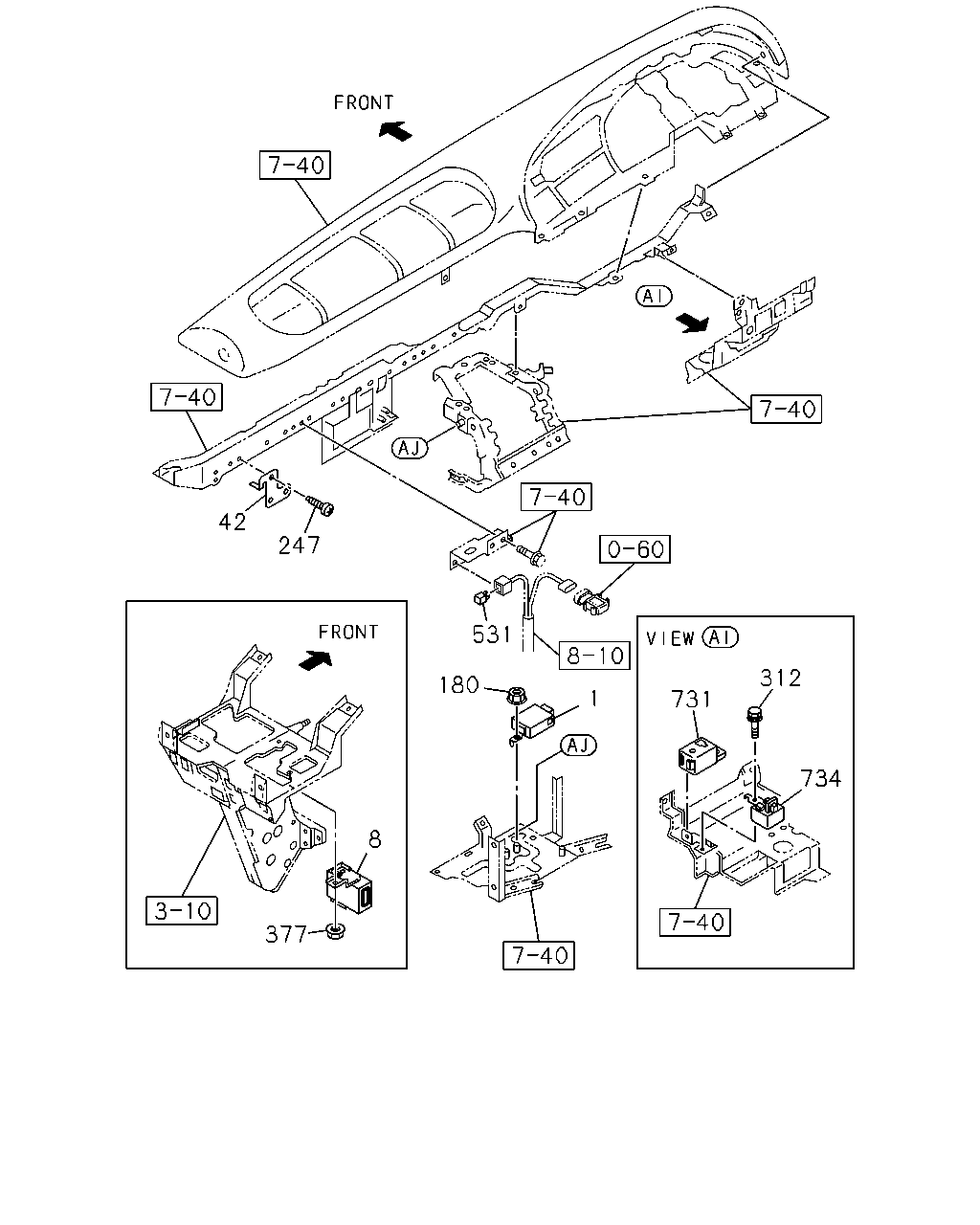

42 247 531 312 180 1 731 734 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98025-533-1	01	1	0906-	●	●
1	UNIT; FLASHER	1-83470-060-1	01	1	0610-0905	●	●
1	UNIT; FLASHER EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-83470-060-1	01	1	0906-	●	●
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	0610-	●	●
42	BRACKET; RELAY	1-82698-128-2	01	1	0610-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0610-	●	●
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0610-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-	●	●
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0610-	●	●
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0610-		●
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0610-1005	●	●
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-	●	●
731	ALARM; INFORMATION MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0610-		●
734	ALARM; MULTI	1-83460-106-0	01	1	0610-	●	●

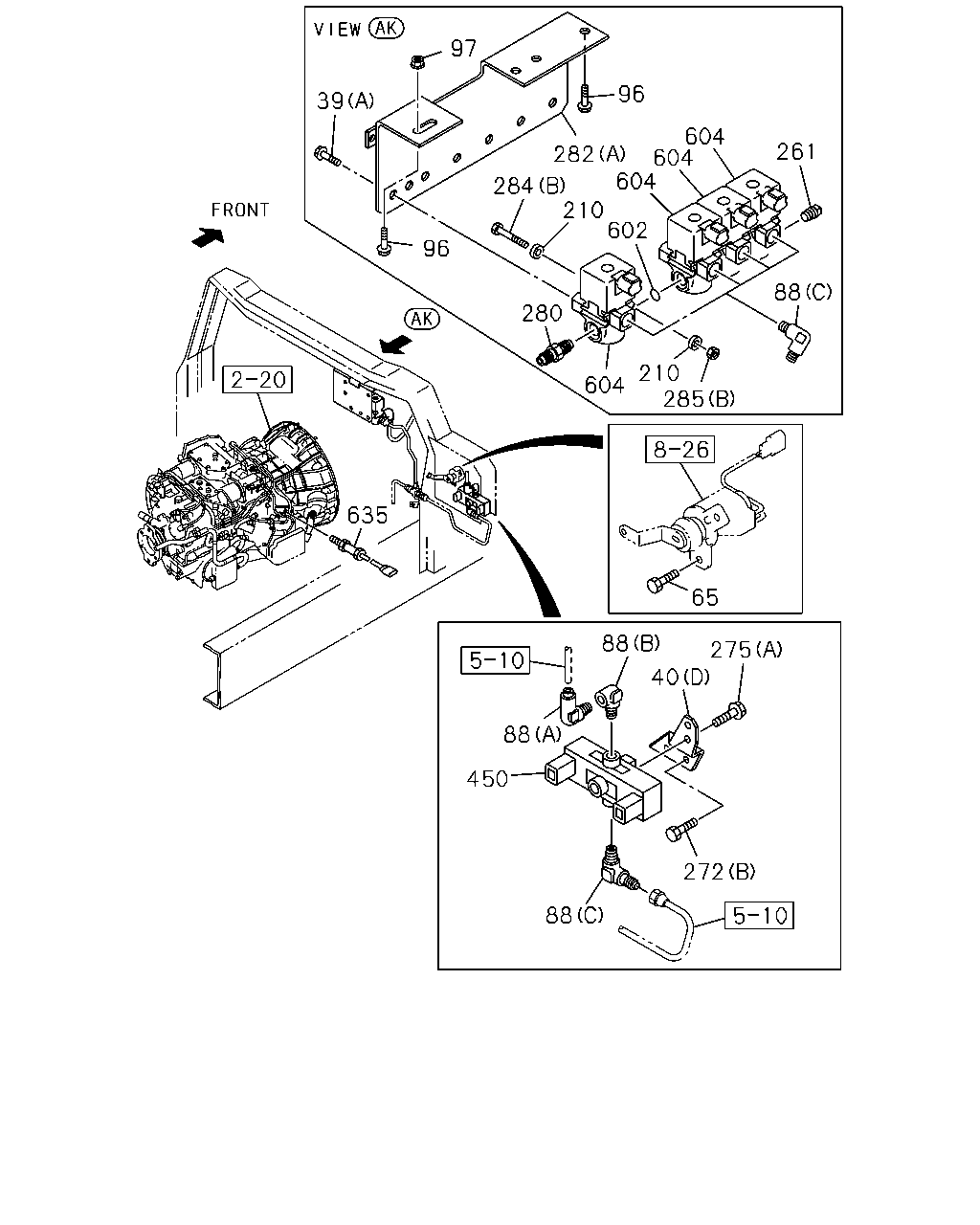

97 96 39 604 604 604 261 282 284 210 602 96 88 280 210 285 604 635 65 88 275 40 88 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-		●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
40	BRACKET; MAG VLV (E)	1-53457-199-0	01	1	0610-0611	●	●
40	BRACKET; MAG VLV (E)	8-98069-778-0	01	1	0612-	●	●
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-	●	●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-		●
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-		●
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0612-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0610-	●	●
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0610-	●	●
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-	●	●
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-	●	●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0610-		●
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0610-	●	●
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0610-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-	●	●
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	0610-		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-		●
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208	●	●
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-	●	●
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-		●
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-	●	●
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-	●	●
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-	●	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-		●
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-	●	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-		●
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-	●	●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M5	0-91110-505-0	03	1	0610-		●
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	0610-		●
450	VALVE; MAG	1-53458-378-2	01	1	0610-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-	●	●
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	0610-		●
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0610-	●	●
635	SENSOR; PICK UP,INPUT SHAFT MJX12P M/T SMOOTHER-G(Y4S)	1-81510-736-1	01	1	0610-		●

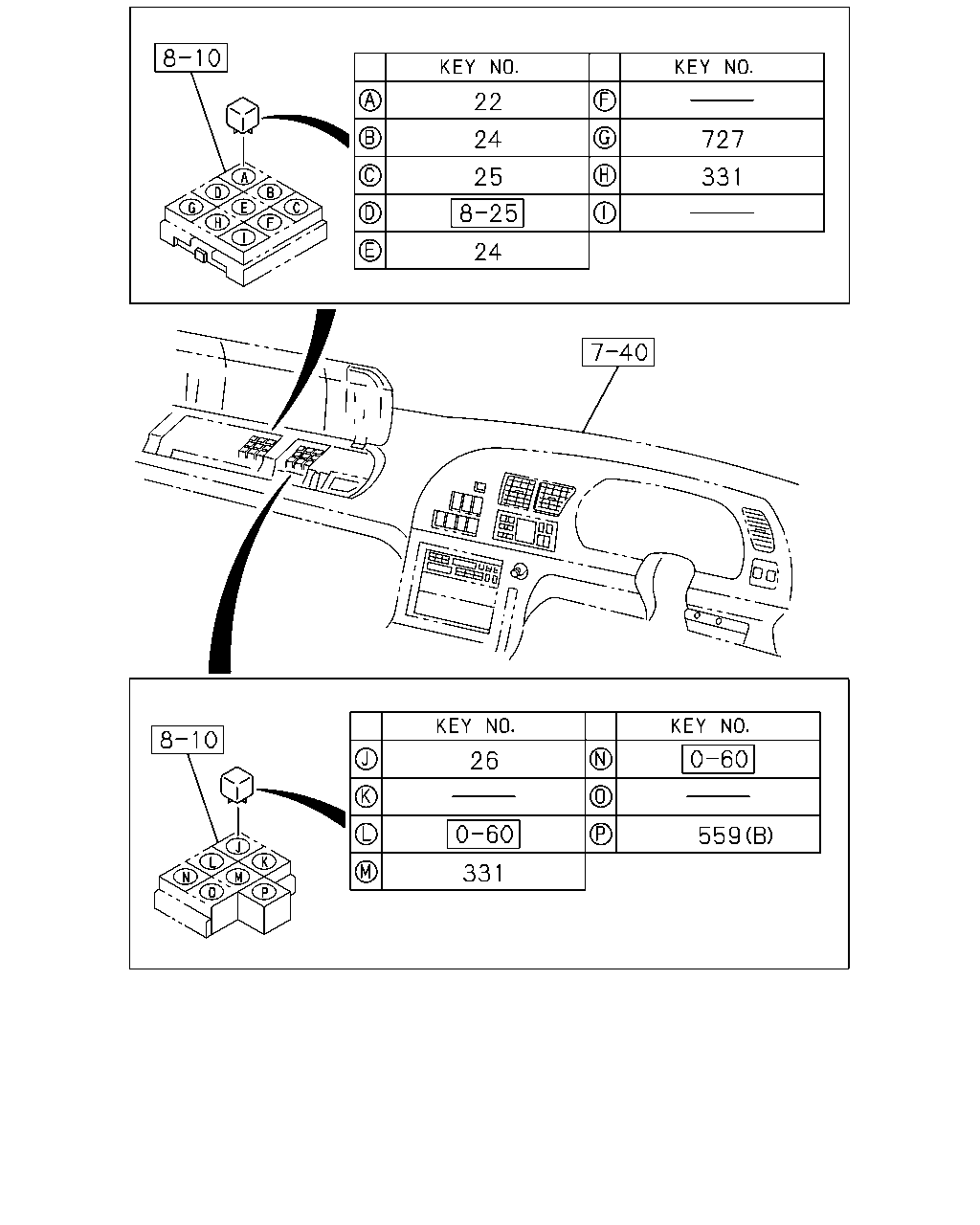

22 24 727 25 331 24 26 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-	●	●
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0908-1312	●	●
331	RELAY; A/C ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-	●	●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-		●
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-		●
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-1306	●	●
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-	●	●

284 91 34 34 33 90 34 39 282 261 41 282 603 603 34 261 89 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0610-0705	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0610-0705		●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0706-	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)	1-82563-871-2	01	1	0706-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0705	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0705		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0706-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0706-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-	●	●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-		●
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0610-		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705		●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-		●
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0610-0705	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0610-0705		●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0706-	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0706-		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205	●	●
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	0610-		●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	0610-		●
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	0610-		●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0610-0705	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0706-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-	●
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-		●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705		●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-	●
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-		●
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-	●	●
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-	●	●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705		●
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-	●	●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-		●
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-		●
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0610-0705	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0610-0705	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0610-0705		●
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0706-	●	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0706-	●
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5)	1-47471-046-0	01	1	0706-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
