◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#27964) — 53 parça

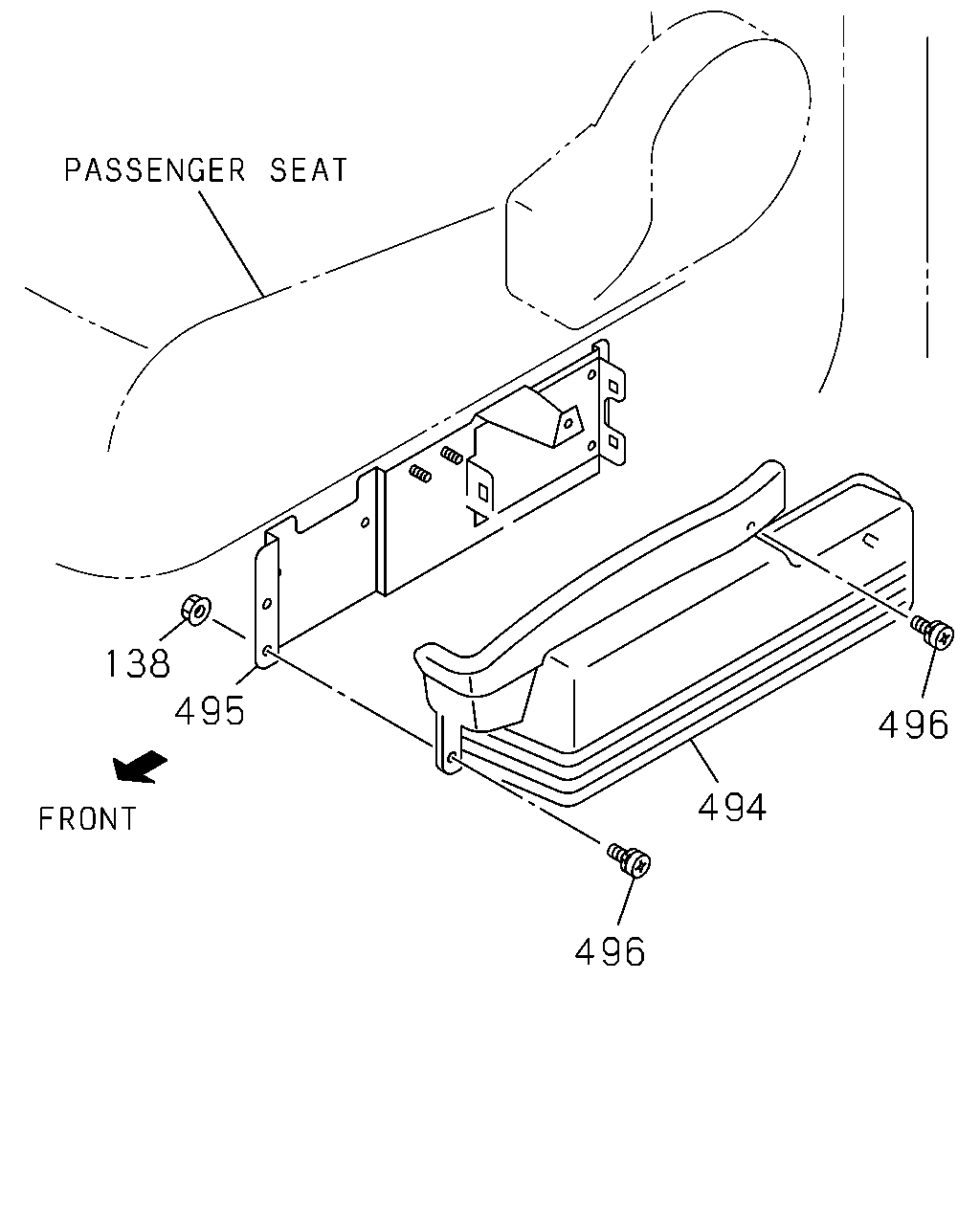

çizim 139677
138 495 496 494 496
BalonParca AdiParca NoAdetTipApplied Date A B
138 NUT; BRKT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> M6 FLANGE 		0-91180-106-0 02 1 0806- ● ●
494 COVER; ELEC BOX
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-97589-725-0 01 1 0806- ● ●
495 BRACKET; ELEC BOX
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-97589-728-0 01 1 0806- ● ●
496 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0806- ● ●

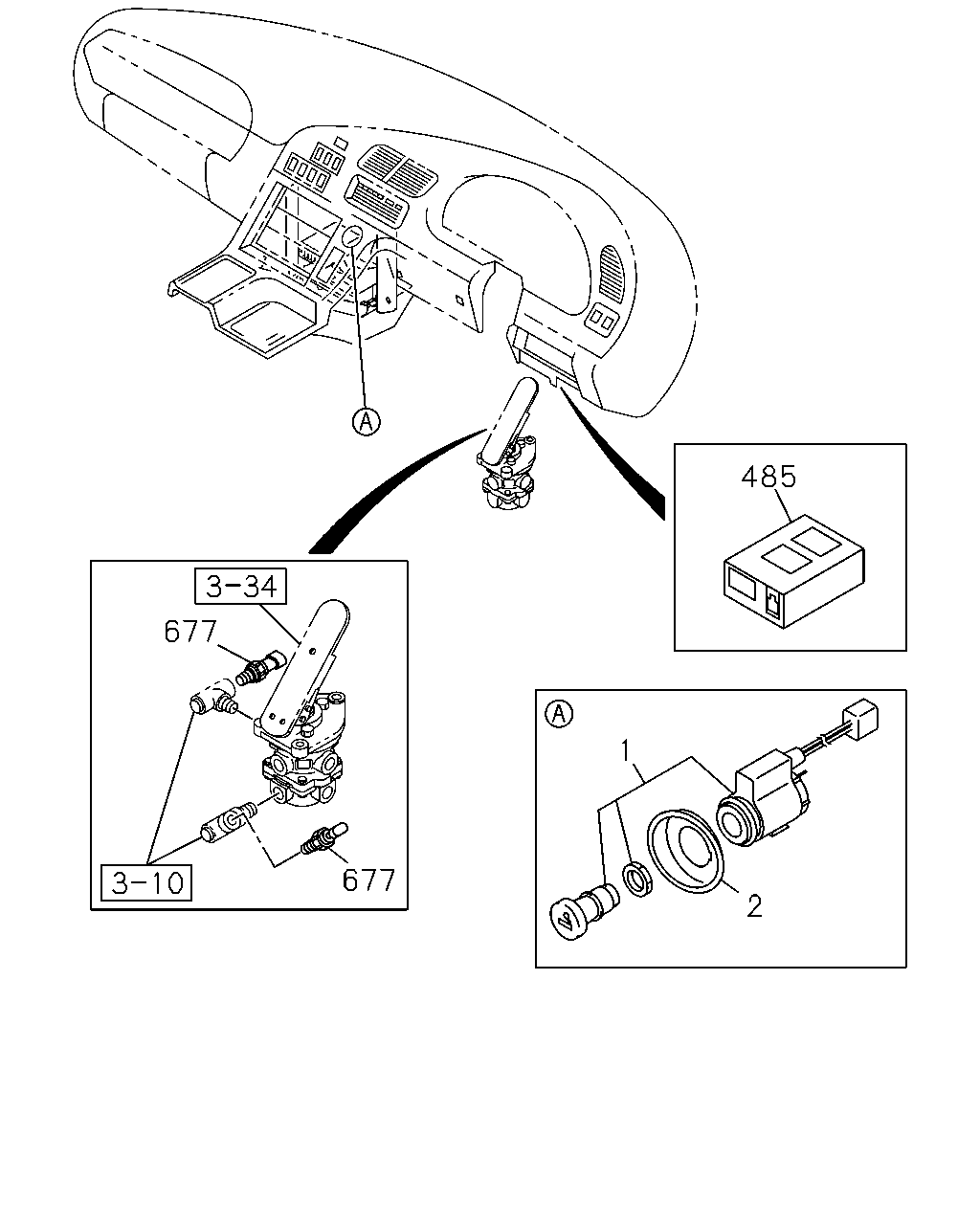

çizim 139680
485 677 1 677 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0610- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0610- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0610-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0610- ● ●

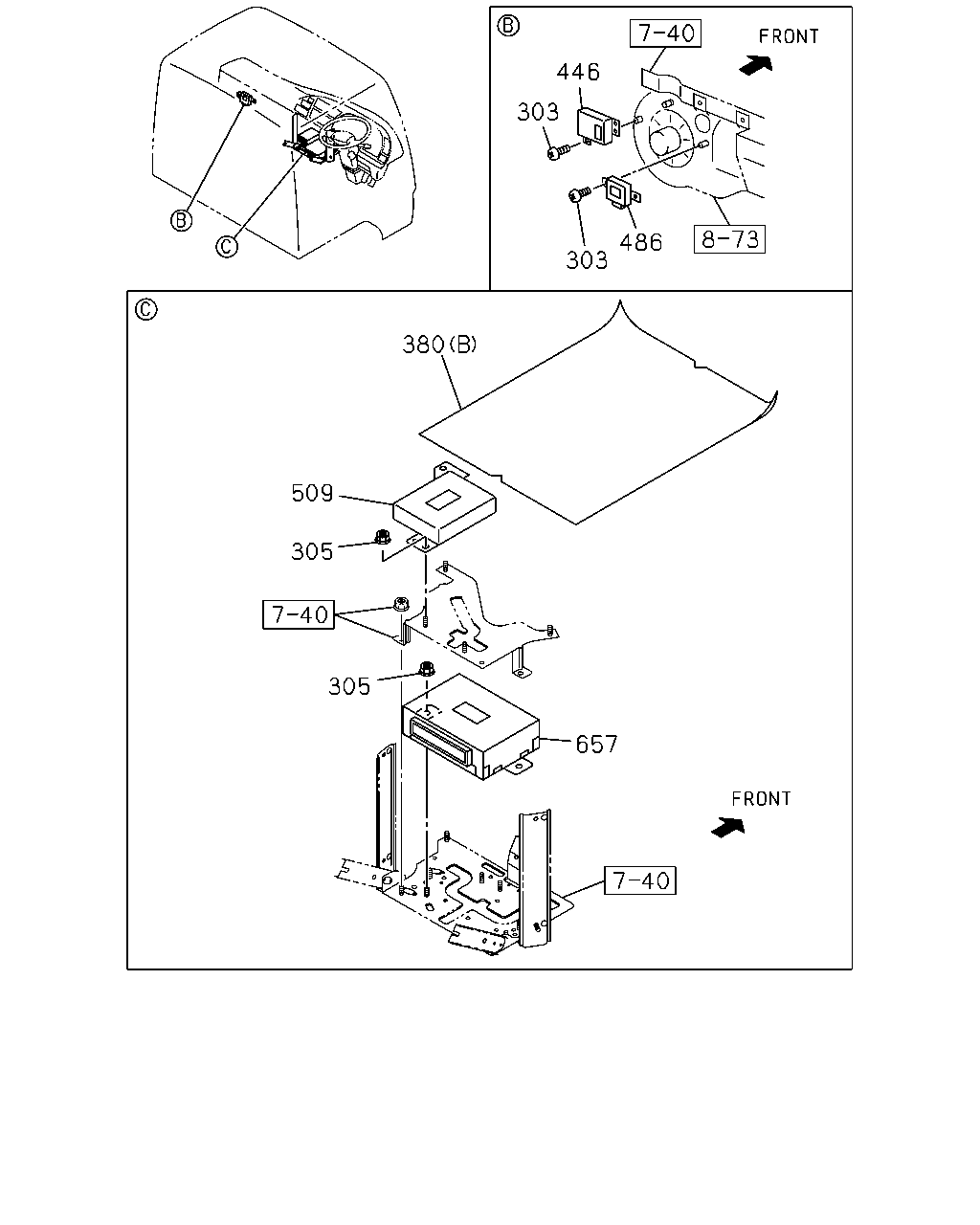

çizim 139684
446 303 486 303 380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date A B
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> M5X14 		8-94279-325-0 01 1 0806- ● ●
303 SCREW; CONT UNIT
BRAKE SYSTEM HSA<SLD> M5X14 		8-94279-325-0 03 1 0610- ●
303 SCREW; CONT UNIT
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) M5X14 		8-94279-325-0 03 1 0610- ●
305 NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 0610- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0610- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0610- ● ●
446 CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> 		1-80111-116-2 01 1 0610- ●
446 CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) 		1-80111-116-2 01 1 0610- ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> 		1-82540-046-0 01 1 0806- ● ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0610- ● ●
657 CONTROL UNIT; MIMAMORI 1-80190-186-0 01 1 0610-0710 ● ●
657 CONTROL UNIT; MIMAMORI 8-98105-893-1 01 1 0711- ● ●

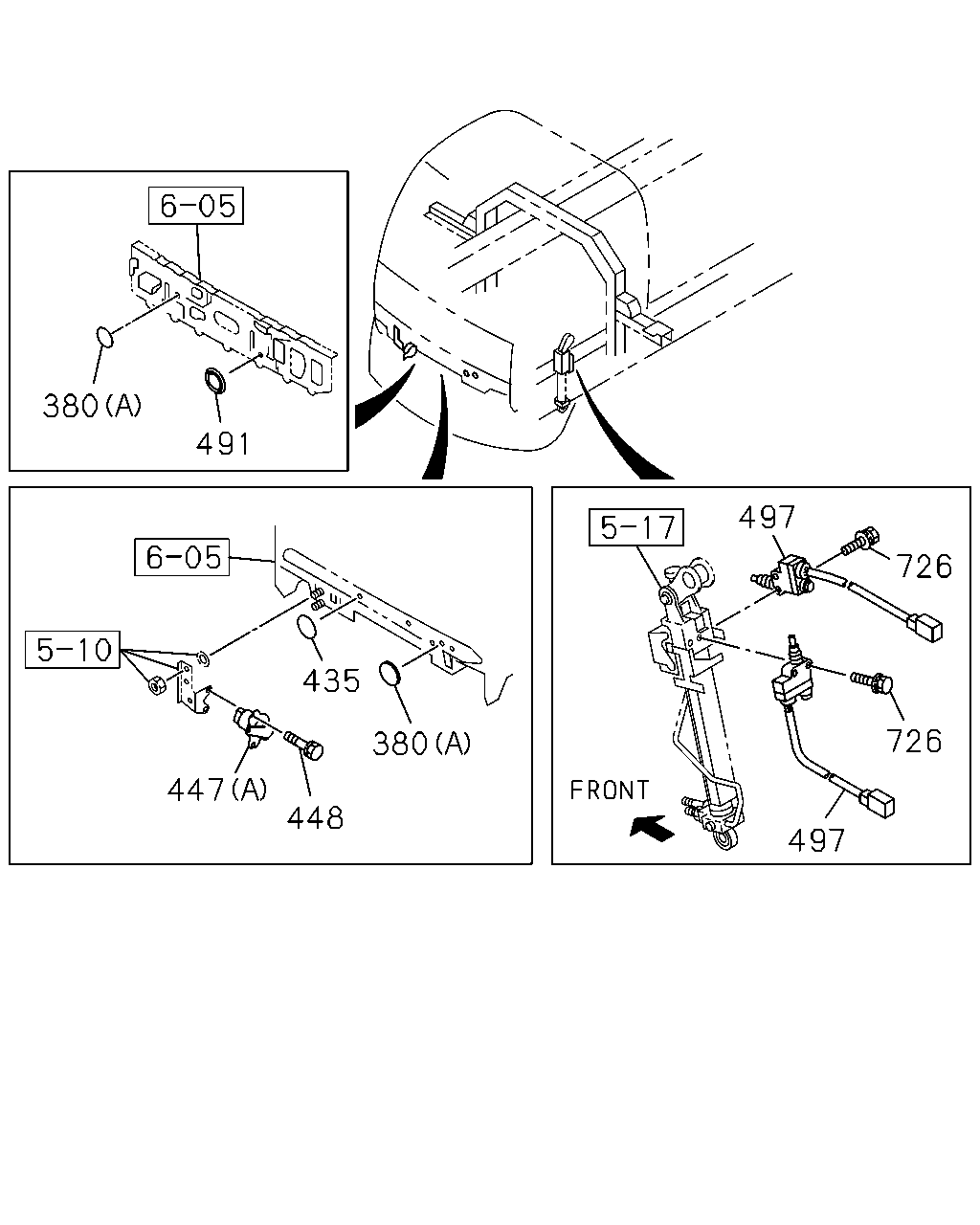

çizim 139685
380 491 497 726 435 726 380 447 448 497
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0610- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0610- ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0610- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0610- ● ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0610- ● ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0610- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0610- ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0610- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0610- ● ●

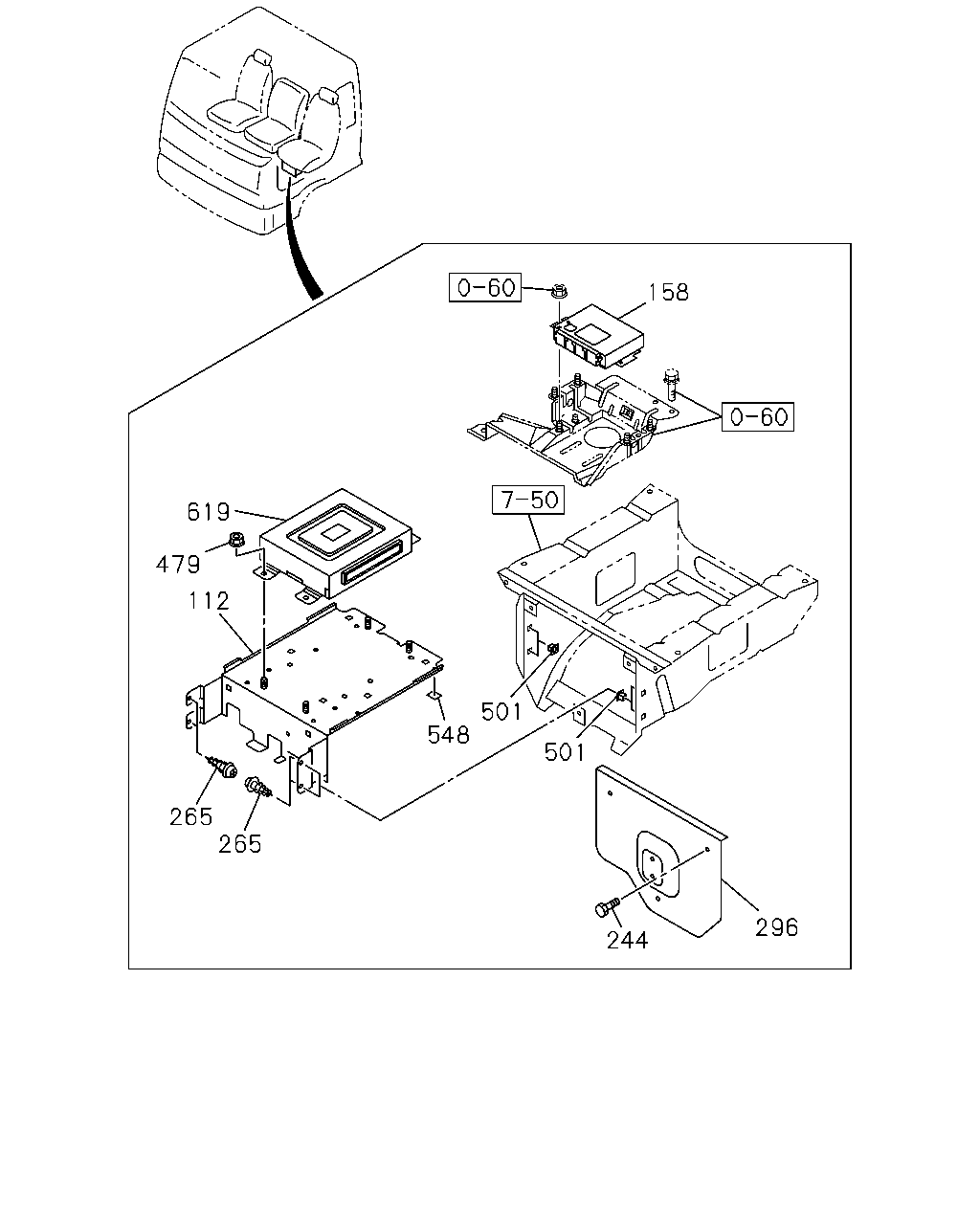

çizim 139689
158 619 479 112 501 548 501 265 265 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		8-97589-714-2 01 1 0610- ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-231-2 01 1 0610-0803 ● ●
158 CONTROLLER; ABS
TIRE 12R22.5-152/148K RIB LUG(5A7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-231-2 01 1 0804-1201 ● ●
158 CONTROLLER; ABS
TIRE 12R22.5-152/148K RIB LUG(5A7),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98196-714-0 01 1 1202- ● ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610-0703 ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704- ● ●
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0610- ●
296 COVER; CONT UNIT 8-97388-687-0 01 1 0610- ● ●
479 NUT; CONTROLLER
SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0610- ●
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0610- ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-1 03 1 0610-0908 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 0909-1305 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306- ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		8-98047-257-0 01 1 0610-1108 ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		8-98196-685-0 01 1 1109-1211 ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		8-98229-274-0 01 1 1212- ●

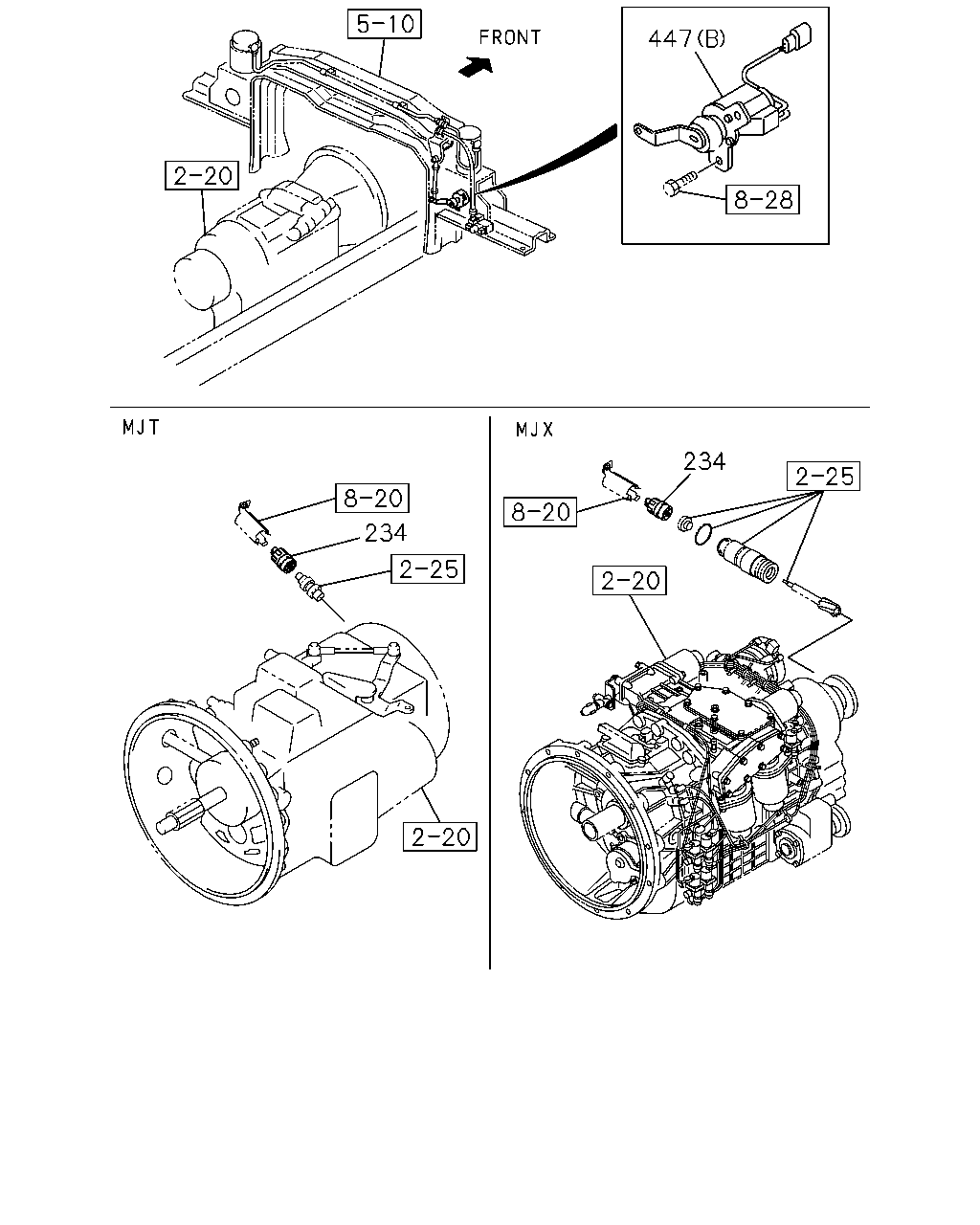

çizim 140061
447 234 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0610-1301 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0610- ● ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0610- ● ●
