◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#27963) — 65 parça

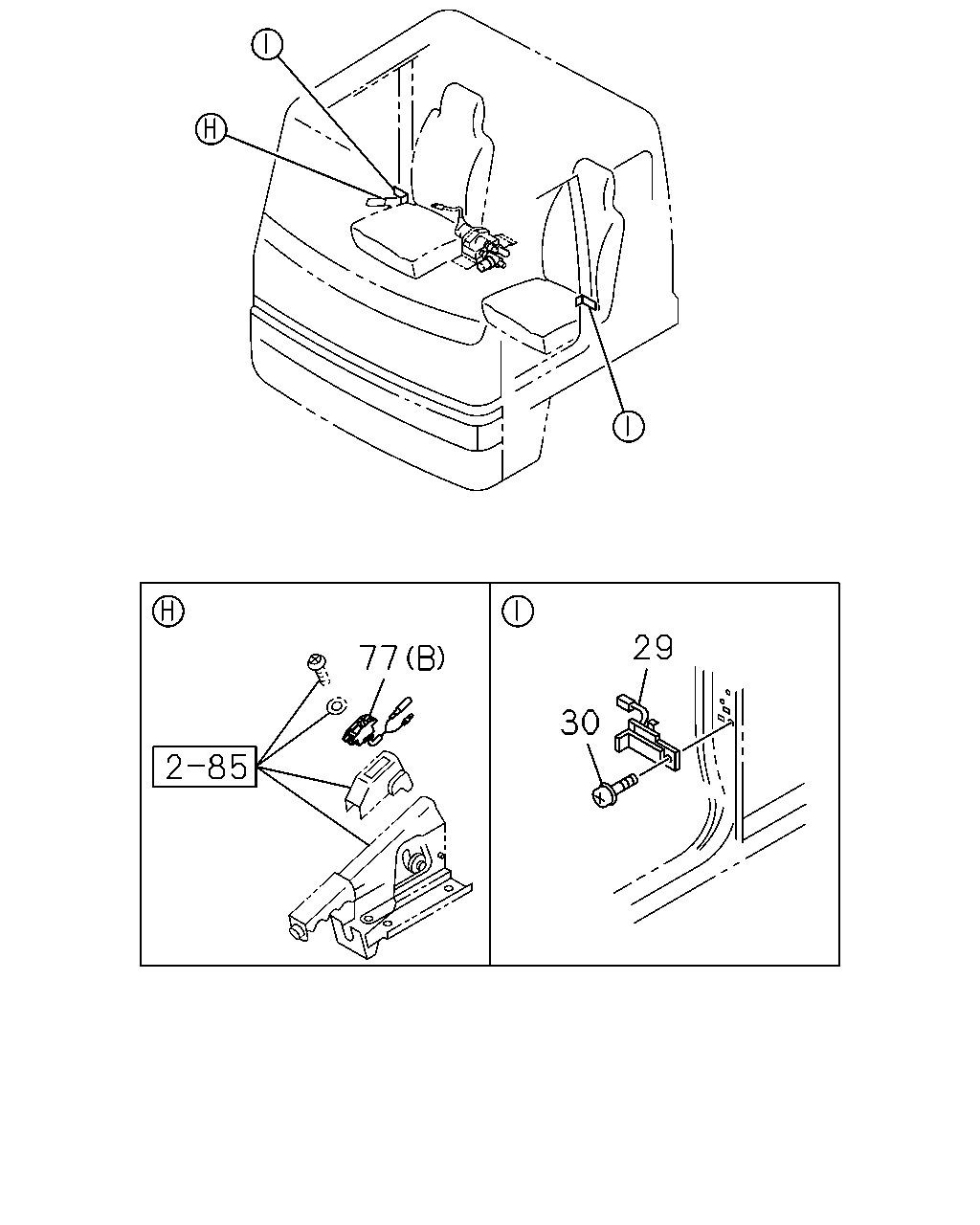

çizim 139671
29 77 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 02 1 0610- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0610- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0610- ● ●

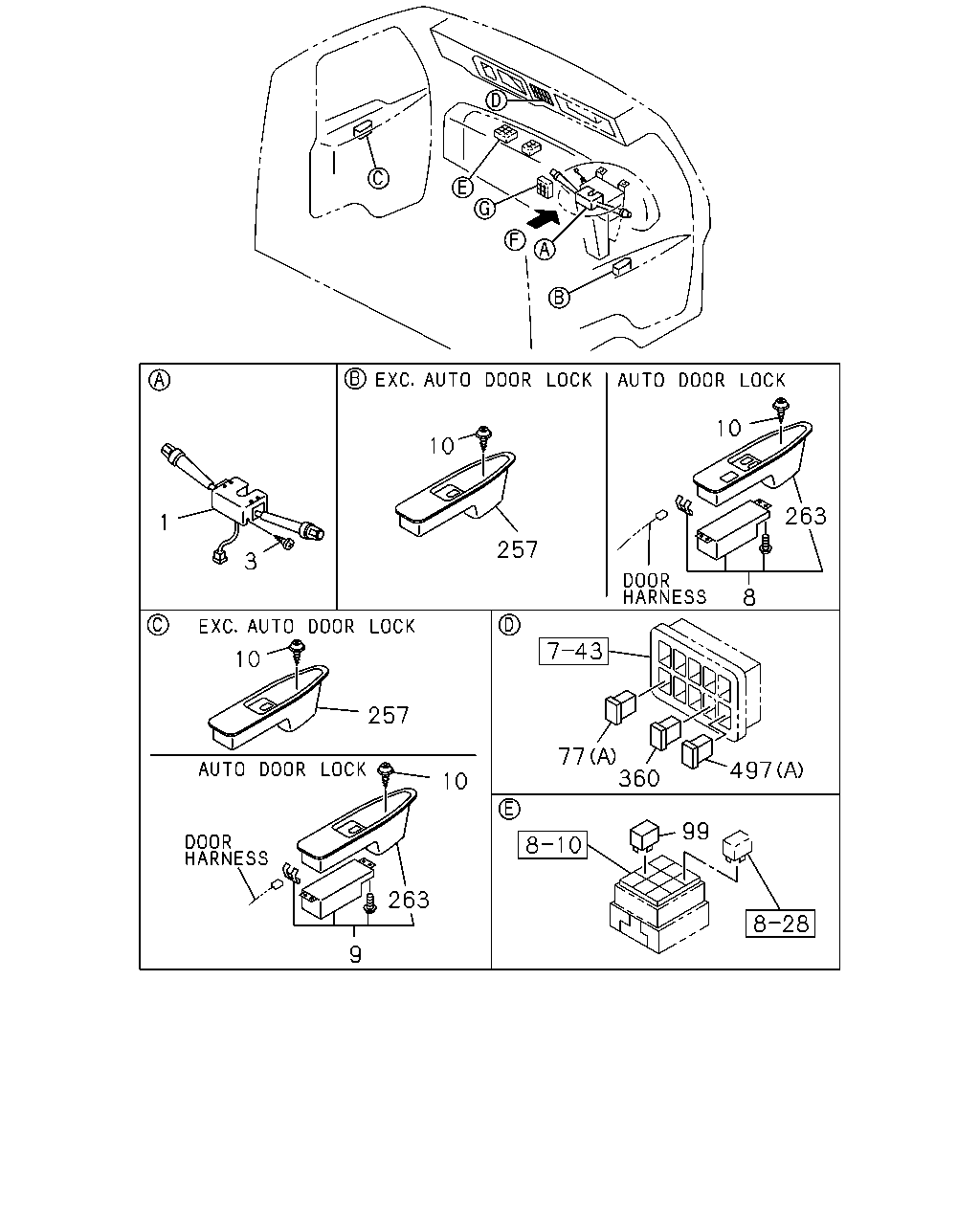

çizim 139678
10 10 263 1 257 3 8 10 257 77 360 497 10 99 263 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG(TFQ) 		1-82360-548-1 01 1 0610- ●
1 SWITCH; COMB
AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) 		1-82360-548-1 01 1 0610- ●
1 SWITCH; COMB
EXC. AIR BAG(TFQ) 		1-82360-715-0 01 1 0610- ●
1 SWITCH; COMB
EXC. SMOOTHER-G(C1W),AIR BAG(TFQ) 		1-82360-715-0 01 1 0610- ●
1 SWITCH; COMB
SMOOTHER-G(C1W) AIR BAG(TFQ) 		1-82360-701-1 01 1 0610- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0610- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER 		1-82380-166-2 01 1 0610- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER 		1-82380-167-1 01 1 0610- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0610- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P), TRANSMISSIONSIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0610-0704 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0705- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0610- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-011-2 01 1 0610- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> 		1-82389-012-2 01 1 0610- ● ●
263 COVER; SW
AUTO DOOR LOCK<AU4> DRIVER 		1-82385-005-2 01 1 0610- ● ●
263 COVER; SW
AUTO DOOR LOCK<AU4> PASSENGER 		1-82385-006-3 01 1 0610- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0610- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF 		1-82340-408-1 01 1 0610-1105 ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF 		8-98191-448-1 01 1 1106- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (B) HSA ADJUST 		1-82350-237-2 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (C) HSA RESET 		8-97076-356-0 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-97076-356-0 01 1 0610- ●

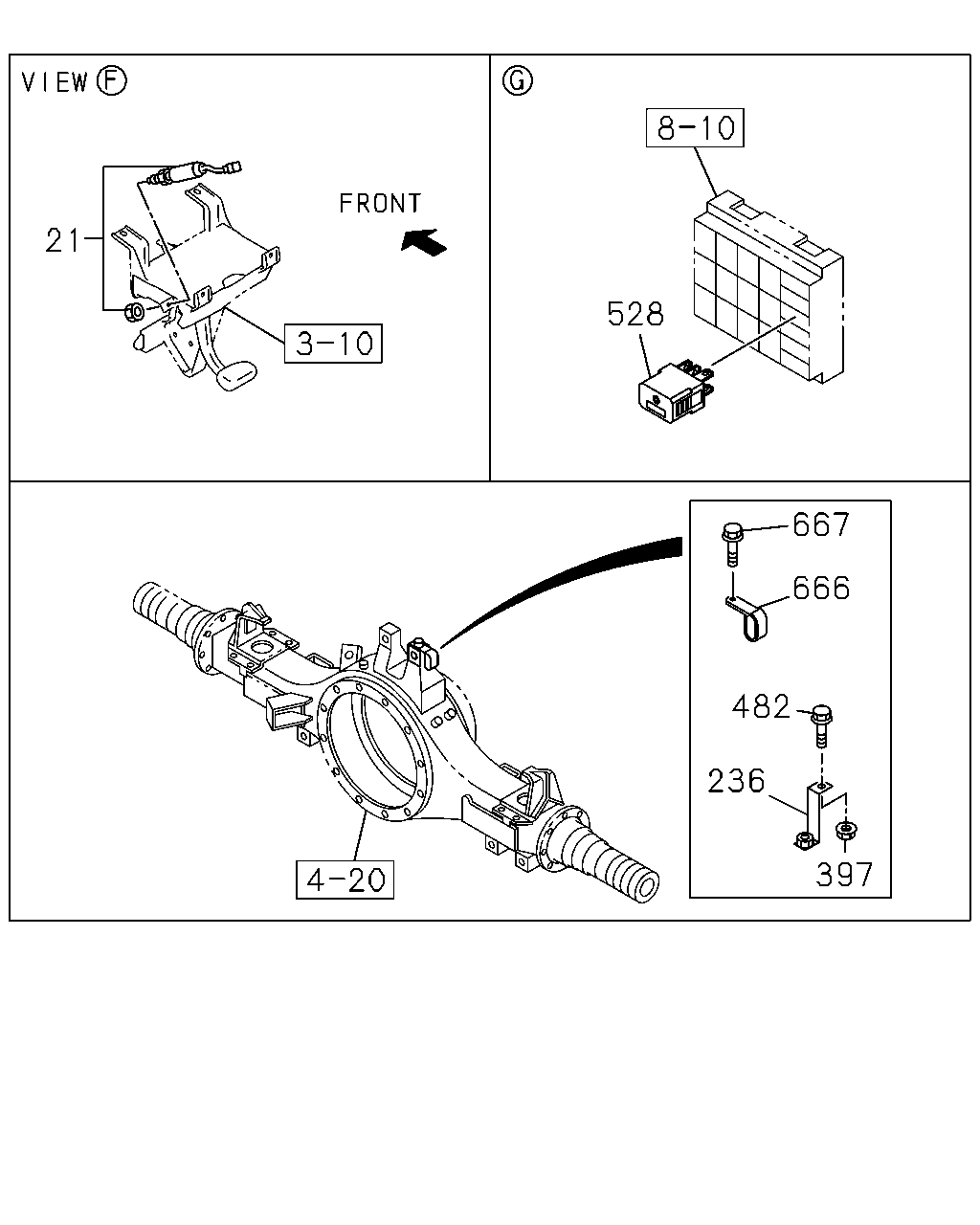

çizim 139683
21 528 667 666 482 236 397
BalonParca AdiParca NoAdetTipApplied Date A B
21 SWITCH; CLU 1-82380-114-3 01 1 0610- ●
21 SWITCH; CLU
EXC. SMOOTHER-G(C1W) 		1-82380-114-3 01 1 0610- ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 0610- ● ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0610-1109 ● ●
397 NUT; BRKT FIX
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 1110- ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1110- ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0610- ● ●
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0610- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 0610- ● ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 0610- ● ●

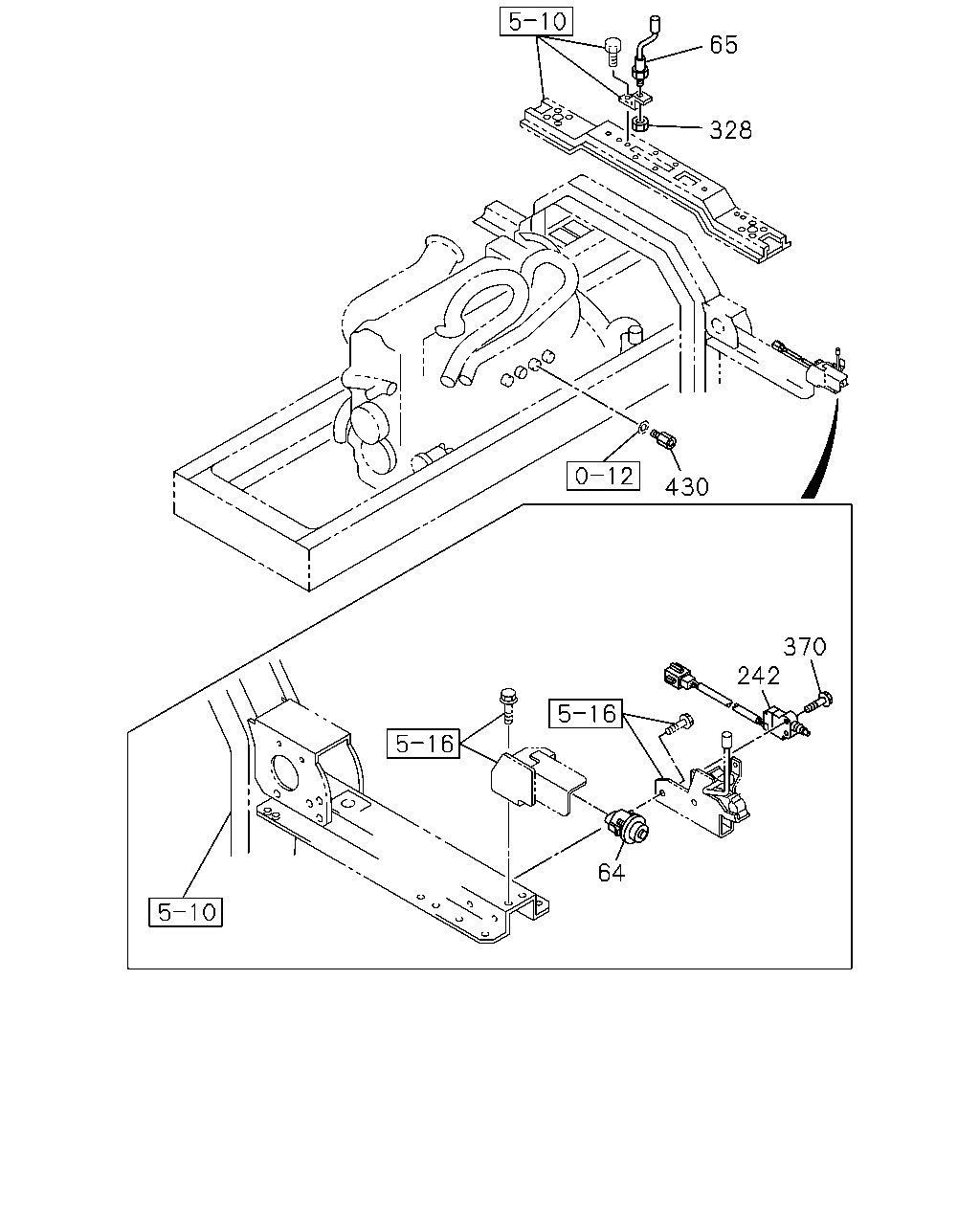

çizim 139690
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0610- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0610- ● ●
242 SWITCH
STAMP NO 		1-82380-172-1 01 1 0610- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0610- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0610- ● ●
430 ADAPTER; SW
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0610- ● ●

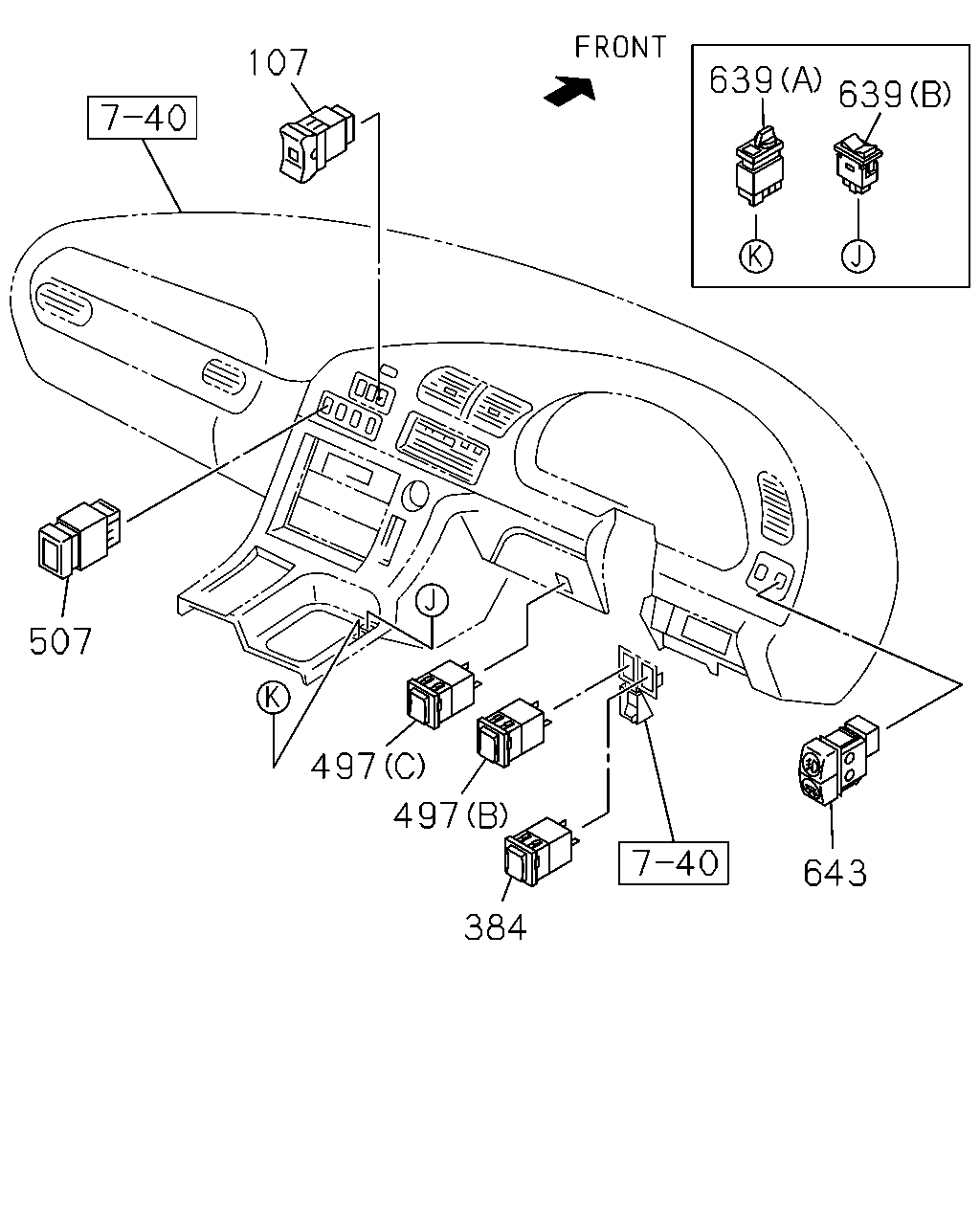

çizim 139693
107 639 639 507 497 497 643 384
BalonParca AdiParca NoAdetTipApplied Date A B
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> 		1-82350-233-0 01 1 0806- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0610- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF 		1-82340-408-1 01 1 0610-1105 ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF 		8-98191-448-1 01 1 1106- ● ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (B) HSA ADJUST 		1-82350-237-2 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) HSA ADJUST 		1-82350-237-2 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (C) HSA RESET 		8-97076-356-0 01 1 0610- ●
497 SWITCH; HSA
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (C) HSA RESET 		8-97076-356-0 01 1 0610- ●
507 SWITCH; MIRROR HEATER
MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> 		1-82340-423-0 01 1 0806- ● ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-82330-068-0 01 1 0610- ●
639 SWITCH; EMERGENCY
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-82350-363-0 01 1 0610- ●
643 SWITCH; SKIP SHIFT
MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		8-97381-251-0 01 1 0610- ●
