8-15 — FIXING PARTS; WIRING HARNESS (#27960) — 703 parça
çizim 139657
16 51 67 81 104 206 212 305 369 14 16 102 104 111 142 171 194 305 369 380 470 16 305 194 212 14 48 171 194 206 212 16 51 142 194 208 16
BalonParca AdiParca NoAdetTipApplied Date A B

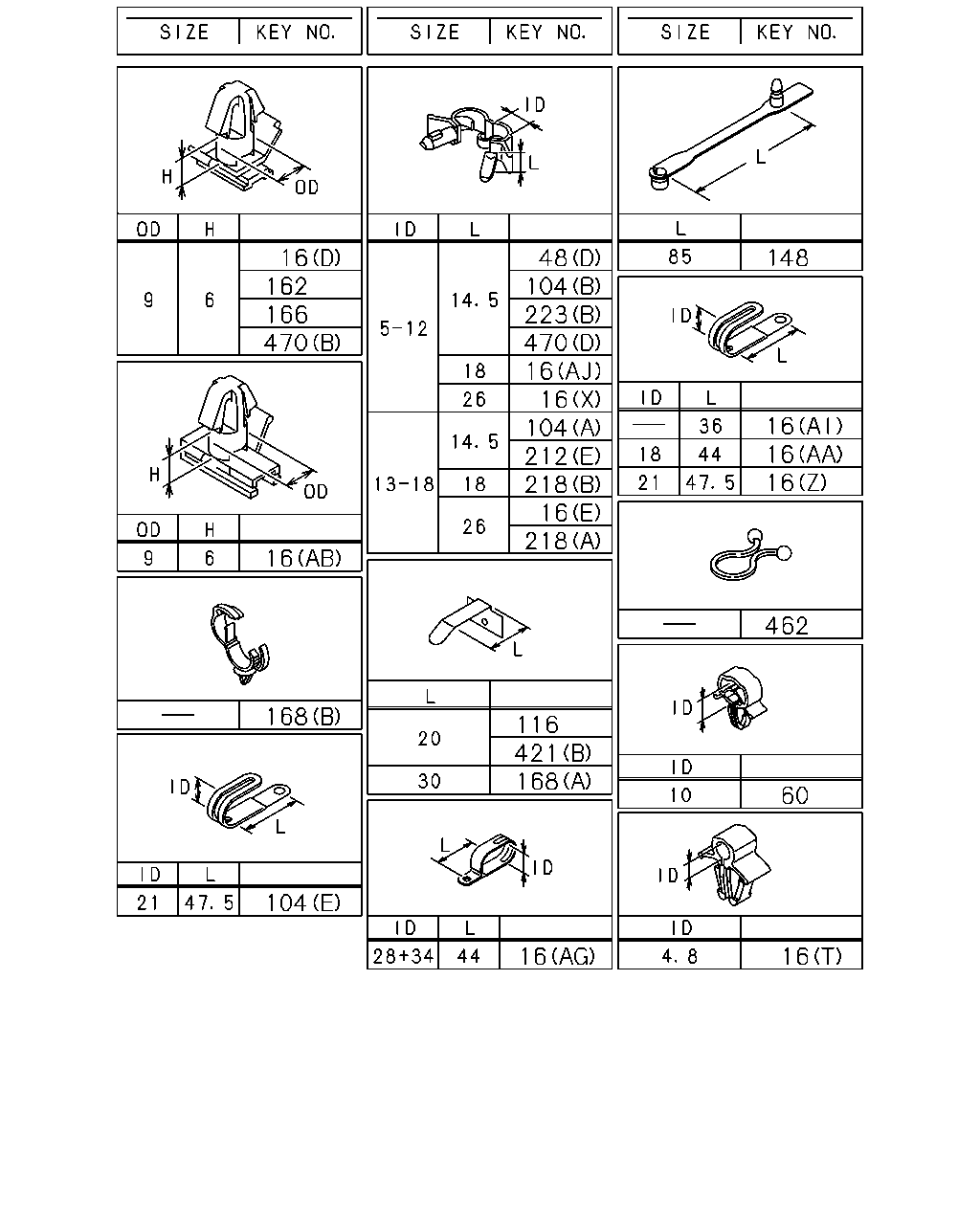

14 CLIP; BAND,HARNESS
SMOOTHER-G(C1W) (B) L=350 		1-09707-183-0 01 1 0802- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0610- ● ●
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 0610- ● ●

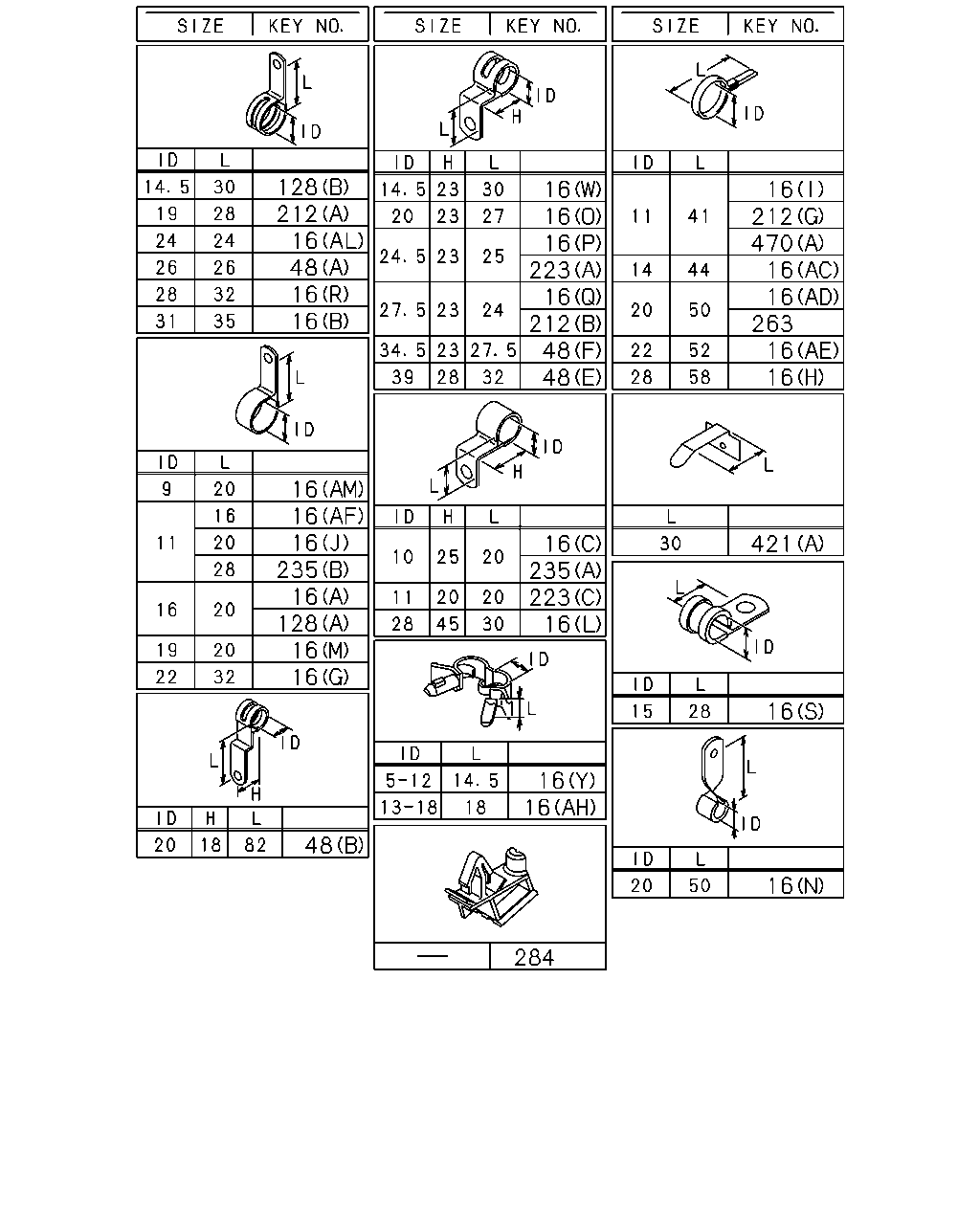

16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (V) L=350 		1-09707-183-0 02 1 0912- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 02 1 0908- ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 0702- ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 03 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 02 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 04 1 0611- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 05 1 0610-1105 ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 03 1 1106- ● ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-536-0 02 1 0610- ● ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0610- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 12 1 0610-0610 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0611-0701 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 0702-0704 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0705-1205 ● ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 09 1 1206- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0802- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
(X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (G) ID=22 L=32 		1-09700-126-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1003- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 04 1 0610- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0610-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1410- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 0610-0610 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 0611-0806 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 12 1 0807-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 0610- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-0701 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610- ● ●
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (R) ID=28 L=32 		1-09701-107-1 02 1 0806-1002 ● ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 04 1 1410- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 08 1 0610-0610 ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0611- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 0610- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (K) L=250 		5-09707-030-1 02 1 0908-0911 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 04 1 0610-0805 ● ●
16 CLIP; HARNESS
FACE LIFT<6NL> (AL) ID=24 L=24 		1-09701-001-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 03 1 0610-0806 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 0807- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 08 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 02 1 0610- ● ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (L) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 07 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0610-0701 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) L=36 		8-94224-891-1 01 1 0702- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0702- ●
16 CLIP; HARNESS
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) (I) ID=11 L=41 		1-09700-403-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 0610- ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (E) ID=39 H=28 L=32 		1-09701-263-0 01 1 0611-0706 ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0610-1209 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (A) L=180 		1-09707-162-1 01 1 1210- ● ●
51 CLIP; COOLER CMPR
SINGAPORE EQUIPMENT(WQ3) (A) L=180 		1-09707-162-1 01 1 1210- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0610-1209 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (B) L=140 		5-09707-031-1 01 1 1210- ● ●
51 CLIP; COOLER CMPR
SINGAPORE EQUIPMENT(WQ3) (B) L=140 		5-09707-031-1 01 1 1210- ● ●
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0610- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0610- ● ●
102 CLIP; BAND
SMOOTHER-G(C1W) L=250 		5-09707-030-1 01 1 0610- ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0707- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0610-0710 ● ●
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0610- ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0610-1207 ● ●
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208- ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 0610-1205 ● ●
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 01 1 1206- ● ●
171 CLIP; STARTER HARNESS
FACE LIFT<6NL> (B) L=350 		1-09707-183-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
EXC. FACE LIFT<6NL> (A) L=250 		5-09707-030-1 05 1 0806- ● ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 05 1 0610-0805 ● ●
171 CLIP; STARTER HARNESS
FACE LIFT<6NL> (A) L=250 		5-09707-030-1 04 1 0806- ● ●
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0610- ● ●
194 CLIP; BAND
(D) L=180 		1-09707-162-1 01 1 0610-1001 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0610-1202 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 1203- ● ●
194 CLIP; BAND
SMOOTHER-G(C1W) (C) L=250 		5-09707-030-1 06 1 0610- ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0610- ● ●
206 CLIP; FUEL TANK HARNESS
WHEEL BASE 6300MM(63W) (B) L=350 		1-09707-183-0 02 1 0610- ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0610-0904 ● ●
305 CLIP; ENG HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) L=382 		1-09707-196-0 01 1 1210- ● ●
305 CLIP; ENG HARNESS
SINGAPORE EQUIPMENT(WQ3) (C) L=250 		5-09707-030-1 01 1 1210- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 0610-1209 ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1210- ● ●
305 CLIP; ENG HARNESS
SINGAPORE EQUIPMENT(WQ3) (A) L=140 		5-09707-031-1 01 1 1210- ● ●
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 01 1 0610- ● ●
369 CLIP; BAND EDS HARNESS
(B) L=140 		5-09707-031-1 02 1 0610- ● ●
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 03 1 0610-0610 ● ●
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0611- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 03 1 0907-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 05 1 1112- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907- ● ●
çizim 139659
128 212 16 48 16 16 16 16 16 235 16 128 16 16 48 284 16 16 16 16 421 16 16 263 16 16 470 212 16 16 16 16 223 16 212 48 48 16 235 223 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (V) L=350 		1-09707-183-0 02 1 0912- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 02 1 0908- ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 0702- ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 03 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 02 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 04 1 0611- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 05 1 0610-1105 ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 03 1 1106- ● ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-536-0 02 1 0610- ● ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0610- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 12 1 0610-0610 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0611-0701 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 0702-0704 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0705-1205 ● ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 09 1 1206- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0802- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
(X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (G) ID=22 L=32 		1-09700-126-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1003- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 04 1 0610- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0610-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1410- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 0610-0610 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 0611-0806 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 12 1 0807-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 0610- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-0701 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610- ● ●
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (R) ID=28 L=32 		1-09701-107-1 02 1 0806-1002 ● ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 04 1 1410- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 08 1 0610-0610 ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0611- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 0610- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (K) L=250 		5-09707-030-1 02 1 0908-0911 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 04 1 0610-0805 ● ●
16 CLIP; HARNESS
FACE LIFT<6NL> (AL) ID=24 L=24 		1-09701-001-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 03 1 0610-0806 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 0807- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 08 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 02 1 0610- ● ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (L) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 07 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0610-0701 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) L=36 		8-94224-891-1 01 1 0702- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0702- ●
16 CLIP; HARNESS
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) (I) ID=11 L=41 		1-09700-403-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 0610- ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (E) ID=39 H=28 L=32 		1-09701-263-0 01 1 0611-0706 ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0610- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0610-0904 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0610- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		5-09700-351-0 04 1 0610-0707 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
SMOOTHER-G(C1W) (B) ID=11 L=28 		9-09917-544-0 01 1 0610-0610 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610-0610 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. MJX M/T<Y9N> (A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610- ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0610- ● ●
284 CLIP; HARNESS,GLOW PLUG
SINGAPORE EQUIPMENT(WQ3) 		1-82699-327-0 01 1 1210- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0610- ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0610- ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0610- ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 03 1 0907-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 05 1 1112- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907- ● ●

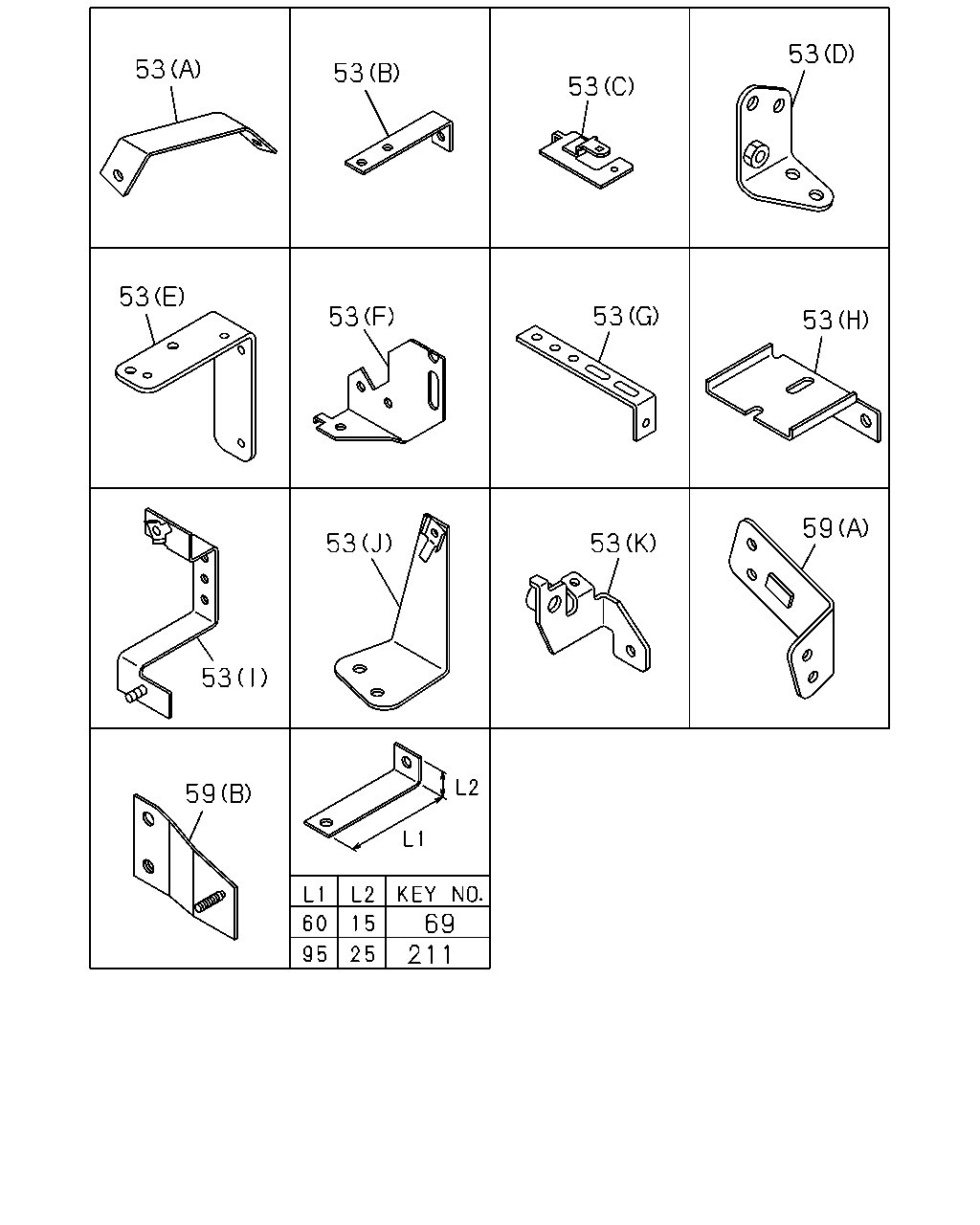

çizim 139667
53 53 53 53 53 53 53 53 59 53 53 53 59 69 211
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(K) 		8-98194-068-0 01 1 1112- ● ●
53 BRACKET; HARNESS
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98124-778-0 01 1 0908- ● ●
53 BRACKET; HARNESS
FACE LIFT<6NL> (H) 		8-98032-696-0 01 1 0806- ● ●
53 BRACKET; HARNESS
FACE LIFT<6NL> (I) 		8-98050-989-0 01 1 0806- ● ●
53 BRACKET; HARNESS
FACE LIFT<6NL> (J) 		8-98052-592-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 0610- ● ●
53 BRACKET; HARNESS
(E) 		8-97610-340-1 01 1 0610- ● ●
53 BRACKET; HARNESS
(G) L=160 H=30 		1-47479-759-0 01 1 0610- ● ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0610-0907 ● ●
53 BRACKET; HARNESS
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-82698-382-0 01 1 0908- ● ●
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 0610- ● ●
53 BRACKET; HARNESS
(F) 		8-97610-991-0 01 1 0610-0805 ● ●
53 BRACKET; HARNESS
EXC. FACE LIFT<6NL> (F) 		8-97610-991-0 01 1 0806- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 10 1 0610-0610 ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0610- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 0610- ● ●
59 BRACKET; FRAME HARNESS
SMOOTHER-G(C1W) FACE LIFT<6NL> (B) 		8-98061-135-1 01 1 0810- ●
59 BRACKET; FRAME HARNESS
SMOOTHER-G(C1W) FACE LIFT<6NL> (B) 		8-98061-135-1 01 1 0806-0807 ●
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 0610- ● ●
69 BRACKET; CLIP
WHEEL BASE 4900MM(49W) L=60 		1-47475-455-0 01 1 0703-0809 ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=95 		1-82699-085-0 02 1 0610- ● ●

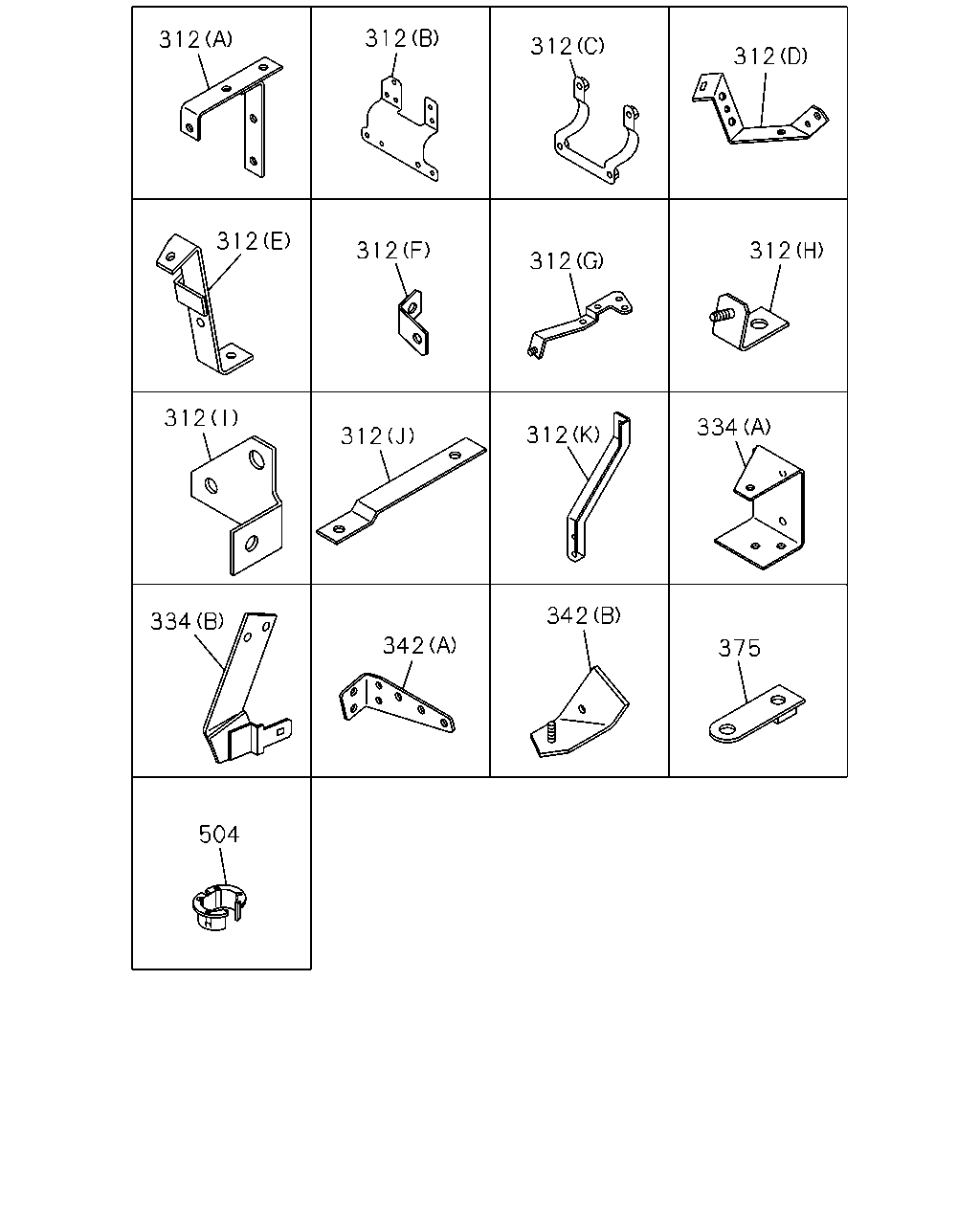

çizim 139668
312 312 312 312 312 312 312 312 312 334 312 312 342 334 342 375 504
BalonParca AdiParca NoAdetTipApplied Date A B
312 BRACKET; CLIP HARNESS
FACE LIFT<6NL> (J) 		8-98035-927-1 01 1 0806- ● ●
312 BRACKET; CLIP HARNESS
FACE LIFT<6NL> (K) 		8-98052-591-0 01 1 0806- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 0610- ●
312 BRACKET; CLIP HARNESS
MJT7 M/T<Y9E> (A) 		1-82698-479-0 01 1 0610- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0610-0805 ● ●
312 BRACKET; CLIP HARNESS
EXC. FACE LIFT<6NL> (B) 		1-82698-474-1 01 1 0806- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0610-0805 ● ●
312 BRACKET; CLIP HARNESS
EXC. FACE LIFT<6NL> (C) 		1-82698-476-0 01 1 0806- ● ●
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0610- ● ●
312 BRACKET; CLIP HARNESS
(D) 		1-82698-556-0 01 1 0610- ● ●
312 BRACKET; CLIP HARNESS
(F) 		1-82699-199-0 01 1 0610- ● ●
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82698-443-0 01 1 0610- ● ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (I) 		1-82698-570-0 01 1 0610- ●
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (H) 		1-82698-586-0 01 1 0610- ●
334 BRACKET
(A) 		1-53457-153-2 01 1 0610- ● ●
334 BRACKET
SMOOTHER-G(C1W) (B) 		1-82698-650-0 01 1 0610- ●
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0610- ● ●
342 BRACKET; HARNESS CAB MTG
EXC. MIXER TRUCK<RA2> (B) 		1-47479-974-0 01 1 0610- ●
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 0610- ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0610- ● ●
504 PROTECTOR; HARNESS
MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> 		1-82698-391-0 02 1 0806- ● ●
çizim 139670
16 162 166 470 48 104 223 470 16 16 104 212 218 16 218 148 16 16 16 16 462 168 116 421 168 60 104 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(AM) ID=9 L=20 		0-95234-835-0 02 1 1106- ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (V) L=350 		1-09707-183-0 02 1 0912- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 02 1 0908- ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0905-1409 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 1410- ● ●
16 CLIP; HARNESS
MIXER TRUCK<RA2> (M) ID=19 L=20 		0-95235-836-0 01 1 0702- ●
16 CLIP; HARNESS
(AK) L=251 		8-97619-917-0 03 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 02 1 0611- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 03 1 0611- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (U) L=180 		1-09707-162-1 04 1 0611- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
(AJ) ID=5-12 L=18 		1-09709-287-0 01 1 0612- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AF) ID=11 L=16 		0-95235-025-0 02 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(Q) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0610- ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 05 1 0610-1105 ● ●
16 CLIP; HARNESS
(J) ID=11 L=20 		0-95235-035-0 03 1 1106- ● ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-536-0 02 1 0610- ● ●
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 03 1 0610- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 12 1 0610-0610 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0611-0701 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 10 1 0702-0704 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 09 1 0705-1205 ● ●
16 CLIP; HARNESS
(K) L=250 		8-98216-430-0 09 1 1206- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-94225-185-0 05 1 0610-0801 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 05 1 0802- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0610-0705 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0706-0801 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0802- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) (K) L=250 		5-09707-030-1 01 1 0802- ●
16 CLIP; HARNESS
(X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ● ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0610-0611 ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (X) ID=5-12 L=26 		1-09709-289-0 01 1 0612- ●
16 CLIP; HARNESS
(E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) (E) ID=13-18 L=26 		1-09709-293-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0610-0907 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
WHEEL BASE 5300MM(53W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AJ) ID=5-12 L=18 		1-09709-287-0 03 1 0908- ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(S) ID=15 L=28 		1-09701-216-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 0610-1409 ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 03 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (W) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0610- ●
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (F) L=140 		5-09707-031-1 01 1 0610- ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (G) ID=22 L=32 		1-09700-126-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 1003- ● ●
16 CLIP; HARNESS
(H) ID=28 L=58 		1-09700-400-0 04 1 0610- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 02 1 0610-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 04 1 1410- ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 09 1 0610-0610 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 0611-0806 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 12 1 0807-1409 ● ●
16 CLIP; HARNESS
(I) ID=11 L=41 		1-09700-403-0 10 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=20 L=50 		1-09700-679-1 01 1 0610- ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 02 1 0610-0701 ● ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ● ●
16 CLIP; HARNESS
EXC. MIXER TRUCK<RA2> (O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(O) ID=20 H=23 L=27 		1-09700-861-0 01 1 0702- ●
16 CLIP; HARNESS
(P) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0610- ● ●
16 CLIP; HARNESS
(R) ID=28 L=32 		1-09701-107-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (R) ID=28 L=32 		1-09701-107-1 02 1 0806-1002 ● ●
16 CLIP; HARNESS
(T) ID=4.8 		1-09701-218-0 01 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 04 1 1410- ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 08 1 0610-0610 ● ●
16 CLIP; HARNESS
(U) L=180 		1-09707-162-1 01 1 0611- ● ●
16 CLIP; HARNESS
(V) L=350 		1-09707-183-0 05 1 0610- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 06 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 03 1 1410- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610-0702 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 03 1 0703-0904 ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 01 1 0905- ● ●
16 CLIP; HARNESS
(Y) ID=5-12 L=14.5 		1-09987-221-0 02 1 0610-0702 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0610-0805 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0806-0907 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0908-0911 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (K) L=250 		5-09707-030-1 02 1 0908-0911 ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
EXC. FACE LIFT<6NL> (K) L=250 		5-09707-030-1 02 1 0912- ● ●
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 04 1 0610-0805 ● ●
16 CLIP; HARNESS
FACE LIFT<6NL> (AL) ID=24 L=24 		1-09701-001-1 01 1 0806-1002 ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 01 1 0610- ● ●
16 CLIP; HARNESS
(AB) OD=9 H=6 		8-97368-793-0 03 1 0610- ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 03 1 0610-0806 ● ●
16 CLIP; HARNESS
(AC) ID=14 L=44 		9-09917-427-0 02 1 0807- ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 08 1 0610-1409 ● ●
16 CLIP; HARNESS
(AD) ID=20 L=50 		9-09917-430-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AE) ID=22 L=52 		9-09917-431-0 02 1 0610- ● ●
16 CLIP; HARNESS
(B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (B) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 0610-1409 ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ● ●
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
EXC. MJX M/T<Y9N> (D) OD=9 H=6 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=28+34 L=44 		1-09701-311-0 01 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (L) ID=28 H=45 L=30 		1-09700-707-0 03 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (D) OD=9 H=6 		1-09709-178-0 07 1 0610- ●
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0610-0701 ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AI) L=36 		8-94224-891-1 01 1 0702- ● ●
16 CLIP; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (AI) L=36 		8-94224-891-1 01 1 0702- ●
16 CLIP; HARNESS
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) (I) ID=11 L=41 		1-09700-403-0 01 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6100MM(61W) (AH) ID=13-18 L=18 		1-09709-291-0 05 1 0610- ●
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=18 		1-09709-291-0 06 1 0610- ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (A) ID=16 L=20 		0-95235-535-0 01 1 0610-0610 ●
16 CLIP; HARNESS
(A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=16 L=20 		0-95235-535-0 01 1 0610- ●
16 CLIP; HARNESS
MJX M/T<Y9N> (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 05 1 0612- ● ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0610- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (A) ID=26 L=26 		1-09701-236-0 01 1 0611- ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0610- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 10 1 0610-0610 ● ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (E) ID=39 H=28 L=32 		1-09701-263-0 01 1 0611-0706 ●
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0707- ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0707- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0610- ● ●
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0610-0710 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0610-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 0610- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0610- ● ●
166 CLIP; HARNESS CLU SW
OD=9 H=6 		1-09709-178-0 01 1 0610- ●
166 CLIP; HARNESS CLU SW
EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 0610- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(D) L=350 		1-09707-183-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0610- ● ●
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 01 1 0610- ● ●
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0610-0904 ● ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) (A) ID=13-18 L=26 		1-09709-293-0 06 1 0612- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5300MM(53W) (A) ID=13-18 L=26 		1-09709-293-0 01 1 0612- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (B) ID=13-18 L=18 		1-09709-291-0 05 1 0612- ●
218 CLIP; BAND,RR COMB
(B) ID=13-18 L=18 		1-09709-291-0 06 1 0610-0611 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4900MM(49W) (B) ID=13-18 L=18 		1-09709-291-0 07 1 0612- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5300MM(53W) (B) ID=13-18 L=18 		1-09709-291-0 07 1 0612- ●
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0610- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 0610- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		5-09700-351-0 04 1 0610-0707 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0610- ●
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0610- ●
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0610- ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0610- ● ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 03 1 0907-1111 ● ●
470 CLIP; HARNESS,LICENSE LAMP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250 		5-09707-030-1 05 1 1112- ● ●
470 CLIP; HARNESS,LICENSE LAMP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41 		1-09700-403-0 01 1 0907- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0610-0906 ● ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6 		1-09709-178-0 01 1 0907- ● ●
çizim 139679
224 1 1 1 224 1 178 178 178 178 178 292 530 530 178 292 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0610- ● ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0610- ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 0610-1209 ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (C) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1210- ● ●
1 SLEEVE; RUBBER
SINGAPORE EQUIPMENT(WQ3) (C) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1210- ● ●
1 SLEEVE; RUBBER
(A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0610-0610 ● ●
1 SLEEVE; RUBBER
SINGAPORE EQUIPMENT(WQ3) (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1210- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0610- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0610- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0610- ● ●
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0610- ● ●
178 GROMMET; HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 02 1 0610- ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0610- ● ●
178 GROMMET; HARNESS
(A) 		1-82698-551-0 01 1 0610- ●
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (A) 		1-82698-551-0 01 1 0610- ●
178 GROMMET; HARNESS
(E) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0610-0610 ● ●
178 GROMMET; HARNESS
(F) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0610- ● ●
224 SLEEVE; RUBBER,HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 1210- ● ●
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0610-0904 ● ●
292 CAP; RUBBER
(B) 		1-82690-667-0 01 1 0610- ● ●
292 CAP; RUBBER
(A) 		1-82691-239-0 02 1 0610- ● ●
503 CONNECTOR
EXC. BRAKE SYSTEM HSA<SLD> 		1-82690-666-0 01 1 0610- ●
503 CONNECTOR
EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD> 		1-82690-666-0 01 1 0610- ●
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0610- ● ●
530 SEAL; HARNESS
(B) 100X40 		1-72498-022-1 01 1 0610- ● ●
çizim 139682
516 139 38 242 528 139 150 38 242 38 242 313 38 242 480 38 313 38 86 139 242 313 38 64 242 139 358 239 38 358 38 358 88 133 239 88
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0610- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0610- ● ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0610- ●
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0610- ●
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 0610- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0610- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18 FLANGE 		0-28080-818-0 03 1 0610-0806 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18 FLANGE 		0-28080-818-0 04 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0610-1409 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0610- ● ●
38 BOLT; CLIP,HARNESS
(H) M10X20 FLANGE 		0-28751-020-0 01 1 0610- ● ●
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		1-09044-079-0 01 1 0610-1105 ● ●
38 BOLT; CLIP,HARNESS
(D) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-1201 ● ●
38 BOLT; CLIP,HARNESS
(I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 03 1 0610- ●
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (F) M8X30 FLANGE 		0-28650-830-0 02 1 0610- ●
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 0610- ●
64 SCREW; CLIP
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 0610- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0610- ●
86 BOLT; CLIP BRKT
EXC. SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 01 1 0610- ●
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 03 1 0610- ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0610-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0610-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0610- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112- ● ●
139 BOLT; BRKT
WHEEL BASE 4900MM(49W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 0703-0809 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610- ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0610-0702 ● ●
139 BOLT; BRKT
WHEEL BASE 4500MM(45W) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0703-0809 ●
139 BOLT; BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0703-0809 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0810- ● ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904 ● ●
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
150 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 14 1 0610- ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0610-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
FACE LIFT<6NL> (E) M8X20 FLANGE 		0-28050-820-0 04 1 0806- ● ●
242 BOLT; BRKT,HARNESS
FACE LIFT<6NL> (F) M10X20 FLANGE 		0-28651-020-0 02 1 0806- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X18 FLANGE 		0-28080-818-0 01 1 0610-0805 ● ●
242 BOLT; BRKT,HARNESS
EXC. FACE LIFT<6NL> (B) M8X18 FLANGE 		0-28080-818-0 01 1 0806- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0610- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0610- ● ●
242 BOLT; BRKT,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0610- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0610- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0610- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0610- ● ●
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0610- ● ●
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0610-1201 ● ●
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0610- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0610- ● ●
528 BOLT; CONNECTOR
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0610- ●
çizim 140039
119 524 219 294 340 515 552 219 294 423 340
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0610- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 11 1 0807-1409 ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 10 1 1410- ● ●
219 NUT
SMOOTHER-G(C1W) (A) M10 FLANGE 		0-91180-210-0 01 1 0610-0610 ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 02 1 0610-1409 ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-1409 ●
219 NUT
EXC. MJX M/T<Y9N> (B) M8 FLANGE 		0-91180-108-0 02 1 0610-1409 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1410- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE 		0-91180-108-0 02 1 1410- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1410- ●
219 NUT
EXC. MJX M/T<Y9N> (B) M8 FLANGE 		0-91180-108-0 02 1 1410- ●
219 NUT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0610- ●
219 NUT
EXC. SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 0610- ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 14 1 0610-0806 ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0807- ● ●
219 NUT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 05 1 0610- ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0610- ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0610- ●
294 NUT
EXC. SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 01 1 0610- ●
294 NUT
SMOOTHER-G(C1W) (B) M8 FLANGE 		0-91180-108-0 03 1 0610- ●
294 NUT
SMOOTHER-G(C1W) (A) M10 FLANGE 		0-91180-210-0 01 1 0610- ●
340 NUT; HARNESS CAB TO FRAME
EXC. FACE LIFT<6NL> (A) M8 FLANGE 		0-91180-108-0 01 1 0806- ● ●
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-0610 ● ●
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 01 1 0611-0805 ● ●
340 NUT; HARNESS CAB TO FRAME
FACE LIFT<6NL> (A) M8 FLANGE 		0-91180-108-0 05 1 0806-0811 ● ●
340 NUT; HARNESS CAB TO FRAME
FACE LIFT<6NL> (B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 0812- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0610- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0610- ● ●
515 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 05 1 0703-0809 ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0610-0702 ● ●
515 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91180-108-0 04 1 0703-0809 ●
515 NUT; BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91180-108-0 04 1 0703-0809 ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0810- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0610- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
