◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#27959) — 223 parça

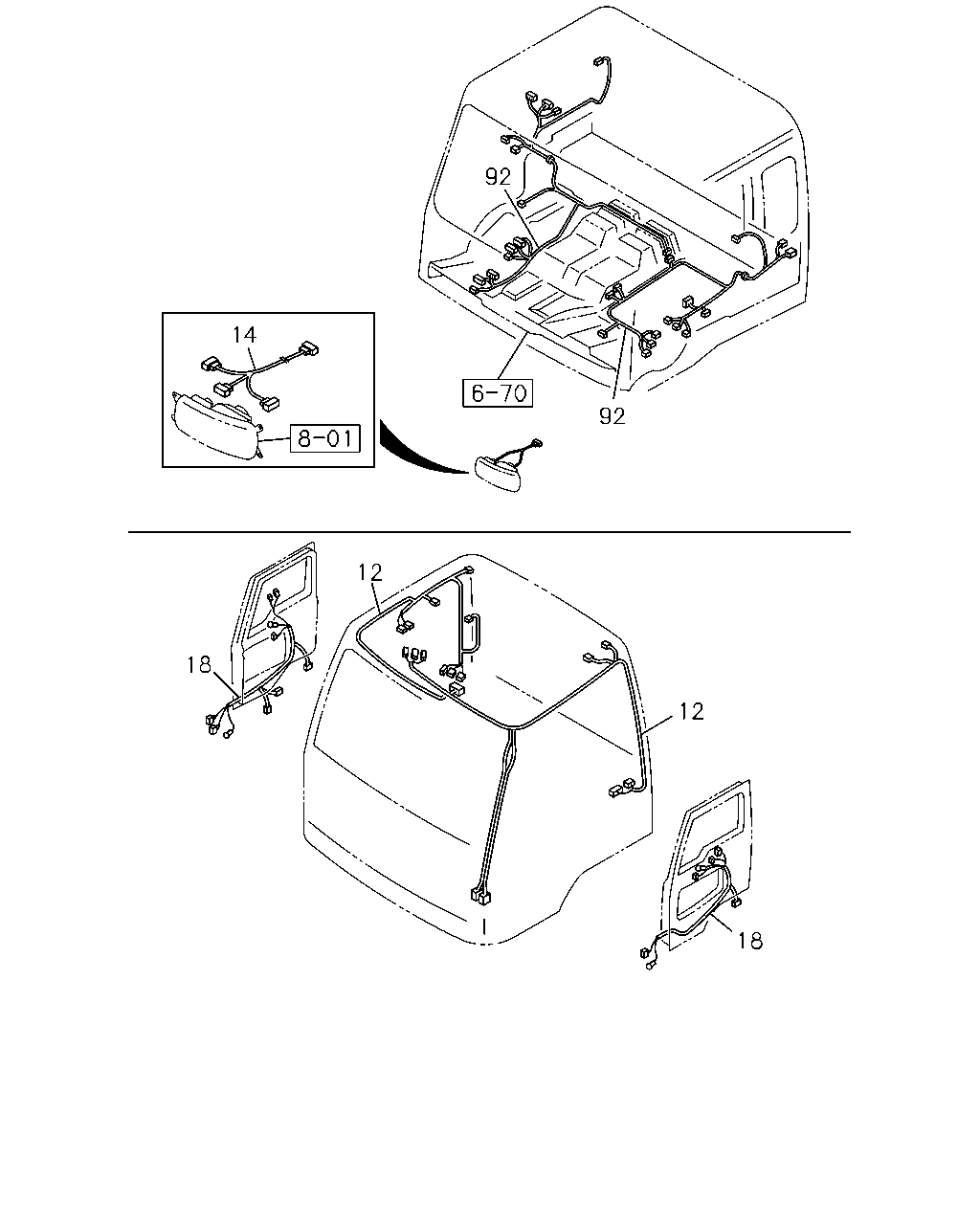

çizim 139649
92 14 92 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
PASSENGER SIDE 		8-97611-861-1 01 1 0610- ● ●
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 0610- ● ●
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82678-323-0 02 1 0610- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-97631-060-0 01 1 0906- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-97631-061-0 01 1 0906- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0610-0905 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82628-582-0 01 1 0906- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-588-0 01 1 0610-0905 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-82628-588-0 01 1 0906- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0610- ● ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-871-1 01 1 0610- ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97611-871-1 01 1 0610- ●
92 HARNESS; FLOOR 8-97611-874-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97611-874-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97611-875-2 01 1 0610-1212 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98230-774-0 01 1 1301- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-872-1 01 1 0610- ●

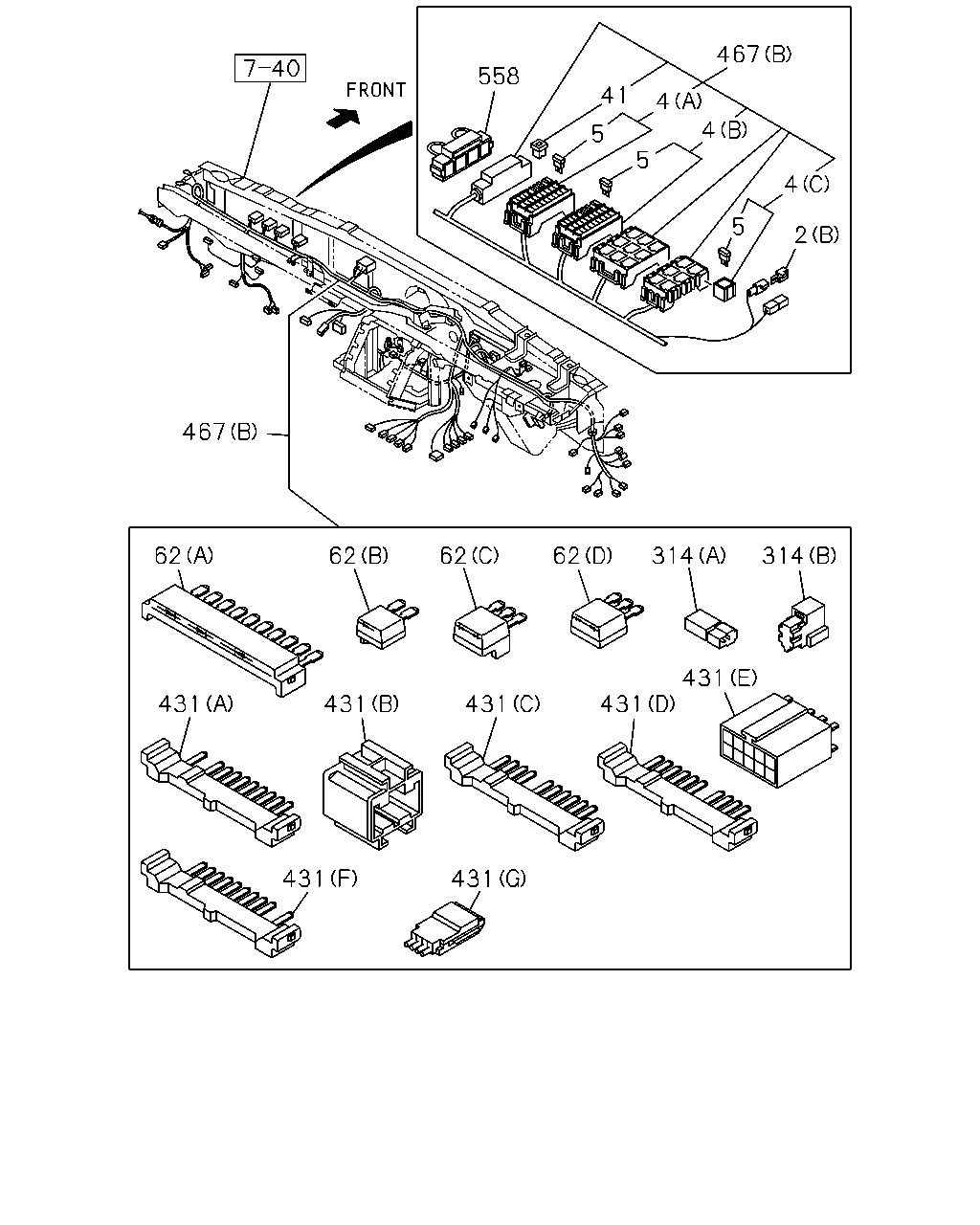

çizim 139652
467 558 41 4 4 5 5 4 5 2 467 62 62 62 62 314 314 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0610- ● ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0610- ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0610- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0610- ● ●
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0610- ● ●
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 0610- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 0610- ● ●
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0610- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 0610- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0610- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 0610- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0610- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0610- ● ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0610-0712 ● ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 02 1 0801- ● ●
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0610- ● ●
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 0610- ● ●
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 0610- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0610- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 0610- ● ●
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 0610- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 0610- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0610- ● ●
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 15 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-854-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-98119-511-0 01 1 0806-0905 ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98119-510-1 01 1 0806-0905 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-510-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),FACE LIFT<6NL> (B) 		8-97611-867-3 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806- ● ●
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) (B) 		8-97611-866-5 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97611-866-5 01 1 0806- ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> 4P 		1-82629-690-0 01 1 0610- ●
558 CONNECTOR; HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. SMOOTHER-G(C1W) 4P 		1-82629-690-0 01 1 0610- ●

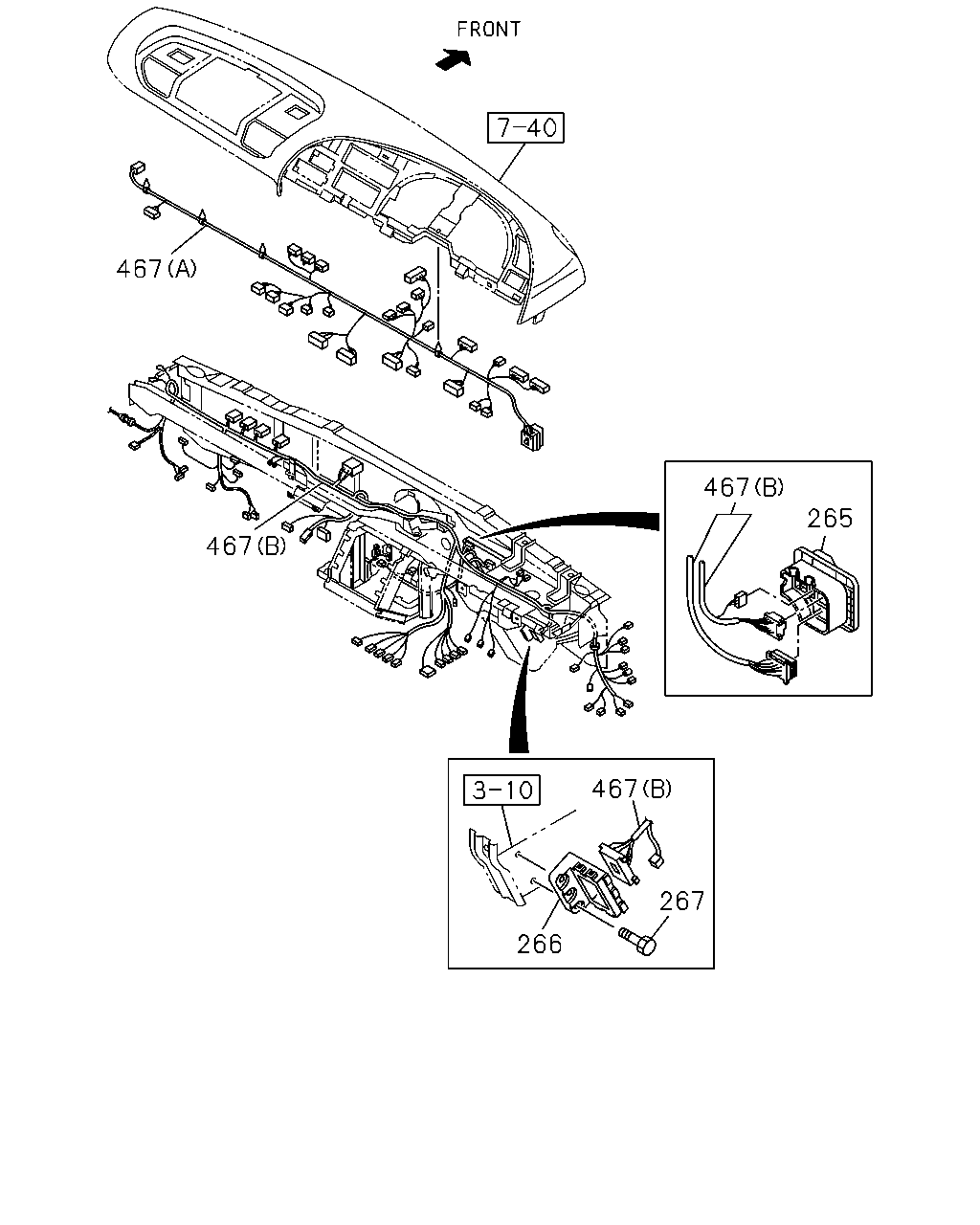

çizim 139653
467 467 265 467 467 267 266
BalonParca AdiParca NoAdetTipApplied Date A B
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0610- ● ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0610- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-854-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-98119-511-0 01 1 0806-0905 ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98119-510-1 01 1 0806-0905 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-510-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),FACE LIFT<6NL> (B) 		8-97611-867-3 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806- ● ●
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) (B) 		8-97611-866-5 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97611-866-5 01 1 0806- ●

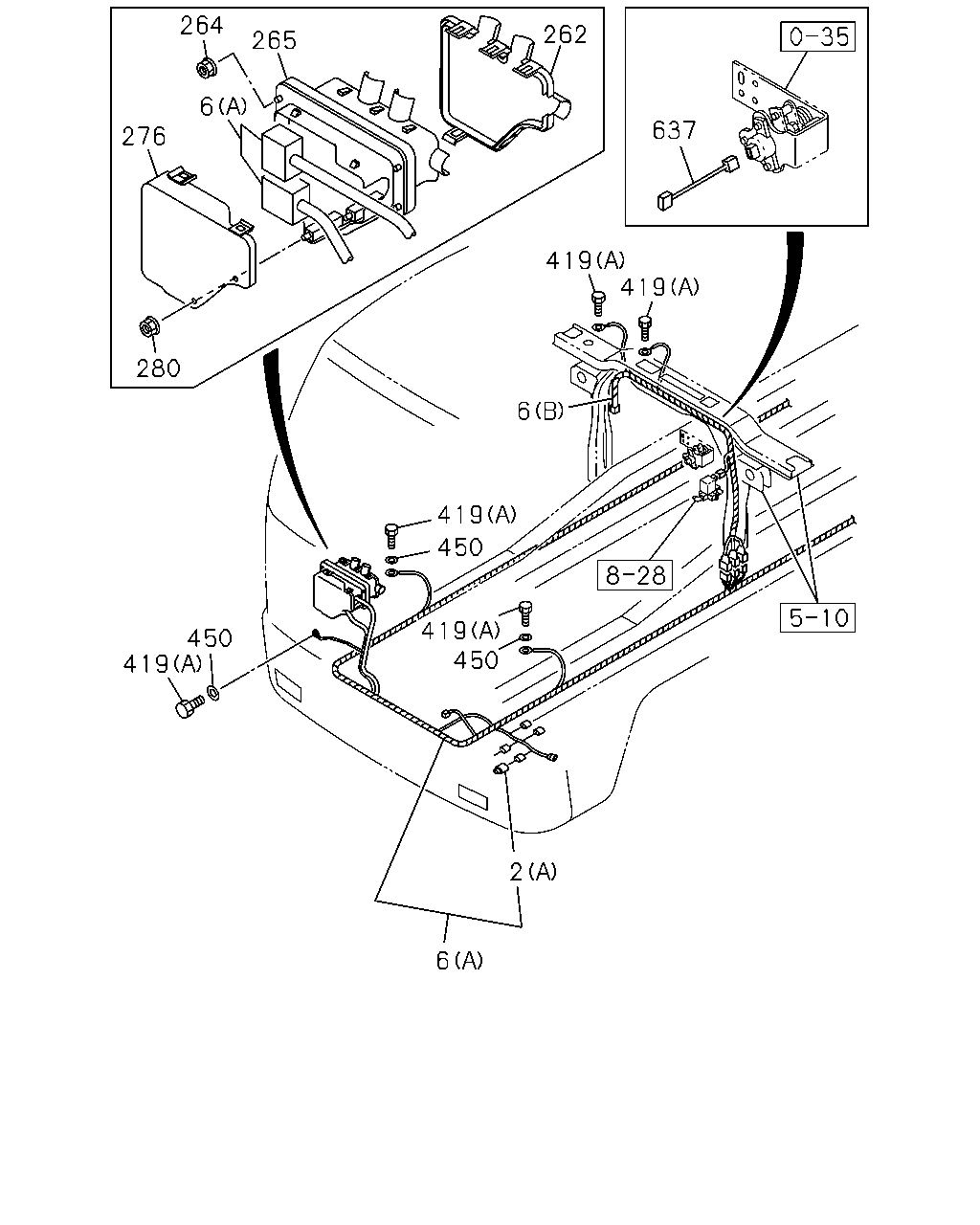

çizim 139660
264 262 265 6 637 276 419 419 280 6 419 450 419 450 450 419 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0610- ● ●
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0610- ● ●
6 HARNESS; FRAME
FACE LIFT<6NL> (A) 		8-97628-307-3 01 1 0806- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) FACE LIFT<6NL> (A) 		8-97628-311-2 01 1 0806- ●
6 HARNESS; FRAME
FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (A) 		8-97628-310-2 01 1 0806- ●
6 HARNESS; FRAME
(A) 		8-97613-289-4 01 1 0610-0805 ●
6 HARNESS; FRAME
EXC. FACE LIFT<6NL> (A) 		8-97613-289-4 01 1 0806- ●
6 HARNESS; FRAME
(B) 		8-97607-307-1 01 1 0610-0806 ● ●
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0807- ● ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97613-301-4 01 1 0610-0805 ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) EXC. FACE LIFT<6NL> (A) 		8-97613-301-4 01 1 0806- ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97611-790-5 01 1 0610-0805 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),FACE LIFT<6NL> (A) 		8-97611-790-5 01 1 0806- ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0610- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0610- ● ●
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0610- ● ●
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0610- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0808- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0610-0610 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0806-1201 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0806-0809 ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0610-0809 ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-0805 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0806-1201 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0610-0610 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0610- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0610- ● ●

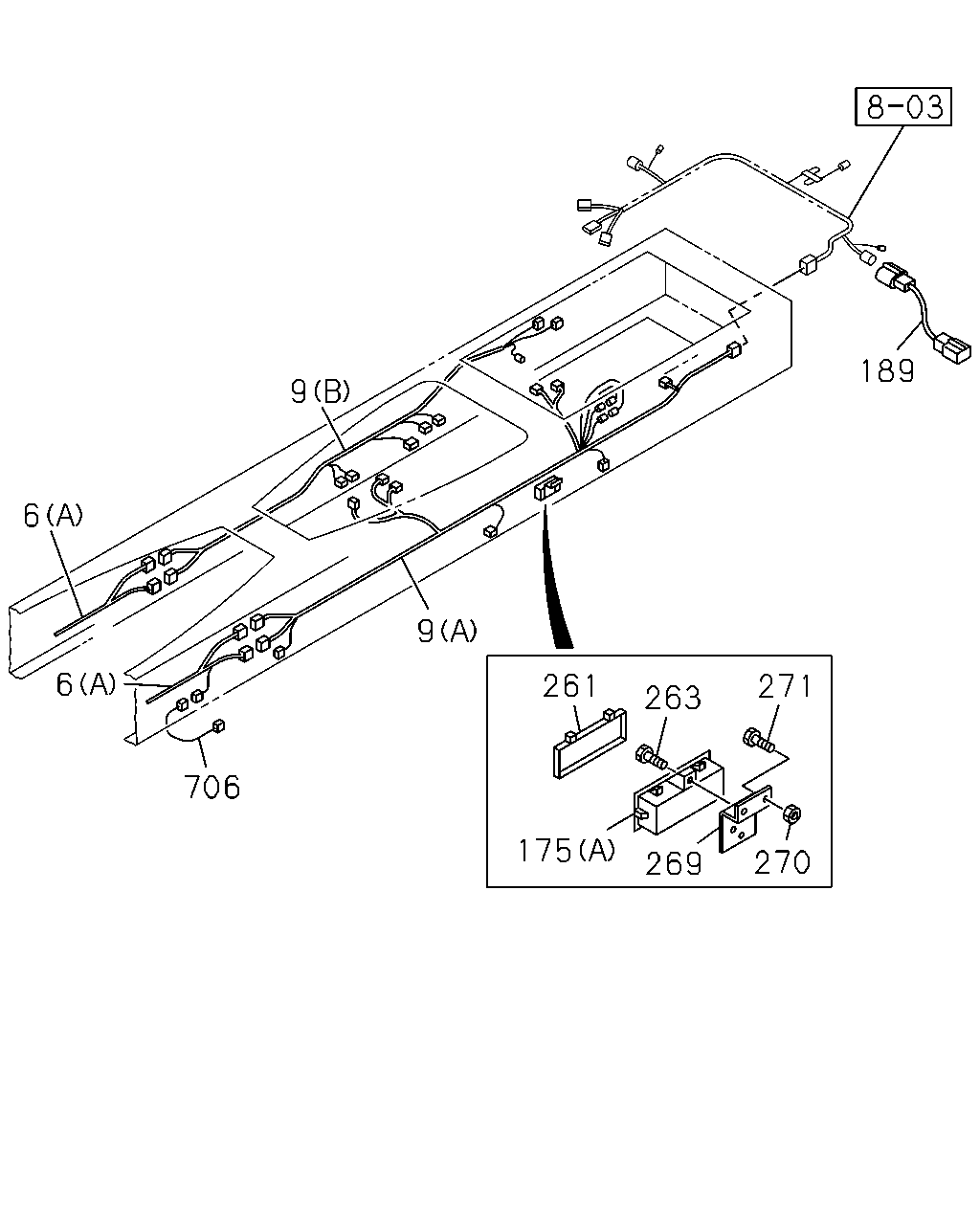

çizim 139661
9 189 9 6 6 706 175 261 269 263 271 270
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
FACE LIFT<6NL> (A) 		8-97628-307-3 01 1 0806- ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) FACE LIFT<6NL> (A) 		8-97628-311-2 01 1 0806- ●
6 HARNESS; FRAME
FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (A) 		8-97628-310-2 01 1 0806- ●
6 HARNESS; FRAME
(A) 		8-97613-289-4 01 1 0610-0805 ●
6 HARNESS; FRAME
EXC. FACE LIFT<6NL> (A) 		8-97613-289-4 01 1 0806- ●
6 HARNESS; FRAME
(B) 		8-97607-307-1 01 1 0610-0806 ● ●
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0807- ● ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-97613-301-4 01 1 0610-0805 ●
6 HARNESS; FRAME
SMOOTHER-G(C1W) EXC. FACE LIFT<6NL> (A) 		8-97613-301-4 01 1 0806- ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-97611-790-5 01 1 0610-0805 ●
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W),FACE LIFT<6NL> (A) 		8-97611-790-5 01 1 0806- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (A) 		1-82678-313-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (B) 		1-82678-316-2 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) (A) 		1-82678-234-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) (B) 		1-82678-235-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) (A) 		1-82678-314-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6100MM(61W) (B) 		1-82678-317-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (A) 		1-82678-315-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM(63W) (B) 		1-82678-318-0 01 1 0610- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (A) 		1-82678-200-1 01 1 0610-0610 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (B) 		8-97618-619-0 01 1 0611- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (B) 		1-82678-203-0 01 1 0610-0610 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (A) 		8-97618-620-0 01 1 0611- ●
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82699-467-0 01 1 0610- ● ●
175 BOX; CONNECTOR
SMOOTHER-G(C1W) (B) 		1-82569-435-1 01 1 0610- ●
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) 		8-97614-251-0 01 1 0610- ● ●
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 01 1 0610- ● ●
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0610- ● ●
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82698-424-0 01 1 0610- ● ●
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
271 BOLT; BRKT CONNECTOR BOX
M8X35 FLANGE 		0-28650-835-0 02 1 0610-1109 ● ●
271 BOLT; BRKT CONNECTOR BOX
WHEEL BASE 4900MM(49W) M8X35 FLANGE 		0-28650-835-0 02 1 1110- ●
271 BOLT; BRKT CONNECTOR BOX
M8X35 FLANGE 		0-28650-835-0 02 1 1110- ●
706 HARNESS; EXT,SEDIMENTER
WHEEL BASE 4900MM(49W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98153-282-0 01 1 0908- ●

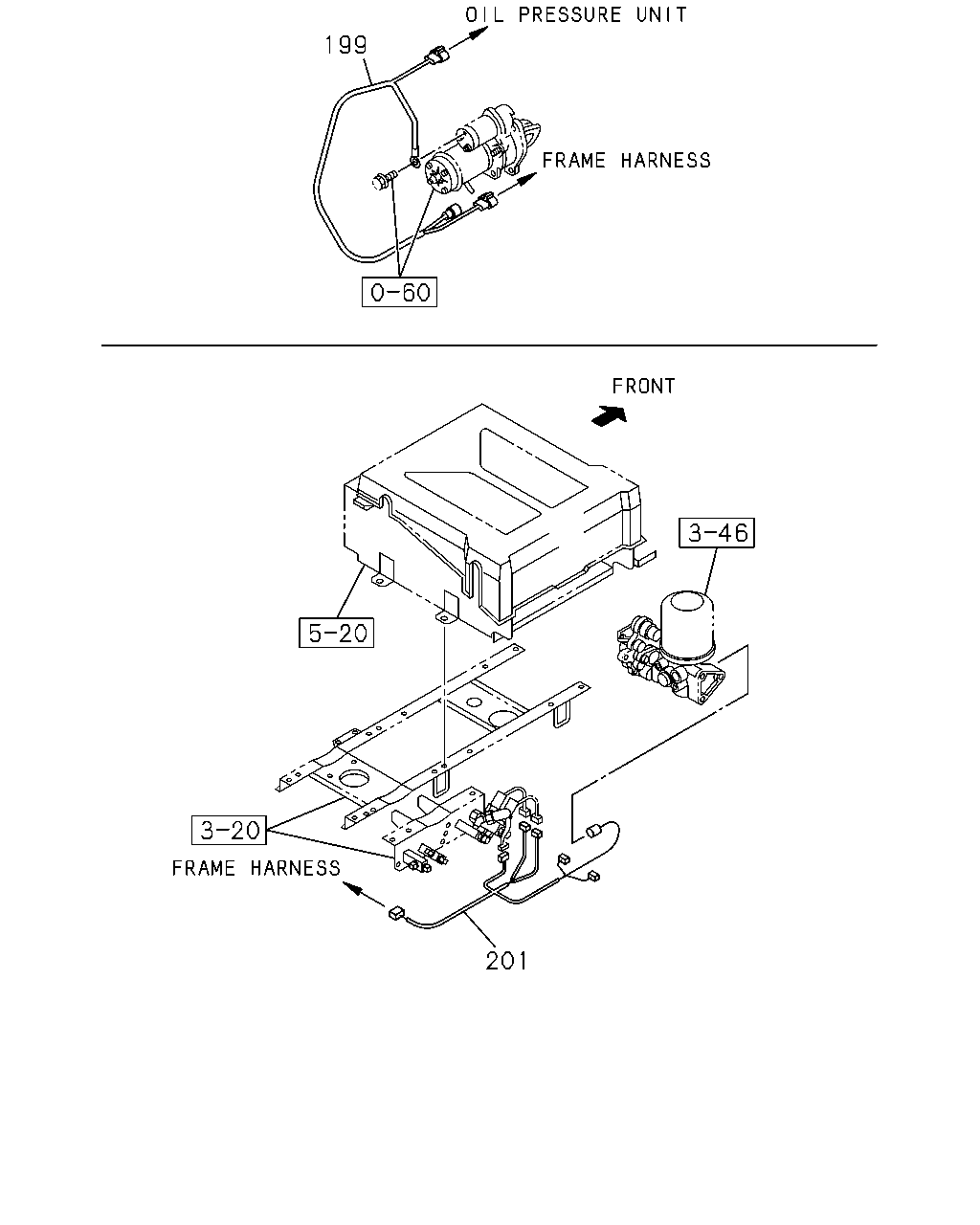

çizim 139662
199 201
BalonParca AdiParca NoAdetTipApplied Date A B
199 HARNESS; STARTER
MIXER TRUCK<RA2> 		8-97612-155-0 01 1 0610- ●
199 HARNESS; STARTER
EXC. MIXER TRUCK<RA2> 		8-97607-313-0 01 1 0610- ●
199 HARNESS; STARTER 8-97607-313-0 01 1 0610- ●
201 HARNESS; AIR TANK 8-97616-655-1 01 1 0610- ● ●

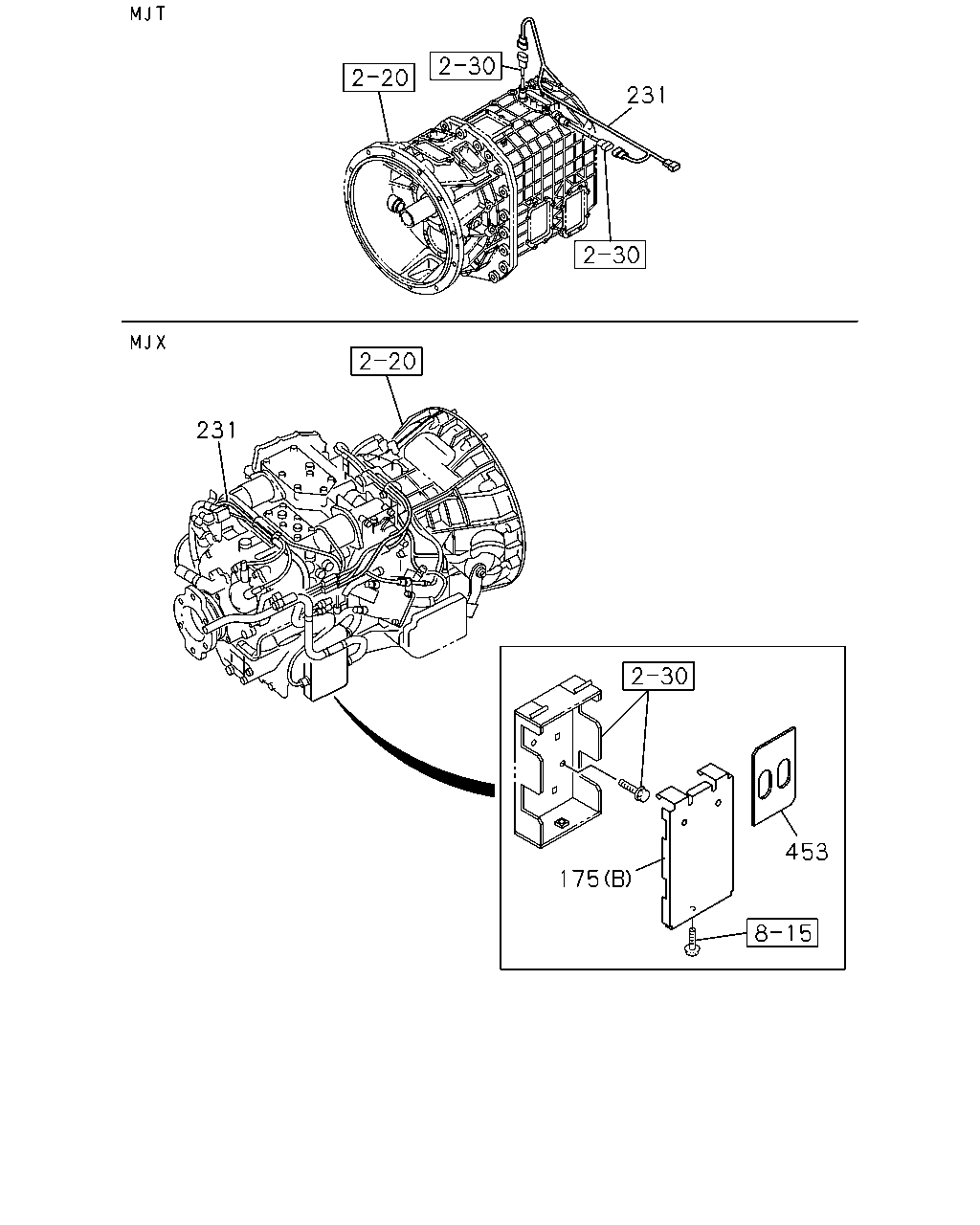

çizim 139664
231 231 175 453
BalonParca AdiParca NoAdetTipApplied Date A B
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82699-467-0 01 1 0610- ● ●
175 BOX; CONNECTOR
SMOOTHER-G(C1W) (B) 		1-82569-435-1 01 1 0610- ●
231 HARNESS; TRANS
SMOOTHER-G(C1W) 		8-97614-423-2 01 1 0610- ●
231 HARNESS; TRANS 1-82676-366-4 01 1 0610-0610 ●
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		1-82676-366-4 01 1 0610-0610 ●
231 HARNESS; TRANS 8-97615-725-1 01 1 0610- ●
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 0610- ●
453 PROTECTOR; HARNESS
MJX12P M/T SMOOTHER-G(Y4S) 		8-98213-847-1 01 1 1207- ●

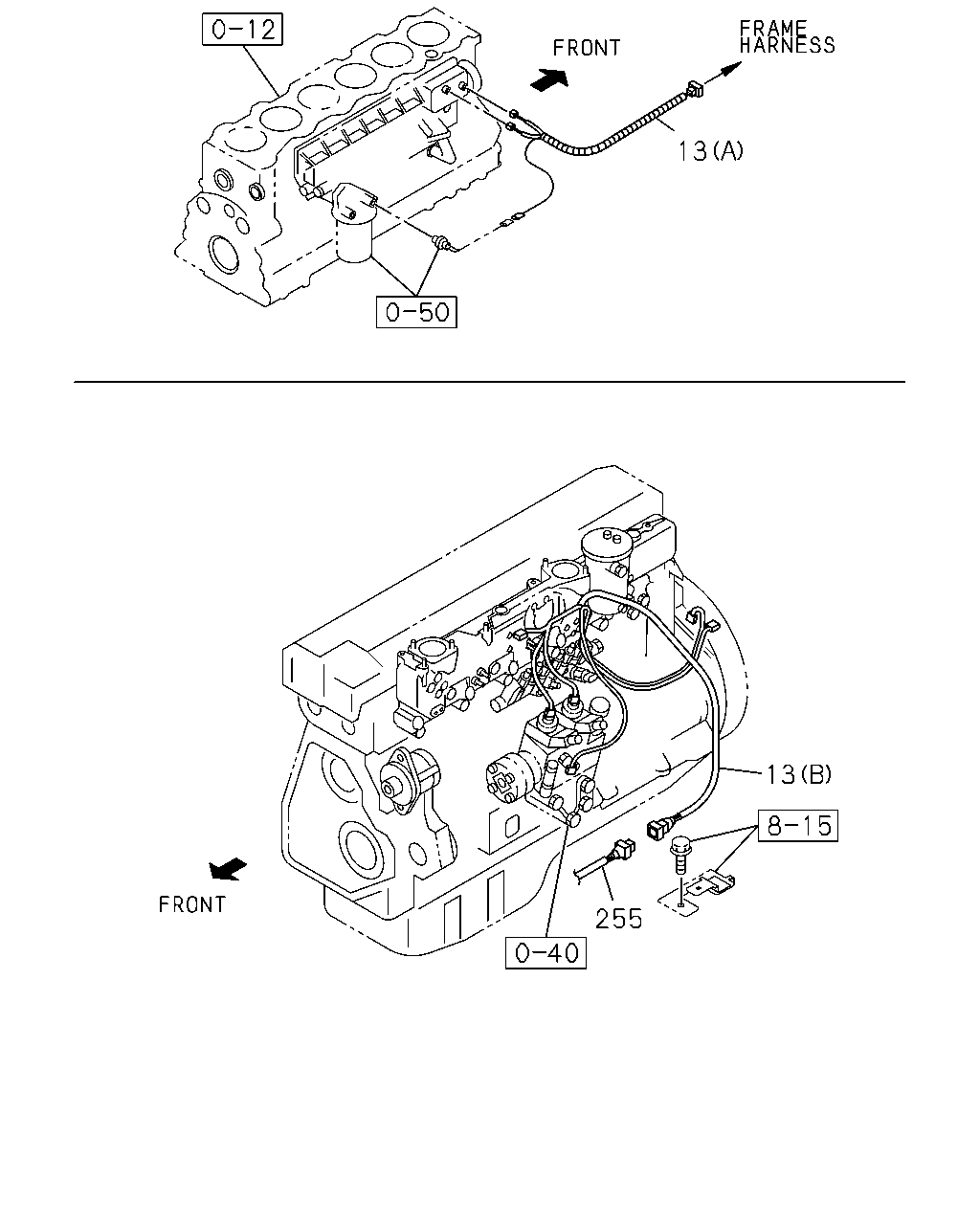

çizim 139666
13 13 255
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0610- ● ●
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0610-0703 ● ●
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0704- ● ●
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0610-1210 ● ●
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211- ● ●

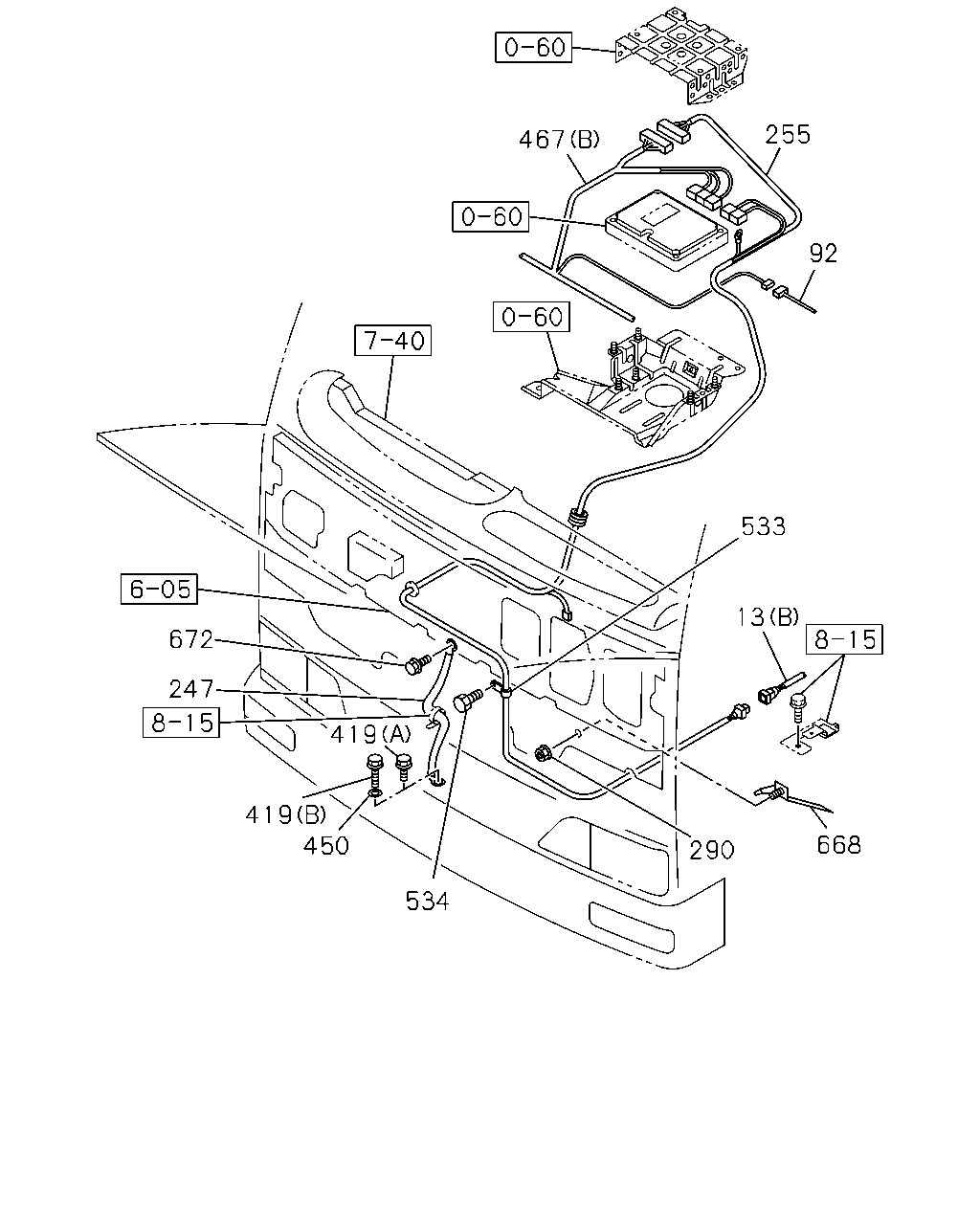

çizim 139674
533 13 668 290 534 450 419 247 672 419 92 255 467
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0610- ● ●
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0610-0703 ● ●
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0704- ● ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-871-1 01 1 0610- ●
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) EXC. SMOOTHER-G(C1W) 		8-97611-871-1 01 1 0610- ●
92 HARNESS; FLOOR 8-97611-874-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97611-874-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610- ●
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W),SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-870-1 01 1 0610- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97611-875-2 01 1 0610-1212 ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98230-774-0 01 1 1301- ●
92 HARNESS; FLOOR
SMOOTHER-G(C1W) SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97611-872-1 01 1 0610- ●
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0610- ● ●
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0610-1210 ● ●
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211- ● ●
290 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0806-1201 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202- ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0806-0809 ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201 ● ●
419 BOLT; CAB EARTH
EXC. FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0610-0809 ● ●
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201 ● ●
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0610-0805 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0806-1201 ● ●
419 BOLT; CAB EARTH
FACE LIFT<6NL> (A) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ●
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0610-0610 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-97633-855-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> (B) 		8-97633-854-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W) (B) 		8-98119-511-0 01 1 0806-0905 ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-511-0 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) FACE LIFT<6NL> EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-98119-512-0 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> (B) 		8-98119-510-1 01 1 0806-0905 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		8-98119-510-1 01 1 0906- ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W) (B) 		8-97611-867-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) BRAKE SYSTEM HSA<SLD> AIR BAG(TFQ) EXC. SMOOTHER-G(C1W),FACE LIFT<6NL> (B) 		8-97611-867-3 01 1 0806- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ) (B) 		8-97611-868-3 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) ENGINE CONTROL-B2(Q4T) EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>,AIR BAG(TFQ),FACE LIFT<6NL> (B) 		8-97611-868-3 01 1 0806- ● ●
467 HARNESS; FACIA
(A) 		8-97611-863-2 01 1 0610- ● ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) (B) 		8-97611-866-5 01 1 0610-0805 ●
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) AIR BAG(TFQ) EXC. FACE LIFT<6NL> (B) 		8-97611-866-5 01 1 0806- ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 0610- ●
533 CLIP
EXC. SMOOTHER-G(C1W) ID=31 L=35 		1-09700-329-1 01 1 0610- ●
533 CLIP
SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 0610- ●
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0610- ● ●
668 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82698-415-1 01 1 0610- ● ●
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0610-1309 ● ●
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310- ● ●
çizim 139720
186
BalonParca AdiParca NoAdetTipApplied Date A B
186 HARNESS; FUEL TANK
WHEEL BASE 6300MM(63W) 		1-82671-596-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
