8-03 — LAMP; REAR AND REAR SIDE (#27957) — 70 parça

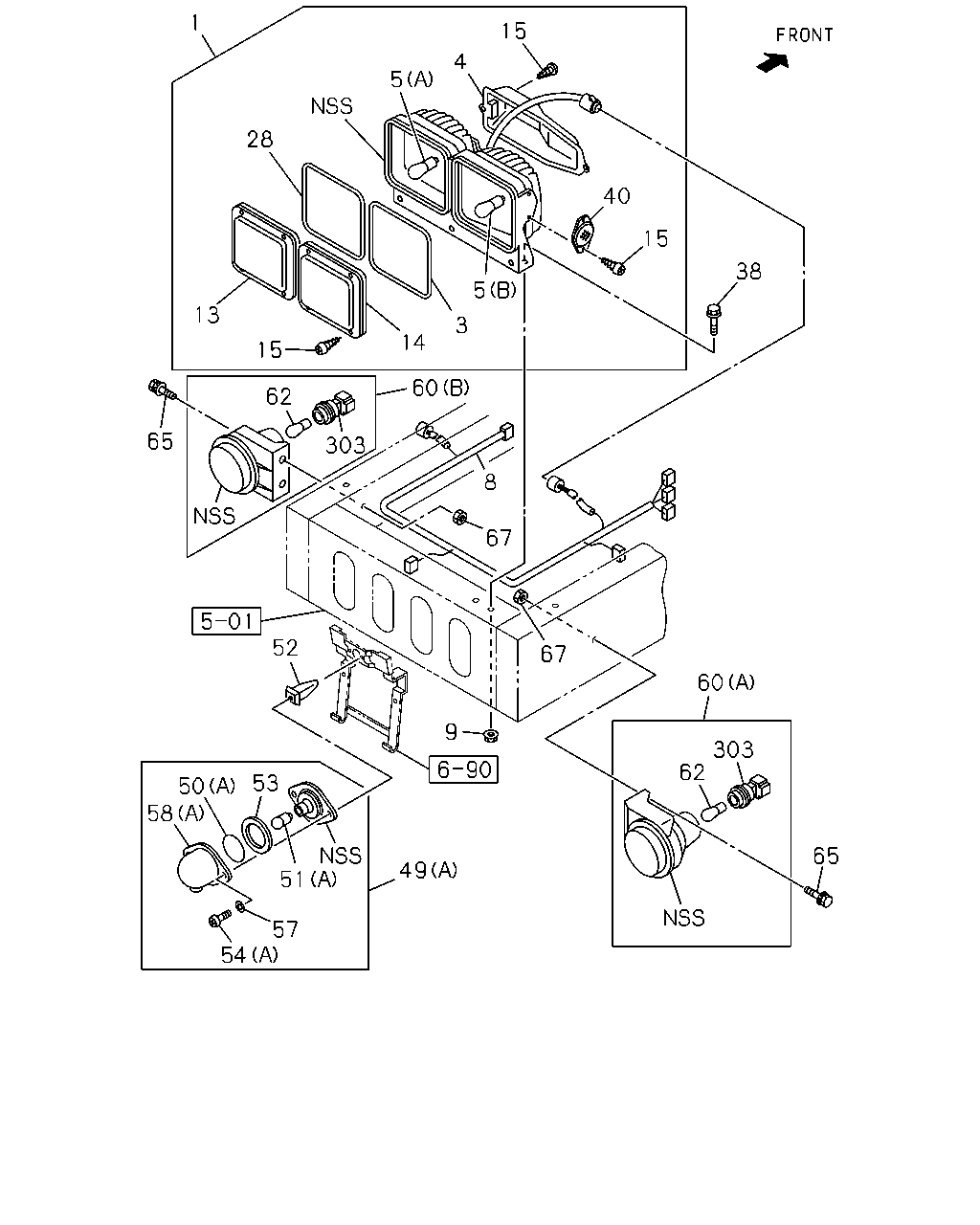

28 13 65 62 15 50 58 52 53 51 57 54 49 9 67 8 60 303 14 3 5 15 40 38 15 4 67 60 62 65 303 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB TAIL & STOP LAMPS<TR1>	1-82230-203-6	01	1	0610-	●	●
1	LAMP ASM; RR COMB TAIL & STOP LAMPS<TR1>	1-82230-204-5	01	1	0610-	●	●
3	GASKET; RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82236-008-0	02	1	0610-	●	●
4	COVER; RR,RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82239-011-0	02	1	0610-	●	●
5	BULB; RR COMB LAMP TAIL & STOP LAMPS<TR1> (A) 24V 21W	1-82194-108-0	02	1	0610-	●	●
5	BULB; RR COMB LAMP TAIL & STOP LAMPS<TR1> (B) 24V 21/5W	1-82194-109-0	02	1	0610-	●	●
8	HARNESS; RR COMB LAMP	1-82678-270-3	01	1	0610-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5300MM(53W)	1-82678-270-3	01	1	0610-		●
8	HARNESS; RR COMB LAMP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)	1-82678-271-2	01	1	0610-		●
9	NUT; LAMP,RR COMB TAIL & STOP LAMPS<TR1> M8 FLANGE	0-91180-108-0	02	1	0610-	●	●
13	LENS; TURN SIGNAL TAIL & STOP LAMPS<TR1>	1-82235-036-0	02	1	0610-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82235-035-0	02	1	0610-	●	●
15	SCREW; RR COMB LAMP TAIL & STOP LAMPS<TR1>	1-82239-012-0	26	1	0610-	●	●
28	GASKET; TURN,LAMP TAIL & STOP LAMPS<TR1>	1-82236-008-0	02	1	0610-	●	●
38	BOLT; LAMP,RR COMB TAIL & STOP LAMPS<TR1> M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0610-	●	●
40	REFLECTOR; REFLEX TAIL & STOP LAMPS<TR1>	8-97608-772-0	02	1	0610-	●	●
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-97105-380-0	02	1	0906-1509	●	●
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-98329-430-0	02	1	1510-	●	●
49	LAMP; LICENSE PLATE (A)	1-82120-020-1	01	1	0610-0905	●	●
49	LAMP; LICENSE PLATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82120-020-1	01	1	0906-	●	●
50	LENS; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97108-212-0	02	1	0906-	●	●
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	0610-0905	●	●
50	LENS; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82235-006-0	01	1	0906-	●	●
51	BULB; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	1-82194-039-0	02	1	0906-	●	●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-030-0	01	1	0610-0905	●	●
51	BULB; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W	1-82194-030-0	01	1	0906-	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0610-0905	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0906-	●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0610-0905	●	●
53	GASKET; LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-82126-005-0	01	1	0906-	●	●
54	SCREW; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8	8-94419-312-0	02	1	0906-	●	●
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	0610-0905	●	●
54	SCREW; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20	1-82129-007-0	02	1	0906-	●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0610-0905	●	●
57	WASHER; PL,LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-82129-008-0	02	1	0906-	●	●
58	COVER; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97076-590-1	02	1	0906-	●	●
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	0610-0905	●	●
58	COVER; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82129-005-0	01	1	0906-	●	●
60	LAMP; BACKUP TAIL & STOP LAMPS<TR1> (A)	1-82130-025-0	01	1	0610-	●	●
60	LAMP; BACKUP TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) (B)	1-82130-026-0	01	1	0610-	●	●
62	BULB; BACKUP LAMP TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) 24V 21W	1-82194-104-0	01	1	0610-	●	●
62	BULB; BACKUP LAMP TAIL & STOP LAMPS<TR1> 24V 21W	1-82194-104-0	01	1	0610-	●	●
65	BOLT; LAMP,BACKUP TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) M10X35 W/LK&PL WASHER	0-50641-035-0	04	1	0610-	●	●
65	BOLT; LAMP,BACKUP TAIL & STOP LAMPS<TR1> EXC. SINGAPORE EQUIPMENT(WQ3) M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0610-	●	●
67	NUT; FLANGE TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3) M10 FLANGE	0-91180-210-0	04	1	0610-	●	●
67	NUT; FLANGE TAIL & STOP LAMPS<TR1> EXC. SINGAPORE EQUIPMENT(WQ3) M10 FLANGE	0-91180-210-0	02	1	0610-	●	●
303	SOCKET ASM; BACKUP LAMP TAIL & STOP LAMPS<TR1> SINGAPORE EQUIPMENT(WQ3)	1-82135-006-0	01	1	0610-	●	●
303	SOCKET ASM; BACKUP LAMP TAIL & STOP LAMPS<TR1>	1-82135-006-0	01	1	0610-	●	●

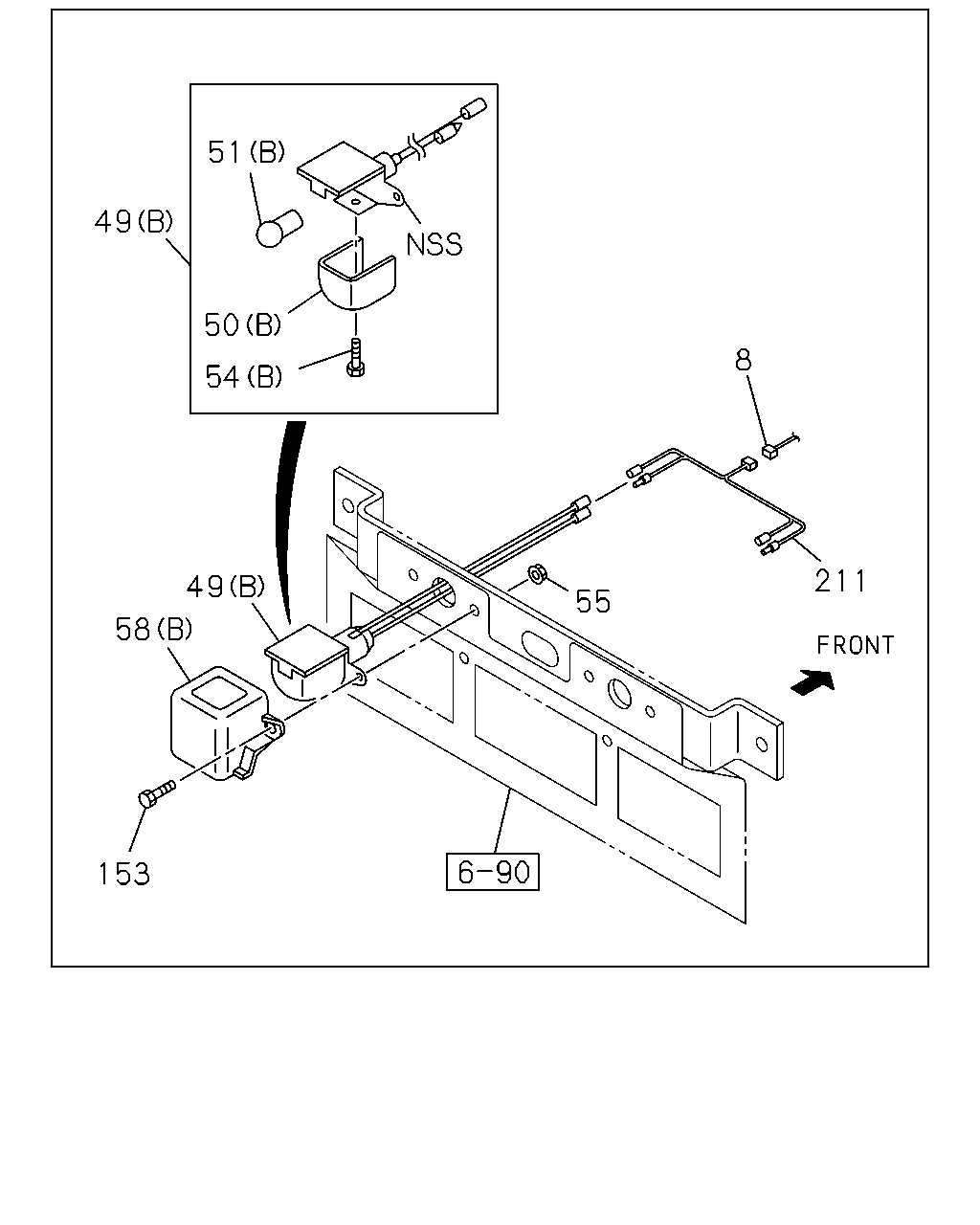

51 49 50 8 54 211 49 55 58 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; RR COMB LAMP	1-82678-270-3	01	1	0610-	●
8	HARNESS; RR COMB LAMP WHEEL BASE 5300MM(53W)	1-82678-270-3	01	1	0610-		●
8	HARNESS; RR COMB LAMP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W)	1-82678-271-2	01	1	0610-		●
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-97105-380-0	02	1	0906-1509	●	●
49	LAMP; LICENSE PLATE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	8-98329-430-0	02	1	1510-	●	●
49	LAMP; LICENSE PLATE (A)	1-82120-020-1	01	1	0610-0905	●	●
49	LAMP; LICENSE PLATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82120-020-1	01	1	0906-	●	●
50	LENS; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97108-212-0	02	1	0906-	●	●
50	LENS; LICENSE PLATE LAMP (A)	1-82235-006-0	01	1	0610-0905	●	●
50	LENS; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82235-006-0	01	1	0906-	●	●
51	BULB; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 24V 5W	1-82194-039-0	02	1	0906-	●	●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-030-0	01	1	0610-0905	●	●
51	BULB; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 24V 12W	1-82194-030-0	01	1	0906-	●	●
54	SCREW; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) M4X8	8-94419-312-0	02	1	0906-	●	●
54	SCREW; LICENSE PLATE LAMP (A) M5X20	1-82129-007-0	02	1	0610-0905	●	●
54	SCREW; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) M5X20	1-82129-007-0	02	1	0906-	●	●
55	NUT; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5 FLANGE	8-94153-039-0	04	1	0906-1111	●	●
58	COVER; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-97076-590-1	02	1	0906-	●	●
58	COVER; LICENSE PLATE LAMP (A)	1-82129-005-0	01	1	0610-0905	●	●
58	COVER; LICENSE PLATE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-82129-005-0	01	1	0906-	●	●
153	BOLT; LICENSE PLATE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5X20	9-93490-520-0	04	1	0906-	●	●
211	HARNESS; EXT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98131-066-0	01	1	0906-	●	●
