◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#27953) — 487 parça

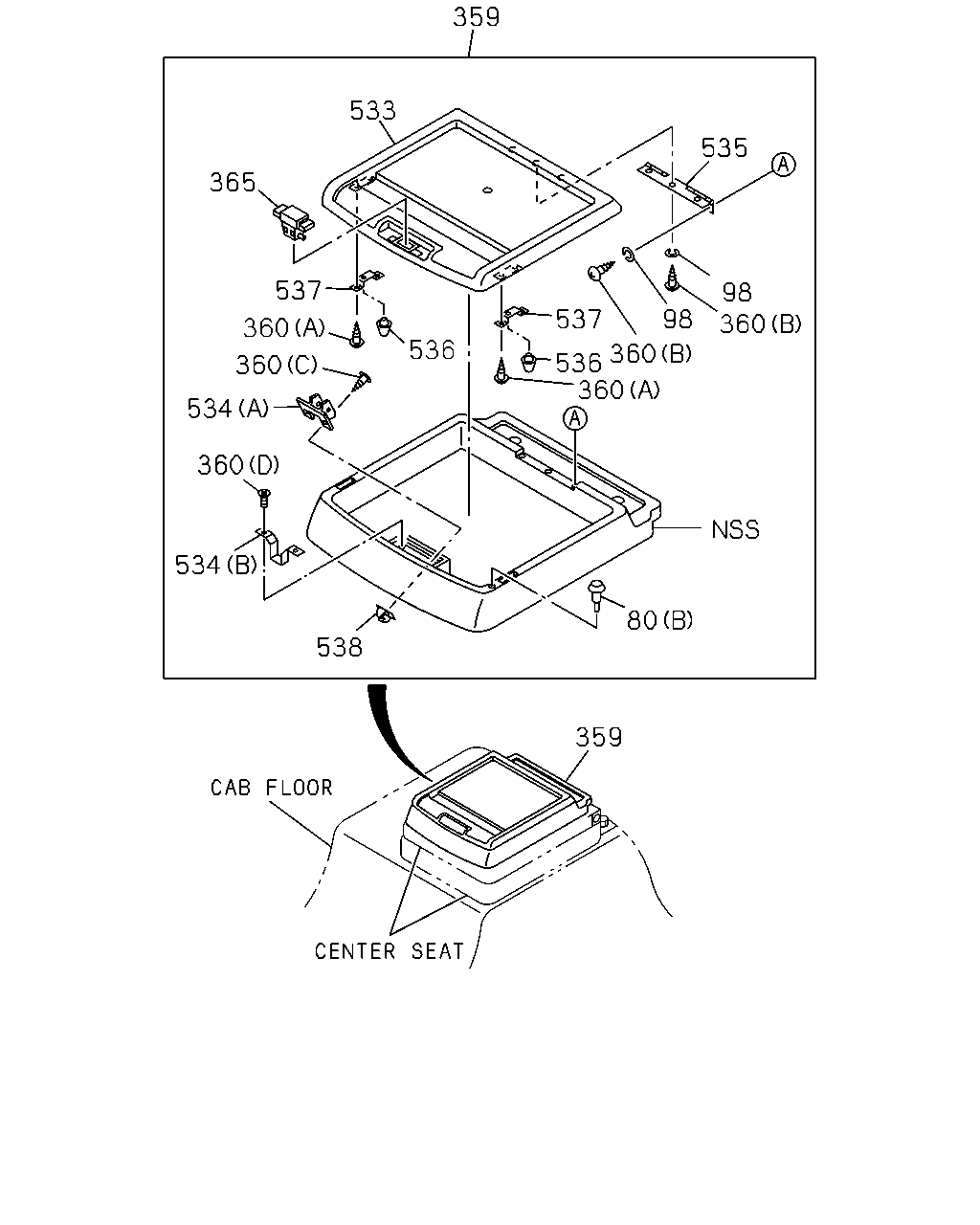

çizim 139654
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-185-0 01 1 0806-1009 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-091-0 01 1 1010- ● ●
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 0610- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0610-0805 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-148-1 01 1 0806- ● ●
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610- ● ●
98 WASHER; HINGE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0610- ● ●
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006 ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (B) M4X16 		0-70080-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
365 LOCK ASM; SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-180-0 01 1 0610- ● ●
533 LID; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-277-1 01 1 0610-1006 ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0610-1006 ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1007- ● ●
535 HINGE; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72447-391-1 01 1 0610- ● ●
536 RUBBER; CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		5-09983-002-1 02 1 0610-1006 ● ●
537 BRACKET; RUBBER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72548-057-1 02 1 0610-1006 ● ●
538 GROMMET; SCREW
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-09983-165-0 02 1 0610-1006 ● ●

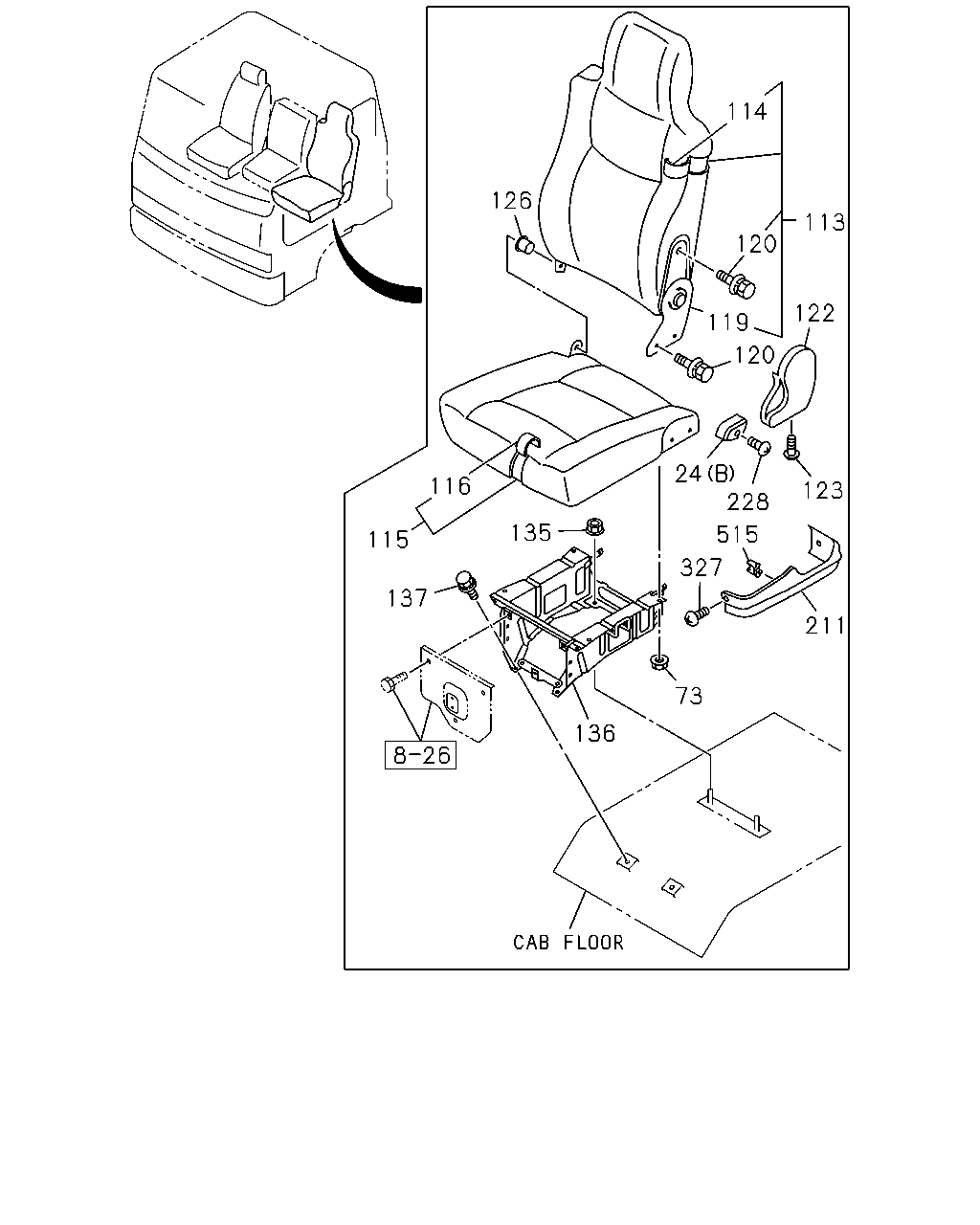

çizim 140023
114 126 113 120 122 119 120 24 228 116 123 135 515 115 327 137 211 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) 		1-75418-067-0 01 1 1012- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1012- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 0711-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 0806- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806- ● ●
73 NUT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 0610- ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-759-0 01 1 0806-1009 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-280-0 01 1 1010- ● ●
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-652-2 01 1 0610- ● ●
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-597-2 01 1 0610-0805 ● ●
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-597-2 01 1 0806-1011 ● ●
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-273-0 01 1 1012- ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75207-651-3 01 1 0610-0805 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75207-651-3 01 1 0806-1011 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-274-0 01 1 1012- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-189-0 01 1 0806-1009 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-295-0 01 1 1010- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75127-171-1 01 1 0610- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-152-2 01 1 0610-0805 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-152-2 01 1 0806-1011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-286-0 01 1 1012- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75127-170-2 01 1 0610-0805 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75127-170-2 01 1 0806-1011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-290-0 01 1 1012- ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-771-0 01 1 0806-1009 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-131-0 01 1 1010- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-300-0 01 1 0610- ● ●
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-596-2 01 1 0610-0805 ● ●
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-596-2 01 1 0806-1011 ● ●
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-124-0 01 1 1012- ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75207-641-2 01 1 0610-0805 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75207-641-2 01 1 0806-1011 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-126-0 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-188-0 01 1 0806-1009 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-270-0 01 1 1010- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-124-0 01 1 0610- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-151-2 01 1 0610-0805 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-151-2 01 1 0806-1011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-134-0 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75157-161-2 01 1 0610-0805 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75157-161-2 01 1 0806-1011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-139-0 01 1 1012- ● ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75417-597-0 01 1 0610-0805 ● ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75417-597-0 01 1 0806- ● ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75417-597-0 01 1 0806- ● ●
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0610-0805 ● ●
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0610-0805 ● ●
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0806- ● ●
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806- ● ●
120 BOLT; RECLINING ADJ
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 04 1 0610-0805 ● ●
120 BOLT; RECLINING ADJ
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8X20 		8-97255-906-0 04 1 0806- ● ●
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> M8X20 		8-97255-906-0 04 1 0806- ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 0610-0805 ● ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-018-0 01 1 0610-0805 ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 0806- ● ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DARK GRAY 		8-97859-018-0 01 1 0806- ● ●
122 COVER; ADJ,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75417-598-0 01 1 0610-0805 ● ●
122 COVER; ADJ,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75417-598-0 01 1 0806- ● ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75417-598-0 01 1 0806- ● ●
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805 ● ●
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805 ● ●
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806- ● ●
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806- ● ●
123 SCREW; COVER,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) M6X12 		9-03490-612-0 01 1 0610-0805 ● ●
123 SCREW; COVER,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M6X12 		9-03490-612-0 01 1 0806- ● ●
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> M6X12 		9-03490-612-0 01 1 0806- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 0610- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0610-0703 ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75558-522-8 01 1 0806-1305 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98242-290-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75558-602-3 01 1 0610-0805 ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		1-75558-602-3 01 1 0806-1305 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75558-602-3 01 1 0806-1305 ● ●
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		8-98242-299-0 01 1 1306- ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98242-299-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703 ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
211 COVER; FRT SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-72538-274-0 01 1 0610-0805 ● ●
211 COVER; FRT SEAT
VINYL SEAT(A83) 		1-72538-274-0 01 1 0806- ● ●
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-72538-274-0 01 1 0806- ● ●
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1012- ● ●
327 CLIP; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805 ● ●
327 CLIP; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805 ● ●
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
515 CLIP; PIPE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) BLACK 		8-94227-248-1 01 1 0610-0805 ● ●
515 CLIP; PIPE
VINYL SEAT(A83) BLACK 		8-94227-248-1 01 1 0806- ● ●
515 CLIP; PIPE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> BLACK 		8-94227-248-1 01 1 0806- ● ●

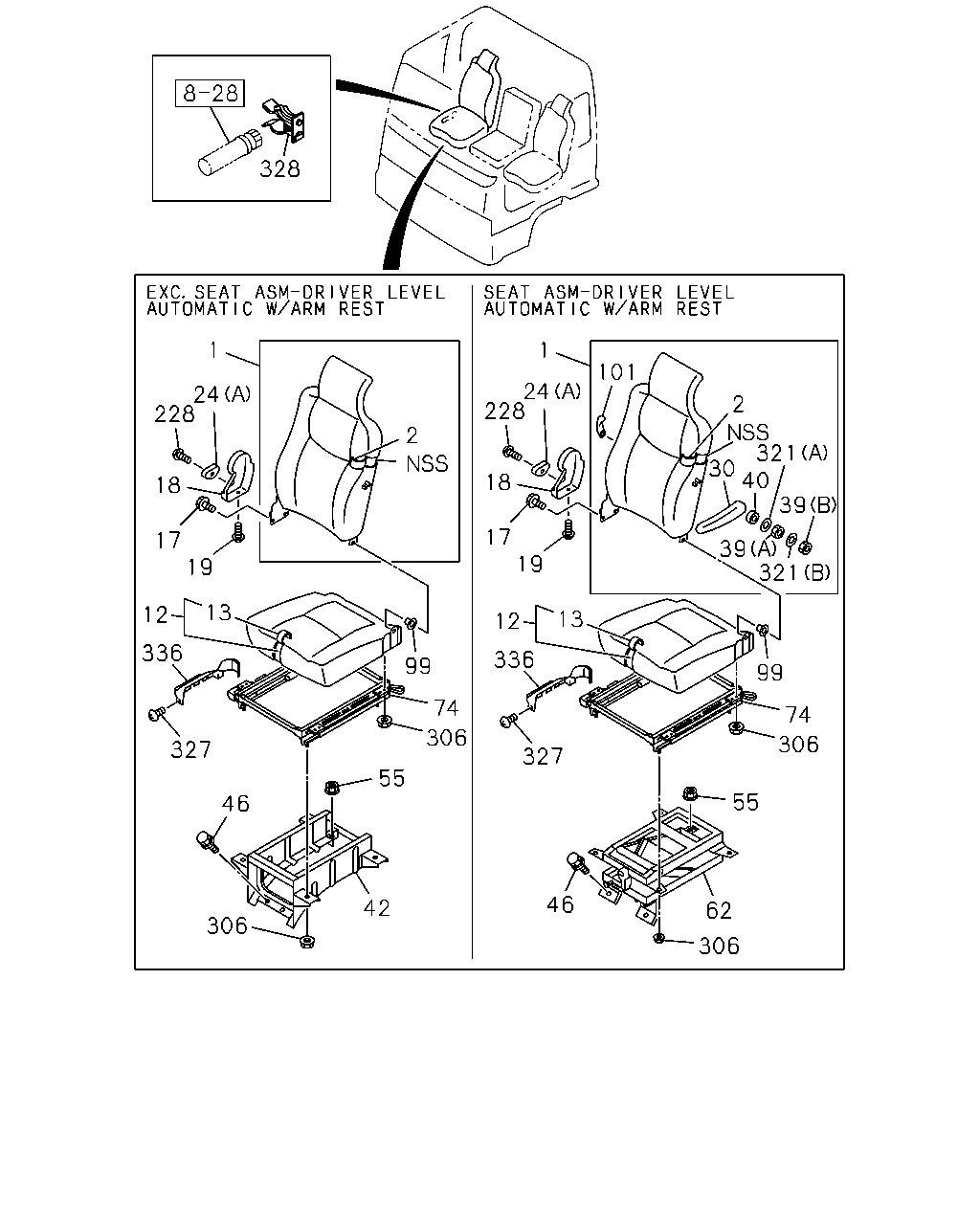

çizim 140027
328 1 24 228 2 18 17 19 13 12 336 327 46 55 306 74 99 18 228 24 1 101 2 321 30 40 39 39 321 99 74 306 55 62 306 46 327 336 13 12 19 17 42 306
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-756-0 01 1 0806-0901 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98135-639-0 01 1 0902-1009 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-072-0 01 1 1010- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-587-3 01 1 0610-0901 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-630-0 01 1 0902- ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-646-2 01 1 0610-0901 ● ●
1 BACK ASM; SEAT
VINYL SEAT(A83) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-635-0 01 1 0902- ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0610-0805 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75207-586-3 01 1 0806-0901 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98135-629-0 01 1 0902-1011 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-067-0 01 1 1012- ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-647-3 01 1 0610-0805 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75207-647-3 01 1 0806-0901 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98135-636-0 01 1 0902-1011 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-064-0 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-187-0 01 1 0806-1009 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-089-0 01 1 1010- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-146-2 01 1 0610- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-165-1 01 1 0610- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0610-0805 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-145-2 01 1 0806-1011 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-082-0 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-166-2 01 1 0610-0805 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75127-166-2 01 1 0806-1011 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-083-0 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-770-0 01 1 0806-1009 ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-048-0 01 1 1010- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 0610- ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-584-4 01 1 0610-0805 ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-584-4 01 1 0806-1011 ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-042-0 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-186-0 01 1 0806-1009 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-081-0 01 1 1010- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 0610- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-143-3 01 1 0610-0805 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-143-3 01 1 0806-1011 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-074-0 01 1 1012- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 0610-0805 ● ●
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806- ● ●
17 BOLT; RECLINING
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0806- ● ●
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806- ● ●
18 COVER; RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97867-020-0 01 1 0610-0805 ● ●
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DARK GRAY 		8-97867-020-0 01 1 0806- ● ●
18 COVER; RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97867-020-0 01 1 0806- ● ●
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DARK GRAY 		8-97867-020-0 01 1 0806- ● ●
19 SCREW; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805 ● ●
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806- ● ●
19 SCREW; COVER
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806- ● ●
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) 		1-75418-067-0 01 1 1012- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1012- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710 ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 0711-0805 ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) 		1-75418-066-0 01 1 0806- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-185-0 01 1 0806-1009 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-091-0 01 1 1010- ● ●
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 0610- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0610-0805 ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-148-1 01 1 0806- ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0610- ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0610- ● ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0610- ● ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-1 01 1 0610-0805 ● ●
42 STAND; DRIVER SEAT
VINYL SEAT(A83) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-2 01 1 0806- ● ●
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75558-604-2 01 1 0806- ● ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703 ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0610-0703 ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403 ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-330-2 01 1 0610-0805 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-644-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) 		8-98291-644-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-644-0 01 1 1503- ● ●
99 BUSHING; SEAT BACK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 0610-0805 ● ●
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-97854-087-0 01 1 0806- ● ●
99 BUSHING; SEAT BACK
VINYL SEAT(A83) 		8-97854-087-0 01 1 0806- ● ●
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-97854-087-0 01 1 0806- ● ●
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0610-0901 ● ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		5-75190-138-0 01 1 0902- ● ●
101 LEVER ASM; LUMBAR
VINYL SEAT(A83) 		5-75190-138-0 01 1 0902- ● ●
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		5-75190-138-0 01 1 0902- ● ●
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
VINYL SEAT(A83) DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011 ● ●
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1012- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0610-0805 ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0610- ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0610- ● ●
327 CLIP; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805 ● ●
327 CLIP; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805 ● ●
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806- ● ●
328 CLIP; HANDY WARNING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 0610- ● ●
336 COVER; DRIVER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-303-0 01 1 0610-0805 ● ●
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-303-0 01 1 0806- ● ●
336 COVER; DRIVER SEAT
VINYL SEAT(A83) 		1-75518-303-0 01 1 0806- ● ●
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-303-0 01 1 0806- ● ●

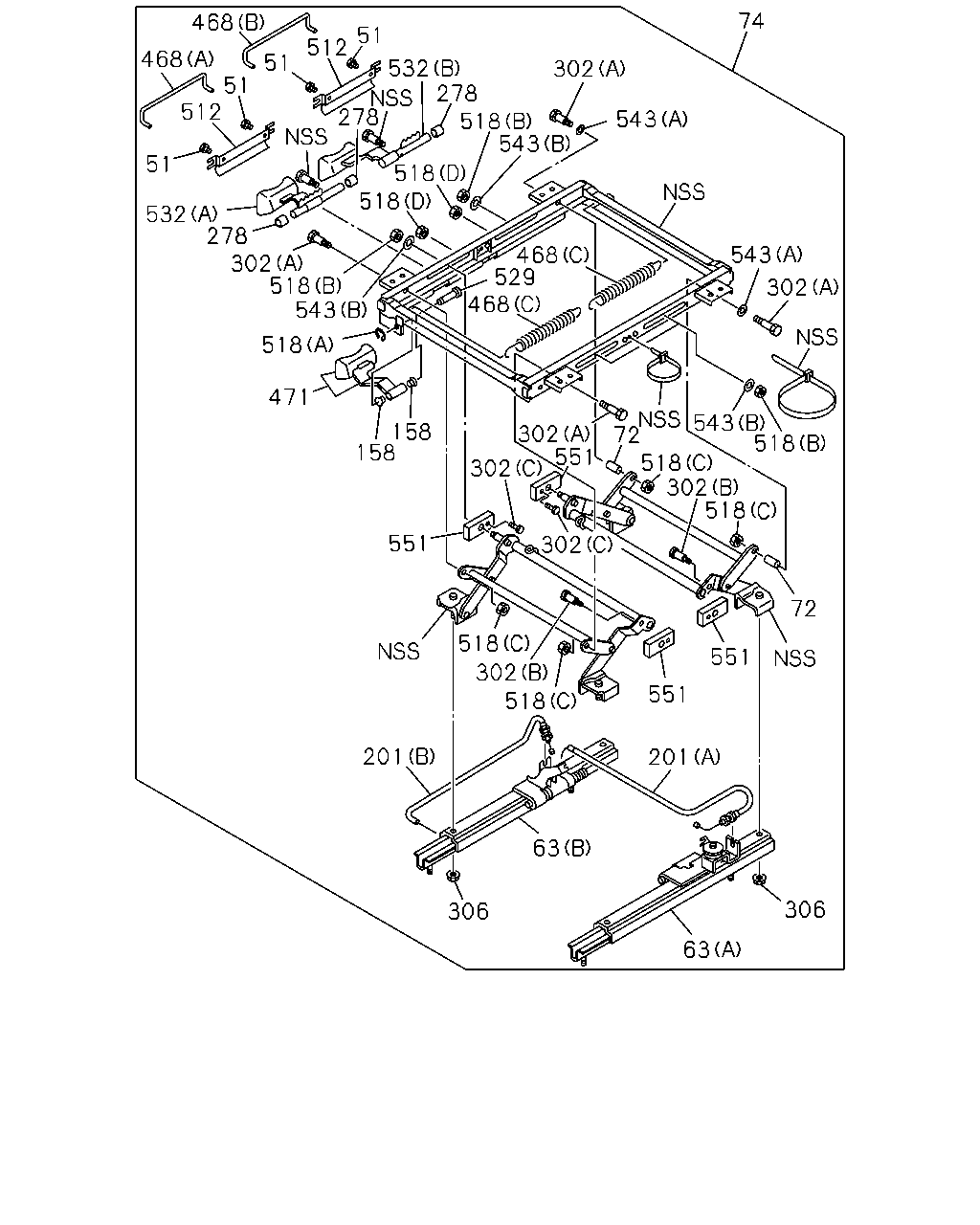

çizim 140030
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 471 551 518 302 543 518 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-325-1 04 1 0610-0805 ● ●
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-325-1 04 1 0806- ● ●
51 SCREW; COVER
VINYL SEAT(A83) 		1-75518-325-1 04 1 0806- ● ●
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-325-1 04 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-199-1 01 1 0610-0805 ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-199-1 01 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (A) 		1-75518-199-1 01 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-199-1 01 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-323-0 01 1 0610-0805 ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-323-0 01 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) (B) 		1-75518-323-0 01 1 0806- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-323-0 01 1 0806- ● ●
72 SPACER; SEAT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-334-1 02 1 0610-0805 ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-334-1 02 1 0806-1502 ● ●
72 SPACER; SEAT ADJ
VINYL SEAT(A83) 		1-75518-334-1 02 1 0806-1502 ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-334-1 02 1 0806-1502 ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-668-0 02 1 1503- ● ●
72 SPACER; SEAT ADJ
VINYL SEAT(A83) 		8-98291-668-0 02 1 1503- ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-668-0 02 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-330-2 01 1 0610-0805 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-644-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) 		8-98291-644-0 01 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-644-0 01 1 1503- ● ●
158 BUSHING; LINK ARM
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-209-0 02 1 0610-0805 ● ●
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-209-0 02 1 0806- ● ●
158 BUSHING; LINK ARM
VINYL SEAT(A83) 		1-75518-209-0 02 1 0806- ● ●
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-209-0 02 1 0806- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) L=667 		1-75518-288-0 01 1 0610-0805 ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) L=667 		1-75518-288-0 01 1 0806- ● ●
201 CABLE; ADJ
VINYL SEAT(A83) (A) L=667 		1-75518-288-0 01 1 0806- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) L=667 		1-75518-288-0 01 1 0806- ● ●
201 CABLE; ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) L=605 		1-75518-289-1 01 1 0610-0805 ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) L=605 		1-75518-289-1 01 1 0806- ● ●
201 CABLE; ADJ
VINYL SEAT(A83) (B) L=605 		1-75518-289-1 01 1 0806- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) L=605 		1-75518-289-1 01 1 0806- ● ●
278 COLLAR; FRT SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-244-0 03 1 0610-0805 ● ●
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-244-0 03 1 0806- ● ●
278 COLLAR; FRT SEAT
VINYL SEAT(A83) 		1-75518-244-0 03 1 0806- ● ●
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-244-0 03 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-266-2 02 1 0610-0805 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-266-2 02 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) (C) 		1-75518-266-2 02 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-266-2 02 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-270-1 04 1 0610-0805 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-270-1 04 1 0806-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) (A) 		1-75518-270-1 04 1 0806-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-270-1 04 1 0806-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-336-1 02 1 0610-0805 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-336-1 02 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) (B) 		1-75518-336-1 02 1 0806- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-336-1 02 1 0806- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0610-0805 ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
306 NUT; SEAT ADJ
VINYL SEAT(A83) M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-291-0 01 1 0610-0710 ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		8-98107-869-0 01 1 0711-0805 ● ●
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98107-869-0 01 1 0806- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT(A83) 		8-98107-869-0 01 1 0806- ● ●
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98107-869-0 01 1 0806- ● ●
512 COVER; LEVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-243-1 02 1 0610-0805 ● ●
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-243-1 02 1 0806- ● ●
512 COVER; LEVER
VINYL SEAT(A83) 		1-75518-243-1 02 1 0806- ● ●
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-243-1 02 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-263-0 01 1 0610-0805 ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-263-0 01 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83) (A) 		1-75518-263-0 01 1 0806- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-263-0 01 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (C) M8 		1-75518-264-0 04 1 0610-0805 ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) M8 		1-75518-264-0 04 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83) (C) M8 		1-75518-264-0 04 1 0806- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) M8 		1-75518-264-0 04 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0610-0805 ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) M8 FLANGE 		8-94152-886-0 04 1 0610-0805 ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) M8 FLANGE 		8-94152-886-0 04 1 0806- ● ●
518 NUT; TILT ADJ
VINYL SEAT(A83) (B) M8 FLANGE 		8-94152-886-0 04 1 0806- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M8 FLANGE 		8-94152-886-0 04 1 0806- ● ●
529 PIN; LINK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-262-0 01 1 0610-0805 ● ●
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-262-0 01 1 0806- ● ●
529 PIN; LINK
VINYL SEAT(A83) 		1-75518-262-0 01 1 0806- ● ●
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-262-0 01 1 0806- ● ●
532 LEVER ASM; TILT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-203-0 01 1 0610-0805 ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-203-0 01 1 0806- ● ●
532 LEVER ASM; TILT
VINYL SEAT(A83) (A) 		1-75518-203-0 01 1 0806- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-203-0 01 1 0806- ● ●
532 LEVER ASM; TILT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-204-1 01 1 0610-0805 ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-204-1 01 1 0806- ● ●
532 LEVER ASM; TILT
VINYL SEAT(A83) (B) 		1-75518-204-1 01 1 0806- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-204-1 01 1 0806- ● ●
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) ID=8.4 		9-09160-508-0 04 1 0610-0805 ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) ID=8.4 		9-09160-508-0 04 1 0806- ● ●
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) (B) ID=8.4 		9-09160-508-0 04 1 0806- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) ID=8.4 		9-09160-508-0 04 1 0806- ● ●
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-335-0 02 1 0610-0805 ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-335-0 02 1 0806-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) (A) 		1-75518-335-0 02 1 0806-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-335-0 02 1 0806-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) 		1-75518-265-0 04 1 0610-0805 ● ●
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-265-0 04 1 0806- ● ●
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) 		1-75518-265-0 04 1 0806- ● ●
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-265-0 04 1 0806- ● ●

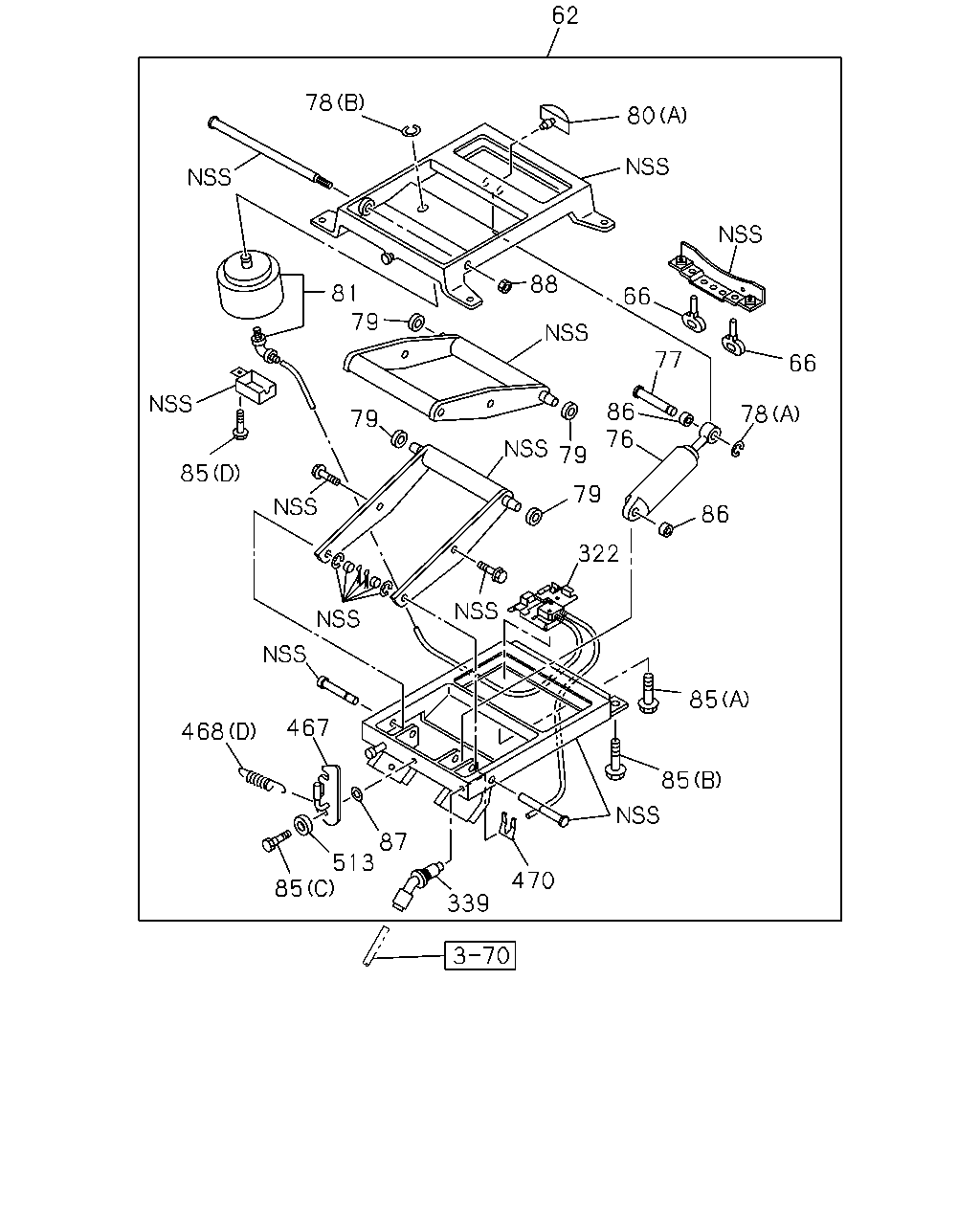

çizim 140037
62 78 80 81 88 79 66 66 77 78 86 76 79 79 79 85 86 322 468 467 85 87 513 339 470 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403 ● ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404- ● ●
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0610- ● ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0610- ● ●
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0610- ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0610- ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0610- ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0610-1403 ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404- ● ●
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007- ● ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610- ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0610-1312 ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0610- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0610- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0610-1312 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ● ●
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0610- ● ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0610-0710 ● ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711- ● ●
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0610- ● ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0610- ● ●
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0610- ● ●
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0610- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0610-0805 ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
VINYL SEAT(A83) (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806- ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610- ● ●
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0610- ● ●
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0610- ● ●
çizim 140038
506 360 175 176 16 188 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-75418-062-1 01 1 0610- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-762-0 01 1 0806-1011 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-329-1 01 1 1012- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-856-3 01 1 0610- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-602-3 01 1 0610-0805 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-602-3 01 1 0806-1011 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-328-1 01 1 1012- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-191-0 01 1 0806-1011 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-332-0 01 1 1012- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-710-1 01 1 0610- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-156-2 01 1 0610-0805 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-156-2 01 1 0806-1011 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-331-0 01 1 1012- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-190-0 01 1 0806-1011 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-326-0 01 1 1012- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-696-1 01 1 0610- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-155-2 01 1 0610-0805 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-155-2 01 1 0806-1011 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-324-0 01 1 1012- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-761-0 01 1 0806-1011 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-318-2 01 1 1012- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-845-4 01 1 0610- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-601-2 01 1 0610-0805 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-601-2 01 1 0806-1011 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-316-2 01 1 1012- ● ●
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0610- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		8-97854-900-0 01 1 0610- ● ●
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006 ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (B) M4X16 		0-70080-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805 ● ●
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		1-75538-207-0 04 1 0610-0703 ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
506 CAP; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-09983-180-3 04 1 0610-1006 ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1007- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
