7-40 — INSTRUMENT PANEL AND BOX (#27950) — 128 parça

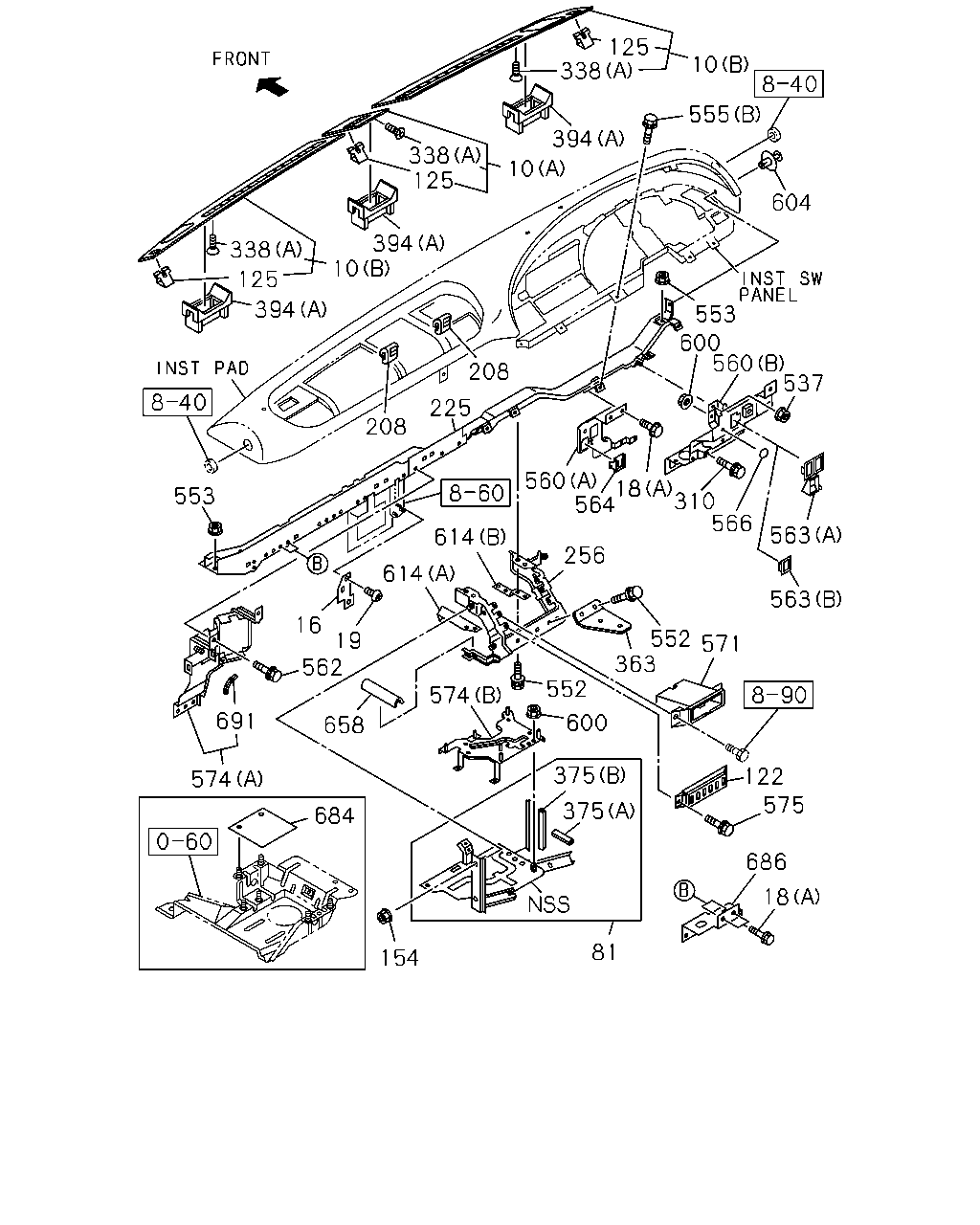

çizim 139650
125 338 10 555 338 125 394 10 604 394 10 338 125 553 394 600 560 537 208 225 208 560 18 564 310 566 553 563 614 256 614 563 16 552 363 19 562 571 552 574 691 600 658 122 375 574 575 375 684 686 18 81 154
BalonParca AdiParca NoAdetTipApplied Date A B
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0610- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0610- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0610- ● ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0610- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0610- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-726-0 01 1 0610-0702 ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-739-0 01 1 0703- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0610- ● ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0610- ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0610- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0610- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 0610- ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0610-0710 ● ●
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0801 ● ●
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0802- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0610-0801 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 0802- ● ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0610- ●
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-722-1 01 1 0610-0804 ●
363 SUPPORT ASM; COMPT PANEL CTR
SMOOTHER-G(C1W) 		1-73907-776-0 01 1 0805- ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0610- ● ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0610- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0610- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0610- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0610- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0610- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0610- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0610- ● ●
560 BRACKET
BRAKE SYSTEM HSA<SLD> (B) 		1-65671-757-4 01 1 0610- ●
560 BRACKET
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (B) 		1-65671-757-4 01 1 0610- ●
560 BRACKET
(A) 		1-65681-197-2 01 1 0610- ● ●
560 BRACKET
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 0610- ● ●
560 BRACKET
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> (B) 		1-65671-760-4 01 1 0610- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610- ● ●
563 BEZEL; BRKT
BRAKE SYSTEM HSA<SLD> (A) 		1-72447-628-5 01 1 0610- ●
563 BEZEL; BRKT
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) 		1-72447-628-5 01 1 0610- ●
563 BEZEL; BRKT
EXC. BRAKE SYSTEM HSA<SLD> (B) 		1-72448-410-3 01 1 0610- ● ●
563 BEZEL; BRKT
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> (B) 		1-72448-410-3 01 1 0610- ●
564 COVER; SW
BRAKE SYSTEM HSA<SLD> 		8-97856-401-3 01 1 0610- ●
564 COVER; SW
BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) 		8-97856-401-3 01 1 0610- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0610- ● ●
566 PLUG; HOLE
EXC. BRAKE SYSTEM HSA<SLD> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0610- ● ●
566 PLUG; HOLE
SMOOTHER-G(C1W) BRAKE SYSTEM HSA<SLD> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0610- ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0610-0805 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0610-0805 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0806- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 0806- ● ●
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0610- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 0610- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0610- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0610- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0610- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0610- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0610- ● ●
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0807- ● ●
684 RUBBER; HARNESS 1-82698-417-1 01 1 0610- ● ●
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 0610- ● ●
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006- ● ●

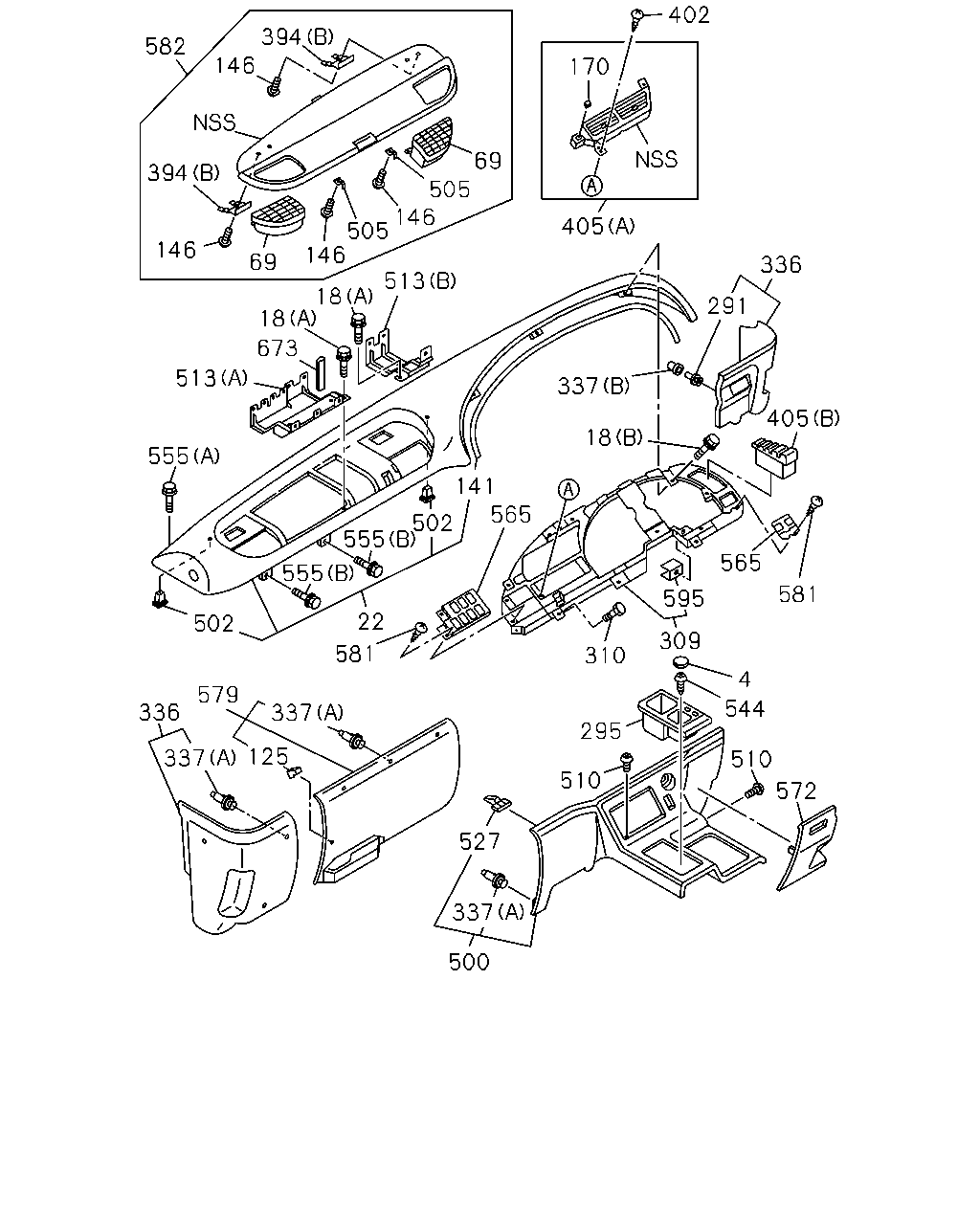

çizim 140020
402 394 582 146 170 69 394 505 146 505 146 405 146 69 336 513 18 291 18 673 513 337 405 18 555 141 565 502 555 565 555 581 595 22 502 309 581 310 4 579 544 336 337 295 125 337 510 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 0610- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610- ● ●
22 PAD; INST 1-72317-347-2 01 1 0610-0710 ● ●
22 PAD; INST 1-72317-372-1 01 1 0711- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0610- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0610- ● ●
125 CLIP; INST PANEL 8-97217-066-0 11 1 0610- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0610- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0610- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0610- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0610- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0610- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0610- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0610- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0610- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0610- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0610- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0610- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0610- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0610- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0610- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0610- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0610- ● ●
500 CLUSTER; INST CENTER 1-72437-653-0 01 1 0610- ●
500 CLUSTER; INST CENTER
EXC. SMOOTHER-G(C1W) 		1-72437-653-0 01 1 0610- ●
500 CLUSTER; INST CENTER
SMOOTHER-G(C1W) 		1-72437-655-0 01 1 0610- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0610- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0610- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0610- ● ●
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0710- ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0610- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0610- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0610- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0610- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0610- ● ●
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0610- ● ●
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0610- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0610- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 0610- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0610- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0610- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 0610- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0610- ● ●

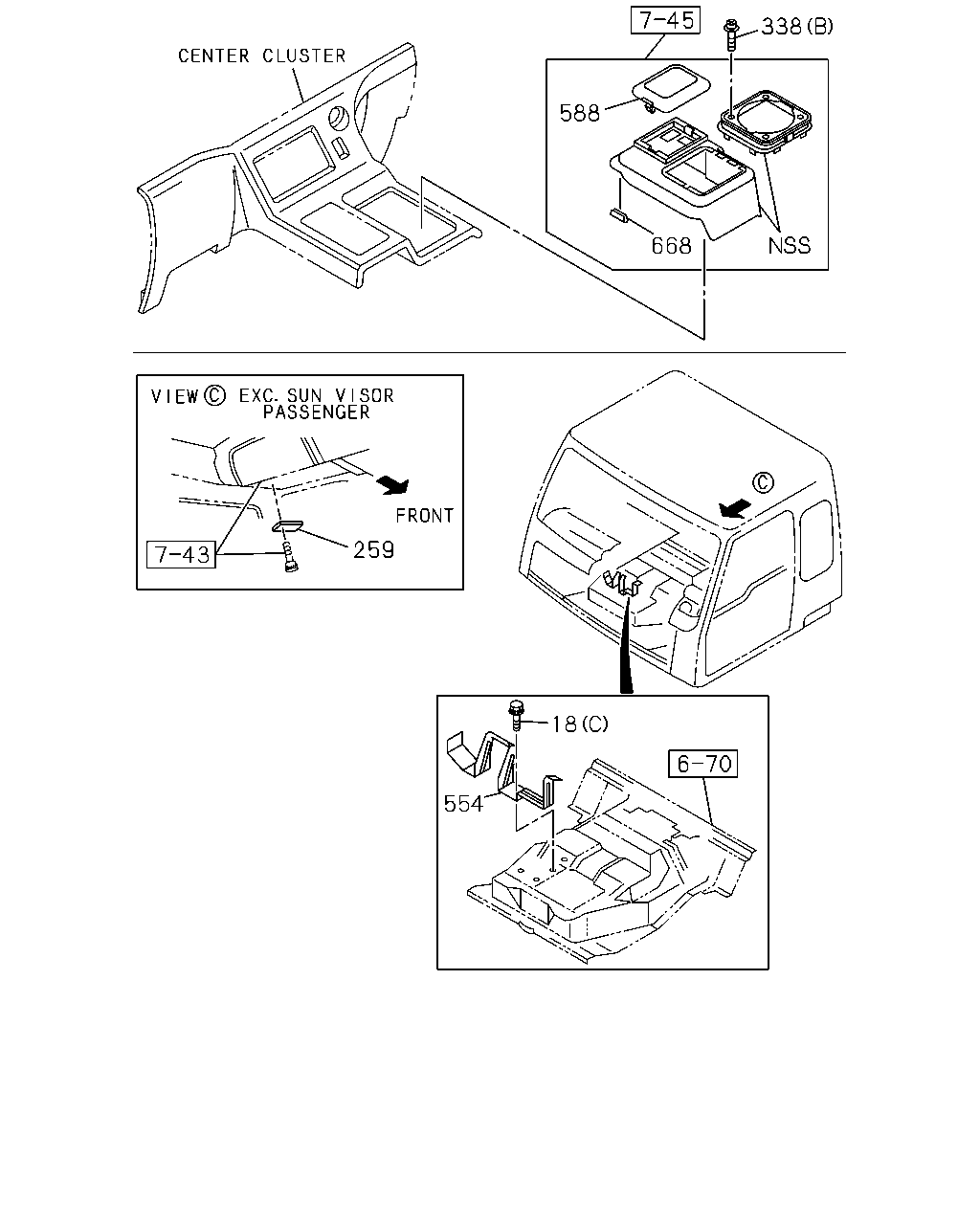

çizim 140034
338 588 668 259 18 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0610-0709 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0610- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0610- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0610-0801 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 17 1 0802- ● ●
338 SCREW; COVER
SMOOTHER-G(C1W) (B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0610- ●
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0610- ● ●
588 LID; BOX
SMOOTHER-G(C1W) 		1-72447-974-1 01 1 0610- ●
668 FINISHER; COVER
SMOOTHER-G(C1W) L=167 		1-71996-271-0 01 1 0610- ●
