◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#27947) — 54 parça

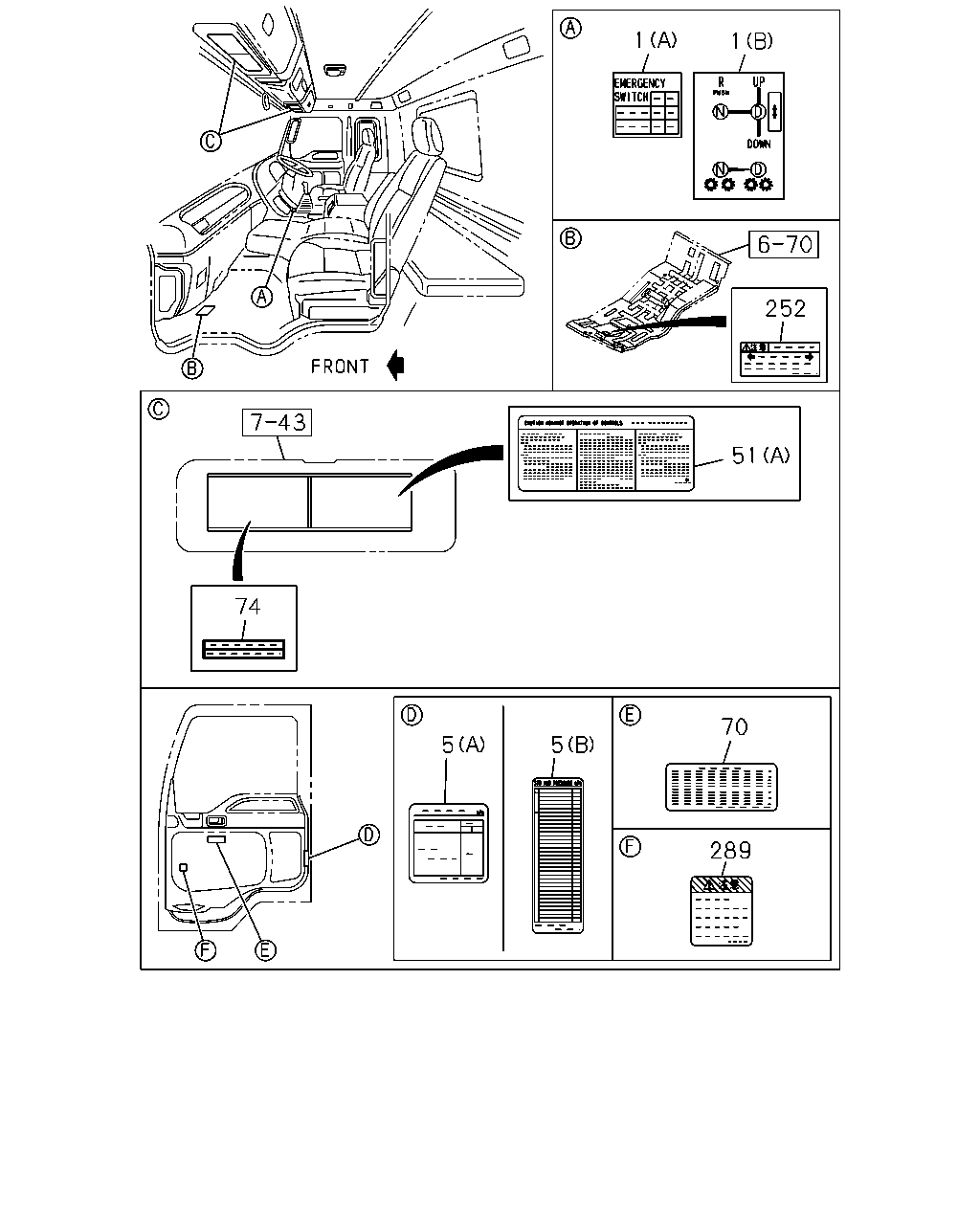

çizim 139665
1 1 252 51 74 70 5 5 289
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-842-0 01 1 0610- ●
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 0610- ●
5 LABEL; TIRE AIR PRESSURE
TIRE 12R22.5-152/148K RIB LUG(5A7),TIRE 12R22.5-16RIB(75N) CAUTIONS CHINESE<SL7> (A) 		1-85881-947-0 01 1 0610- ● ●
5 LABEL; TIRE AIR PRESSURE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) CAUTIONS CHINESE<SL7> (A) 		1-85881-887-0 01 1 0610- ● ●
5 LABEL; TIRE AIR PRESSURE
EXC. CAUTIONS CHINESE<SL7> (B) 		1-85880-778-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
CATALYSIS CONTROL<6MZ> (D) 		1-85878-571-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0610- ● ●
70 PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> 		1-85878-484-0 01 1 0610- ●
70 PLATE; CAUTION,ACT
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> 		1-85878-547-0 01 1 0610- ●
74 PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS ENGLISH<RR8> 		1-85881-869-0 01 1 0610- ●
74 PLATE; CAUTION,CHANGE LEV
MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) CAUTIONS CHINESE<SL7> 		1-85881-928-0 01 1 0610- ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 0610- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> 		1-85878-515-0 01 1 0610- ● ●
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 0610- ● ●

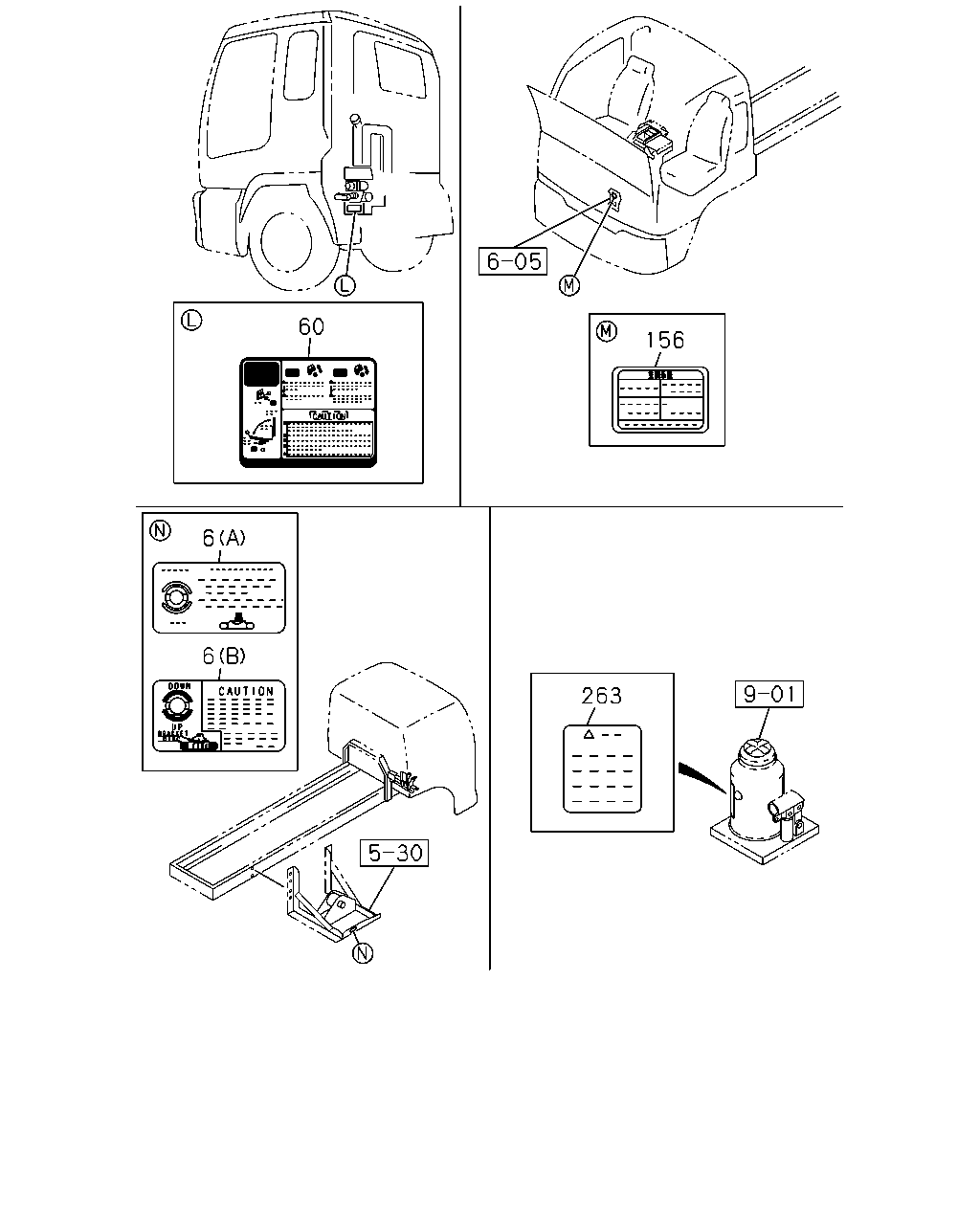

çizim 140004
60 156 6 6 263
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> (A) 		1-53639-004-0 01 1 0610-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> (A) 		1-53639-004-0 01 1 0610-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> (B) 		8-98082-437-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> (B) 		8-98082-437-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0610-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0610-0708 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B) 		8-98082-438-0 01 1 0709- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B) 		8-98082-438-0 01 1 0709- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> 		1-85883-234-0 01 1 0610- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-242-0 01 1 0610- ● ●
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS CHINESE<SL7> 		8-98055-383-0 01 1 0610- ● ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 0610- ● ●

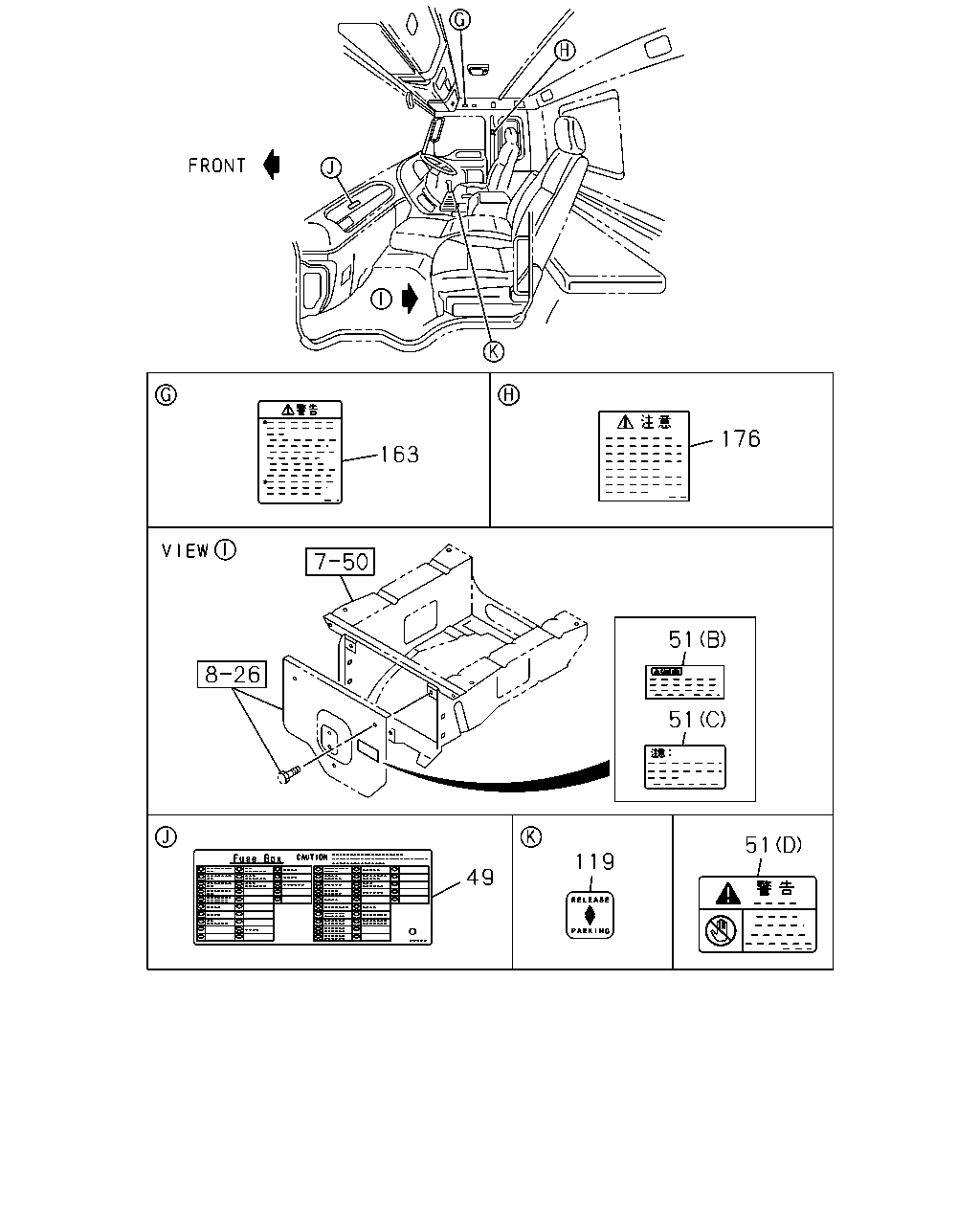

çizim 140013
176 163 51 51 51 119 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		1-85878-549-0 01 1 0610-0610 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-97619-856-0 01 1 0611- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-566-0 01 1 0610-0610 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-97619-854-0 01 1 0611- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (B) 		1-85878-544-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (C) 		8-97616-500-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
CATALYSIS CONTROL<6MZ> (D) 		1-85878-571-0 01 1 0610- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0610- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0610- ● ●
163 PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-485-0 01 1 0705- ● ●
163 PLATE; NAME,AIR BAG
AIR BAG(TFQ) 		1-85878-109-0 01 1 0610-0704 ● ●
163 PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-109-0 01 1 0705- ● ●
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-486-0 01 1 0705- ● ●
176 LABEL; SEAT BELT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-108-0 01 1 0610-0704 ● ●
176 LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-108-0 01 1 0705- ● ●

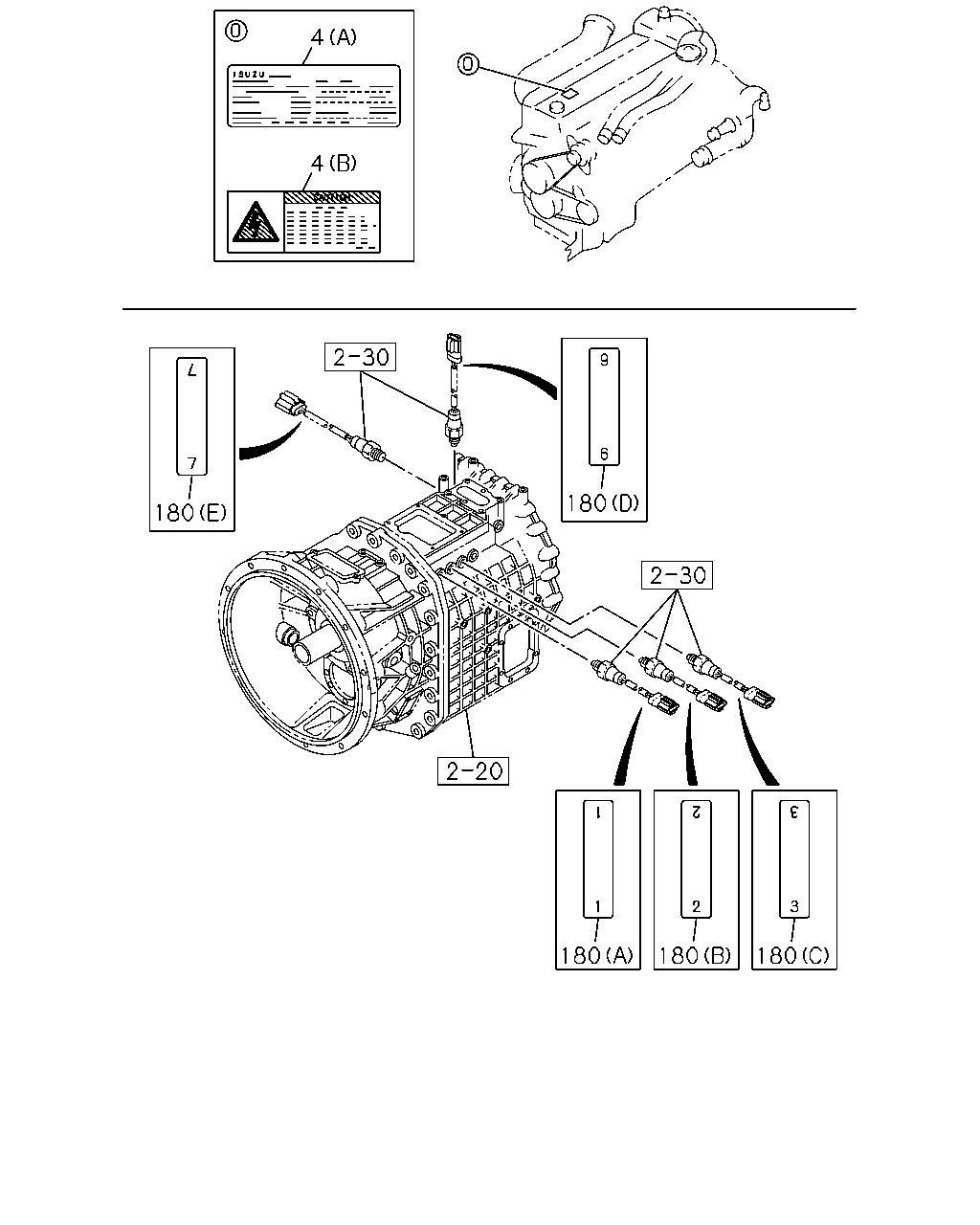

çizim 140017
4 4 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0610- ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0610- ● ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (A) SPL N 		1-85881-871-0 01 1 0610- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (B) SPL H 		1-85881-872-0 01 1 0610- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (C) SPL L 		1-85881-873-0 01 1 0610- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (D) RANGE H 		1-85881-880-0 01 1 0610- ●
180 PLATE; CAUTION,SWITCH
MJX12P M/T SMOOTHER-G(Y4S) (E) RANGE L 		1-85881-881-0 01 1 0610- ●
çizim 140033
181 175
BalonParca AdiParca NoAdetTipApplied Date A B
175 LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-116-0 02 1 0705- ● ●
175 LABEL; STRG,AIR BAG
AIR BAG(TFQ) 		1-85878-107-0 02 1 0610-0704 ● ●
175 LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-107-0 02 1 0705- ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0610- ● ●
