◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#27945) — 17 parça

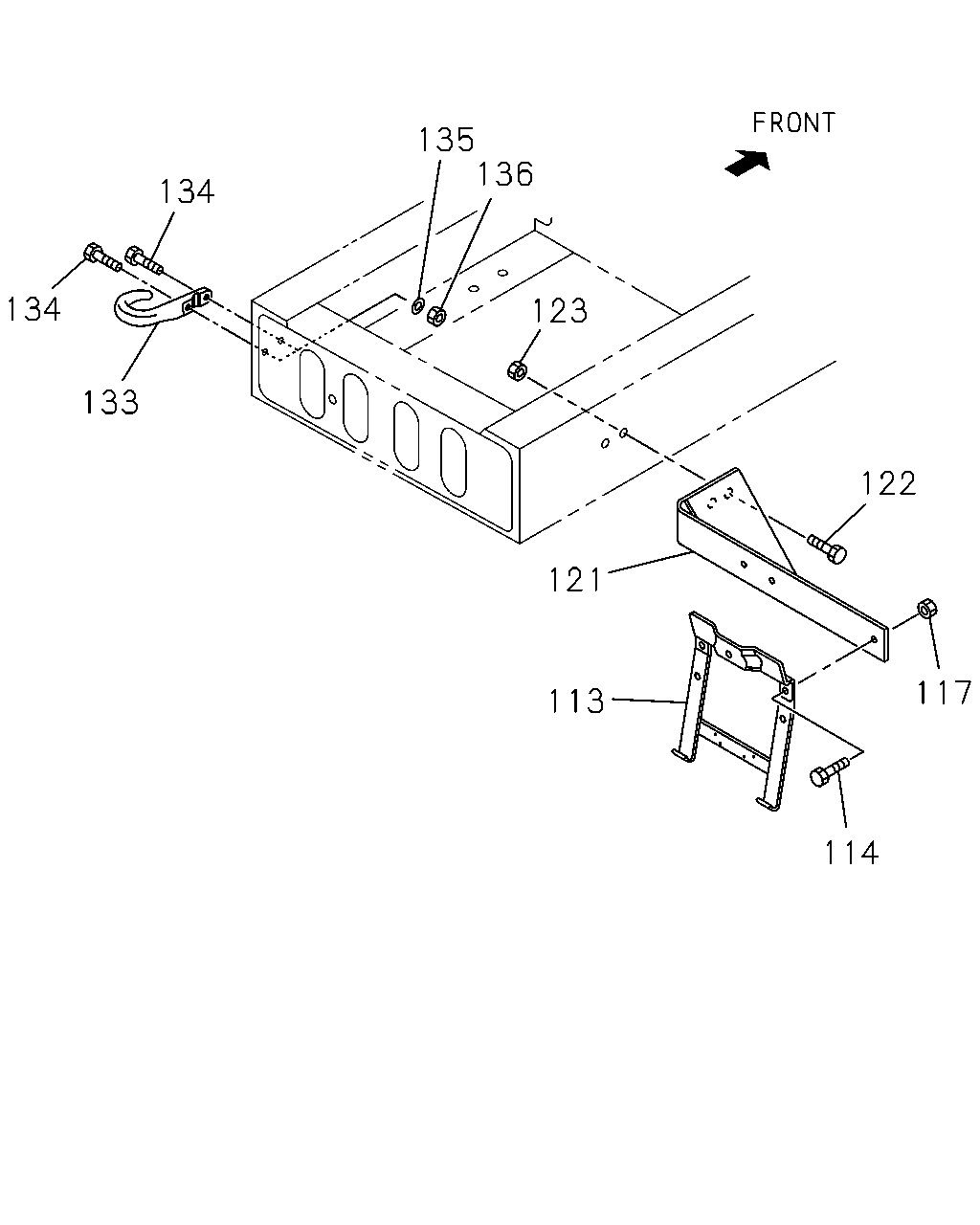

çizim 140007
135 136 134 134 123 133 122 121 117 113 114
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98144-961-0 01 1 0906-1111 ● ●
113 BRACKET; LICENSE PLATE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98163-444-1 01 1 1112- ● ●
113 BRACKET; LICENSE PLATE 1-53485-077-0 01 1 0610-0801 ● ●
113 BRACKET; LICENSE PLATE 8-98090-218-0 01 1 0802-0905 ● ●
113 BRACKET; LICENSE PLATE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98090-218-1 01 1 0906- ● ●
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0610- ● ●
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
121 STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		1-53485-002-1 01 1 0610-0905 ●
121 STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-53485-002-1 01 1 0906-1111 ●
121 STAY; RR LICENSE PLATE BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) 		8-98179-582-0 01 1 1112- ●
122 BOLT; STAY TO FRAME
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M12X40 FLANGE 		0-28651-240-0 02 1 0610- ●
123 NUT; STAY
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M12 FLANGE 		0-91180-212-0 02 1 0610- ●
133 HOOK 1-57181-027-1 01 1 0610- ● ●
134 BOLT; HOOK
M16X60 		0-10861-660-0 01 1 0610- ● ●
134 BOLT; HOOK
M16X70 		0-10861-670-0 01 1 0610- ● ●
135 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0610- ● ●
136 NUT; HOOK
M16 		0-91110-516-0 02 1 0610- ● ●
