Sayfa 1-50B - Isuzu EPC

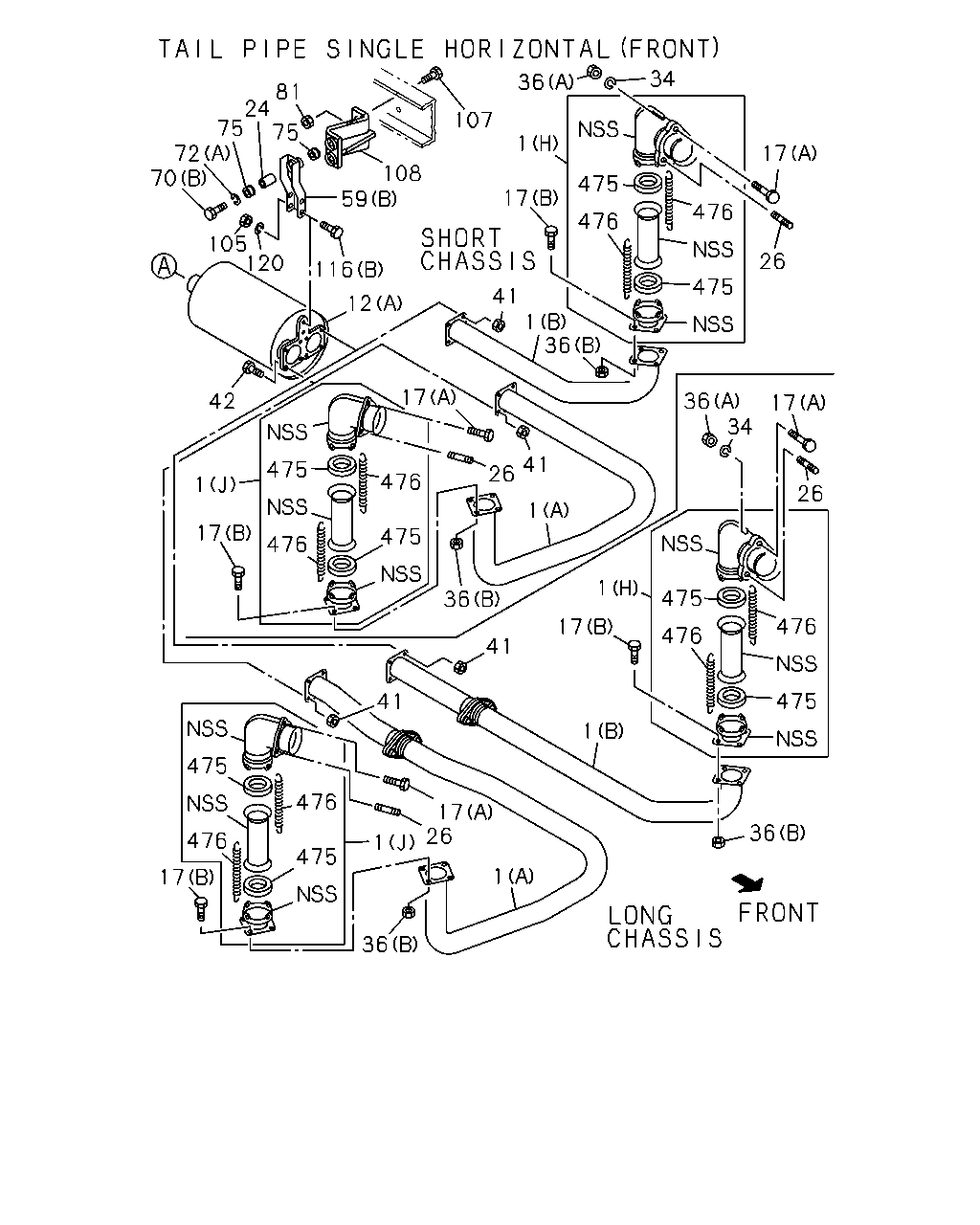

1-50B — EXHAUST PIPE AND SILENCER (#2794) — 646 parça

81 24 75 72 70 75 108 59 105 120 116 12 42 1 17 17 476 475 475 476 107 36 34 1 17 475 476 476 17 26 475 41 1 36 36 34 17 26 26 41 1 36 475 476 17 476 475 41 41 17 1 475 476 476 475 1 36 1 17 26 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-312-0	01	1	9205-9410	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-312-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-313-0	01	1	9205-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-313-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-656-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-662-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (F)	1-22122-658-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22122-660-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-2	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9411-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (D)	1-22121-596-1	01	1	9002-9306	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D)	1-22121-596-1	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (K)	1-22122-779-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-916-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-789-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (E)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-917-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-701-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-780-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (E)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-702-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-393-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-393-0	01	1	9411-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-392-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-392-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-277-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-277-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-276-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-276-0	01	1	9411-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-9410	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22140-754-1	01	1	9411-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-754-1	01	1	9411-	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-681-0	01	1	9411-	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-1	01	1	9002-9103	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-596-1	01	1	9002-9306	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-9204	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9205-9306	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9002-9204	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9205-9306	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-512-0	08	1	9307-9410	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) FRONT L=299	1-22151-414-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-335-2	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-335-2	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-336-1	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-336-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-616-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-703-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-331-3	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-394-0	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-394-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9002-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-349-1	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-349-1	01	1	9411-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-599-0	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-599-0	01	1	9411-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9204	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9205-9410	●
70	BOLT; BRKT SHORT CHASSIS(CXZ5MC) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,PTO CONTROL(SV6) (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-9306	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-9306	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9002-9306	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=40	1-22159-094-0	08	1	9307-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> FRAME EQUIPMENT HEAVY DUTY<F03> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9410	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9411-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9307-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	02	1	9307-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> FRAME EQUIPMENT HEAVY DUTY<F03> M12X40 W/LK WASHER	0-50041-240-0	02	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	02	1	9307-9410		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	01	1	9411-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	9-01056-075-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9005-9306	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9307-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-		●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	02	1	9002-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9411-	●
475	BEARING; SEAL,VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9111-9204	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9205-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9111-9204	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9205-9410	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●	●

159 126 444 88 445 161 151 161 159 161 159 161 64 159 22 431 12 42 197 421 41 424 17 26 20 21 1 1 147 423 421 427 429 197 427 420 425 422 149 420 17 26 34 36 1 342 1 475 476 475 476 1 475 476 475 476 45 77 446 58 448 66 432 68 151 427 429 159 420 77 447 201 52 439 134 438 436 201 438 427 148 105 147 193 134 135 434 433 1 1 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-312-0	01	1	9205-9410	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-312-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-313-0	01	1	9205-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-313-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-656-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-662-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (F)	1-22122-658-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22122-660-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-2	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9411-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (D)	1-22121-596-1	01	1	9002-9306	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D)	1-22121-596-1	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (K)	1-22122-779-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-916-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-789-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (E)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-917-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-701-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-780-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (E)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-702-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-393-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-393-0	01	1	9411-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-392-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-392-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-277-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-277-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-276-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-276-0	01	1	9411-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-9410	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22140-754-1	01	1	9411-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-754-1	01	1	9411-	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-681-0	01	1	9411-	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-1	01	1	9002-9103	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-596-1	01	1	9002-9306	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-9204	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9205-9306	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9306	●
21	NUT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9307-	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9307-		●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9002-9204	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9205-9306	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-512-0	08	1	9307-9410	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	02	1	9002-9004	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	02	1	9005-	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-169-0	01	1	9002-	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22113-063-1	01	1	9002-	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-033-0	01	1	9307-		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-061-0	02	1	9307-		●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9002-	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	06	1	9307-		●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	04	1	9002-9306	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9307-	●	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> ID=97	1-22133-043-1	01	1	9002-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9307-		●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22112-639-1	01	1	9002-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9002-9306	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-099-0	01	1	9307-	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-097-0	01	1	9002-9410	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-097-0	01	1	9411-	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22126-152-0	01	1	9411-	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22126-153-0	01	1	9411-	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (A) ID=10.2	9-09150-510-0	01	1	9002-	●	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (B) ID=14.2	9-09150-614-0	01	1	9002-	●	●
135	WASHER; PL,STAY SILENCER SINGLE VERTICAL<N28> ID=15	9-09160-514-0	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) UPPER	1-22151-408-5	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) LOWER	1-22151-582-2	01	1	9002-	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (B) LOWER	1-22151-518-4	01	1	9002-	●	●
148	WASHER; LK,CLAMP SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20	0-20800-820-0	02	1	9307-		●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30	0-20800-830-0	02	1	9307-		●
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9002-	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9002-	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-405-2	01	1	9002-	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-409-2	01	1	9002-	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	9-01056-050-0	01	1	9002-9004	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	0-10806-050-0	01	1	9005-	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	01	1	9002-	●	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
342	BOLT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●
342	BOLT; 3 WAY PIPE SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9509	●	●
342	BOLT; 3 WAY PIPE LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9509	●
342	BOLT; 3 WAY PIPE SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	08	1	9510-	●	●
342	BOLT; 3 WAY PIPE LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9510-	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●
343	NUT; 3 WAY PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-9306	●
343	NUT; 3 WAY PIPE SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9307-9509	●	●
343	NUT; 3 WAY PIPE LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9307-9509	●
343	NUT; 3 WAY PIPE SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	08	1	9510-	●	●
343	NUT; 3 WAY PIPE LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9510-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25	9-01911-225-0	04	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X45	9-01911-245-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X35	9-01911-235-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X50	9-91056-250-0	03	1	9002-9005	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X50	0-10806-250-0	03	1	9006-	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-	●	●
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-	●	●
425	WASHER; LK,BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> ID=12.2	9-09150-512-0	03	1	9002-	●	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-	●	●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	02	1	9002-9204	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●
432	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-523-1	01	1	9002-	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22151-514-0	01	1	9002-	●	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	02	1	9002-9306	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9307-	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=23.2	9-22159-009-1	01	1	9002-9109	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9110-9507	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9508-	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	01	1	9002-9204	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	01	1	9002-	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9002-	●	●
447	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9002-	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-	●	●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9307-		●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9411-	●
475	BEARING; SEAL,VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9111-9204	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9205-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9111-9204	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9205-9410	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●	●

68 130 160 68 81 68 406 158 264 158 64 448 70 360 81 405 107 105 22 415 11 64 159 300 159 116 64 72 76 128 76 24 94 89 59 105 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-279-1	01	1	9307-		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-	●	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9307-		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) FRONT L=299	1-22151-414-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-335-2	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-335-2	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-336-1	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-336-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-616-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-703-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-331-3	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-394-0	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-394-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9002-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-349-1	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-349-1	01	1	9411-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-599-0	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-599-0	01	1	9411-		●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22113-063-1	01	1	9002-	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22113-033-0	01	1	9307-		●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-061-0	02	1	9307-		●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	06	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9204	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9205-9410	●
70	BOLT; BRKT SHORT CHASSIS(CXZ5MC) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,PTO CONTROL(SV6) (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-9306	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-9306	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22159-065-0	02	1	9002-9306	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) OD=40	1-22159-094-0	02	1	9307-	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22159-065-0	04	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> FRAME EQUIPMENT HEAVY DUTY<F03> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9410	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9411-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9002-9410	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9411-	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9411-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9307-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	02	1	9307-		●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> FRAME EQUIPMENT HEAVY DUTY<F03> M12X40 W/LK WASHER	0-50041-240-0	02	1	9307-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	02	1	9307-9410		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-577-2	01	1	9411-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	9-01056-075-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9005-9306	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9307-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-		●
128	PIPE; EXH,RR WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-394-0	01	1	9307-		●
128	PIPE; EXH,RR WHEEL BASE 5300MM(53W) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-278-0	01	1	9307-		●
130	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30	0-20800-830-0	02	1	9307-		●
158	BRACKET; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-291-0	02	1	9307-		●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X20	0-20800-820-0	02	1	9307-		●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X30	0-20800-830-0	02	1	9307-		●
160	NUT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
264	TUBE; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9307-		●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-290-0	01	1	9307-		●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9307-		●
405	BOLT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
406	NUT; DIST PIECE TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	01	1	9307-		●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-	●	●
448	PIECE; DIST,U-BOLT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-078-1	01	1	9307-		●

56 70 76 76 168 94 80 72 81 36 17 34 26 1 125 70 81 126 126 116 72 24 59 76 76 17 476 475 476 475 70 75 24 75 105 120 105 94 89 12 42 72 116 59 1 1 41 1 36 36 476 475 475 476 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-542-2	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-312-0	01	1	9205-9410	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-312-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-313-0	01	1	9205-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-313-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-656-0	01	1	9411-	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (J)	1-22121-541-2	01	1	9510-	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-662-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (F)	1-22122-658-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22122-660-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (H)	1-22121-770-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-770-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22121-622-2	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (G)	1-22121-622-2	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (J)	1-22121-771-0	01	1	9111-9410	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (J)	1-22121-771-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22121-618-0	01	1	9002-9410	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (F)	1-22121-618-0	01	1	9411-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (D)	1-22121-596-1	01	1	9002-9306	●	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D)	1-22121-596-1	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (D)	1-22121-596-1	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (K)	1-22122-779-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-779-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (C)	1-22121-916-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-916-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-916-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-789-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-789-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (E)	1-22121-917-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-917-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> EXC. ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-917-0	01	1	9307-9509	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (C)	1-22121-701-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-22121-701-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-701-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (N)	1-22122-780-0	01	1	9510-	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (N)	1-22122-780-0	01	1	9510-	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (E)	1-22121-702-0	01	1	9002-9306	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22121-702-0	01	1	9307-9509	●	●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (E)	1-22121-702-0	01	1	9307-9509	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-393-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-393-0	01	1	9411-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-392-0	01	1	9307-9410		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-392-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22122-277-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22122-277-0	01	1	9411-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22122-276-0	01	1	9307-9410		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22122-276-0	01	1	9411-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-9410	●	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22140-754-1	01	1	9411-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-754-1	01	1	9411-	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-681-0	01	1	9411-	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-1	01	1	9002-9103	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-596-1	01	1	9002-9306	●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9307-	●	●
17	BOLT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9004	●
17	BOLT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9005-9204	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9205-9306	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9307-9410	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●
36	NUT; EXH PIPE ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
36	NUT; EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9002-9204	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-412-0	08	1	9205-9306	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M12	9-99110-512-0	08	1	9307-9410	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	08	1	9411-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12	9-99110-512-0	04	1	9305-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9002-9306	●
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> L=217	1-22131-126-2	01	1	9307-	●	●
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9>	1-22131-164-2	01	1	9411-	●
56	BRACKET; CLAMP,EXH PIPE LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22131-618-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9307-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) FRONT L=299	1-22151-414-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-335-2	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-335-2	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22151-336-1	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-336-1	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-616-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-703-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B)	1-22151-331-3	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22151-394-0	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-394-0	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=292	1-22151-395-0	01	1	9002-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-349-1	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-349-1	01	1	9411-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-599-0	01	1	9307-9410		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-599-0	01	1	9411-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9204	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9205-9410	●
70	BOLT; BRKT SHORT CHASSIS(CXZ5MC) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,PTO CONTROL(SV6) (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-9306	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-9306	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9307-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	02	1	9307-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22159-065-0	04	1	9002-9306	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=40	1-22159-094-0	08	1	9307-	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22159-065-0	02	1	9002-9306	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) OD=40	1-22159-094-0	02	1	9307-	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22159-065-0	04	1	9002-9306	●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> FRAME EQUIPMENT HEAVY DUTY<F03> M12	9-99110-512-0	02	1	9307-		●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9410	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9411-	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-		●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9002-9410	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9411-	●	●
89	CLAMP; EXH SILENCER,RR ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9411-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	01	1	9307-		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	9-01056-075-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9005-9306	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X75	0-10806-075-0	02	1	9307-	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9307-		●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> ID=10.2	9-09150-510-0	02	1	9002-	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22112-639-1	01	1	9002-	●	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9002-9306	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9> (F)	1-22122-099-0	01	1	9307-	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-097-0	01	1	9002-9410	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (G)	1-22122-097-0	01	1	9411-	●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) ANTI NOISE EQUIPMENT<SV9> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22126-152-0	01	1	9411-	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22126-153-0	01	1	9411-	●
168	BRACKET; EXH PIPE,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9410	●
168	BRACKET; EXH PIPE,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. ANTI NOISE EQUIPMENT<SV9>	1-22131-363-0	01	1	9411-	●	●
168	BRACKET; EXH PIPE,FRT LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22131-363-0	01	1	9411-	●
168	BRACKET; EXH PIPE,FRT ANTI NOISE EQUIPMENT<SV9>	1-22131-363-0	01	1	9411-	●
475	BEARING; SEAL,VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	02	1	9411-	●
475	BEARING; SEAL,VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9111-9204	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22119-223-0	04	1	9205-9408	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> OD=112	1-22119-294-0	04	1	9409-9410	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9> OD=112	1-22119-294-0	04	1	9411-	●	●
476	SPRING; VIBNON,EXH PIPE ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	04	1	9411-	●
476	SPRING; VIBNON,EXH PIPE LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9111-9204	●
476	SPRING; VIBNON,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-09583-248-0	08	1	9205-9410	●	●
476	SPRING; VIBNON,EXH PIPE EXC. ANTI NOISE EQUIPMENT<SV9>	1-09583-248-0	08	1	9411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
