6-76 — FLOOR EQUIPMENT AND SEALING (#27939) — 19 parça

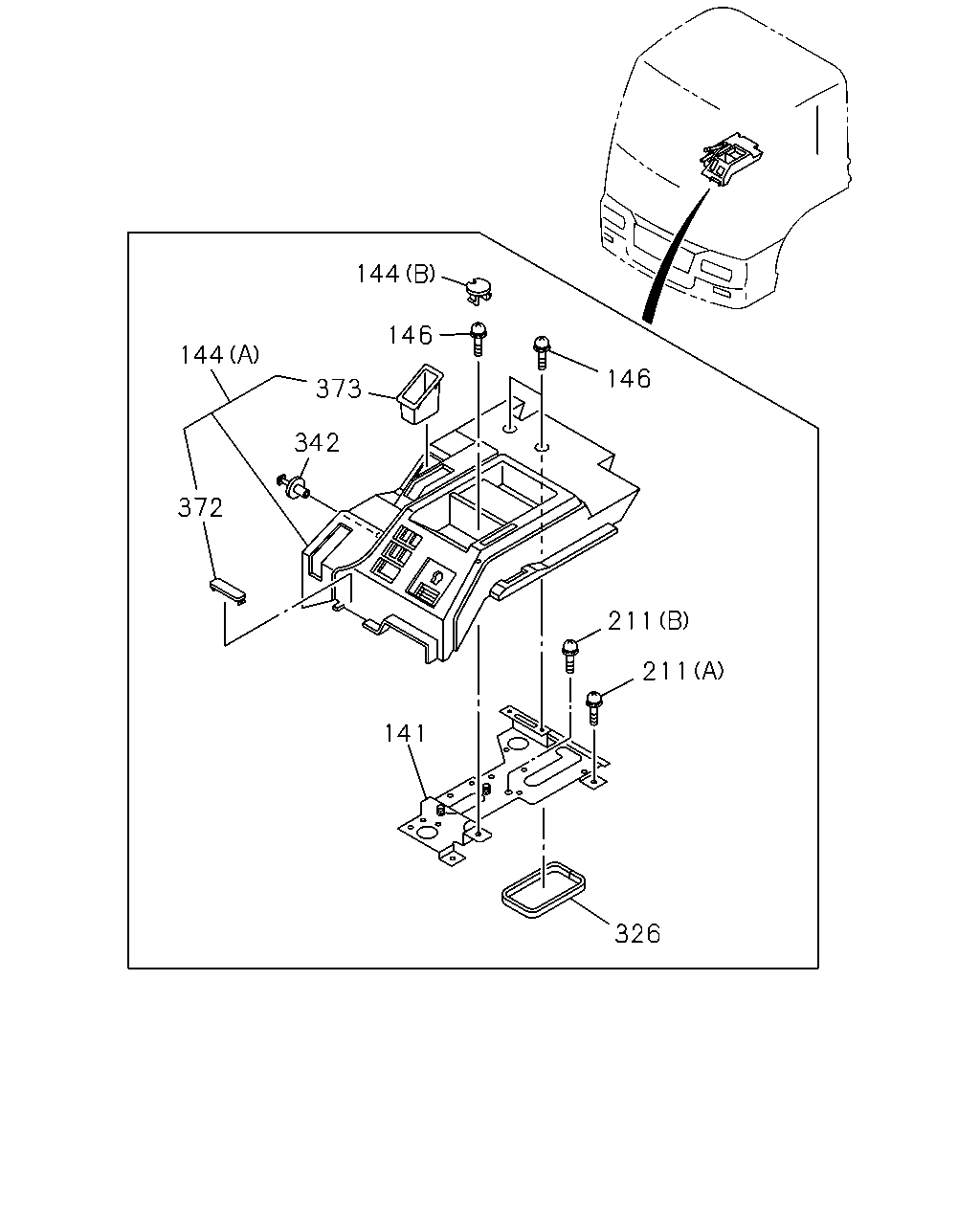

144 146 144 146 373 342 372 211 211 141 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
141	HOLDER	1-79907-076-2	01	1	0610-	●	●
144	COVER; HAND BRK VLV (A)	1-72417-338-1	01	1	0610-	●	●
144	COVER; HAND BRK VLV (B)	1-72537-106-0	01	1	0610-	●	●
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	03	1	0610-	●	●
211	BOLT; COVER (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0610-	●	●
211	BOLT; COVER (B) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0610-	●	●
326	SEAL; COVER	1-79997-978-1	01	1	0610-	●	●
342	FASTENER D8X13.5	1-09987-248-1	01	1	0610-	●	●
372	COVER; CONSOLE	1-72537-124-0	01	1	0610-	●	●
373	COVER; HOLE	1-72537-194-0	01	1	0610-	●	●

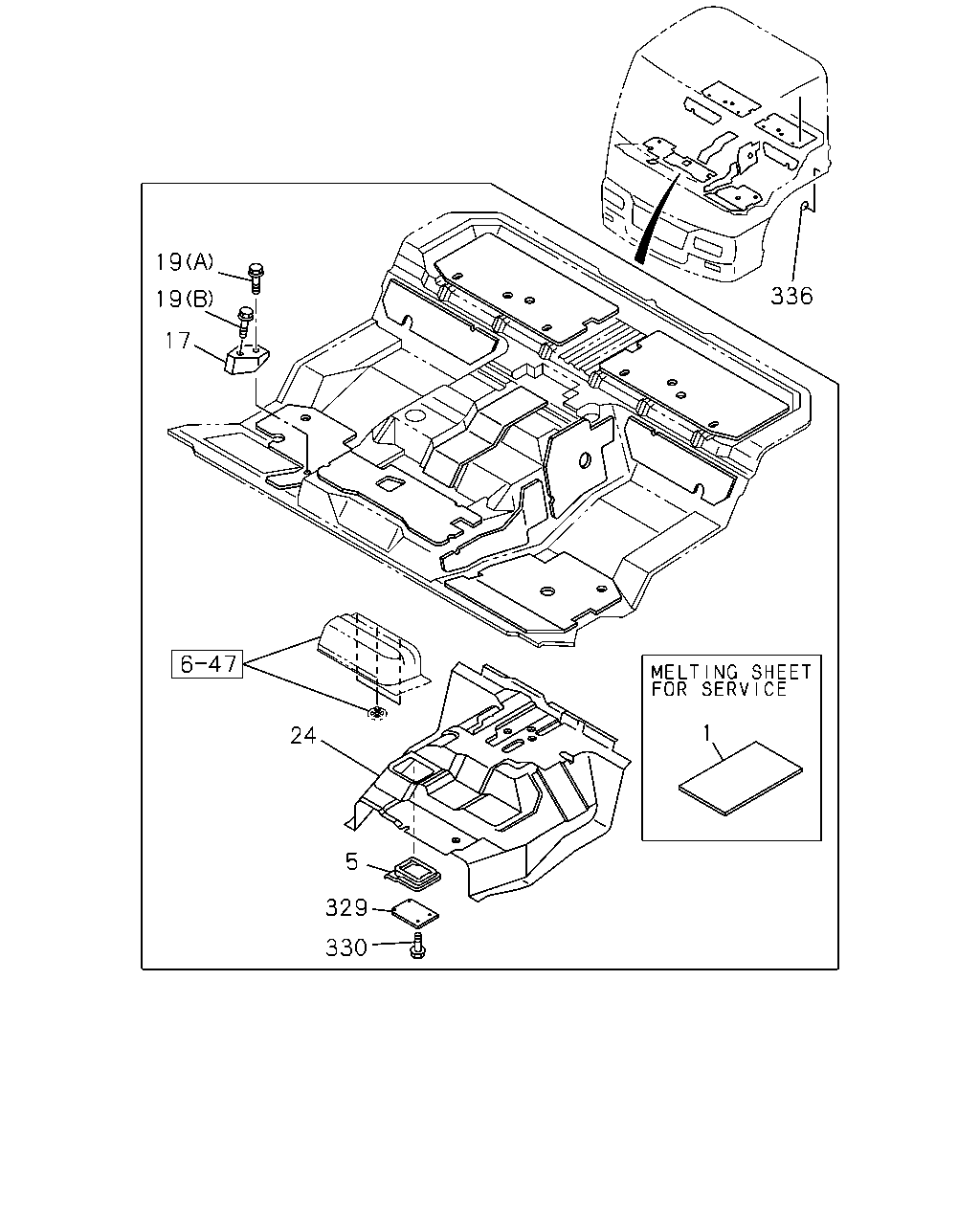

19 336 19 17 1 24 329 330 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0610-	●	●
5	COVER; CHANGE LEVER	1-33619-163-0	01	1	0610-	●	●
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0610-	●	●
19	BOLT; FOOT REST (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-	●	●
19	BOLT; FOOT REST (B) M6X47	8-94407-876-1	01	1	0610-	●	●
24	INSULATOR; HEAT,FRT	1-71907-677-3	01	1	0610-	●	●
329	BRACKET; PANEL SMOOTHER-G(C1W)	1-33619-465-0	01	1	0610-		●
330	BOLT; BRKT SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	04	1	0610-		●
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	0610-	●	●
