◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11036 - CYZ RHD EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#27938) — 39 parça

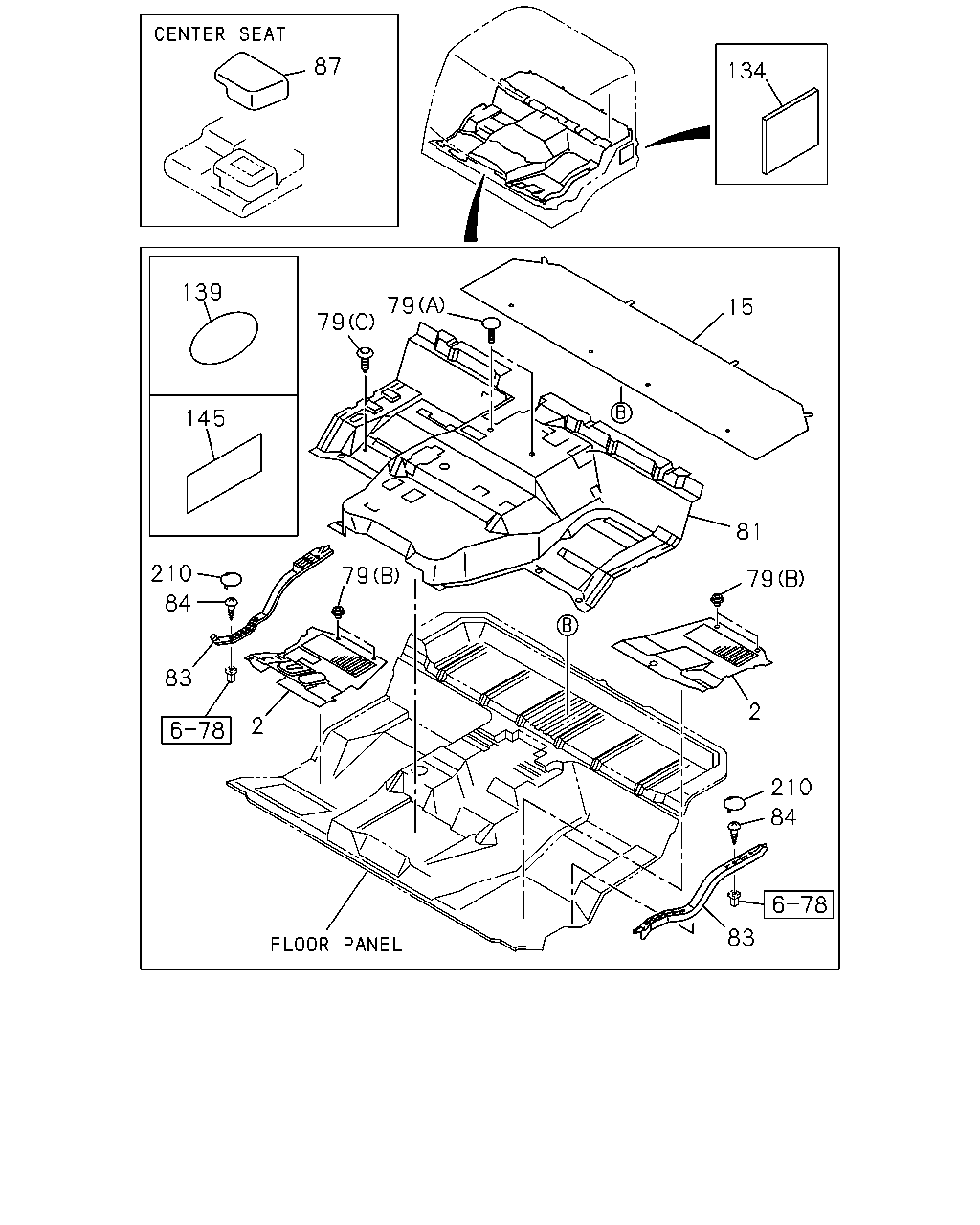

çizim 140001
87 134 139 79 15 79 145 81 79 210 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0610- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0610- ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, CENTER SEAT DELETE(SP9) 		1-73237-783-1 01 1 0610-0911 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0912- ● ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0712- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0610- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0610- ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-923-1 01 1 0610- ● ●
83 PLATE; KICKING,FLOOR MAT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98125-805-3 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98125-806-3 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0610-0905 ● ●
83 PLATE; KICKING,FLOOR MAT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-76798-045-0 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0610-0905 ● ●
83 PLATE; KICKING,FLOOR MAT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-76798-046-0 01 1 0906- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0610- ● ●
87 MAT; FLOOR
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-779-1 01 1 0610- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 0610- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0610- ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0610- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0610- ● ●

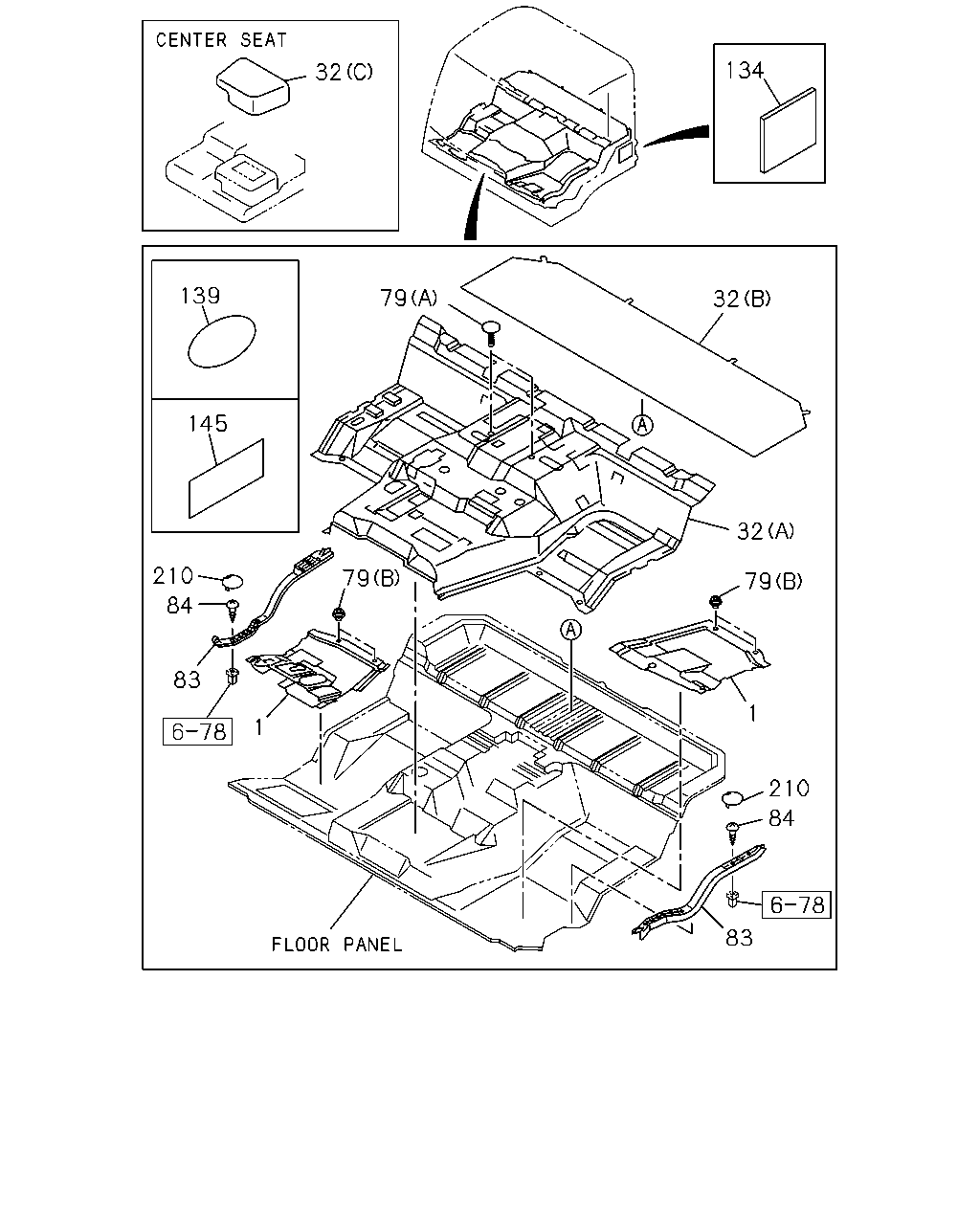

çizim 140005
134 32 139 79 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0610- ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0610- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-920-2 01 1 0610- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-2 01 1 0610- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (C) 		1-73237-835-1 01 1 0610- ● ●
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0712- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0610- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0610- ● ●
83 PLATE; KICKING,FLOOR MAT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98125-805-3 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98125-806-3 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0610-0905 ● ●
83 PLATE; KICKING,FLOOR MAT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-76798-045-0 01 1 0906- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0610-0905 ● ●
83 PLATE; KICKING,FLOOR MAT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-76798-046-0 01 1 0906- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0610- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 0610- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0610- ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0610- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0610- ● ●
