Sayfa 1-50A - Isuzu EPC

1-50A — EXHAUST PIPE AND SILENCER (#2793) — 284 parça

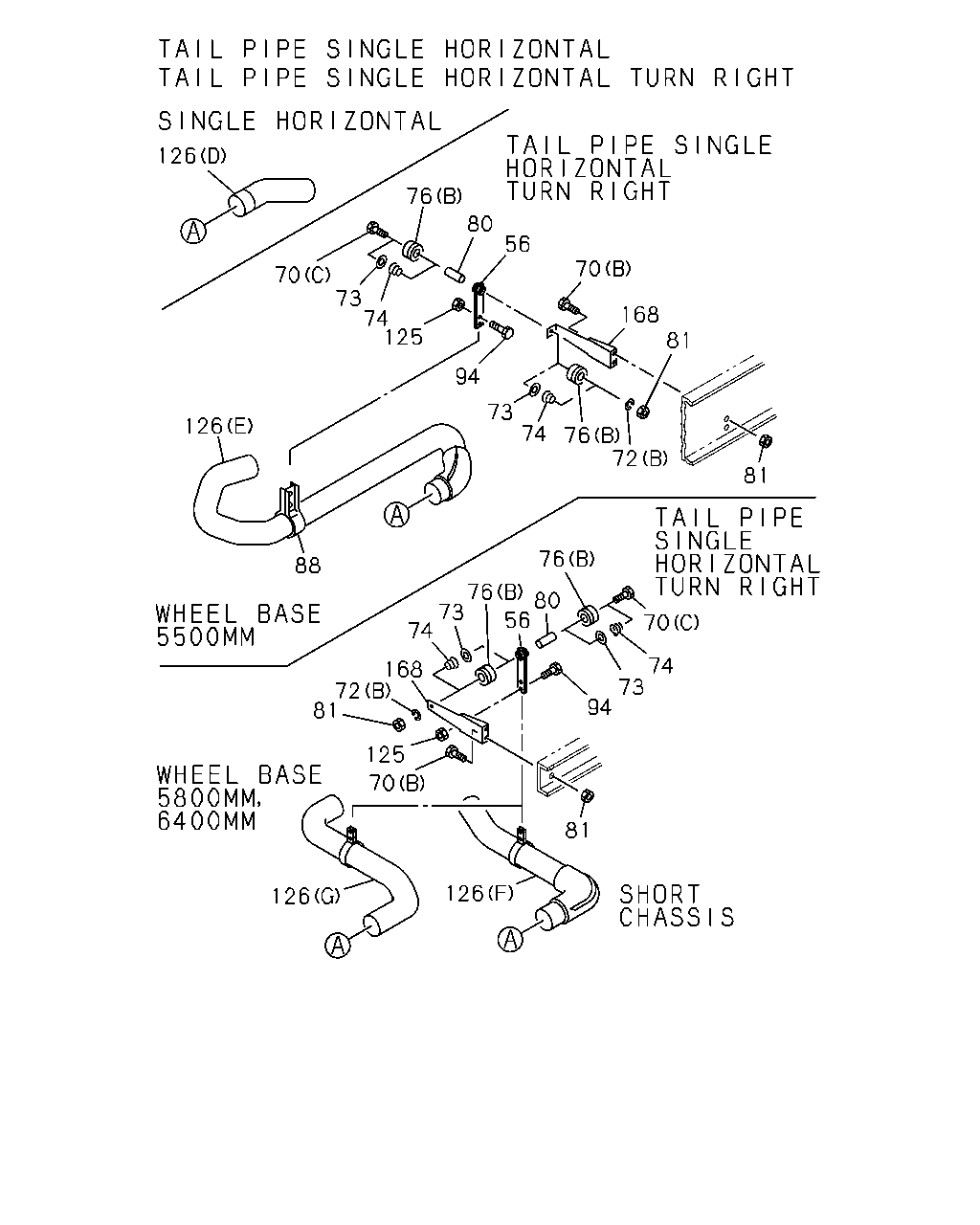

116 76 389 111 72 81 111 389 24 59 76 94 89 105 81 72 73 74 24 75 70 73 74 59 75 94 12 92 105 42 41 1 26 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-026-0	01	1	9002-9012	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22121-735-0	01	1	9002-9012	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-591-2	01	1	9002-9306		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-591-2	01	1	9002-9306		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22121-591-2	01	1	9307-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22121-930-0	01	1	9002-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-081-0	01	1	9002-9012			●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-081-1	01	1	9101-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-607-0	01	1	9002-9012			●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-607-1	01	1	9101-9306	●		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22121-607-1	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-641-2	01	1	9002-9103	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22140-710-2	01	1	9002-9306	●		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22140-710-2	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-9410		●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22140-754-1	01	1	9411-		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9411-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9410		●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9411-		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22140-704-2	01	1	9411-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-627-2	01	1	9002-9103			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-627-3	01	1	9104-9306	●		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-756-1	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306		●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	04	1	9002-	●	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X40	9-01911-240-0	04	1	9002-9005	●		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9002-9306	●	●	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9002-9306	●		●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9307-		●	●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) 6RA1 6RB1TC FRT & (B) RR L=292	1-22151-395-0	01	1	9307-		●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) FRONT L=299	1-22151-414-1	01	1	9002-9410		●
59	BRACKET; EXH SILENCER,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) FRONT L=299	1-22151-414-1	01	1	9411-		●
59	BRACKET; EXH SILENCER,FRT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A) FRONT L=299	1-22151-414-1	01	1	9411-		●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9204	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9205-9410	●	●	●
70	BOLT; BRKT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-		●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-9306	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9307-		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-9306		●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9307-		●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-		●
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-		●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9>	1-22159-065-0	04	1	9002-9306	●	●	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> OD=40	1-22159-094-0	08	1	9307-		●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B)	1-22159-065-0	02	1	9002-9306	●	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B) OD=40	1-22159-094-0	02	1	9307-		●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (A)	1-22159-065-0	04	1	9002-9306	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9410	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-		●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9002-9410	●	●	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> D=79	1-22133-218-0	01	1	9411-		●	●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> ID=97	1-22133-191-0	01	1	9002-9306	●		●
92	CLAMP LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> ID=97	1-22133-191-0	01	1	9307-			●
92	CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> D=83	1-22133-213-0	01	1	9002-9306		●
92	CLAMP SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> D=83	1-22133-213-0	01	1	9307-		●
92	CLAMP LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> D=83	1-22133-213-0	01	1	9307-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●	●
111	WASHER; PL,BRKT FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	04	1	9002-		●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-	●	●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004		●	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-		●	●
389	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	04	1	9002-		●

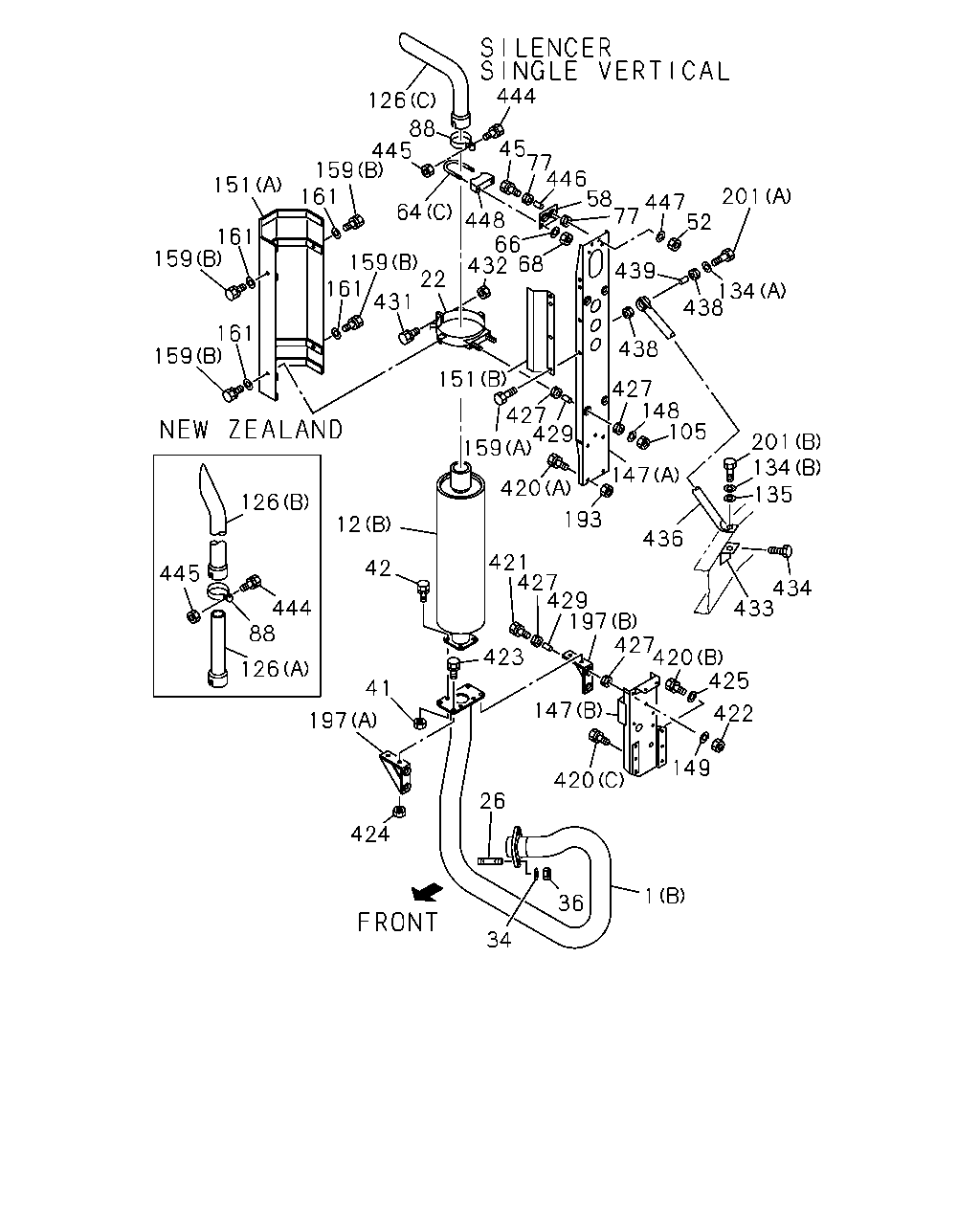

126 88 445 159 161 151 64 22 431 161 159 161 159 161 159 126 445 444 88 126 197 41 424 34 36 1 26 420 147 423 12 42 444 45 77 446 58 77 448 66 432 68 151 159 427 429 420 421 427 429 197 427 420 425 422 149 447 201 52 439 134 438 438 427 148 105 147 193 436 201 134 135 434 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-026-0	01	1	9002-9012	●
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22121-735-0	01	1	9002-9012	●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22121-885-1	01	1	9002-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22121-591-2	01	1	9002-9306		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-591-2	01	1	9002-9306		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22121-591-2	01	1	9307-		●
1	PIPE; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22121-930-0	01	1	9002-		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (B)	1-22121-930-0	01	1	9002-		●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-081-0	01	1	9002-9012			●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-081-1	01	1	9101-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-607-0	01	1	9002-9012			●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22121-607-1	01	1	9101-9306	●		●
1	PIPE; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22121-607-1	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-641-2	01	1	9002-9103	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22140-710-2	01	1	9002-9306	●		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22140-710-2	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-626-2	01	1	9002-9103		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9307-9410		●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B)	1-22140-754-1	01	1	9411-		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) SILENCER SINGLE VERTICAL<N28> (B)	1-22140-754-1	01	1	9411-		●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9002-9410		●
12	SILENCER ASM; EXH SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A)	1-22140-704-2	01	1	9411-		●
12	SILENCER ASM; EXH LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (A)	1-22140-704-2	01	1	9411-		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-627-2	01	1	9002-9103			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-627-3	01	1	9104-9306	●		●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-756-1	01	1	9307-			●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22140-659-2	01	1	9104-9306		●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-163-0	02	1	9002-	●	●	●
26	STUD; EXH MANIF	1-09302-090-0	03	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9002-	●	●	●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	9002-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X40	9-01911-240-0	04	1	9002-9005	●		●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-		●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	02	1	9002-9004	●	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	02	1	9005-	●	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-169-0	01	1	9002-	●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22113-063-1	01	1	9002-	●	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	9-09110-408-0	02	1	9002-	●	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	04	1	9002-9306	●	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9307-		●	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) ID=97	1-22133-043-1	02	1	9002-	●	●	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=97	1-22133-043-1	01	1	9002-	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 5500MM(55W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-191-0	01	1	9002-9306		●
88	CLAMP; EXH PIPE WHEEL BASE 5500MM(55W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22133-191-0	01	1	9307-		●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) (A)	1-22112-265-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) (B)	1-22112-640-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306	●	●	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22122-098-1	01	1	9002-9306		●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5500MM(55W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-22122-098-1	01	1	9307-		●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9002-9306		●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9307-		●
126	PIPE; EXH,RR WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-097-0	01	1	9002-9410		●	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22122-097-0	01	1	9411-		●	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (A) ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
134	WASHER; LK,STAY SILENCER SINGLE VERTICAL<N28> (B) ID=14.2	9-09150-614-0	01	1	9002-	●	●	●
135	WASHER; PL,STAY SILENCER SINGLE VERTICAL<N28> ID=15	9-09160-514-0	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) UPPER	1-22151-408-5	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) LOWER	1-22151-582-2	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. AIR DRYER<PS7> (B) LOWER	1-22151-518-4	01	1	9002-	●	●	●
148	WASHER; LK,CLAMP SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
149	WASHER; LK,PIPE BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-099-1	01	1	9002-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22159-104-2	01	1	9002-	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9302	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●	●
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9002-	●	●	●
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9002-	●	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (B)	1-22151-405-2	01	1	9002-	●	●	●
197	BRACKET; EXH PIPE,VERTICAL SILENCER SINGLE VERTICAL<N28> (A)	1-22151-409-2	01	1	9002-	●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	9-01056-050-0	01	1	9002-9004	●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X50	0-10806-050-0	01	1	9005-	●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M14X40	9-92061-440-0	01	1	9002-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25	9-01911-225-0	04	1	9002-9005	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> (A) M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X45	9-01911-245-0	03	1	9002-9005	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X35	9-01911-235-0	03	1	9002-9005		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X35 W/LK WASHER	0-50041-235-0	03	1	9006-9306		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (B) M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X50	9-91056-250-0	03	1	9002-9005		●
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> (C) M12X50	0-10806-250-0	03	1	9006-		●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	9-01056-050-0	04	1	9002-9004	●	●	●
421	BOLT; PIPE BRKT SILENCER SINGLE VERTICAL<N28> M10X50	0-10806-050-0	04	1	9005-	●	●	●
422	NUT; PIPE SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	04	1	9002-	●	●	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●	●
423	BOLT; PIPE SILENCER SINGLE VERTICAL<N28> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-412-0	04	1	9002-9304	●	●	●
424	NUT; BRKT TO PIPE SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	04	1	9305-	●	●	●
425	WASHER; LK,BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> FRAME EQUIPMENT HEAVY DUTY<F03> ID=12.2	9-09150-512-0	03	1	9002-		●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	16	1	9002-9306	●	●	●
427	SUPPORT; CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	16	1	9307-		●	●
429	COLLAR; DIST,SUPPORT SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	08	1	9002-	●	●	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40	9-01901-040-0	02	1	9002-9204	●	●	●
431	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●	●
432	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	02	1	9002-	●	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-523-1	01	1	9002-	●	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-	●	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22151-514-0	01	1	9002-	●	●	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28>	1-22159-065-0	02	1	9002-9306	●	●	●
438	RUBBER; SUPPORT,STAY SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	9307-		●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=23.2	9-22159-009-1	01	1	9002-9109	●	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	9110-9507	●	●	●
439	TUBE; DIST,SUPPORT RUBBER SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	01	1	9508-		●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) M10X40	9-01901-040-0	02	1	9002-9204	●	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) M10X40	9-01901-040-0	01	1	9002-9204	●	●	●
444	BOLT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER	0-50041-040-0	01	1	9205-	●	●	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	02	1	9002-	●	●	●
445	NUT; PIPE CLAMP SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	01	1	9002-	●	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9002-	●	●	●
447	WASHER; LK,BRKT SILENCER SINGLE VERTICAL<N28> ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-064-0	01	1	9002-	●	●	●

126 76 80 56 70 70 73 74 125 94 73 74 76 72 168 81 81 126 88 76 76 73 74 80 56 168 72 81 125 70 94 73 74 70 126 126 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9002-9306	●	●	●
56	BRACKET; CLAMP,EXH PIPE TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=217	1-22131-126-2	01	1	9307-		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	9-01056-055-0	01	1	9002-9004	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C) M10X55	0-10806-055-0	01	1	9005-	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9204	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9205-9410	●	●	●
70	BOLT; BRKT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-		●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (B) M10X35 W/LK WASHER	0-50041-035-0	02	1	9411-		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) M10X55	9-01056-055-0	02	1	9002-9002	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9003-9306	●	●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9307-		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	9-01056-060-0	02	1	9003-9004		●	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X60	0-10806-060-0	02	1	9005-9306		●	●
70	BOLT; BRKT LONG CHASSIS(CXZ5MF) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M10X55	0-10806-055-0	02	1	9307-		●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> (A) ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
73	WASHER; PL FIRE TRUCK<RA9> ID=10.5 OD=26	9-09160-710-0	06	1	9002-		●
74	SPRING; BRKT FIRE TRUCK<RA9>	1-22159-005-0	06	1	9002-		●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B)	1-22159-065-0	02	1	9002-9306	●	●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (B) OD=40	1-22159-094-0	02	1	9307-		●	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> EXC. FIRE TRUCK<RA9> (A)	1-22159-065-0	04	1	9002-9306	●	●	●
80	COLLAR; DIST,SUPPORT RUBBER TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=22	9-22159-024-0	01	1	9002-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	01	1	9002-	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9002-9306	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	04	1	9002-9410	●	●	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M10	9-09110-510-0	02	1	9411-		●	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) ID=97	1-22133-043-1	02	1	9002-	●	●	●
88	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) ID=97	1-22133-043-1	01	1	9002-	●	●	●
88	CLAMP; EXH PIPE WHEEL BASE 5500MM(55W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22133-191-0	01	1	9002-9306		●
88	CLAMP; EXH PIPE WHEEL BASE 5500MM(55W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9>	1-22133-191-0	01	1	9307-		●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 FLANGE	0-28080-840-0	02	1	9006-9304	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X40 W/LK WASHER	0-50040-840-0	02	1	9305-	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLEHORIZONTAL TURN RIGHT<YH8> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●	●
125	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	02	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) (A)	1-22112-265-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> NEW ZEALAND EQUIPMENT(PK5) (B)	1-22112-640-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	1-22112-639-1	01	1	9002-	●	●	●
126	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	1-22121-927-0	01	1	9002-9306	●	●	●
126	PIPE; EXH,RR WHEEL BASE 5500MM(55W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (E)	1-22122-098-1	01	1	9002-9306		●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5500MM(55W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (E)	1-22122-098-1	01	1	9307-		●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9002-9306		●
126	PIPE; EXH,RR SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (F)	1-22122-099-0	01	1	9307-		●
126	PIPE; EXH,RR WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (G)	1-22122-097-0	01	1	9002-9410		●	●
126	PIPE; EXH,RR LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> (G)	1-22122-097-0	01	1	9411-		●	●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9410	●	●	●
168	BRACKET; EXH PIPE,FRT SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9002-9410		●
168	BRACKET; EXH PIPE,FRT LONG CHASSIS(CXZ5MF) WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22131-363-0	01	1	9411-		●	●
168	BRACKET; EXH PIPE,FRT SHORT CHASSIS(CXZ5MC) WHEEL BASE 5000MM(50W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-363-0	01	1	9411-		●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 5500MM(55W) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>	1-22131-364-0	01	1	9002-9306		●
168	BRACKET; EXH PIPE,FRT LONG CHASSIS(CXZ5MF) WHEEL BASE 5500MM(55W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28>	1-22131-364-0	01	1	9307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
