Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#27923) — 260 parça

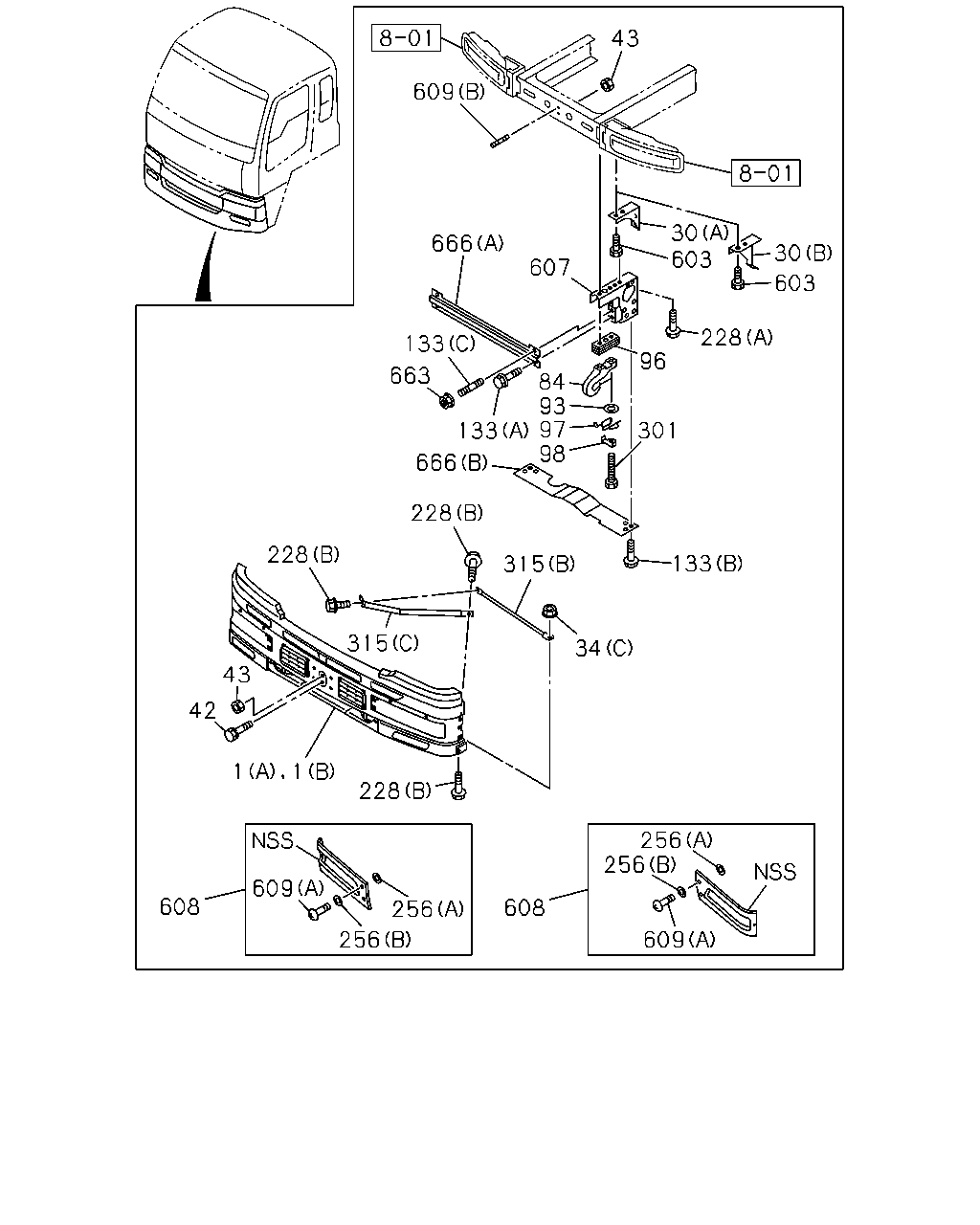

43 609 30 603 666 30 607 603 228 133 84 93 97 98 96 663 301 133 666 228 228 133 315 315 34 43 42 1 1 228 256 256 609 608 608 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A) WHITE	8-98098-600-1	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> FACE LIFT<6NL> (B) WHITE	8-98098-599-1	01	1	0806-		●
1	BUMPER ASM; FRT (A) WHITE	1-71211-427-1	01	1	0610-0805	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	1-71211-427-1	01	1	0610-0805		●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A) WHITE	1-71211-427-2	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	1-71211-419-2	01	1	0610-0805		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (B) WHITE	1-71211-419-2	01	1	0806-		●
30	BRACKET; FRT BUMPER (B)	1-71230-638-0	01	1	0610-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	0610-		●
30	BRACKET; FRT BUMPER (B)	1-71230-639-0	01	1	0610-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	0610-		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	0610-		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	0610-		●
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0610-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	0610-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0610-		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0610-		●
42	BOLT; BUMPER M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	0610-	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	03	1	0610-	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	0610-		●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	0610-		●
84	HOOK	1-57181-027-1	01	1	0610-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0610-	●	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	0610-	●
96	PLATE; DIST,HOOK DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	0610-		●
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	0610-	●	●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	0610-	●
96	PLATE; DIST,HOOK EXC. DUMP TRUCK<RA1>,FRONT SPOILER<VP1>	1-53497-473-0	01	1	0610-		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0610-	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0610-	●	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C)	8-97617-397-0	02	1	0710-0808	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (C)	8-97617-397-0	02	1	0710-0808		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0610-0709	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0610-0709		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	02	1	0710-0808	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	02	1	0710-0808		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0809-	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0809-		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	0610-1207	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	0610-1207		●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-	●
133	BOLT; PROTECTOR FIX DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-		●
228	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	0610-	●
228	BOLT; BRKT DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	0610-		●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	0610-	●	●
256	WASHER; PL (A)	1-71260-173-0	06	1	0610-	●	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0610-	●	●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0610-	●	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	0610-	●	●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	0610-		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0610-		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-636-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-637-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	0610-		●
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1>	8-97610-034-2	01	1	0610-	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1>	8-97610-034-2	01	1	0610-		●
607	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1>	8-97610-035-2	01	1	0610-	●
607	BRACKET DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1>	8-97610-035-2	01	1	0610-		●
608	LID; BUMPER	1-71211-284-2	01	1	0610-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-284-2	01	1	0610-		●
608	LID; BUMPER	1-71211-285-2	01	1	0610-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-285-2	01	1	0610-		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-752-6	01	1	0610-		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-753-6	01	1	0610-		●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0610-	●	●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0610-	●	●
663	NUT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0710-0808	●
663	NUT DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0710-0808		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	0610-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	0610-		●
666	PROTECTOR; UNDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	0610-	●
666	PROTECTOR; UNDER DUMP TRUCK<RA1> EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	0610-		●

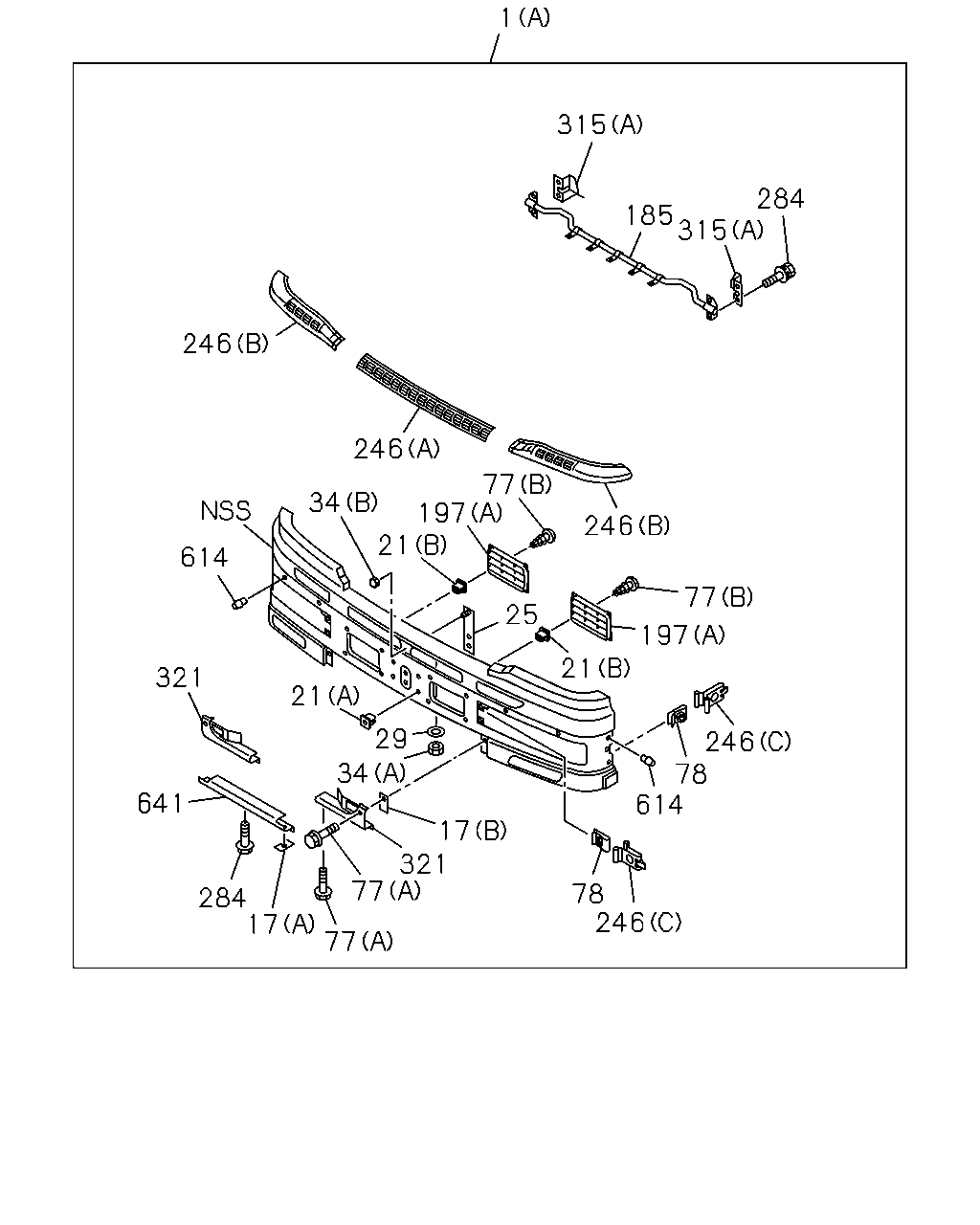

1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 321 21 29 246 78 614 34 641 17 321 77 78 246 284 17 77

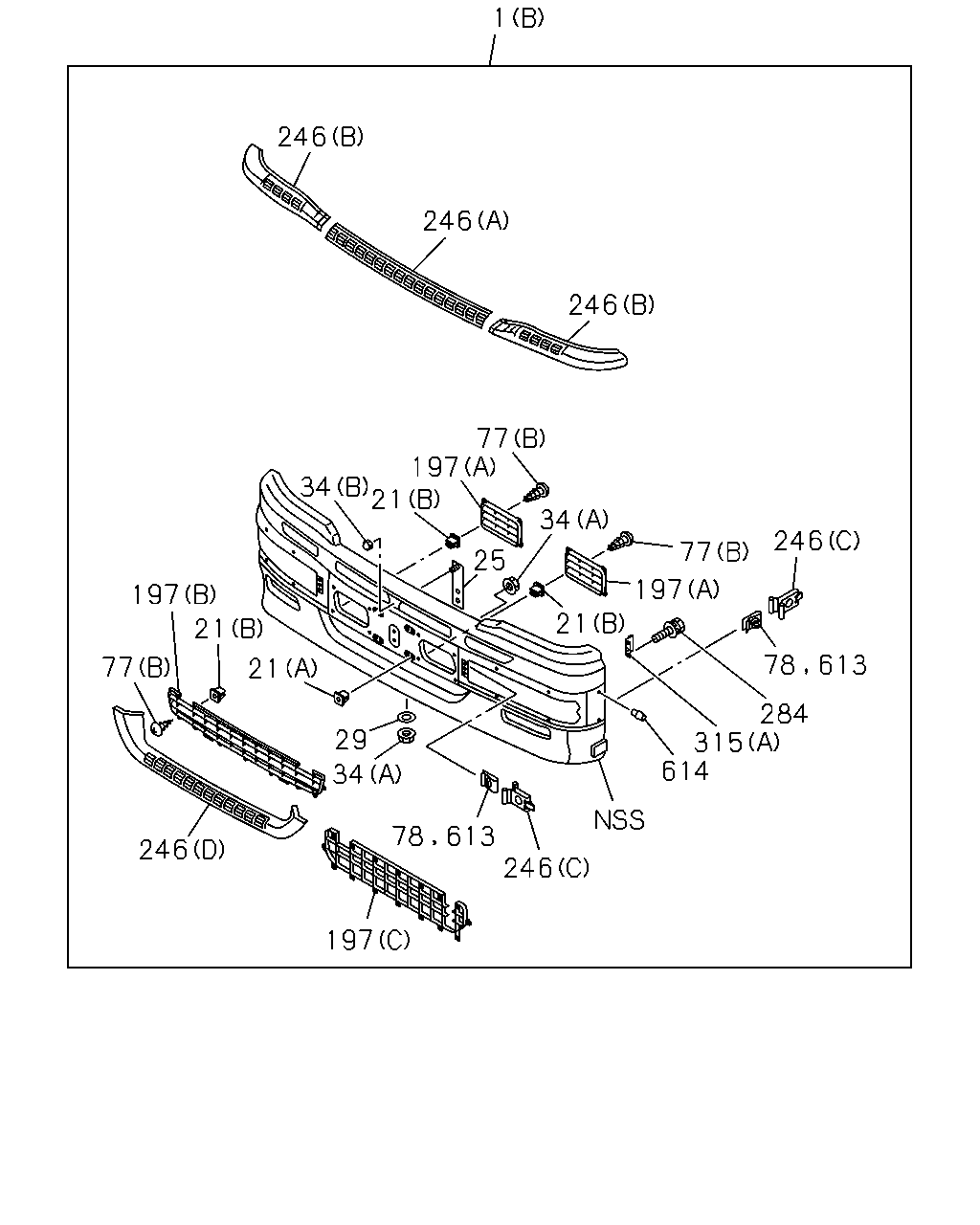

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A) WHITE	8-98098-600-1	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> FACE LIFT<6NL> (B) WHITE	8-98098-599-1	01	1	0806-		●
1	BUMPER ASM; FRT (A) WHITE	1-71211-427-1	01	1	0610-0805	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	1-71211-427-1	01	1	0610-0805		●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A) WHITE	1-71211-427-2	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	1-71211-419-2	01	1	0610-0805		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (B) WHITE	1-71211-419-2	01	1	0806-		●
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	0610-	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	0610-		●
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	0610-	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	0610-		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0610-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0610-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0610-		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0610-		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	0610-	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	0610-	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0610-		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0610-		●
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0610-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	0610-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0610-		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0610-		●
77	SCREW; BRKT FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (B) M5X16 TAPPING	0-71240-516-0	22	1	0806-		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	0610-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0610-		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0610-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0610-		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0610-0805		●
77	SCREW; BRKT FRONT SPOILER<VP1> FACE LIFT<6NL> (B) M5X16 TAPPING	0-71240-516-0	36	1	0806-		●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0610-0610	●
78	NUT; SPIRE	1-71260-174-0	06	1	0610-0610		●
78	NUT; SPIRE	1-71260-174-0	06	1	0611-0805	●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-0805		●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL>	1-71260-174-0	06	1	0806-	●	●
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	0610-	●
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	0610-		●
197	GRILLE; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-503-0	01	1	0806-	●
197	GRILLE; BUMPER FACE LIFT<6NL> (A)	8-97619-503-0	01	1	0806-		●
197	GRILLE; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-504-0	01	1	0806-	●
197	GRILLE; BUMPER FACE LIFT<6NL> (A)	8-97619-504-0	01	1	0806-		●
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	0610-0805	●	●
197	GRILLE; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-115-1	01	1	0806-	●
197	GRILLE; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-115-1	01	1	0806-		●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	0610-0805	●	●
197	GRILLE; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-116-1	01	1	0806-	●
197	GRILLE; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-116-1	01	1	0806-		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	1-71260-210-1	01	1	0610-0610		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (C)	8-97617-998-0	01	1	0611-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-479-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (A)	8-97619-479-1	01	1	0806-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (B)	8-97619-480-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (B)	8-97619-480-1	01	1	0806-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (B)	8-97619-481-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (B)	8-97619-481-1	01	1	0806-		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> FACE LIFT<6NL> (D)	8-97619-484-0	01	1	0806-		●
246	PROTECTOR; BUMPER (B)	1-71260-094-1	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (B)	1-71260-094-2	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (B)	1-71260-094-2	01	1	0806-		●
246	PROTECTOR; BUMPER (B)	1-71260-095-1	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (B)	1-71260-095-2	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (B)	1-71260-095-2	01	1	0806-		●
246	PROTECTOR; BUMPER (A)	1-71260-155-0	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-155-1	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-155-1	01	1	0806-		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	0610-	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	1-71260-156-1	01	1	0610-0805		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (D)	1-71260-156-1	01	1	0806-		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0610-	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0610-	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0610-		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	0610-		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0610-		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-636-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-637-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	0610-		●
321	COVER; BUMPER FRT SIDE	1-71260-263-1	01	1	0610-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-263-1	01	1	0610-		●
321	COVER; BUMPER FRT SIDE	1-71260-264-1	01	1	0610-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-264-1	01	1	0610-		●
614	STOPPER; LID	1-71260-163-0	12	1	0610-	●	●
641	BUMPER; FRT,LWR	1-71211-304-1	01	1	0610-	●
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>	1-71211-304-1	01	1	0610-		●

1 246 246 246 77 197 34 21 34 246 77 25 197 197 21 21 77 21 284 315 614 29 34 246 246 197 78 613 78 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A) WHITE	8-98098-600-1	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> FACE LIFT<6NL> (B) WHITE	8-98098-599-1	01	1	0806-		●
1	BUMPER ASM; FRT (A) WHITE	1-71211-427-1	01	1	0610-0805	●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (A) WHITE	1-71211-427-1	01	1	0610-0805		●
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A) WHITE	1-71211-427-2	01	1	0806-	●	●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	1-71211-419-2	01	1	0610-0805		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (B) WHITE	1-71211-419-2	01	1	0806-		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0610-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0610-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0610-		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0610-		●
25	SPACER; PLATFORM	1-71230-640-0	01	1	0610-	●	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	0610-	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0610-		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0610-		●
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0610-	●	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	0610-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0610-		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0610-		●
77	SCREW; BRKT FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (B) M5X16 TAPPING	0-71240-516-0	22	1	0806-		●
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	0610-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0610-		●
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0610-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0610-		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0610-0805		●
77	SCREW; BRKT FRONT SPOILER<VP1> FACE LIFT<6NL> (B) M5X16 TAPPING	0-71240-516-0	36	1	0806-		●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0610-0610	●
78	NUT; SPIRE	1-71260-174-0	06	1	0610-0610		●
78	NUT; SPIRE	1-71260-174-0	06	1	0611-0805	●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-0805		●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL>	1-71260-174-0	06	1	0806-	●	●
197	GRILLE; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-503-0	01	1	0806-	●
197	GRILLE; BUMPER FACE LIFT<6NL> (A)	8-97619-503-0	01	1	0806-		●
197	GRILLE; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-504-0	01	1	0806-	●
197	GRILLE; BUMPER FACE LIFT<6NL> (A)	8-97619-504-0	01	1	0806-		●
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	0610-0805	●	●
197	GRILLE; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-115-1	01	1	0806-	●
197	GRILLE; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-115-1	01	1	0806-		●
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	0610-0805	●	●
197	GRILLE; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-116-1	01	1	0806-	●
197	GRILLE; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-116-1	01	1	0806-		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	1-71260-210-1	01	1	0610-0610		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (C)	8-97617-998-0	01	1	0611-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (A)	8-97619-479-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (A)	8-97619-479-1	01	1	0806-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (B)	8-97619-480-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (B)	8-97619-480-1	01	1	0806-		●
246	PROTECTOR; BUMPER FACE LIFT<6NL> EXC. FRONT SPOILER<VP1> (B)	8-97619-481-1	01	1	0806-	●
246	PROTECTOR; BUMPER FACE LIFT<6NL> (B)	8-97619-481-1	01	1	0806-		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> FACE LIFT<6NL> (D)	8-97619-484-0	01	1	0806-		●
246	PROTECTOR; BUMPER (B)	1-71260-094-1	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (B)	1-71260-094-2	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (B)	1-71260-094-2	01	1	0806-		●
246	PROTECTOR; BUMPER (B)	1-71260-095-1	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (B)	1-71260-095-2	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (B)	1-71260-095-2	01	1	0806-		●
246	PROTECTOR; BUMPER (A)	1-71260-155-0	01	1	0610-0805	●	●
246	PROTECTOR; BUMPER EXC. FRONT SPOILER<VP1>,FACE LIFT<6NL> (A)	1-71260-155-1	01	1	0806-	●
246	PROTECTOR; BUMPER EXC. FACE LIFT<6NL> (A)	1-71260-155-1	01	1	0806-		●
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	0610-	●	●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (D)	1-71260-156-1	01	1	0610-0805		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> EXC. FACE LIFT<6NL> (D)	1-71260-156-1	01	1	0806-		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0610-	●	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0610-	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0610-		●
315	STAY; BUMPER (C)	1-71230-434-0	02	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	02	1	0610-		●
315	STAY; BUMPER (B)	1-71230-491-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0610-		●
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-492-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-636-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0610-		●
315	STAY; BUMPER (A)	1-71230-637-0	01	1	0610-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	02	1	0610-		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	02	1	0610-		●
613	CLIP FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-0805		●
613	CLIP FACE LIFT<6NL> EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0806-	●	●
613	CLIP FRONT SPOILER<VP1>	1-71260-174-0	06	1	0806-		●
614	STOPPER; LID	1-71260-163-0	12	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
